Machine Type |

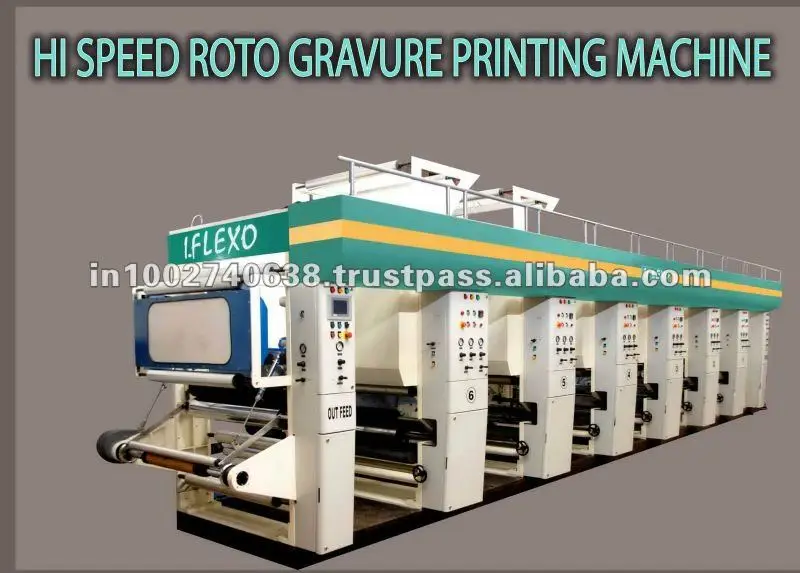

Rotogravure Printing Machine |
Rotogravure Printing Machine |
Rotogravure Printing Machine |
No. of Station Unit |
2 Colors |
4 Colors |
6 Colors |
Model No. |
IF-2220 RG |
IF-4220 RG |
IF-6220 RG |
Maximum Printing width |
700MM(28”)/1050mm(42”) |
700mm (28”)/1200mm(48”) |
700mm (28”)/1200mm(48”) |
Printing Variable Cylinder |
From minimum 350 mm To Maximum 800mm |
From minimum 300 mm To Maximum 800mm |
From minimum 300 mm To Maximum 800mm |
Maximum Reel diameter |
700 mm at Un-winder |
700 mm at Un-winder |
700 mm at Un-winder |
Core inner diameter |
76mm. at Un-winder and Winder |
76mm. at Un-winder
76mm. At Winder |
76mm. at Un-winder and Re-winder |
Power Requirement |
Main drive 3 H.P. A.C.
Blower 1 H.P.
Heaters 6 H.P. X 2
Torque motor 2 H.P.
Web aligner 0.5 H.P. |
Main drive 5 H.P. A.C.
Blower 1 H.P.
Heaters 4 H.P. X 4
Torque Motor2 H.P.
Web aligner 0.5 H.P |
Main drive 5 H.P. A.C. / 7.5 H.P. A.C.
Blower 1 H.P. X 6
Heaters 4 H.P. X 6
Web aligner 0.5 H.P |
Un-winder |
1 set
Mechanical Brake Shaft made from EN-8 material with collar nut.
|
1 set
Magnetic Powder Brake
Shaft made from EN-8 material with collar nut. |
1 set
Magnetic Powder Brake
Shaft made from EN-8 material with collar nut.
|
Printing Stations |
- 2 set body
- Gear Boxes with highly efficient bevel gears.
- Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.
- Draying hoods 2 nos.
- Design in such away to blow uniform of Web.
- Flow can be control by damper.
- Digital Temperature controller are Provided.
- Doctor blade with oscillation system.
- It can be adjustable to different wiping angle.
- Balanced guide rolls from Aluminum pipe.
|
- 4 set body
- Gear Boxes with highly efficient bevel gears with neutral arrangement.
- Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.
- Draying hoods 2 nos.
- Design in such away to blow uniform of Web.
- Flow can be control by damper.
- Blind Temperature controller/ indicators are provided.
- Doctor blade with oscillation system.
- It can be adjustable to different wiping angle.
- Balanced guide rolls from Aluminum pipe.
|
- 6 set body
- Gear Boxes with highly efficient bevel gears with neutral arrangement.
- Ink trays with design to less wastage, less ink requirements & less evaporation of Toluene.
- Draying hoods 2 nos.
- Design in such away to blow uniform of Web.
- Flow can be control by damper.
- Blind Temperature controller/indicators are provided.
- Doctor blade with oscillation system.
- It can be adjustable to different wiping angle.
- Balanced guide rolls from Aluminum pipe.
|
Re-winder |
- 1 set.
- Shaft with collar and nut.
|
- 1 set.
- Shaft with collar and nut.
- For rewinding Torque motor assembly.
|
- 1 set.
- Shaft with collar and nut.
- Tension Controller on Re-winder.
|
Machine Speed |
- Mechanical up to 100 m/min.
- (Depending on type of inks, nature and thickness of material printing cylinder.)
|
- Mechanical up to 100 m/min.
- (Depending on type of inks, nature and thickness of material printing cylinder.)
|
- Mechanical up to 100 m/min.
- (Depending on type of inks, nature and thickness of material printing cylinder.)
|
Material to Print |
BOPP, LDPE, POLYESTER etc. |
BOPP, LDPE, POLYESTER etc. |
BOPP, LDPE, POLYESTER etc. |
Counter Meter |
|
|
|
