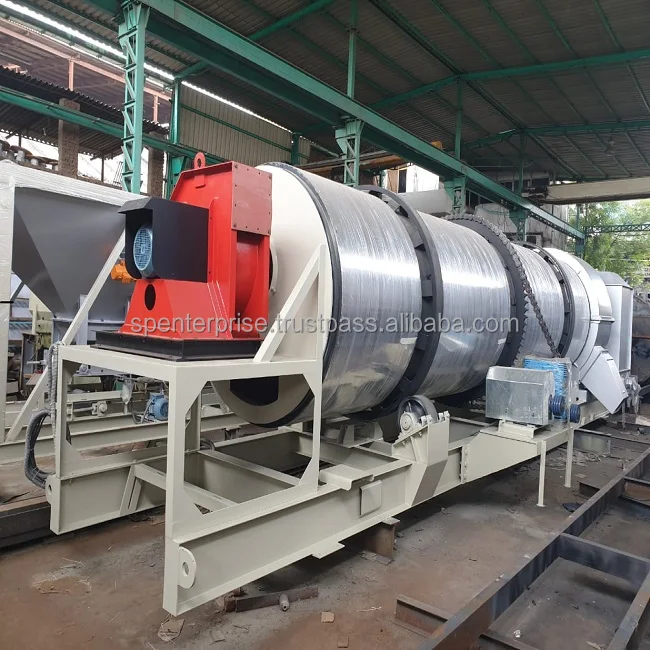

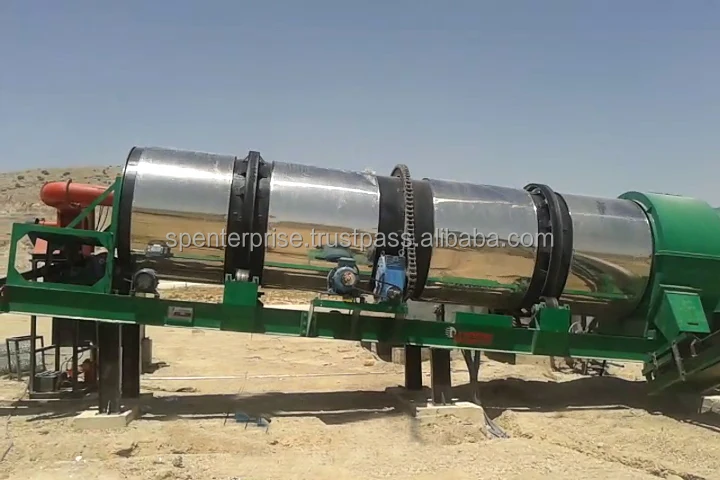

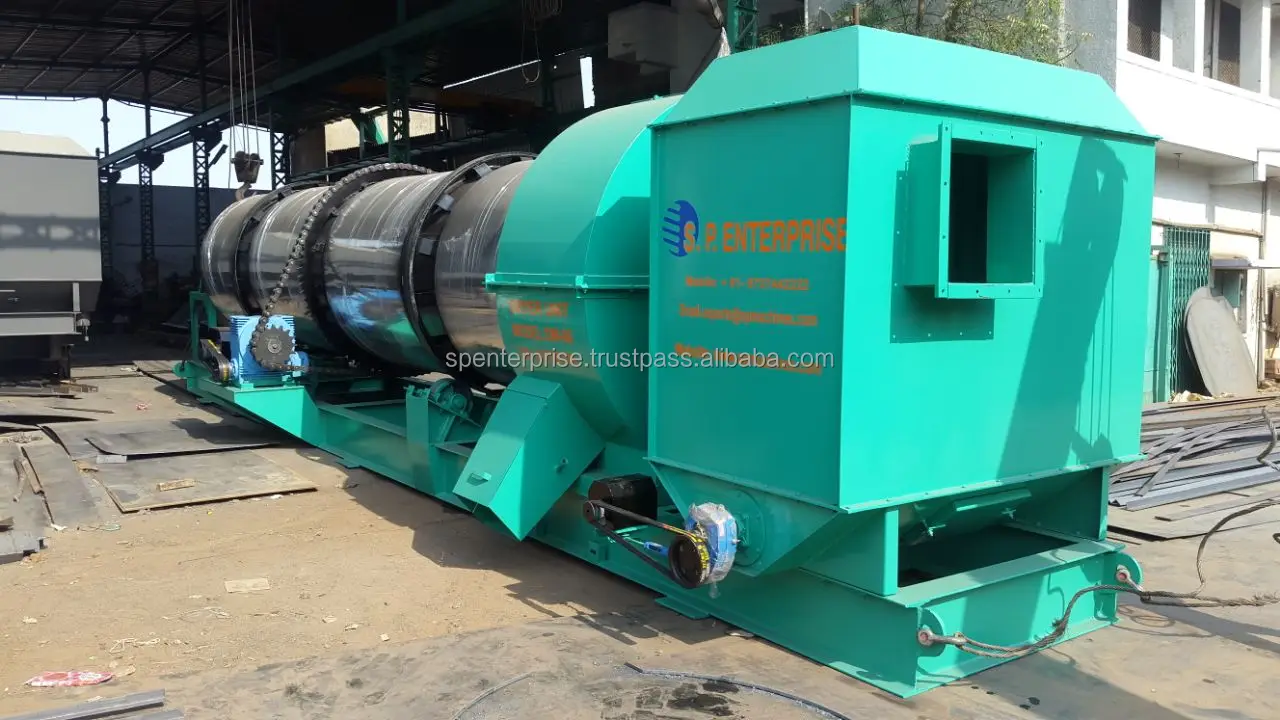

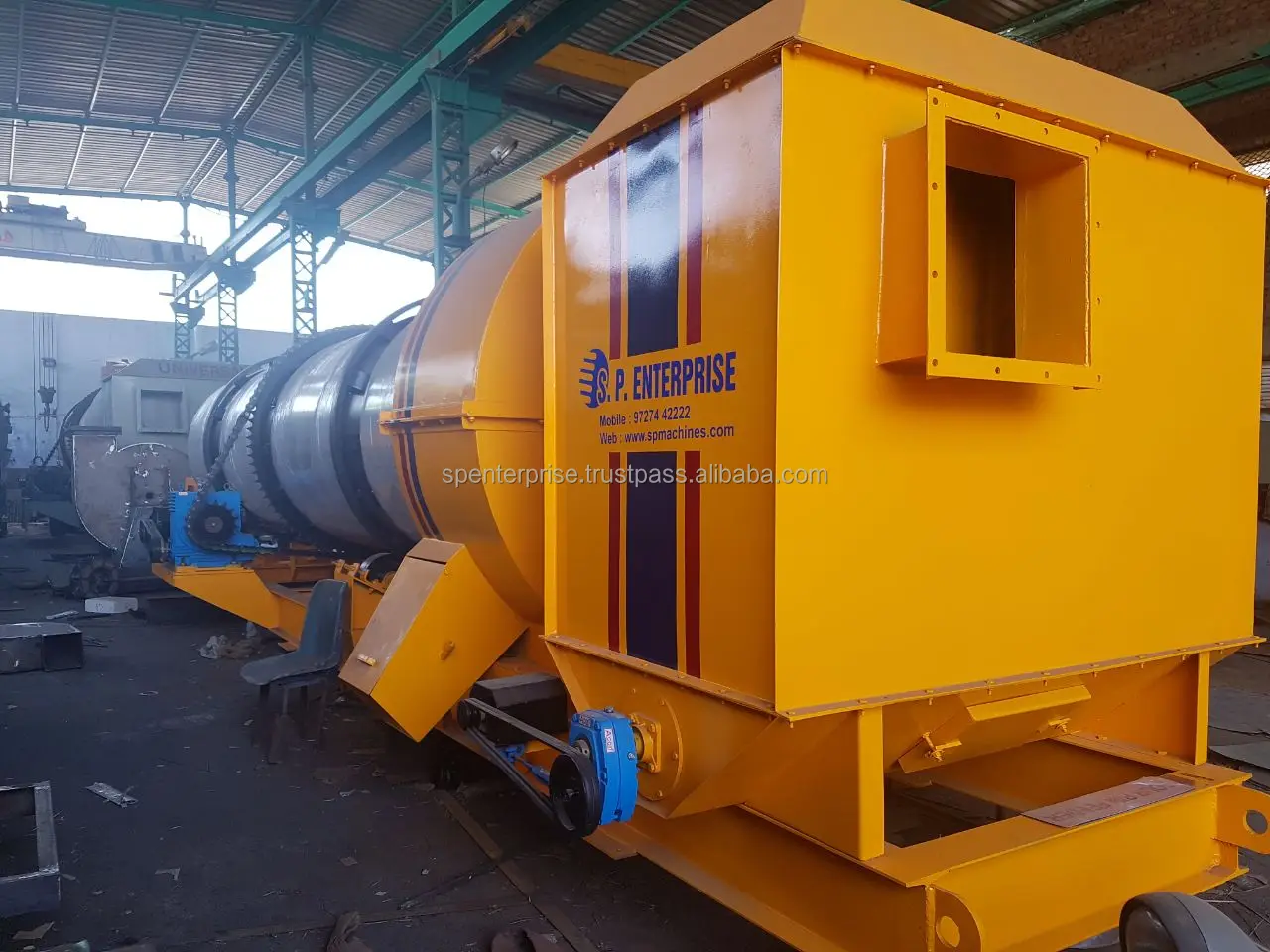

Asphalt Mixing Plant Dryer Drum for Drying and Mixing

Parallel Flow Rotary Drying and Mixing Drum for Asphalt Mixing Plant in output capacity ranging from 40 TPH to 120 TPH in standard models and as per customer's requirement. They are insulated and offered with Auto Burner, Chain Drive, Discharge Chamber, Multi Cone Primary Dust Collector and Exhaust System.

They suitable for Asphalt Drum Mix Plant in output capacities ranging from 30 tph to 120 tph.

Parallel flow type wherein drying takes place in primary zone and mixing takes place in secondary zone.

Dryer Burner, Rotary Drum, Discharge Chamber, Primary Dust Collector & Exhaust system is mounted inline on robust and sturdy frame fabricated from heavy duty structural steel.

Rotary drum is insulated with ceramic wool and covered by S.S. sheet for reducing heat loss and fuel consumption.

The drum is either driven by heavy duty chain or by trunnion rollers coupled to geared motors.

Precisely machined and surface hardened trunnion & thrust rollers supports the drum and take care of uphill and downhill thrust.

High efficiency lifters arrangement provides a complete dense veil across the burner flame within the dryer resulting in best heat transfer.

Primary dust collector traps the heavy dust particles escaping with the exhaust gases.

In capacities from 30 tph to 120 tph.

We are an ISO 9001:2015 certified manufacturers & exporter of various Road Construction Equipments based in Ahmedabad, India. S.P. Enterprise was established in 1999 and now has over 15 years of experience in the Road Construction Machinery industry. The company is promoted by a team of professionals having hard core experience in the industry.

We manufacture continuous type Stationary and Mobile Asphalt Drum Mix Plants. Asphalt Drum Mix Plant is preferable for higher production rates and it produces best quality hot mix asphalt at lower capital, operating & maintenance cost. Our Asphalt Drum Mix Plant is simple in design and modular in construction hence it is easy to operate & maintain.

Our other offerings to road construction industry are Bitumen Sprayer, Asphalt Paver Finisher, Chip Spreader, Road Broomer, Wet Mix Macadam Plant, Hot Mix Cum Wet Mix Plant, and Stationary and Mobile Concrete Batching / Mixing Plant.

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the     machine.

* Engineers available to service machinery overseas.
