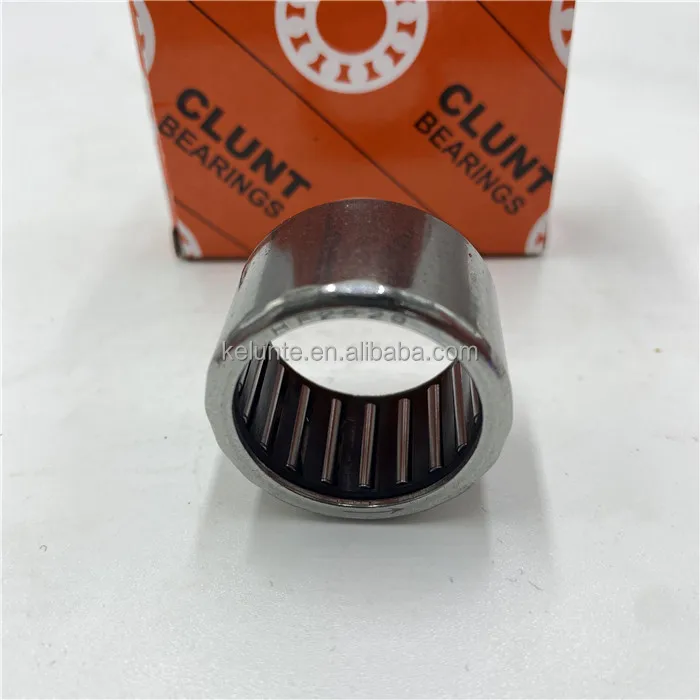

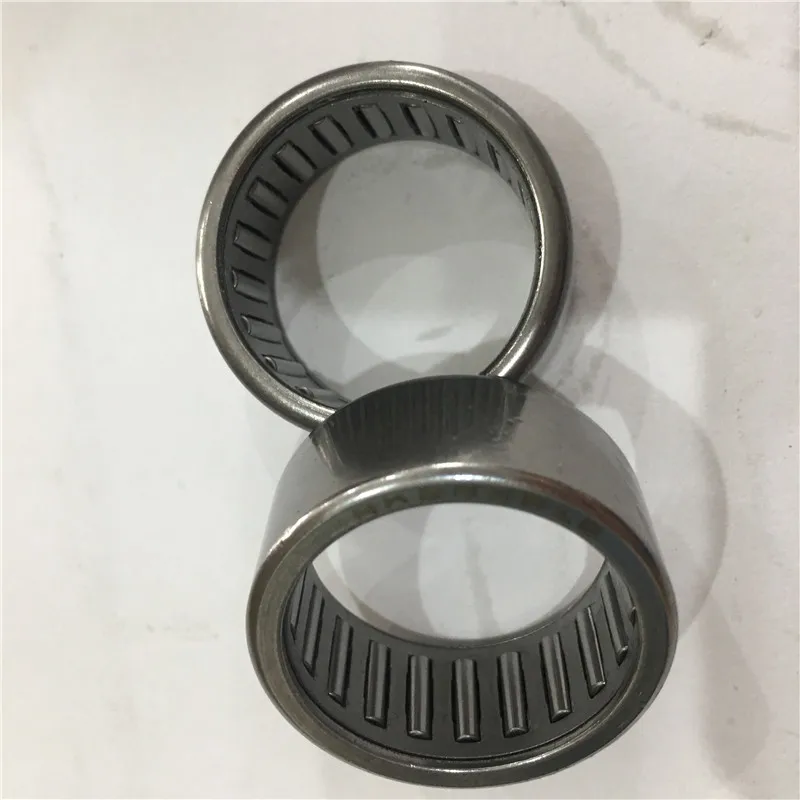

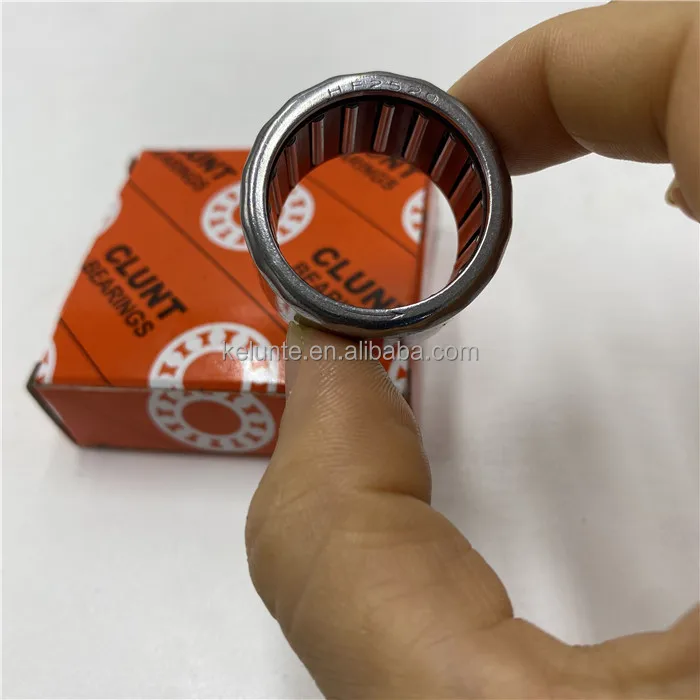

HF0306 Drawn cup roller clutches bearings needle


HF3020 (1)HF2520 (1)HFL2530..HF2520 (2)HF2520 (4)

Descriptions of HF0306 Clutches bearings needle

Needle bearings use a roller style rolling element to reduce friction of rotating surface and are more compact as the clearance has been reduced. Typically, the needle bearings consist of inner race, needle shaft, which orients the needle roller and an outer race. Needle bearings are primarily used in engine components, such as rocker arm pivots, pumps, compressors and transmissions.

Needle roller and cage type bearings use a roller style rolling element however, they do not include inside and outside races to maximize allotted space. Needle roller and cage type bearings have a larger surface area that is in contact with the bearing outer surface compared to traditional ball bearings. Typically, the needle roller bearings consist of needle cage, which orients and contains the needle rollers, and the needle rollers themselves. Needle roller and cage type bearings are predominantly used in engine components.

Drawn cup needle roller clutches have a small radial section height and are also commonly known as One Way Bearings or Anti-Reverse Bearings. This design uses the same small radial section as drawn cup needle roller bearings which make better use of available space. The units are compact, lightweight and operate directly on a shaft; they are also suitable for transmitting high torque.

One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction. Proper mounting is easily accomplished with a simple press fit in the housing. Clutches and clutch and bearing assemblies are offered both in inch and metric series. One Way Bearings without bearing assemblies are indicated by suffix: HF/FC/RC. One Way Bearings with bearing assemblies are indicated by suffix: HFL/FCB/RCB.


One-way Needle Roller Bearings




Nylon, Stainless, GCr15(Aisi52100), ST14 or as customers' requirement


P0, P6, P5, P4


C0,C1,C2,C3,C4,C5 etc.

Cage Type

Brass cage,Stainless cage or as customers' requirement


High load-carrying capacity,

Suitable for high speeds,

Particularly easy to install,


Gear pumps,


Automotive transmissions,

Two-cycle engines .etc


pallet, wooden case,industrial package or as customers' requirement

 For shaft diameter
in mm
HF6 - 35with steel springs
HF..-KF3 - 10with plastic springs
HF..-KF-R3 - 8with plastic springs and knurled outer ring
HF..-R6 - 8with steel springs and knurled outer ring
HFL6 - 35with plain or rolling bearing arrangement, steel springs
HFL..-KF3 - 8with plain or rolling bearing arrangement, plastic springs
HFL..-KF-R3 - 8with plain or rolling bearing arrangement, plastic springs, knurled outer ring
HFL..-R6 - 8

with plain or rolling bearing arrangement, steel springs, knurled outer ring






























Specifications of HF0306 Clutches bearings needle


Fw3 mm
D6,5 mm
C6 mmTolerance: -0,3
rmin0,3 mm
m1 gMass
Md zul0,18 NmPermissible torque
nGW45000 1/minLimiting speed with rotating shaft (valid for grease and oil lubrication)
nGA8000 1/minLimiting speed with rotating outer ring (valid for grease and oil lubrication)
 HK0306-TVSuitable drawn cup needle roller bearings for radial bearing arrangement










































Classification and Characteristics of  HF0306 Clutches bearings needle

Needle roller bearings have relatively small diameter cylindrical rolling elements whose length is much larger than their diameter.

Compared with other types of rolling bearings, needle roller bearings have a small cross-sectional height and significant load-bearing capacity and rigidity relative to their volume. Also, because the inertial forces acting on them is limited, they are an ideal choice for applications
with oscillating motion. Needle roller bearings also work well in compact and lightweight machine designs and they serve as a ready replacement for sliding bearings.


• HFL series has two integral radial bearings arranged on both sides of needle roller clutch. They can therefore support radial forces in particularly space-saving bearing arrangements.
• Plastic springs (HFL...KF) are available for some sizes.
• Partially knurled outer ring (HFL...R) is available upon request.
• A special tool is suggested when assembling the clutch and bearing assembly. For details please contact our engineers.
• Only after the clutch and bearing assembly has been pressed into the hole of the housing, the drawn thin-walled outer ring could then obtain its final dimension and geometric accuracy.
• The transmissible torque and the stresses which can be taken by the housing are subject to the material and the wall thickness of the housing, and such data is needed upon enquiry.
• The clutch and bearing assembly can be normally used in temperature range from -30°C to 120°C. For the working environment above 70°C, oil lubrication is recommended.


• Torque can be transmitted by either the housing or the shaft.
• Torque is positively transmitted by rollers that wedge against interior ramps.
• Transition from free motion to lock occurs with minimal backlash or lost motion.
• Available as clutch-only or as a clutch and bearing assembly.
• Clutch-only units should be used with external radial support to hold the shaft and housing.


• Paper moving for copiers, fax machines, paper towel dispensers, etc.
• Exercise equipment
• Appliances
• Two-speed gearboxes
• Rack indexing drives
• Converters, non-return devices and transcendental clutches.
• Fishing Reels, RC Cars, RC Helis, RC Engines


Although the outer cup of the clutch is accurately drawn from strip steel, it can go slightly out of round during heat treat. When the assembly is pressed into a ring gage or properly prepared housing of correct size and wall thickness, it becomes round and properly sized. Direct measurement of the outside diameter of a drawn cup assembly is an incorrect procedure. The proper inspection procedure is as follows:

1. Press the assembly into a ring gage of the proper size as given in the tabular data.
2. Gage the bore with the specified plug gages of the proper size, as given in the tables of dimensions.

- The locking plug is rotated to insure lockup when the clutch is operated at low limit shaft and is mounted in a high limit housing strong enough to properly size the clutch.
- The overrun plug is rotated to ensure free over-running when the clutch is operated on a high limit shaft and is mounted in a low limit housing.
- The go plug and no go plug insure proper size of the bearings in the clutch and bearing assemblies.


Simplicity of installation promotes additional cost savings. The drawn cup roller clutch, or the clutch and bearing assembly, must be pressed into its housing. The unit is pressed into the bore of a gear hub or pulley hub, or housing of the proper size, and no shoulders, splines, keys, screws or snap rings are required. Installation procedures are summarized in the following sketches:

Use an arbor press or hydraulic ram press which will exert steady pressure. Never use a hammer or other tool requiring pounding to drive the clutch into its housing.

Make sure that the housing bore is chamfered to permit easy introduction of the clutch and bearing or the clutch unit. Press unit slightly beyond the chamfer in the housing bore to assure full seating. Through-bored housings are always preferred. If the housing has a shoulder, never seat the clutch against the shoulder.

IMPORTANT: The mounted clutch or clutch and bearing assembly engages when the housing is rotated relative to the shaft in the direction of the arrow and LOCK marking stamped on the cup. Make sure that the unit is oriented properly before pressing it into its housing.

Use an installation tool as shown in the diagram below. If clutch is straddled by needle roller bearings, press units into position in proper sequence and preferably leave a small clearance between units. When assembling the shaft, it should be rotated in the overrun direction during insertion. The end of the shaft should have a large chamfer or rounding.
