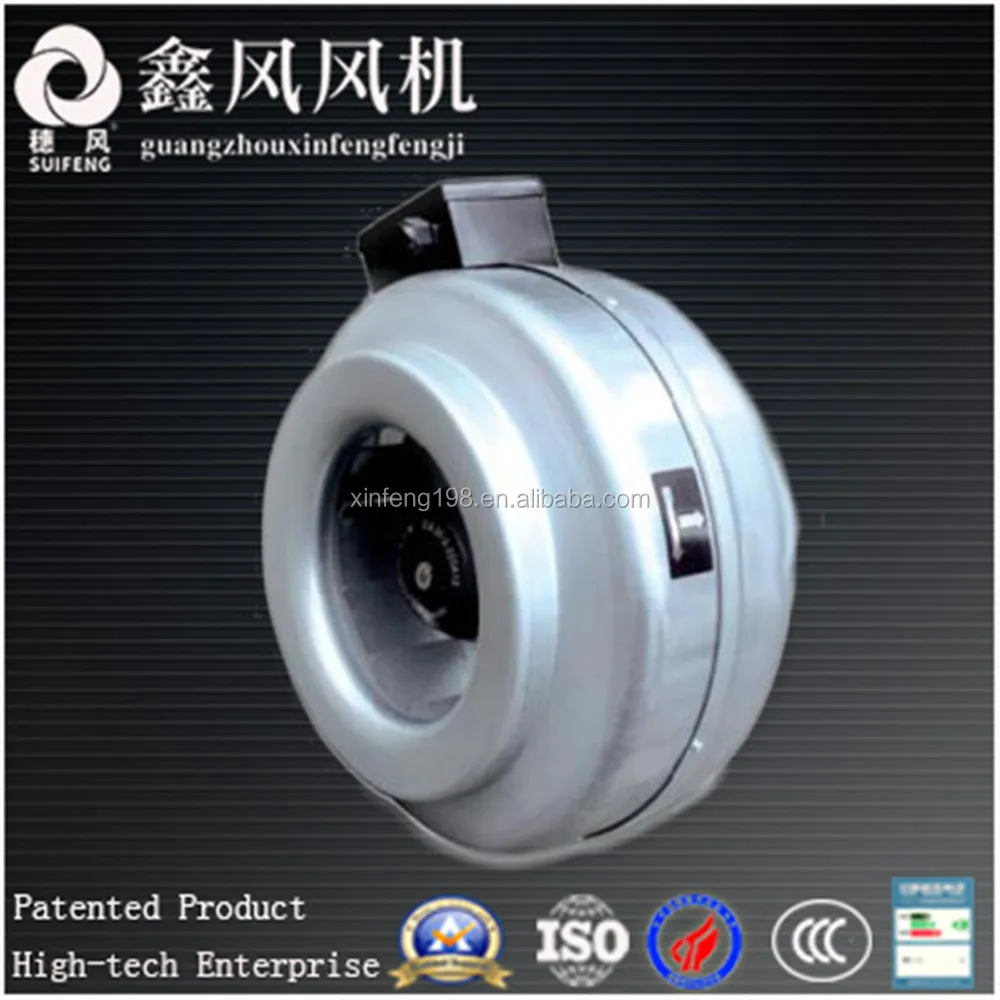

TSK 125mm Nice circular duct fans

Product Overview

Description

Circular duct fan

   Circular duct fan is the ideal ventilator with a perfect performance and appearance.

  The ingenious cooperation between the new design of case and backward centrifugal impeller

  take the gas dynamics and fluid dynamics to the extremes.

  It is small in size and very practical. Has the advantages of easy installation, light weight, low noise characteristics.

  Provides the source power for air supply, exhaust, air return and air purification treatment.

  The ultra high pressure can be connected with a pipeline of tens of meters. A fan control of multi area centralized ventilation.

  Widely used in residential buildings, indoor ventilation and pipeline pressure.

   Circular duct fans on both sides of the pipeline can be the same, one side into the wind and the other side out of the wind.

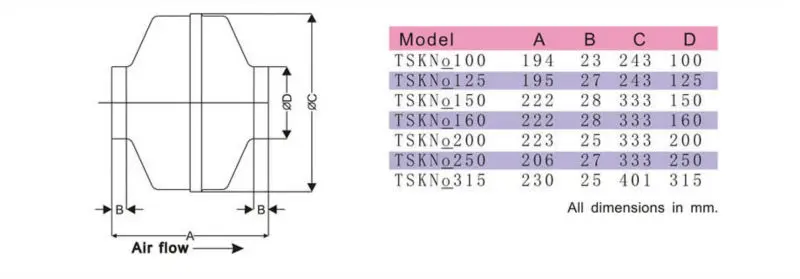

                                                                                                 outline dimension

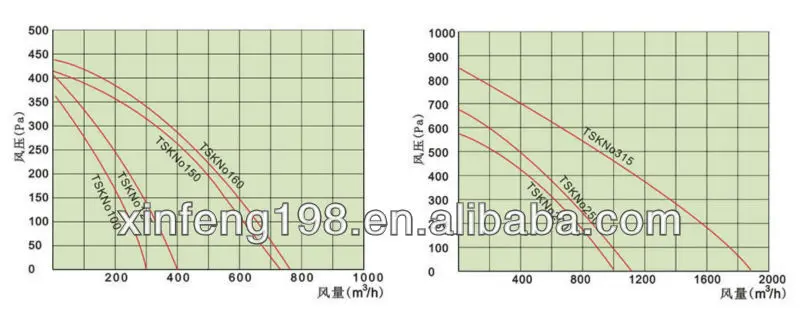

                                                             Fan performance table



Model	Rotation speed(r/min)	Air volume   (m³/h)	Static pressure(pa)	Power(kw)	Motor (v)	Frequency (hz)	Noise db(A)	Weight(kg)
TSK100	2500	290	350	0.078	220	50	47	3
TSK125	2500	405	390	0.08	220	50	47	3
TSK150	2500	720	400	0.13	220	50	52	5
TSK160	2500	755	420	0.13	220	50	52	5
TSK200	2500	1000	550	0.17	220	50	53	5
TSK250	2500	1105	670	0.18	220	50	55	6
TSK315	2500	1875	830	0.35	220	50	56	8
TSK315	2500	1875	830	0.35	220	50	56	8

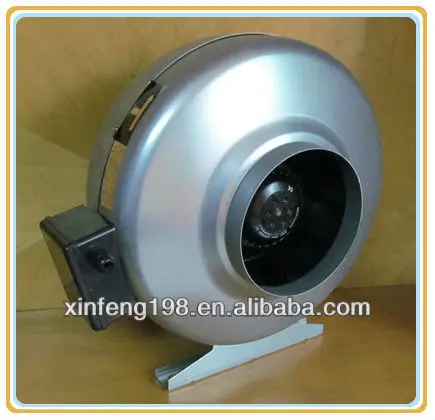

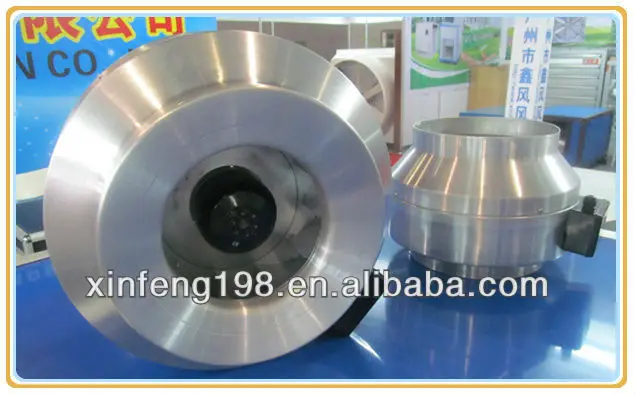

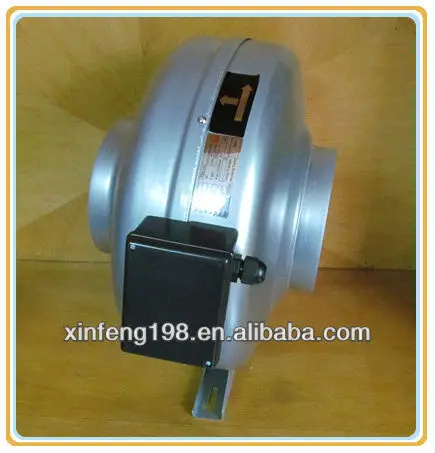

                                                                      Product pictures
