SY3160 One outlet POE RJ45 surge protector/Network lightning SPD surge protection device/Surge arrestor for computer network

Product Overview

Description

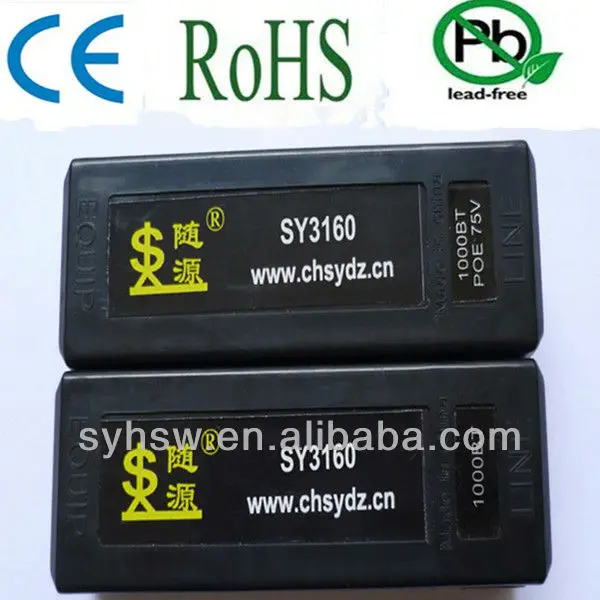

Lightning arrester /  RJ45 surge protector  SY3160



This RJ45 surge protective device are widely used to against the lightning in the electronic equipment introducing data system, such as modern, server, working station, Hub, etc.



POE surge protector SY3160 is one of RJ45 surge protector, with DPR to against the lightning.



1. Specifications Details



Type	SY3160
Connection	Ethernet RJ45 Cat6  with POE
Data rate	10/100/1000Mb/s
Line voltage	60V
Max continuous operationg voltage	POE 75V
Max surge discharge current	5KA(8 to 20 μ s)
Protected pins	All pins
Mounting	Grounding clip & Grounding terminal
Shell material	ABS
Dimensions	26*26*95mm
Package inch	40*26*105mm
Weight	52g

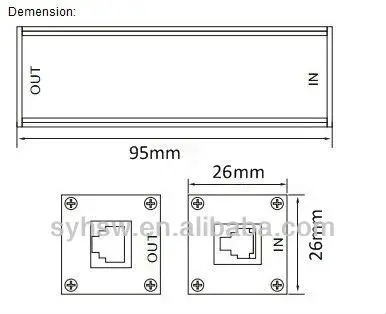

2.Dimensions



3.Main feature:



1.ABS material profile shell, attractive and durable, good shielding effect;

2.RJ 45, convenient to use, reliable connection;

3.Introducing multilayer protection circuit, selecting the latest high-speed surge protection device of quick response, low output residual voltage and super transmission performance.



4.Package

Surge protector  x 1

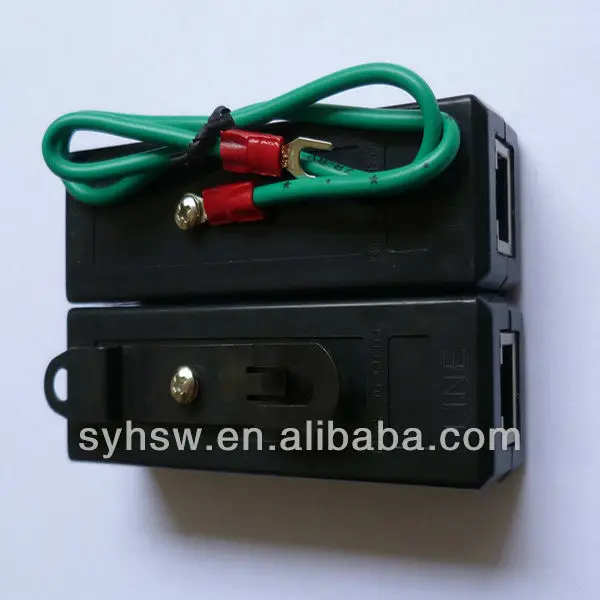

Grounding terminal/Grounding clip x 1

Manuals/Instructions x 1



5.Certificates

 CE certificate

 Compliant to ROHS

 Lead-free



6.Service

  A.OEM, small order accepted

  B. If there is other requirements, pls send us your specs, thanks!



Welcome your inquiry, we will do our best to support you!
