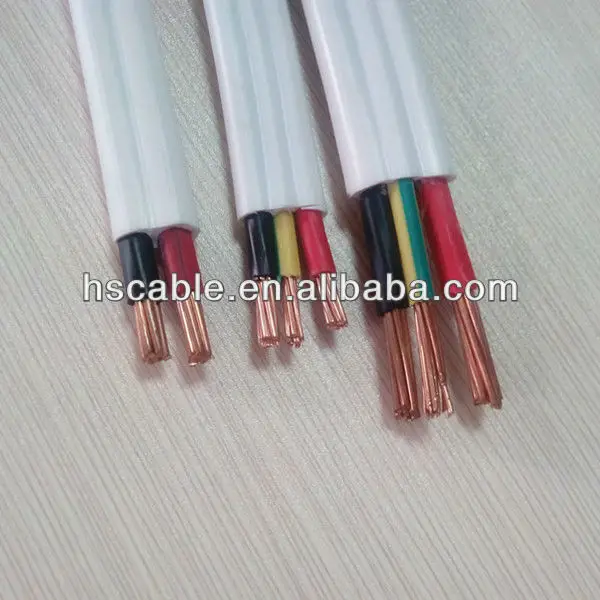

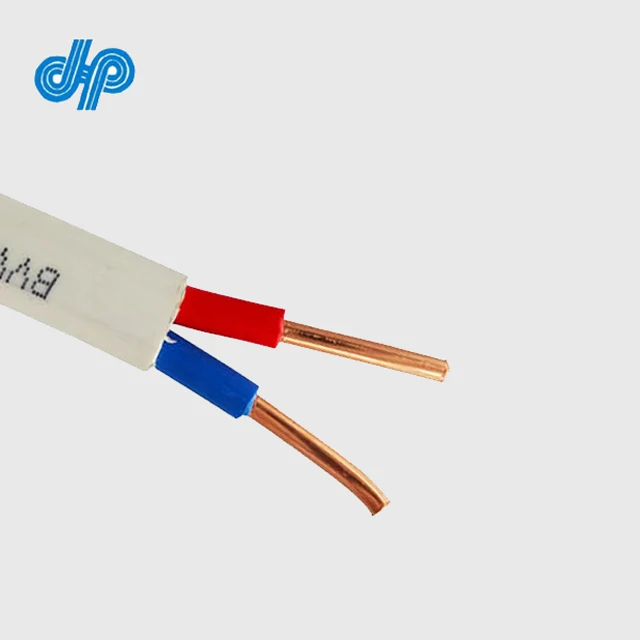

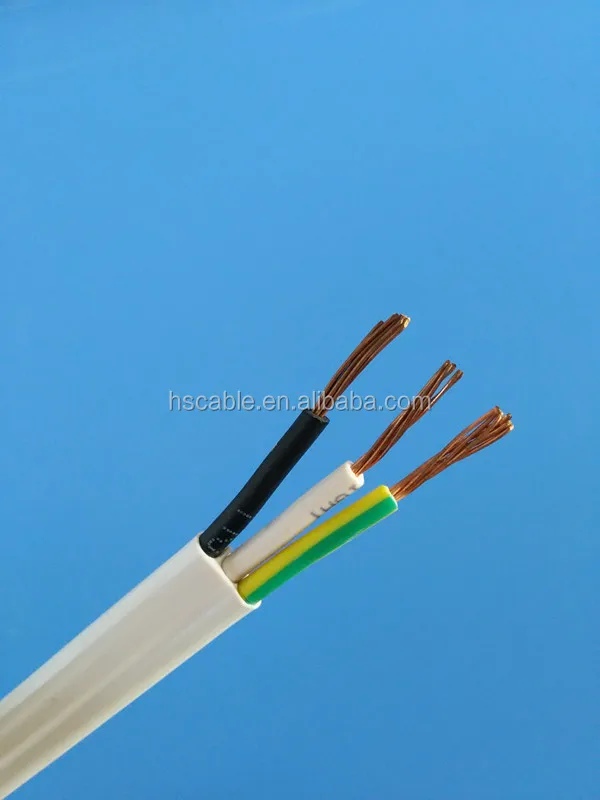

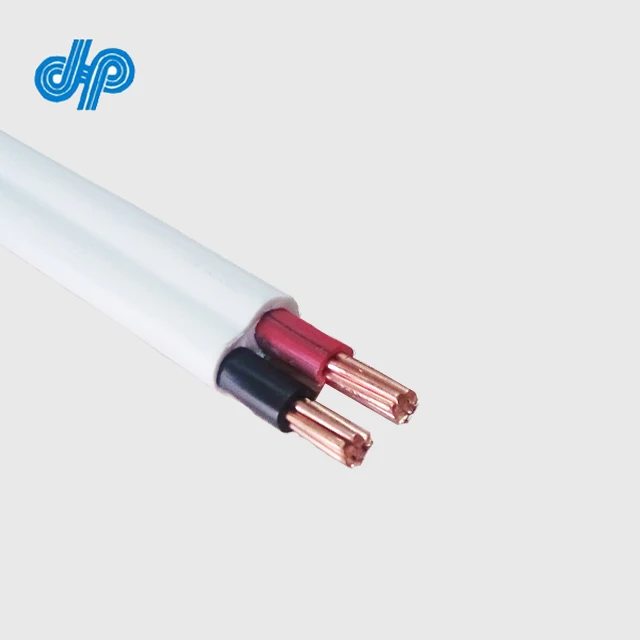

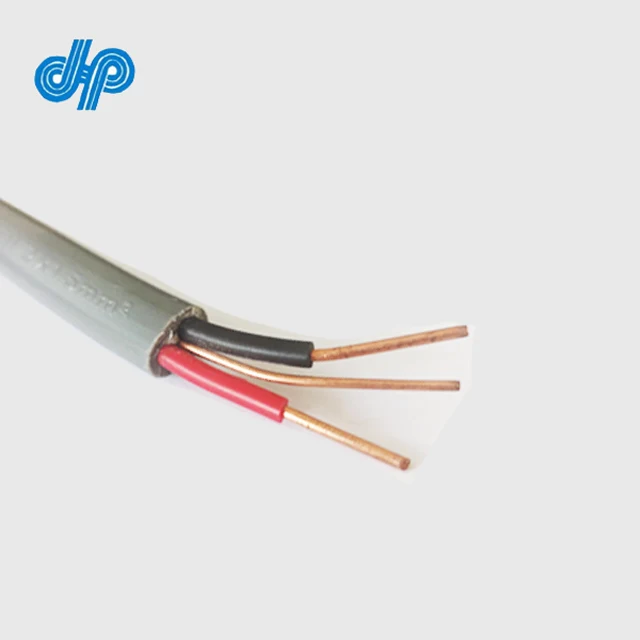

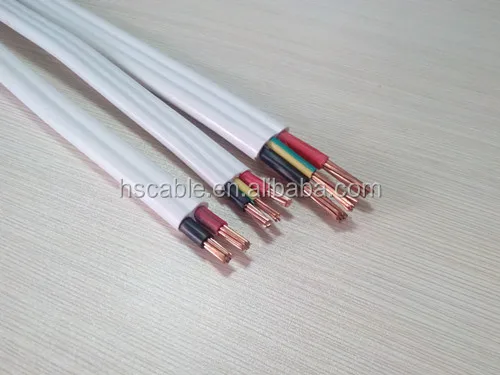

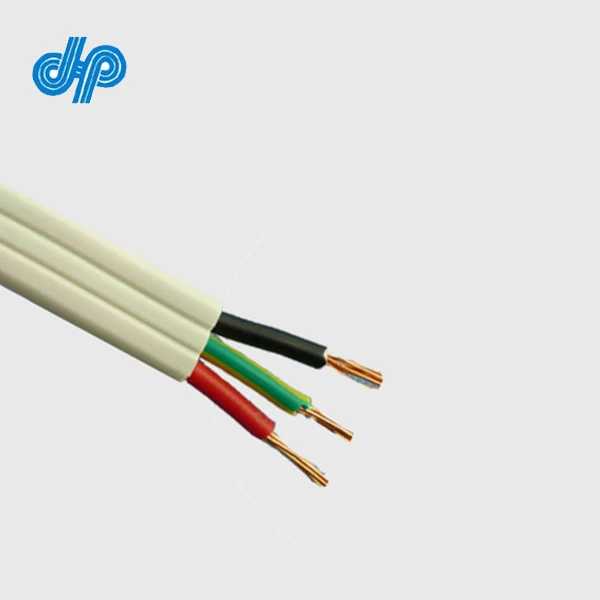

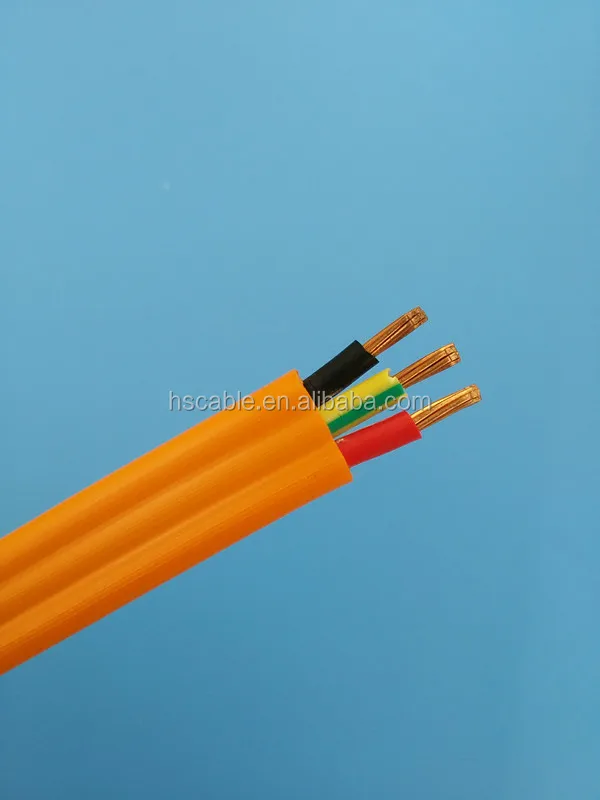

450/750V 2C E 1.5mm2 TPS Electrical Wire Flat Cable

For fixed applications in power and lighting circuits in installations.

Fixed installation in dry or damp areas for domestic and light industrial wiring.

4.Conductor

Class 2 stranded plain copper conductors to AS/NZS 1125:2001 Table 2.3

5.Core identification

(a) Phase cores: red.

(b) Neutral core: black.

(c) Earth core: green/yellow.

the earth to occupy an inner position

6.Sheath Colour

White

7.Insulation

PVC (Thermoplastic polyvinyl chloride) to AS/NZS 3808:2000 Table 5,

PVC compounds for 90°C maximum continuous operating temperature.

Type V-90 or V-90HT

8.Sheath

PVC (Thermoplastic polyvinyl chloride) to AS/NZS 3808:2000 Table 6, PVC compounds for 90°Cmaximum continuous operating temperature. Type 5V-90

9.Voltage Rating

450/750V

10.Temperature Rating

90°C

Conductor Number

Nominal conductor area

Nominal Thickness of Insulation

Nominal Thickness of Sheath

Nominal Overall Diameter

Nominal Weight

mm2

mm

mm

mm

kg/Km

2

1.50

0.6

0.9

7.4×4.7

67

2.50

0.7

1.0

9.1×5.6

105

4.00

0.8

1.1

10.8×6.5

155

3

1.50

0.6

0.9

10.2×4.7

96

1.50(earth)

0.6

2.50

0.7

1.0

12.6×5.6

148

2.50(earth)

0.7

4.00

0.8

1.1

14.3×6.6

201

2.50(earth)

0.7
