Marine Triple quick release mooring hook

Product Overview

Description

Triple towing hook:

Marine Triple quick release mooring hook:

Feature:

1. Durable, long lifetime.

2. Warranty period: 12 Months.

3. Excellent quality and fair price

Material:hook body:quality alloy.

Quick release hook will be entirely sprayed with zinc and the thickness.
Supply Scope:Single QRH.Double QRK, Triple QRH,Quadruple QRH and Six QRH.

Main technical hook:

pull of hook body for one unit:                    350-2500KN

quantity of hook body for one handle:         3 hooks

operating force by handle:                        <150N

swing angle of hook body in horizontal:      45~90⁰

swing angle of hook body in vertical:           45⁰

puling speed of electric capstan:                 18~25m/min

pull of electric capstan:                               10KN~30KN

working diameter of capstan:                      250mm

Capstan

Nominal pull: 1500 kg

Max pull : 3000 kgs

Hauling in speed: 20-30 Metres/min

Motor

Motor Type: ABB (Drawing attached)

Motor Capacity:7.5KW AT±1500 RPM

Power supply: 415V.3 Phase 50HZ

Insulation Class: F

Protection: IP65

Motor started: EX II 2 GD EExd-IIB-T4

Reversible with integrated brake

ATEX Certified

Starter/Foot Switch

Foot Switch Explosion proof grade: EX II 2 GD EExd-IIB-T4/ EX II 2GD EExd-IIC-1

Protection: IP65

ATEX Certified

Standard Coating:

One Layer Epoxy Zinc D.F.T. 40mu. And One Layer Epoxy (Black) D.F.T. 200mu., After Shot blasting to SA2.5

Material:

Hook:ZG35CrMo, Hook Housing:Q345B, All Axis Pin:40Cr,Foundation Bed:Q345B, Basic Material:35#,

Rope guide: stainless SS316 without painting.

Scope of Product Supply:

Complete equipment including hooks, Frame for hook, Steel structure for Motor and Gear Motor, Capstan, Foot switch, Control Panel, Holding Down Bolts and Template

Scope of Certificate and Report Supply:

ABS Certificate ,Inspection Release Note, Certificate of Conformity, Test and Inspection Plan, WPS, PQR, Welder Qualifications, Weld Map, NDT Report, Operator Qualification, Material Certificate, Dimensional Report, FAT Report, Motor Certificate Paint Inspection Report

Certificate:CCS,ABS,BV,DNV,GL

Also,We could produce as clients draiwng or do OEM

Available type:

Manual release spring towing hook

Pneumatic control spring towing hook

Manual release disc type towing hook

Pneumatic control disc type towing hook

Manual release harbour type towing hook

Pneumatic control harbour type towing hook

Single hook assembly

Double hook assembly

Triple hook assembly

Quardruple hook assembly

Pelican hook

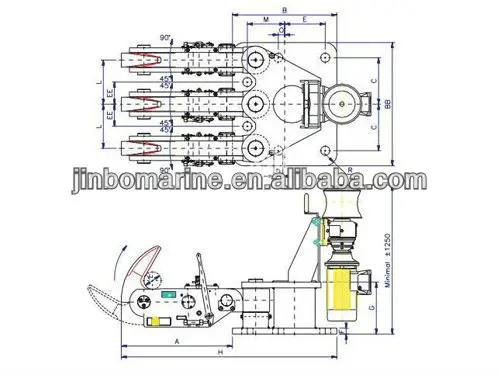

Drawing:



Triple quick release mooring hook
Product No.	S.W.L.	Cap.	Wt.	A	B	BB	C	D	E	EE	F	G	H	K	L	M	O	R	X
THA-001	400	1200	707	598	700	800	310	62	260	145	35	370	1296	96	290	275		90	6*M56
THA-002	600	1800	1268	863	800	900	335	70	310	162	45	407	1663	130	325	310	65	100	6*M64
THA-003	750	2250	1540	893	850	1000	375	78	325	175	45	417	1743	130	350	325	60	100	6*M72
THA-004	1000	3000	2144	959	900	1060	400	78	350	190	50	447	1859	150	380	322	55	100	6*M72
THA-005	1250	3750	2450	1030	900	1060	400	86	350	190	55	479	1930	150	380	322	55	100	7*M80
THA-006	1500	4500	3586	1235	1020	1200	475	96	385	212	55	499	2255	150	425	385	115	125	7*M90
