MXUS bicycle engine kit,e bike controller parts,hub motor

Product Overview

Description

Specifications

Trait:high efficiency, wide platform, high torque, no need maintenance

Voltage: 24V-48V                   Power: 180-350w

Specification: 12"-28"(700C)  Efficiency:≥ 80%

Weight: 3KG

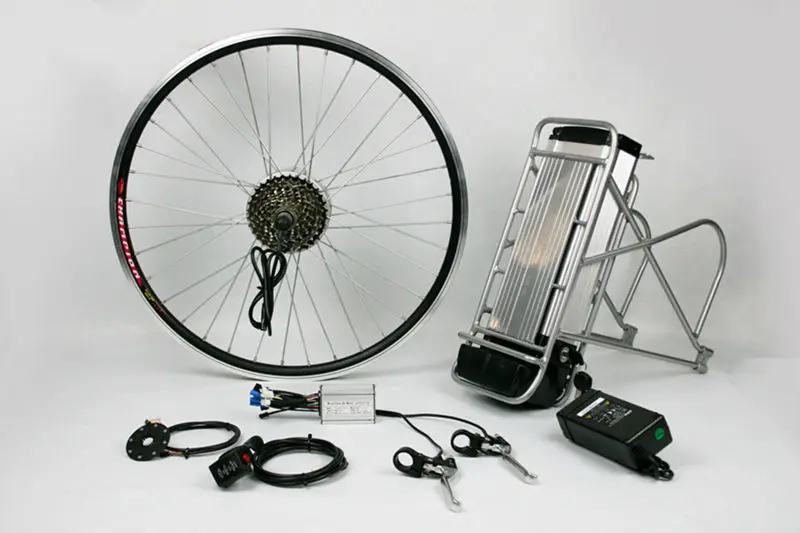

electric bicycle kit
For European market
BATTERY	MOTOR				WHEEL	WEIGHT
24v-10AH LIMN	FRONT gear motor 100MM			150w-250w	12"-28"700C	13KG
24v-10AH LIMN	FRONT gear motor (100MMwith DISK BRAKE ADAPTER)			150w-250w	12"-28"700C	13KG
24v-10AH LIMN	REAR gear motor 135MM+6 CLUSER			150w-250w	12"-28"700C	13KG
24v-10AH LIMN	REAR gear motor (135MM+6 CLUSER with DISK BRAKE ADAPTER)			150w-250w	12"-28"700C	13KG
36v-10AH LIMN	FRONT gear motor 100MM			150w-350w	12"-28"700C	16KG
36v-10AH LIMN	FRONT gear motor (100MMwith DISK BRAKE ADAPTER)			150w-350w	12"-28"700C	16KG
36v-10AH LIMN	REAR gear motor 135MM+6 CLUSER			150w-350w	12"-28"700C	16KG
36v-10AH LIMN	REAR gear motor (135MM+6 CLUSER with DISK BRAKE ADAPTER)			150w-350w	12"-28"700C	16KG
For USA market
BATTERY	MOTOR				WHEEL
24v-10AH LIMN	FRONT direct motor 100MM			200-350w	12"-28"700C	15KG
24v-10AH LIMN	FRONT direct motor (100MMwith DISK BRAKE ADAPTER)			200-350w	12"-28"700C	15KG
24v-10AH LIMN	REAR direct motor 135MM+6 CLUSER			200-350w	12"-28"700C	15KG
24v-10AH LIMN	REAR directmotor (135MM+6 CLUSER with DISK BRAKE ADAPTER)			200-350w	12"-28"700C	15KG
36v-10AH LIMN	FRONT gear motor 100MM			250w-500w	12"-28"700C	18KG
36v-10AH LIMN	FRONT directmotor (100MMwith DISK BRAKE ADAPTER)			250w-500w	12"-28"700C	18KG
36v-10AH LIMN	REAR gear motor 135MM+6 CLUSER			250w-500w	12"-28"701C	18KG
36v-10AH LIMN	REAR direct motor (135MM+6 CLUSER with DISK BRAKE ADAPTER)			250w-500w	12"-28"700C	18KG
LEAD ACID SYSTEM
24V-10AH SYSTEM	OTHER PARTS SAME CHOICE AS LI SYSTEM				12"-28"700C	20KG
36V-10AH SYSTEM	OTHER PARTS SAME CHOICE AS LI SYSTEM				12"-28"700C	25KG
KIT WITHOUT BATTERY AND CHARGER
24VKIT					12"-28"700C	7-10KG
36VKIT					12"-28"700C	7-10KG
48VKIT						7-10KG



Electric system

Motor

Front wheel,light,high speed,brushless

Great hub motor,16inch 28inch wheel optional.DISC brake optional

Rear wheel

180W-350W for USA&Canada market

250W-500W for Australia&New Zealand

Battery

24V/10Ah polymer li-ion

All battery with electronic protection circuit

PAS

1:1 intelligent pedal assistant system

Controller

CYCLEMAN 24V intelligent brushless controller

Charger

AC100V-240V,2 amps smarharger

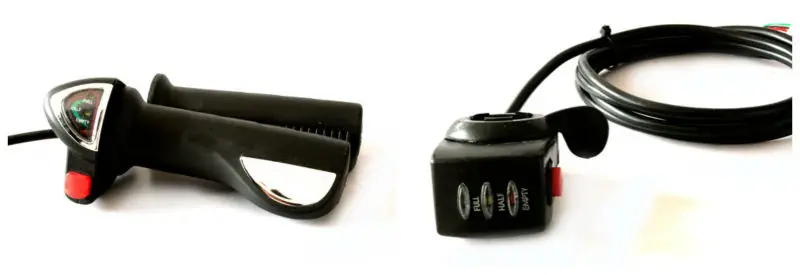

Throttle

Twist intelligent speed control(no throttle for Eur)

Performance

Max speed

25km/h(Eur) 32km/h(USA&Canda)



We are in exhibition

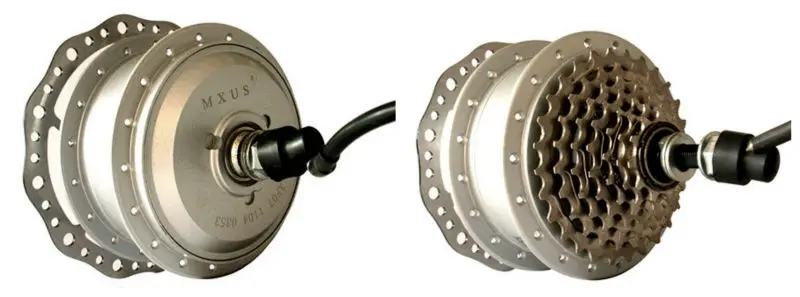

XF07-front motor&dics brake                                                               XF08-rear motor&6-9 speed gears

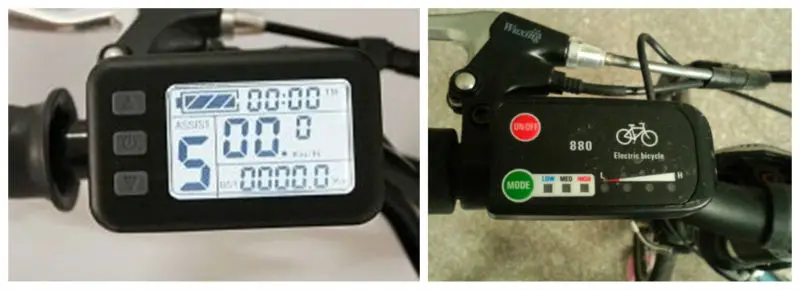

There are two kinds of throttle with power display:

LCD&LED display

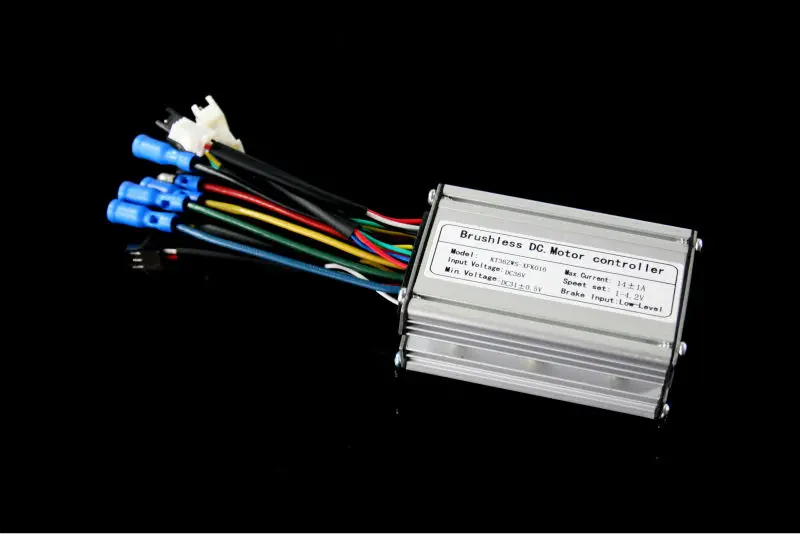

controller

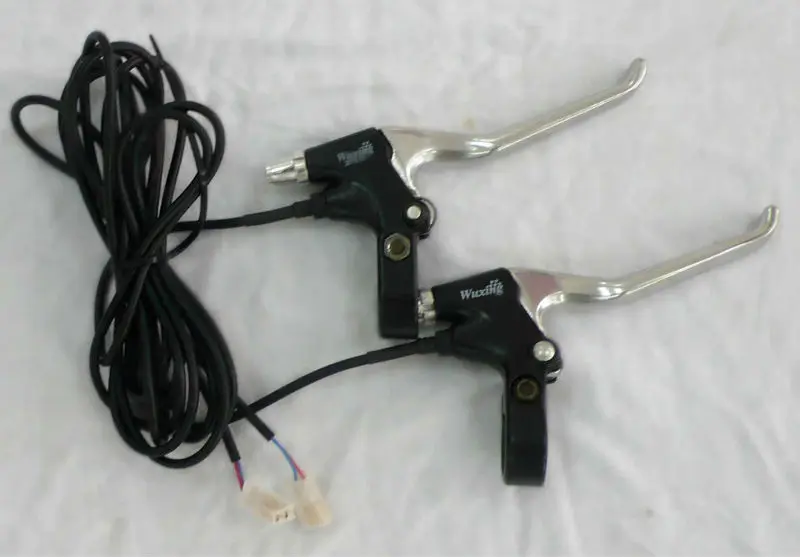

Brake:

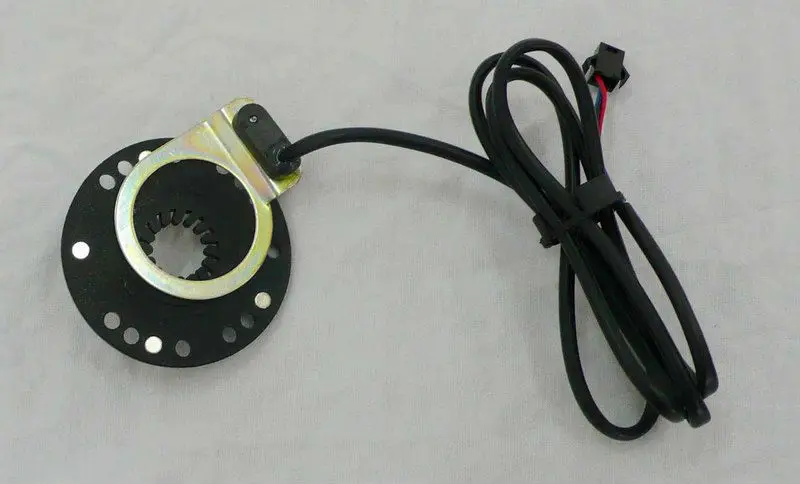

1:1 PAS





MXUS- the Leader of E-bike Conversion Kit

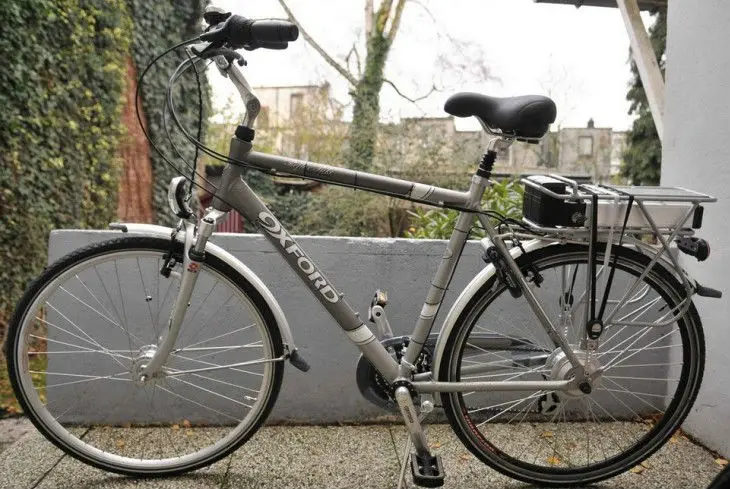

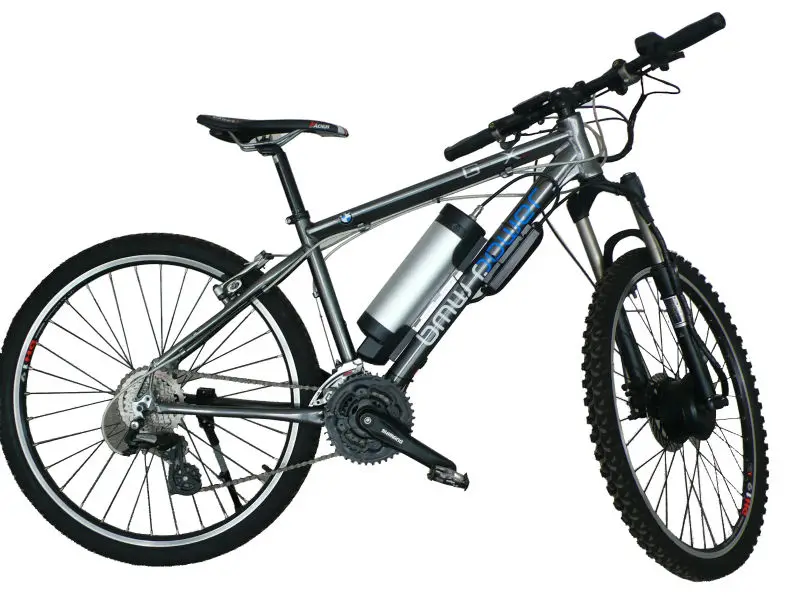

 our kit install in the bike

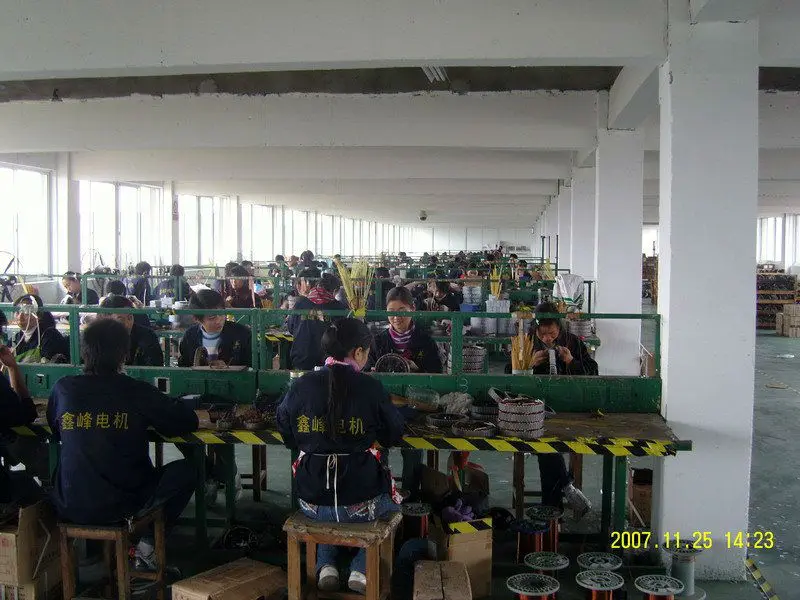

Our factory





Pls contact us if any problem,we will help you asap!

Select us and we’ll give you better advice!





MXUS----Let's make things better!
