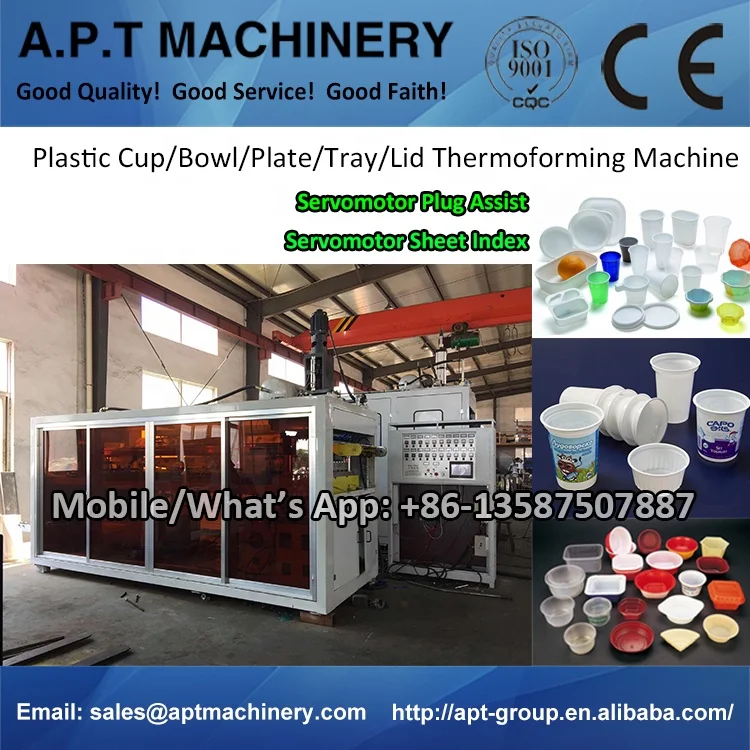

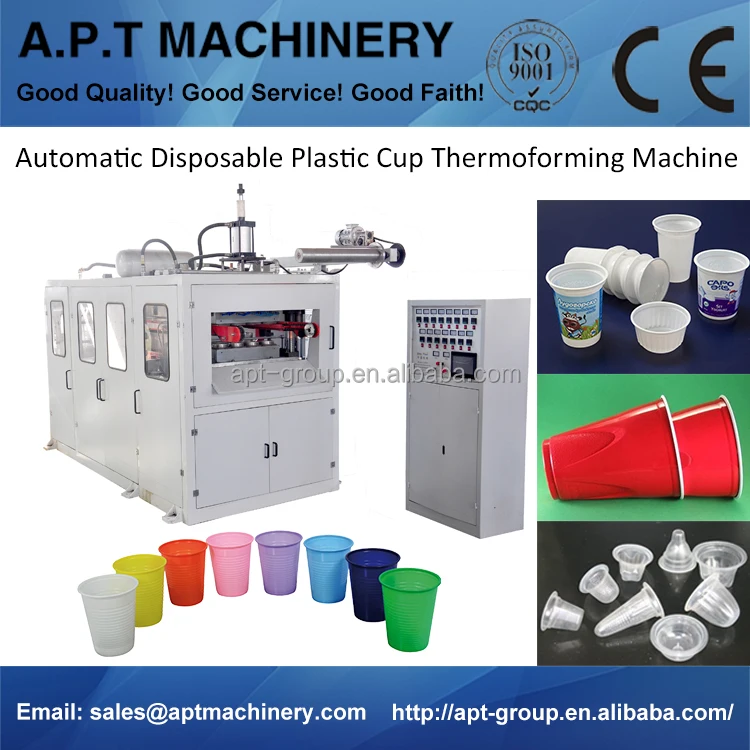

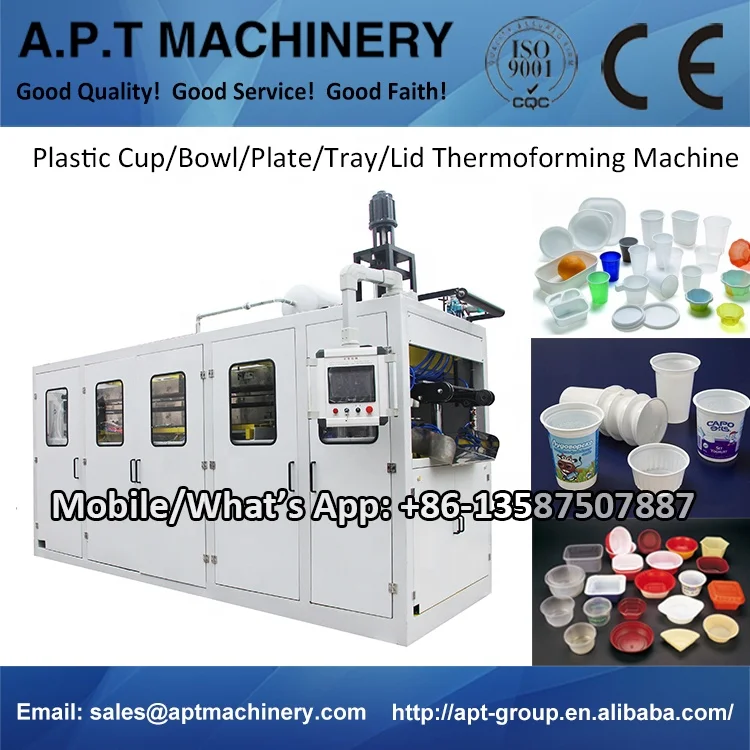

Plastic Cup Making Machine

Price:RUB 1,541,298.00 - RUB 2,311,947.00

Quantity:

Plastic Cup Making Machine Price.jpg

Main Technical Parameters:

Model	SPC-760A	SPC-760B
Used Material	PP, GPPS, HIPS, PET, PVC, PLA sheet and etc.
Guide Pillar	Four Pillars
Max. Forming Area	760*420mm
Example	Cup Top Diameter: 75mm, 32cavities/Mold
Max. Forming Depth	160mm (can be customized)
Forming Speed	15~32 times/min(according to sheet thickness and product shape)
Heating Method	Top +Bottom heating with IR ceramic heaters 10x9+9x9=171pcs, 800W/pc
Cutting Method	Cut in mould automatic
Plug Stretching Method	Air Cylinder	Servomotor
Sheet Feeding Method	Motor with Encoder	Servomotor
Sheet Thickness	0.2~2.0mm
Main Motor Power	15KW
Machine Weight	7500kg	8000kg
Machine Dimension	3.75m1.55m2.3m (LWH)

Main Features:

1. The stretching plugs inside of the upper mould are controlled by air cylinder or servomotor..

2. The sheet feeding is driven by pin chain. The pin chain is controlled by motor with encoder or servomotor

3. Adopts four pillars to fix the mould, which is more stable than two pillars.

4. The upper mould is fixed and the under mold plate movement is driven by cam system.

5. Each area temperature is controlled by one temperature controller.

6. All production process such as heating , stretching , forming and in-mould cutting in one stroke .

7. Machine frame adopts square steel, more stronger and steady.

8. The operation is controlled by PLC and touch screen.

Note : For special product, can be designed according to client’s demand.
