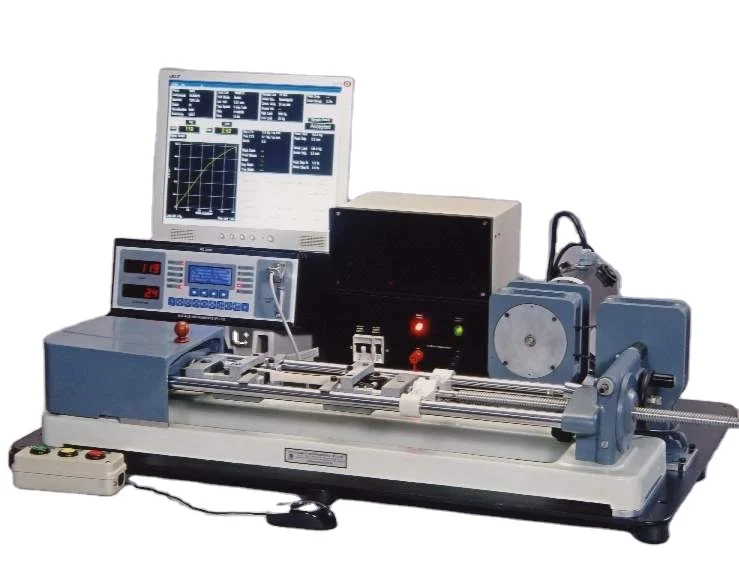

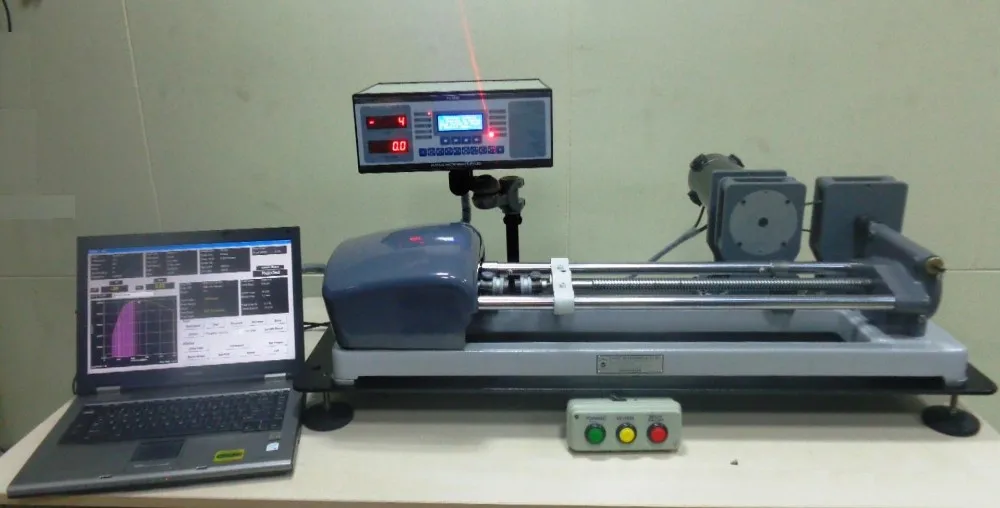

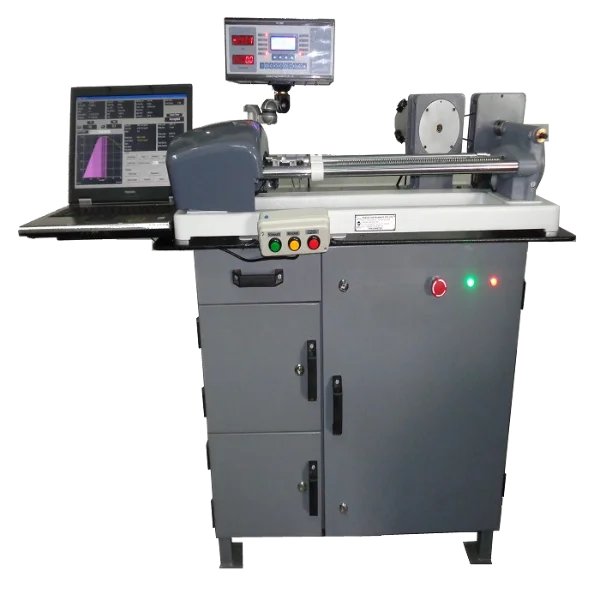

Bench Model Electronic Horizontal Tensile Testing Machine Capacity: 20 KN
The electronic Tensometer is a compact and versatile bench model horizontal Tensile Testing Machine of capacity 20 KN (2000kg).
This Mini Universal Testing Machine is popularly used for testing tensile, compressive, Shear, Flexural properties of different materials. The model PC 2000 is top of the range model in series of Tensometer. It combines the state of art computer technology and precision manufacturing techniques to offer unique mini horizontal Universal Testing Machine. The on line test graph is displayed on the monitor. The features in software are the ultimate solution for ever increasing stringent demand of material testing in quality inspection. The Load cells of capacity 200N (20 Kg), 2KN (200Kg), 5KN (500 Kg), 10 KN (1000 Kg) And 20 KN (2000kg) are available with the above model. The instrument is offered with DC Servo Motor, Drive, Digital Indicating Unit and Material Testing Software software.
Description | Model TM-ER1 | Model TM-ER3 | Model PC-2000 |
1. Mechanical Frame a. Capacity | 20 KNmax.(2000Kg) | 20 KNmax.(2000Kg) | 20 KNmax.(2000Kg) |
b. Dimensions | H230 X W235X L965 mm. apporx. | H230 X W235 X L965 mm.approx | H300 x W700 x L1050mm approx. |
c. Weight | 18 Kg (approx) | 20 Kg (approx) | 60 Kg (Approx) |
2. Motor Drive Unit | Optional | Optional | Optional |
a.Specifications | Motor :3/4 HP,230V Single Phase, 1440 rpm AC Motor | Motor :3/4 HP,230 V SinglePhase,1440rpm AC Motor | Motor :Permanent MagnetDC Servo,3.6 V,4.8 A,1600 rpm,0.16 KW. |
b. Speed Variation | A set of 15 Nos.of pulley. For every speed,pulley to be replaced& stand to be adjustedaccordingly.(0.2 to 500 mm/min) | A set of 15 Nos. of pulley. For every speed,pulley to be replaced& stand to be adjustedaccordingly.(0.2 to 500 mm/min) | Servo Drive, Speed variation through timer belt & pulley arrangement computer control system. (0.2 to 500 mm/min.) |
3. Load Measurement | 20 KN max. with interchangeable load cells | 20 KN max. with interchangeable load cells | 20 KN max. with interchangeable load cells |
a. Load cells available | 0.2 KN, 2 KN & 20 KN | 0.2 KN,2 KN & 20 KN. | 0.2 KN,2 KN,5 KN,10 KN & 20 KN |
b. Measuring Unit | Newton & Kg. | Newton & Kg. | Newton & Kg. |
DisplacementMeasurement facility | Opticalencoder as sensor 0 to 500mm.(Excluding grip)(Extra displacement on demand) | Optical encoder as sensor O to 500mm (Excluding grip) (Extra displacement on demand) | Optical encoder as sensor O to 500mm (Excluding grip)(Extra displacement on demand) |
5. a. Least count& Load Accuracy | L.C. + 0.05% of load Cell Accuracy 1% | L.C.+ 0.05% of load Cell Accuracy 1% | L.C.+ 0.05% of load Cell Accuracy 1% |
b. Displacement | LC :0.1mm | LC :0.1mm | LC :0.1 mm std. with PC 0.010 mm software |
6. Pre-testdata | Not Available | Available | Available |
7. Test Facilities | Peak-break Values for load and displacement | i Peak break test ii Preset length iii Preset load iv Cyclic-preset length v Cyclic-preset load | i Peak test ii Break test iii Preset load iv preset length v Graph analysis through software for various Test results |
8. Test Results | Peak I break load & displacement Value display through micro processor base system | All the details regarding test on microprocessor base system | All the details regarding test on Computer |
9. Graph of the test | Not Available | Off line graph through a. ORO on Dot Matrix Printer b. Through PC using DTU &Software (optional accessories)on any printer | On line graph through PC Software on any printer |
10. Computer Interface facility | Not Available | With or without Computer Machine can be used | Computer Controlled Machine |
11. Memory of DisplayUnit | Not Available | Up to 900 mm displacement Data on micro processor based unit. Also test Data can be saved on PC with DTU & Software | Test data saved on PC directly |
12. Graph Zooming | Not Available | Auto Scaling | With Software zooming possible. (Proof stress,Area under curve) |
13. Over load & over Travel Protection | Available | Available | Available |
