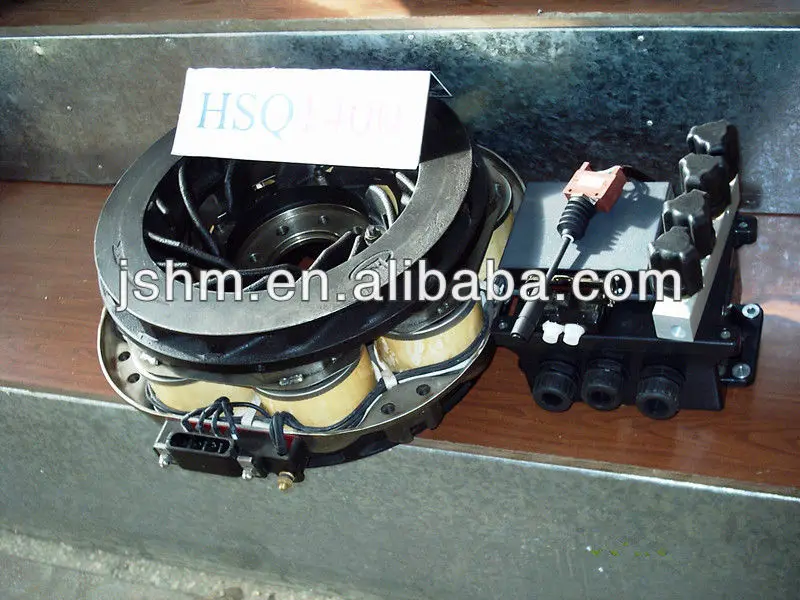

HSQ1400 Electromagnetic Retarder

Product Overview

Description

HSQ1400 Electromagnetic Retarder -- the environment-protective hi-tech products,designed upon the principle of electromagnetic mechanics, which are used as a necessary supplement for current braking system, offering extra braking force to the existing brake system. Therefore, the comfort and safety of the automobile have been promoted greatly. For the brake blades, tires and braking system, wear and tear have been reduced so as to prolong their service life, and maintenance fee can be saved a lot. In the meantime the noise and dust causing pollution have been reduced a great deal owing to the use of the retarder. The retarder is specially applied to the medium and heavy buses and coaches.



Weight	143kg
Max. Torque(N·m)	1400
Rotor Inertia (Kgm2)	2
Applicable Range GVW (T)	13
Air-gap Regulation(mm)	1.40-0.2
Measurement(mm)	476×512×270
Voltage (V)	24
Circuit Resistance (Ω)	1.1
Coil Resistance (Ω)	0.55
Insulation (Ω)	>500M
