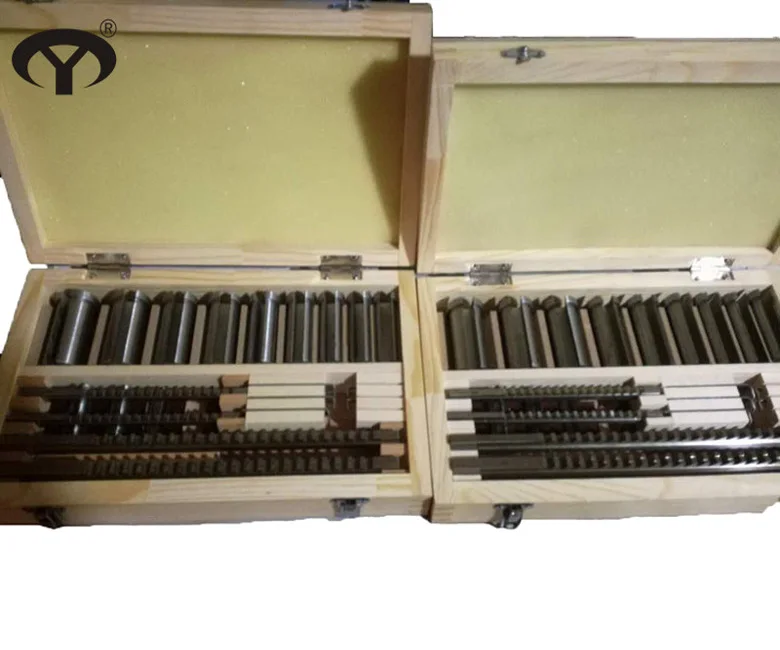

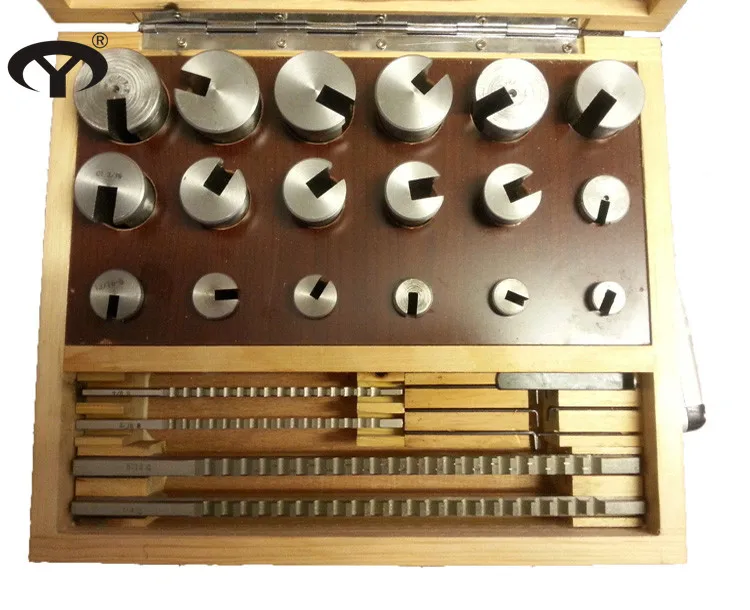

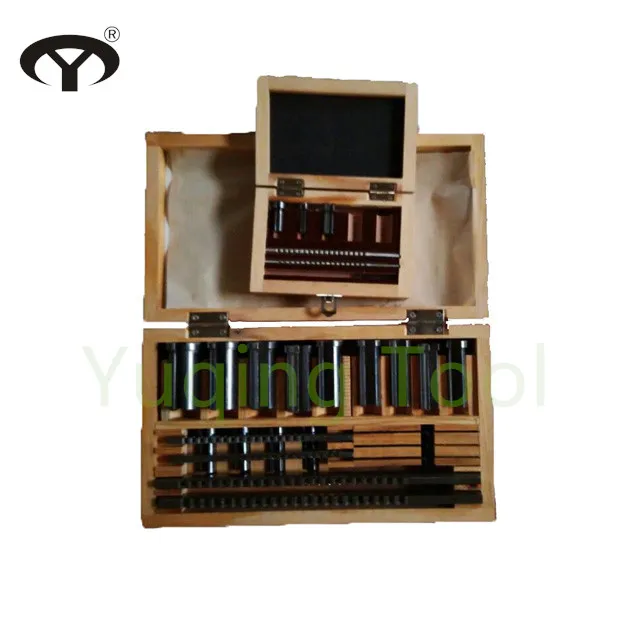

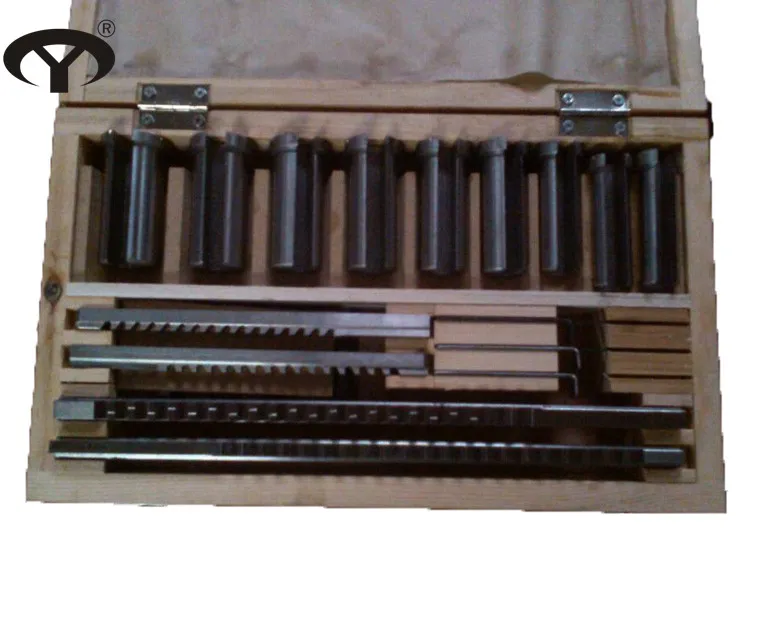

HSS 18PCS No.10 Imperial Keyway broach set with guide bushings 395 0718

Product Overview

Description

HSS 18PCS NO.10 INCH KEYWAY CUTTING BROACH BUSHING SHIM SET 395-0718

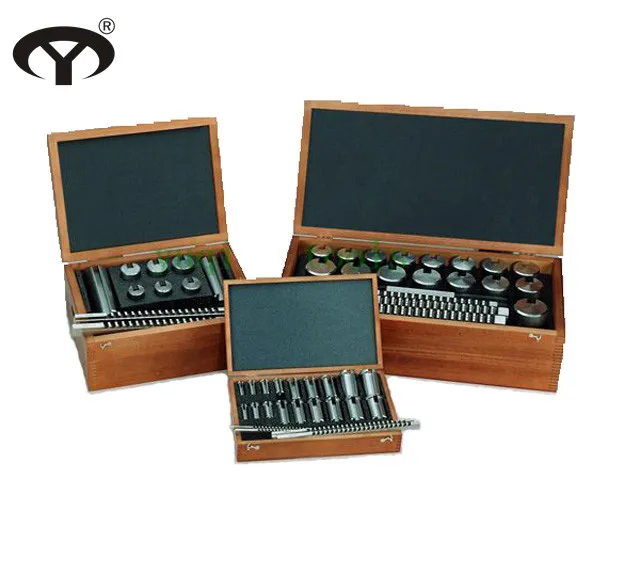

Our Broach Sets feature the most common combinations of Metric Keyway Broaches (2mm-18mm) and Bushings (6mm - 65mm)



No. 60 Metric SetEDP No. 44497	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for small keyway and bores. 2 Broaches and 3 Bushings = 6 keyway combinations. Collared A Bushings
	2 , 3	A	6, 8, 10

No. 70 Metric SetEDP No. 44498	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
Our most popular metric Broach Set. 4 Broaches and 13 Bushings = 26 keyway combinations. Collared B1 and C Bushings
	4 , 5	B1	12, 14, 15, 16
	6 , 8	C	18, 19, 20, 22, 24, 25, 26, 28, 30

No. 80 Metric SetEDP No. 44499	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for medium-sized keyways and bores. 3 Broaches and 12 Bushings = 36 keyway combinations. Plain D Bushings
	10 , 12 , 14	D	32, 34, 35, 36, 38, 40, 42, 44, 45,46, 48, 50

No. 90 Metric SetEDP No. 44500	Keyway Sizes	Broach Style	Bushing Diameters (Bore Sizes)
The most common metric keyway combinations for large keyways and bores. 2 Broaches and 8 Bushings = 16 keyway combinations. Plain E Bushings
	16 , 18	E	52, 54, 55, 56, 58, 60, 62, 65















Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
