X 501B automatic cable cutting machine ,auto wire stripper,computer stripping machine
- Category: >>>
- Supplier: Kunshan Xuxin Industrial Equipment Co. Ltd.
Share on (1313708379):
Product Overview
Description

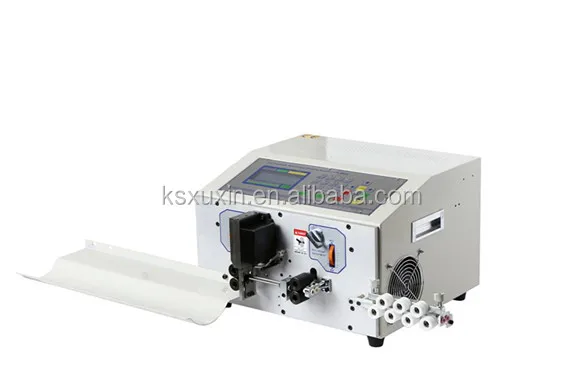

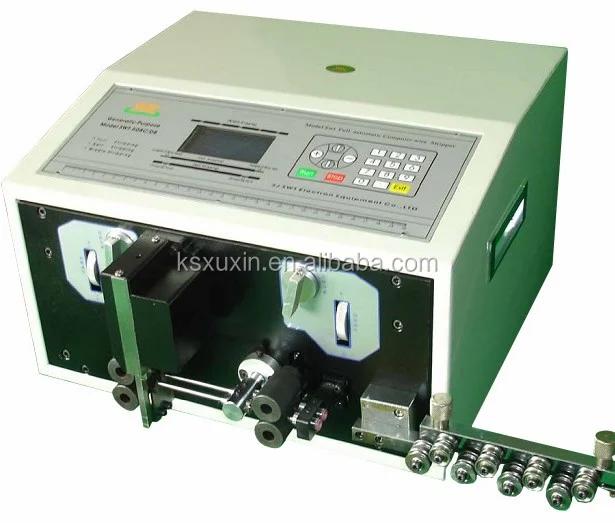

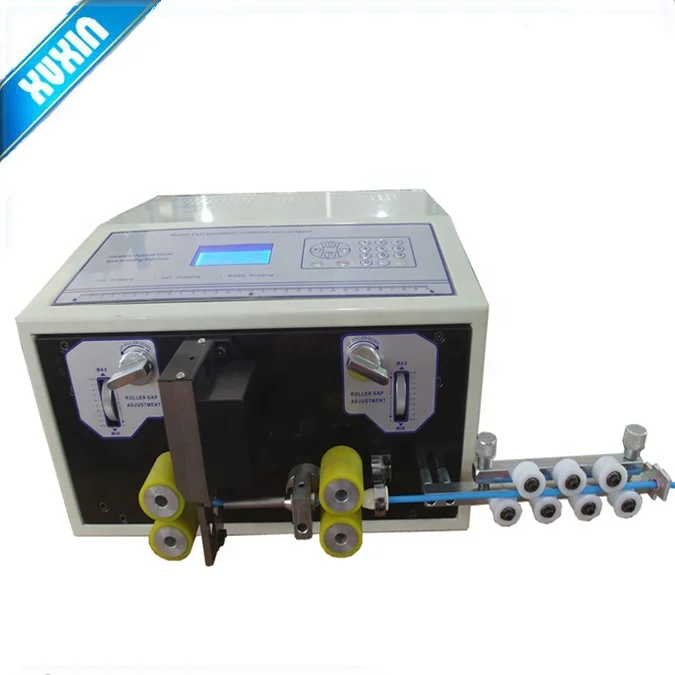

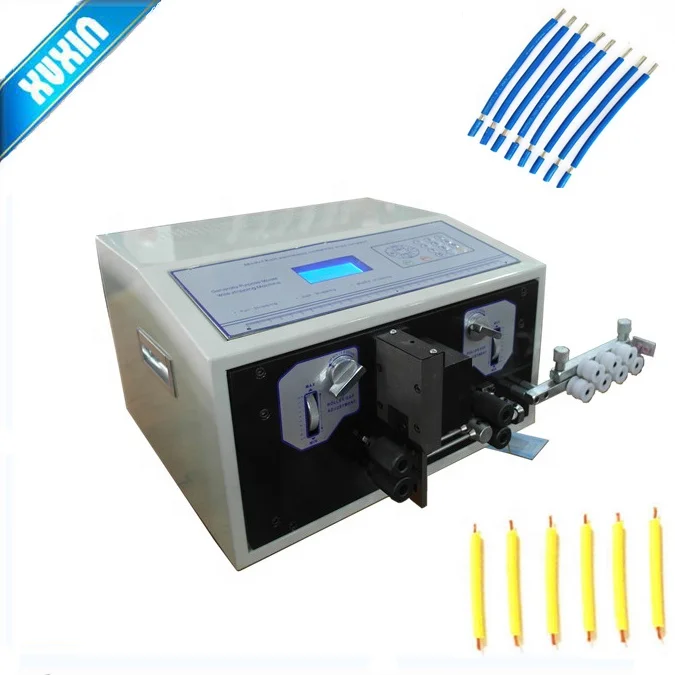

X-501B automatic cable cutting machine ,auto wire stripper,computer stripping machine

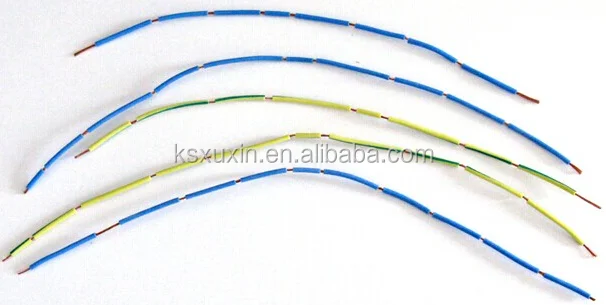

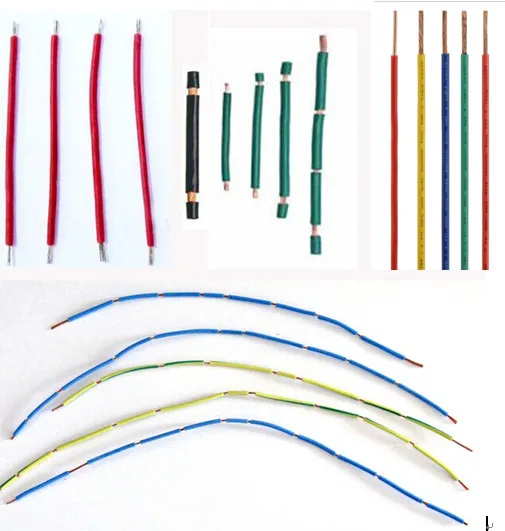

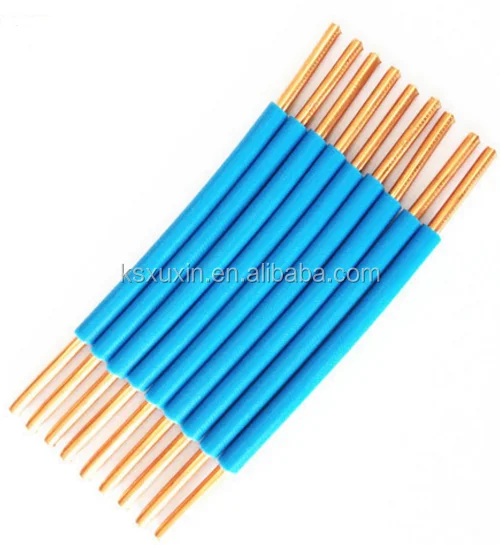

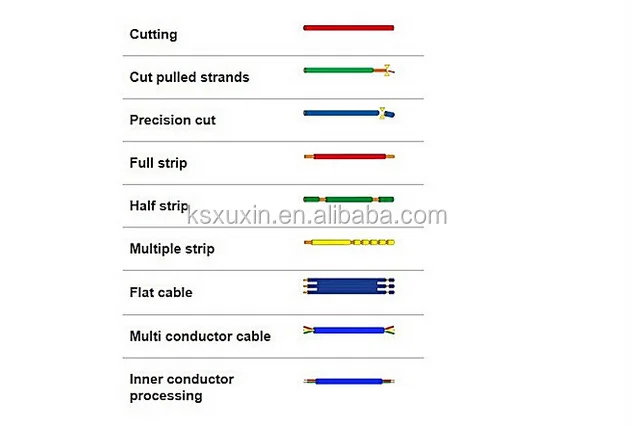

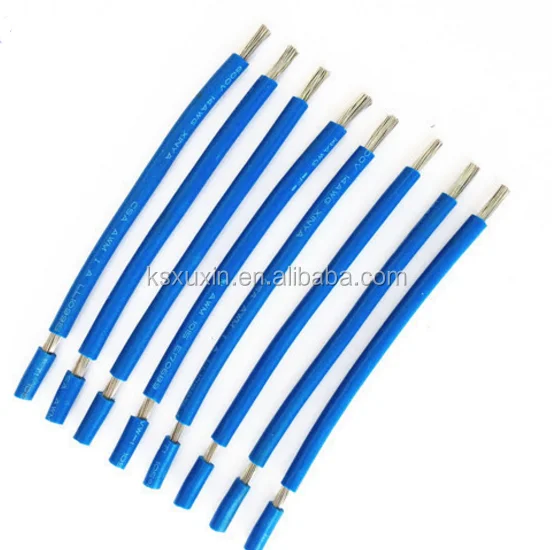

The model is a factory successfully developed its own high-tech products. Main widely used in the electronics industry, electric power, injection molding equipment, electric tools, automobile and motorbike industry, electrical machinery, electrical appliances, air conditioners, washing machines, electronic instruments, toys, lamps, transformers, connectors and other types of products, wiring harness processing. Appropriate wire stripping:PVC/teflon/silica gel line /Glass fiber etc. This product USES the LCD screen people dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher character. Wire length can set arbitrary, according to the customer request free to change, different degree of finish off wire, also have on row line, sheath line, power lines and bushing cutting functions.
Model: | X-501B four short two-lane model |
Power: | AC 110V/220V/ 50/60Hz |
Power: | Rated 200W |
Display: | Full English LCD Display |
Cutting length: | 1mm-9999mm |
Stripping length: | Line head 0-35, line tail 0-15 |
Cutting Tolerance: | (0.2±0.002xL) mm |
Cut the middle of stripping: | 11 |
Core cross-section cut-line: | cut two wire :0.1~2.5mm² ( AWG16#-AWG32#) Single wire : 0.1--4.5mm2 (AWG11---AWG32) |
Conduit diameter: | Φ6 |
Appropriate wire stripping: | PVC, Teflon, glass and wire |
Blade Material: | Hard tungsten steel |
Stripper speed (Article / h): | L=100mm, 5000-15000pcs/h |
Drive Mode: | Four-wheel drive ---It have steel drive or Rubber roller |
Weight: | 31kg |
Our Services
We Provide
- Best products and factory price.
- On-time delivery and the shortest delivery time.
- 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
- OEM and customized service.
- User manuals will go with relative machines.
Service
- QC: All products will be checked before delivery.
- Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
- Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
- Operation Guidance: If you have any problem with operation, please feel free to contact us.

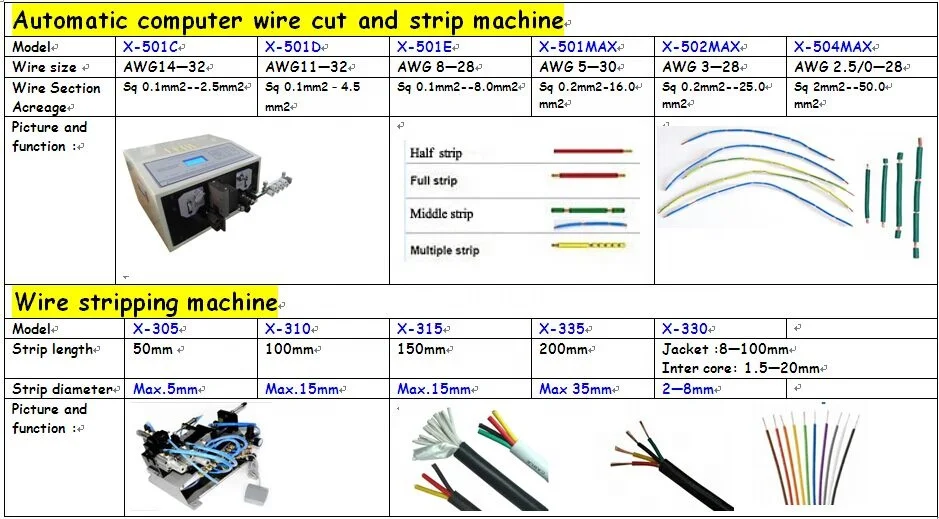

Related Wire stripping machines
Model Number | X-501C | X-501D | X-501E | X-501MAX | X-504MAX |
Wire size | 0.1~2.5 mm2 | 0.1- 4.5mm2 | 0.2 - 8.0 mm2 | 0.3- 25mm2 | 2.0--50/70mm2 |
Conduit diameter | Φ6 | Φ6 | Φ10 | Φ13 | Φ18 |
Wire Gauge Range | AWG16 - AWG32 | AWG12 - AWG32 | AWG8 - AWG32 | AWG5-AWG30# | |
Drive Mode | Four-wheel drive | Four-wheel drive | Four-wheel drive | Four-wheel drive | Eight-wheel drive |
Weight | 35kg | 35kg | 35kg | 40kg | 85KG |
