Automatic energy drink manufacturing equipment

Product Overview

Description

Automatic energy drink manufacturing equipment

Energy drink manufacturing equipment general introduction

(1)This bottling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.

(2)It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 2000BPH to 28000BPH.
(3)It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
(4)Adopting suspensory transmission gear can easily upkeep and be repaired.
(5)The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.
(6)It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.

Energy drink manufacturing equipment specification

Model:	DCGF18-18-6		DCGF24-24-8	DCGF32-32-12		DCGF40-40-12
Capacity :500ml	5000		8000	12000		15000
Bottle shape:	roud or square
PET bottle: (mm)	(Bottle Diameter):φ50-.φ110mm (Height):150-340mm
Cap:	PE srew cap
Filling precision:	≤±5mm
Filling pressure:(Mpa)	0.15-0.35	0.15-0.35		0.15-0.35	0.15-0.35
Rinsing pressure:(Mpa)	0.2-0.25	0.2-0.25		0.2-0.25	0.2-0.25
Filling volume :(L)	3.5	4		6	8
Overall size:(mm)	2450*1800 *2350	2780*2200 *2350		3600*2650 *2350	3800*2950 *2400
Weight: (kg)	3500	4500		5500	6500

Why choose automatic energy drink manufacturing equipment?

Energy drink manufacturing equipment photos

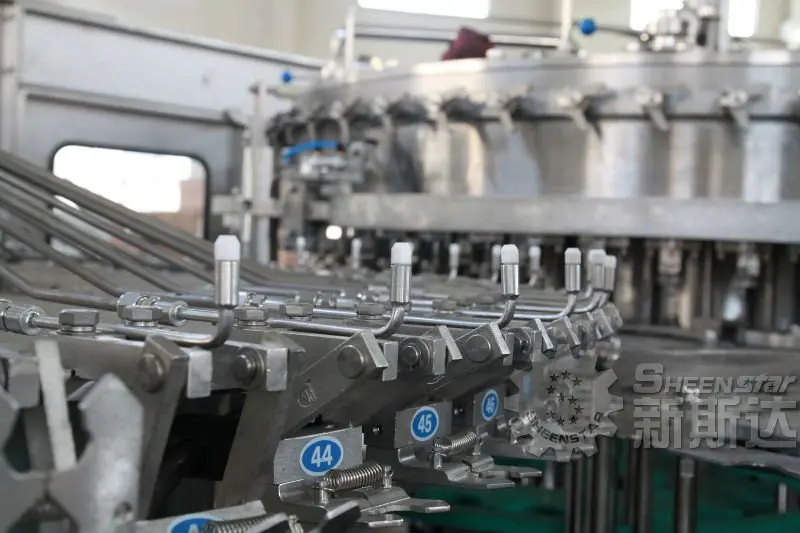

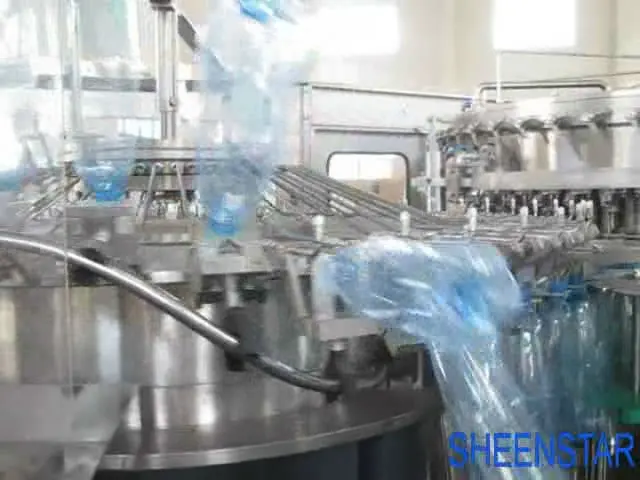

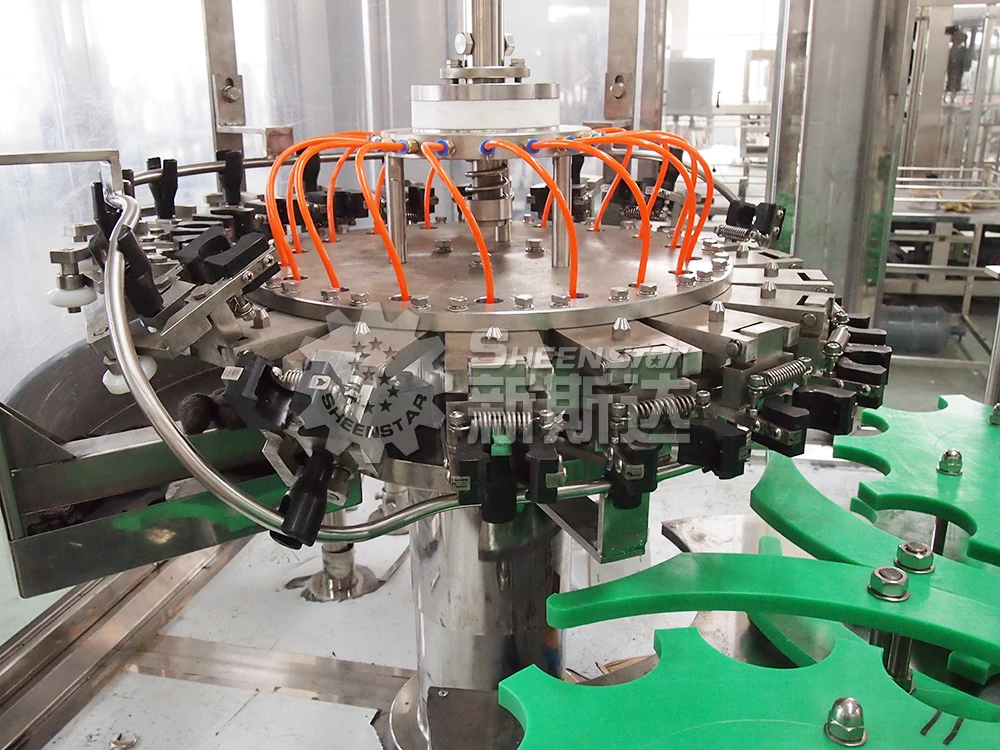

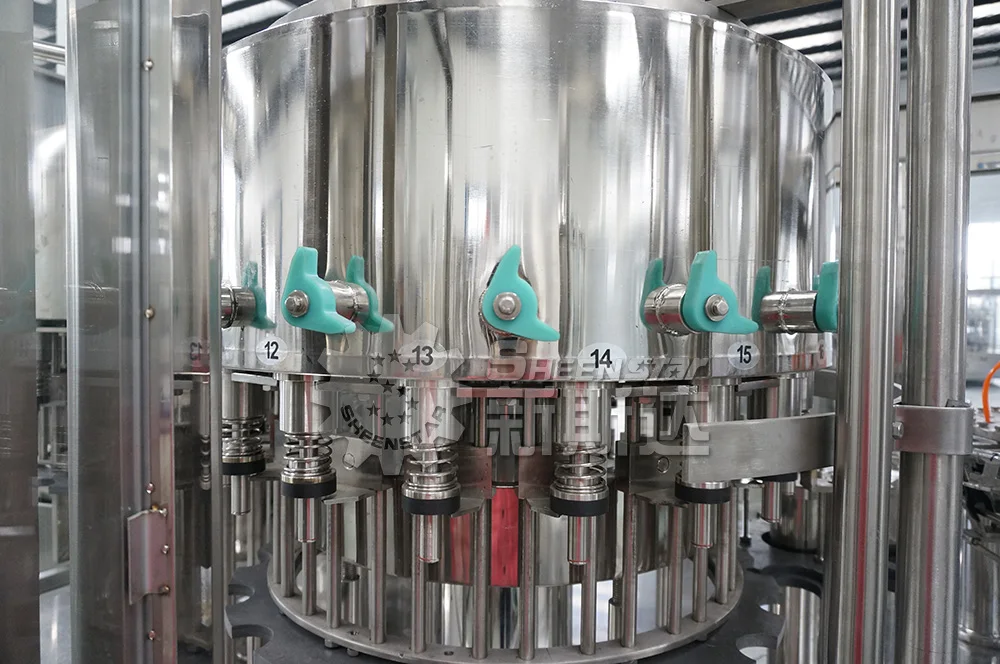

Washing

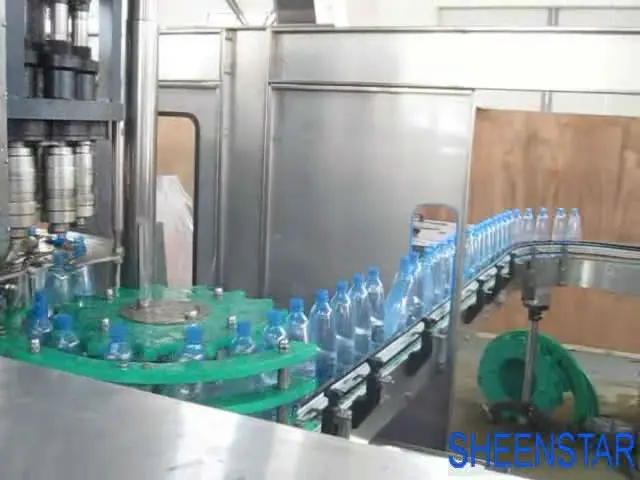

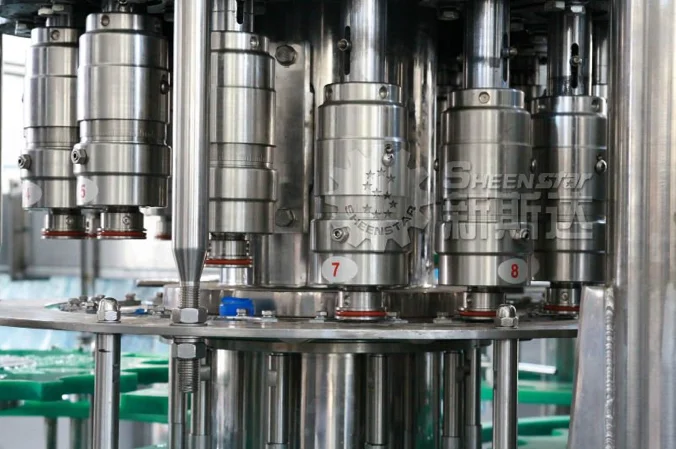

Capping

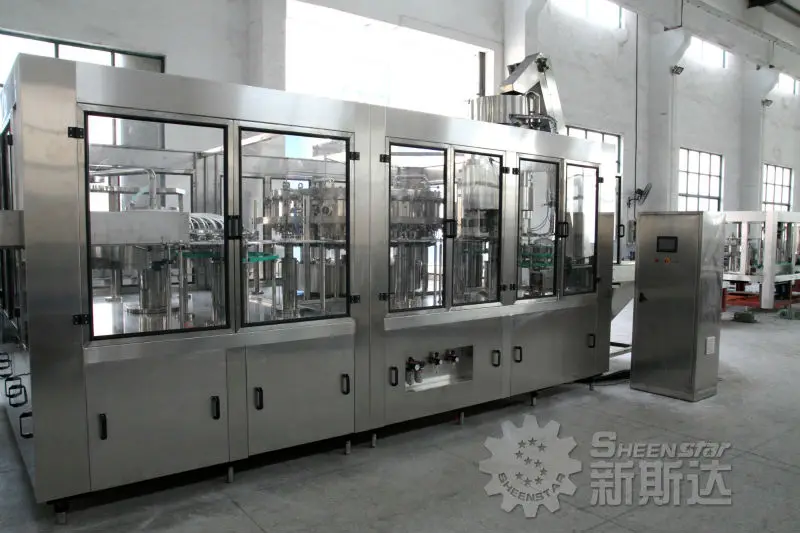

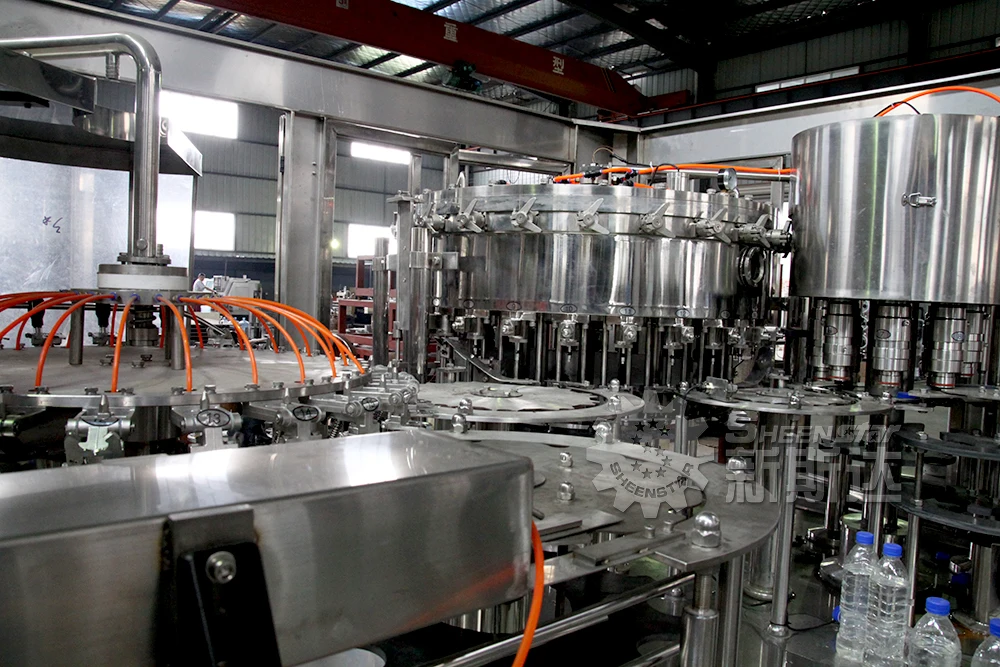

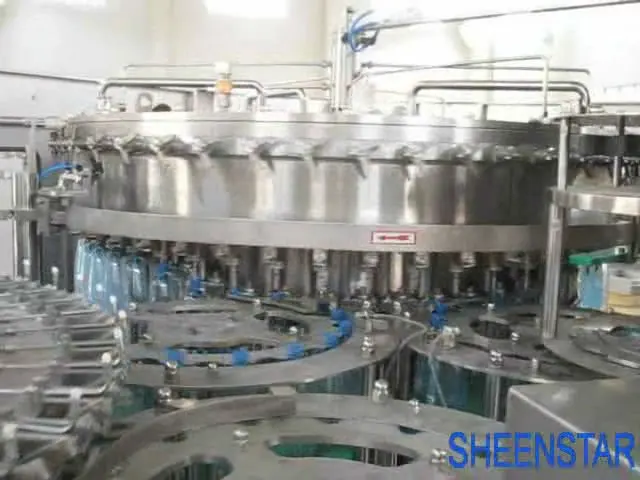

Machine in working

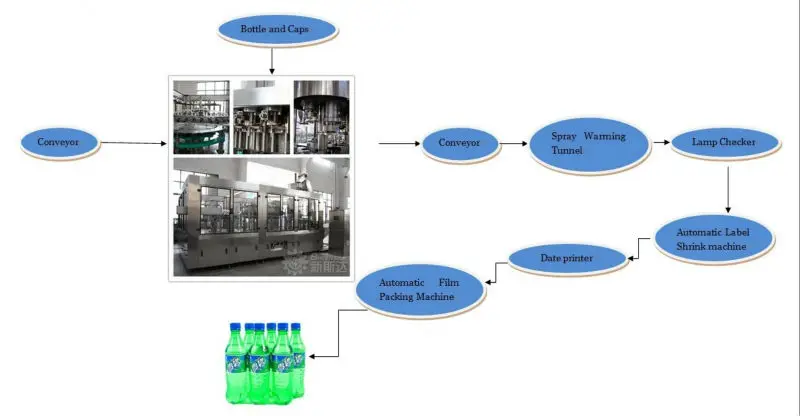

 Energy drink manufacturing equipment flow chat





                                                      About  our company——SHEENSTAR

Zhangjiagang Sheenstar Technology Co., Ltd. is a professional manufacturer of beverage packaging solutions. We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans. In other words, customized machines can be produce according to client's requirements.











For any further information about this machine, contact me please, sincere service for you. Thank you and welcome to SHEENSTAR.
