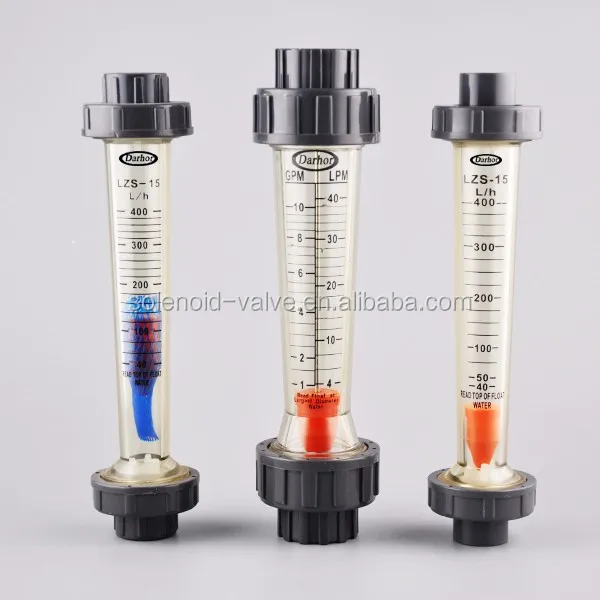

LZS(DH45) low price unbreakable PVC/PC variable area water flowmeter rotameter float polycarbonate flowmeter

  DH4500 series  plastic flowmeter , polysulfone(PSU) or PC body, fittings made of PVC ABS or SS floats capable of withstanding higher temperatures, thread joint and panel-mounted fittings are easy to install, economical and endurable.

Model	DN	Measure range			Accuracy	Working Temperature	Working Pressure
		GPM(Liquid)	LPM(Liquid)	Nm3/h
DH45-15E DH45-15G	15	0.1-1 0.2-2 0.5-5	0.5-4 1-7 1.8-18	10-100 l/h 16-160l/h 25-250l/h 40-400l/h 50-500l/h 60-600l/h 100-1000l/h	±4%	0-60℃ 0-100℃	≤0.6MPa
DH45-15EC DH45-15GC	15	0.1-1 0.2-2 0.5-5	0.5-4 1-7 1.8-18
DH45-25E DH45-25G	25	0.8-8 1-10	3-30 4-40	0.25-2.5 0.16-1.6 0.1-1
DH45-32E DH45-32G	32	1.2-12 2-20 2.5-25	5-50 8-80 10-100	0.4-4 0.6-6
DH45-50E DH45-50G	50	2.5-25 5-45 7-70	10-100 20-180 25-250	0.4-4 0.6-6 1-10 1.6-16
DH45-65E DH45-65G	65	25-110 40-160 50-250	80-400 150-650 200-1000	5-25 8-40 12-60

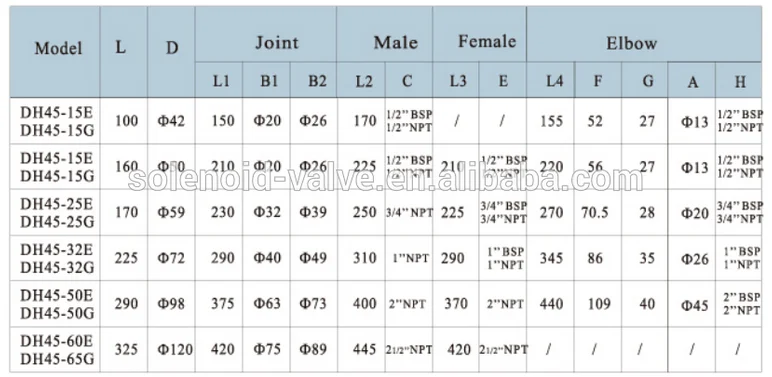

Details & more types

Main Features

1) PC body -unbreakable.

2) Stainless steel guide rod

3) weak chemical

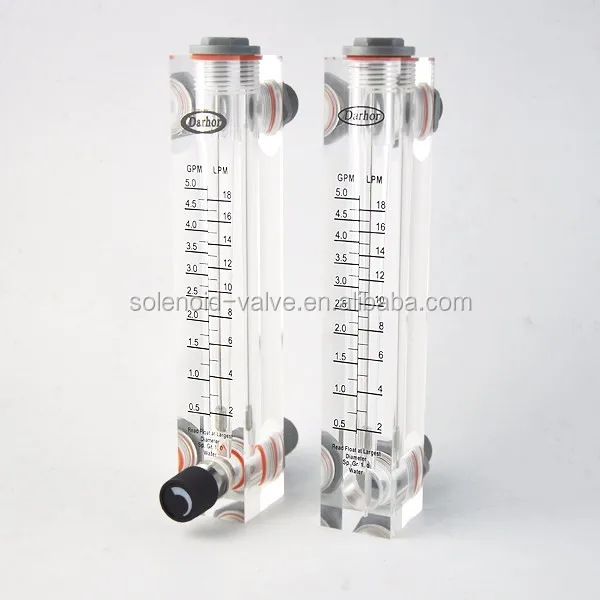

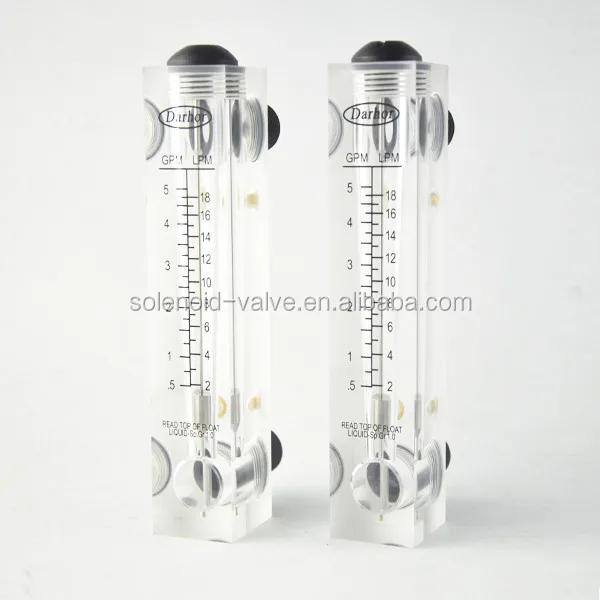

4) In-Line (vertical) and panel mount (90 elbows) connections
5) Optional flow control needle vavle .

          Stainless Steel Float

                 Alarm Switch

                    Flange type

Production Process

Packing & Delivery

Certifications

Our Company
