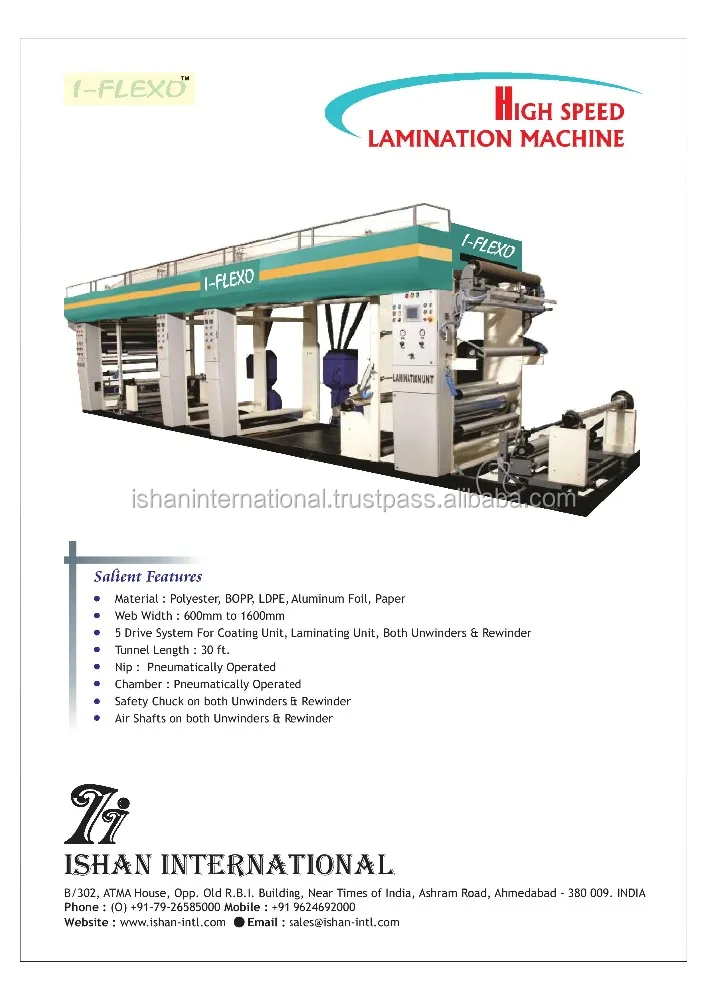

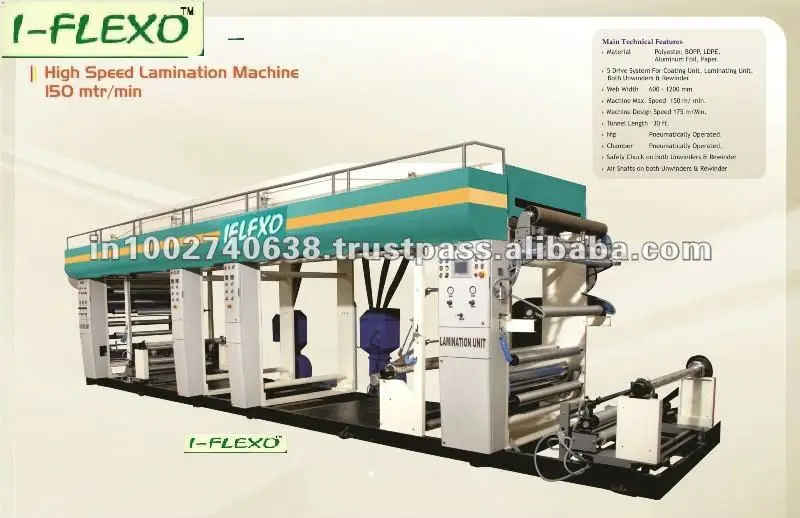

DRY LAMINATION MACHINE

Machine Type

:

Dry Lamination Machine

Maximum Web width

Power requirement

Core Inner Dia.

Maximum Reel Dia.

Unwinder for Polyester

Coating Station

Drying Tunnel

Nipping Station

Unwinder for LD

Rewinder

Pannel

Material to handle

:

:

:

:

:

:

:

:

:

:

:

:

48”(1200mm)

3 H.P. A.C. for Coating Unit

3 H.P. A.C. for Laminating unit

5 H.P. A.C. for Rewinder Unit

0.5 H.P. Pneumatic Break for Unwinder – 1

0.5 H.P. Pneumatic Break for Unwinder - 2

Web-Alliner 0.5 H.P. A.C. X 3 Nos.

3 H.P. Heaters for heater roll

3 H.P. Exhaust Blower for Exhaust

76 mm

800mm

1 No. C.I. Body (45mm thick)

Auto Tension Control – Magnetic Break Control by 5 Drive System

Shaft made from En-8 material with cones, collar nut

1 No. C.I. Body (45mm thick)

Gear box – ‘Shanthi Make’ with highly efficient bewel gears.

Cylinder shaft made from En-8 material

Ink tray system

Dr. blade system with oscillation system

Guide roll 4” dia.

Drying Tunnel length 24’

Completely Jacketed with glass wools

Divided in 3 zones

Doors at operator side for easy cleaning of rolls.

SRA Unit for Controlling the Web Edge.

1 No. C.I.Body (45mm thick)

1 No hard crome plated heater roll is provided with heater

Guide roll 4” dia.

Same as Unwinder – I

1 No. C.I.Body (45mm thick)

5 H.P. A.C. motor control by 5 Drive System

Rewinder shaft made from En-8 material with cones and Collar nut

Completed with temp indicator

Web-Alliner Controls etc.

5 Drive Pannel

Polyester, LDPE, BOPP etc.
