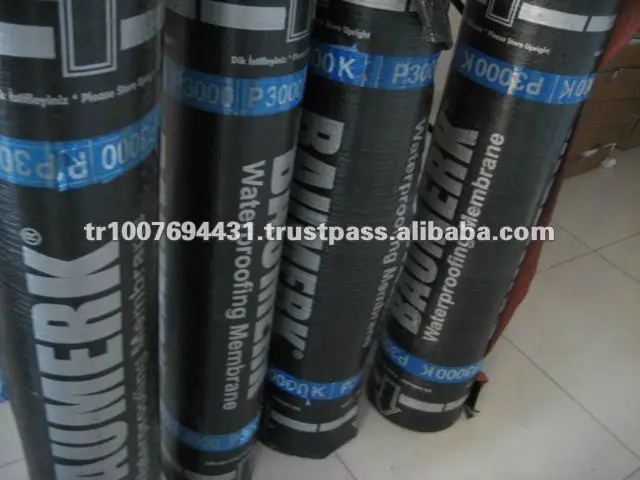

SBS Modified Bitumen Roofing Waterproofing Membrane

Product Overview

Description

BAUMERK SBS BASED BITUMINOUS WATERPROOFING MEMBRANE  ( - 20°C )



Product Description

It is the SBS doped elastomeric water isolation membrane with polyester felt; both sides are coated on with polyethylene film .



Usage Areas

It is used in groundwwork bundling, parking, terrace and sloping roofs, balconies, plant stands, garden terrace, concreteflumes, rain gutters and water tanks, ponds, swimming pools and ornamentals against underground waters and used under the coating in wet areas such as kitchne, bathroom etc.



TECHNICAL FEATURES

METRIC UNIT

STANDARD

C 2000

C 3000

C3000 AL

PP 3000

PP 40 K

PP 40 Y

PP 3000 AL

PP 4000

PP 50 K

PP 50 Y

PP 4000 AL

Bearing (Fiberglass and polyester felt)

gr/m2

TS 11758-1

Fiberglass

Fiberglass

Fiberglass

Polyester

Polyester

Polyester

Polyester

Polyester

Polyester

Polyester

Polyester

Thickness ± 0.2

mm

TS EN 1849-1

2.0

3.0

3.0

3.0

3.5

3.5

3.0

4.0

4.5

4.5

4.0

Temperature Resistance

C

TS 11758-1

>100

>100

>100

>100

>100

>100

>100

>100

>100

>100

>100

Cold Bending (Maximum)

C

TS EN 1109

-20

-20

-20

-20

-20

-20

-20

-20

-20

-20

-20

Tensile Strength (Height/ Width)

N/5 cm

TS 1908

400/300

400/300

400/300

1000/800

1000/800

1000/800

1000/800

1000/800

1000/800

1000/800

1000/800

Elongation at Break (Height/ Width)

%

TS 1908

2/2

2/2

2/2

40/40

40/40

40/40

40/40

40/40

40/40

40/40

40/40

Top Surface Coating - PE Foil

-

TS 11758-1

Pe

Pe

Al

Pe

Min

Min

Al

Pe

Min

Min

Al

Sub-Surface Coating - PE Foil

-

TS 11758-1

Pe

Pe

Pe

Pe

Pe

Pe

Pe

Pe

Pe

Pe

Pe

Roll Sizes

m x m

TS 11758-1

1 X 15

1 X 10

1 X 10

1 X 10

1 X 10

1 X 10

1 X 10

1 X 10

1 X 10

1 X 10

1 X 10



Advantages of the Product
It is flexible, long-lasting, resistant to the aggressive effects that may occur in the soil, can easily be applied to different types of surfaces and can easily be applied to the details such as dilation, edges of chimney and parapet returns, it has high tensile and breakage stability

Surface Preparation
Application ground should be purified from loose pieces, oil and other chemicals and surface defects are repaired with the BAUMERK REPAMERK 1 or BAUMERK PH 55 is used for corners. It is recommended to use the BAUMERK B PR 101 as a liner on the application surface for a healthfully application.

Application

It is fully adhered to the surfaces with blowpipe flame leaving 10 cm of margin at jointing parts and 15 cm of margin at roll finishing parts.

Storage and Considerations

Rolls must absolutely be stored perpendicularly; rolls should be protected from direct UV and sudden temperature changes, the piercing and cutting operations should not be done after application, used terraces should be protect with floor covering.
