Automatic Bouffant Cap Making Machine

Product Overview

Description

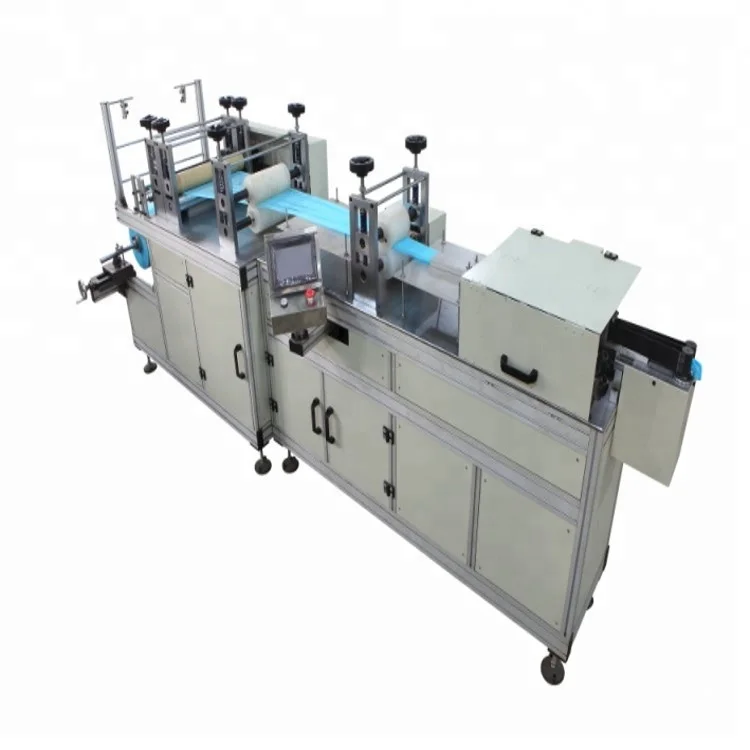

Automatic Bouffant Cap Making Machine







Performance Characteristics



1, The achine has aluminum alloy rack. The appearance is beutiful and doesn't need to be painted.

2, With touch screen operated including production time, count, preset number, automatic stop and so on.

3, It is adopted advanced material such as:with imported brake and motor, Taiwan"SUNHFAR", "DELIXI", "OMRON",    MITSUBISH", "CPG", "NSK", "WEINVIEW".

4, PLC microprocessor controlled operation system.

5, The production speed cab be adjusted according to the practical need.

6, High efficiency and long life-span, low area consumption and low noise.



Main Technical Parameters





power supply	power	Designed speed	optimum speed	package size	weight	outer size
AC380V 50HZ	4.5KW	120 pcs/minute	60-100    pcs/minute	3680* 980*1500	800kg	3330×900×1350mm
