Air handling unit thermal break profile HVAC system aluminum profile handle for AHU

Product Overview

Description

1.Aluminum alloy (A6063,T5)

2.Aluminum profile match with PA/Polyamide corner joint.

3.Mill finish or Anodized for the aluminum profile.

4.Fit for 45mm panel thickness, each piece panel length 5.8m or 6m/pc, Mainly used for air handling unit case,cleaning room wall.

5.8M/pc Fit for 20GP container,6M/pc Fit for 40GP/40HQ container



 5.Aluminum profile thickness between 1.5mm or 2 mm.

6.We have 4 component parts,4 kinds aluminum profile, corner joint, direct connection, square plastic swiggle, different design and shape is available .



Accessories for AHU body like handle, hinge, panel block, gasket, plastic pushing, plastic connector,panel block, view window...... also can manufacture by ourself.

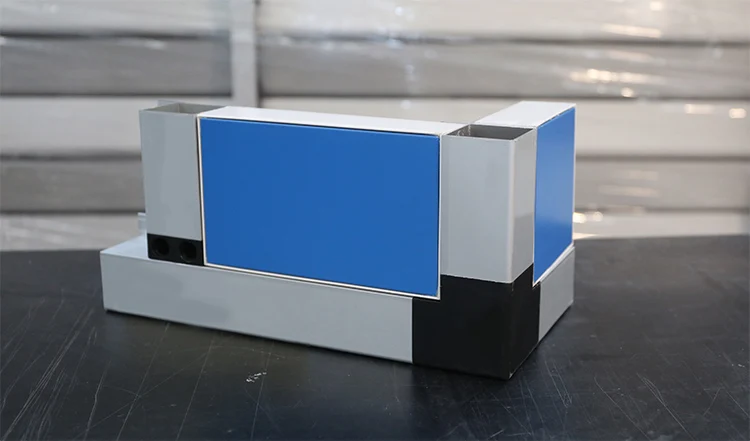

Design sketch details as below picture:

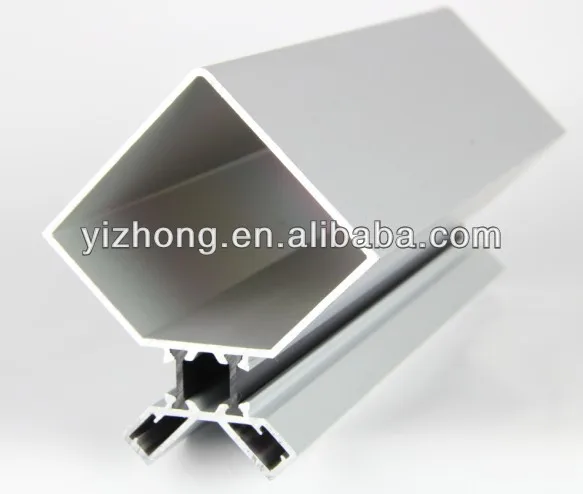

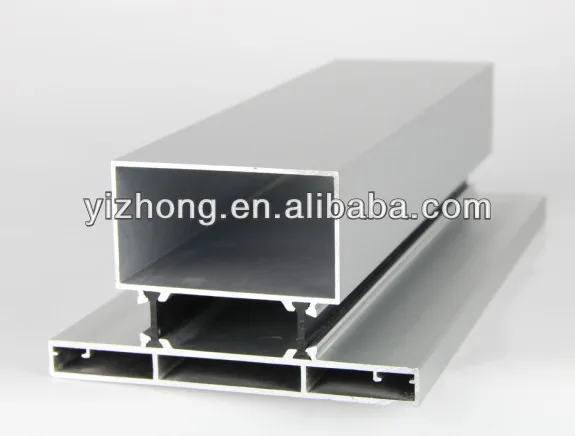

GJ6045



GJ6045-1

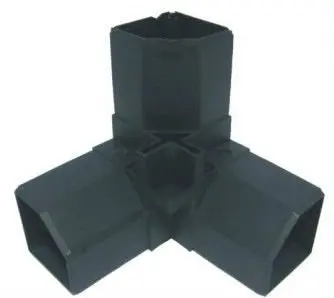

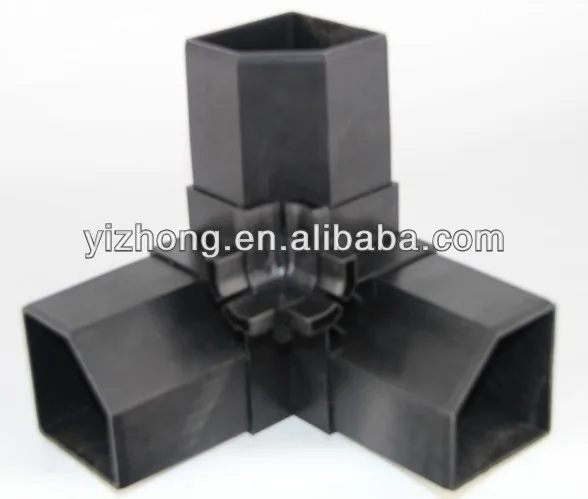

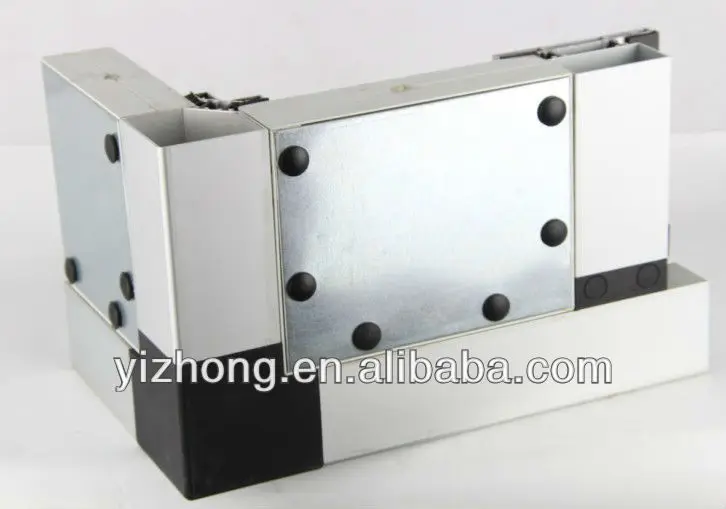

PA6045 Corner:

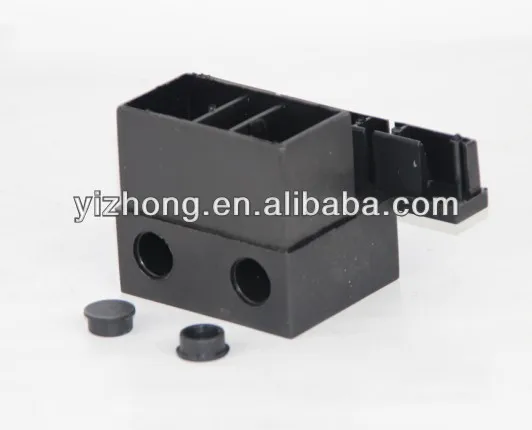

PA6045T connector:

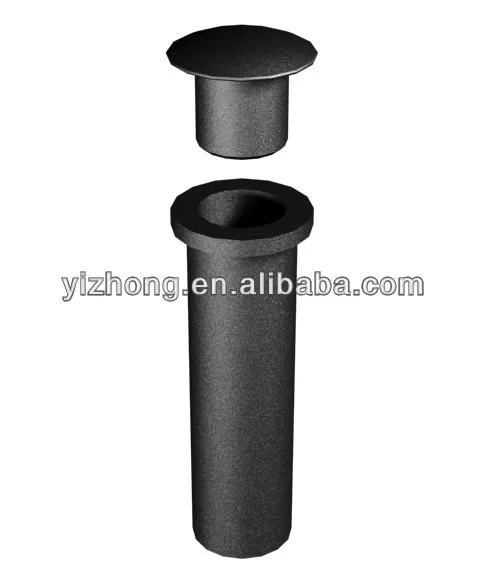

#45 Plastic pushing

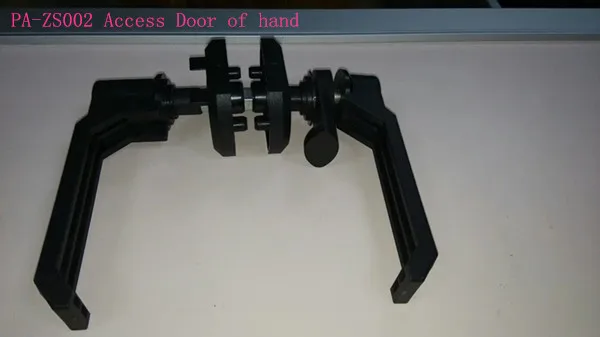

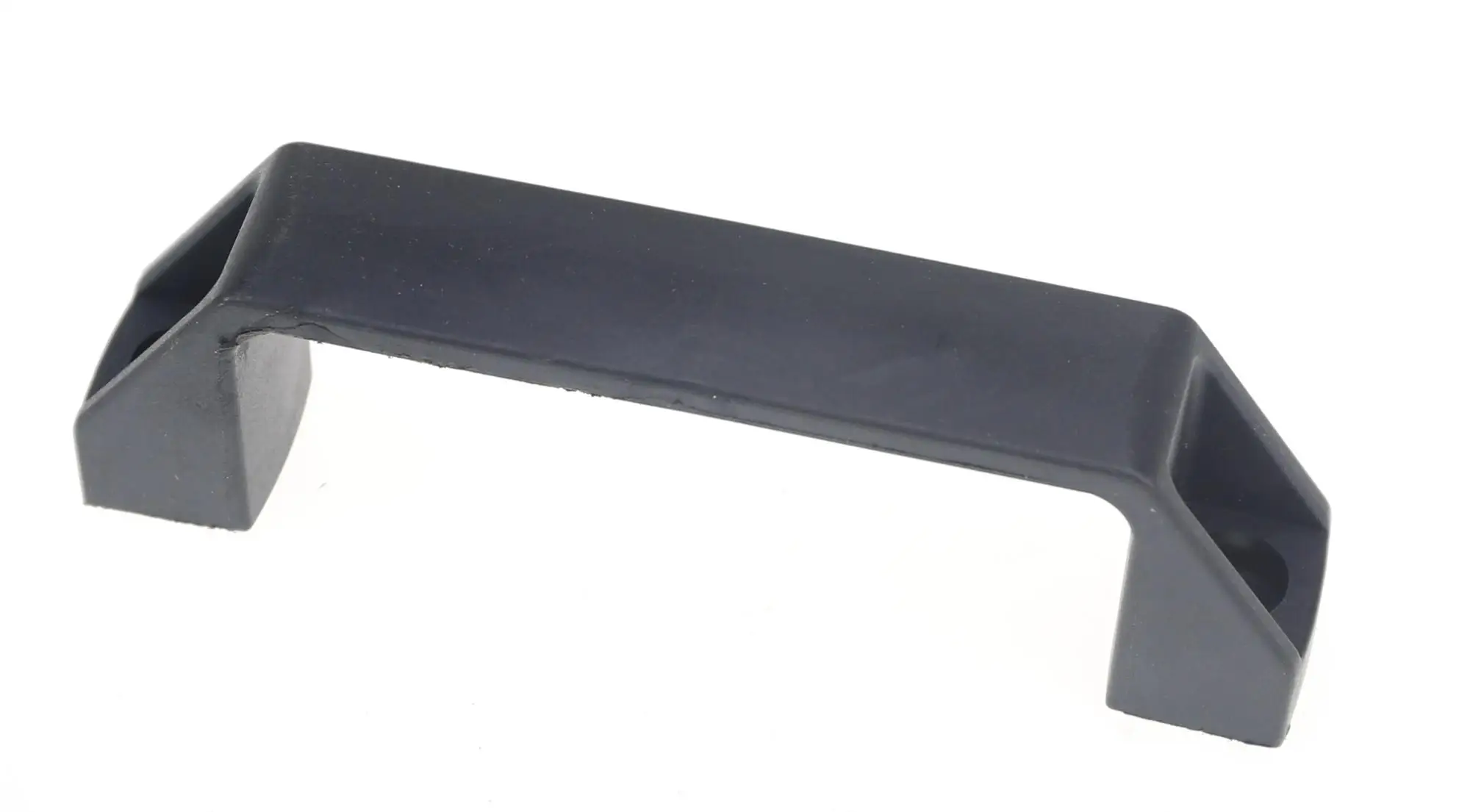

AHU Handle :(PA-ZS001/002)

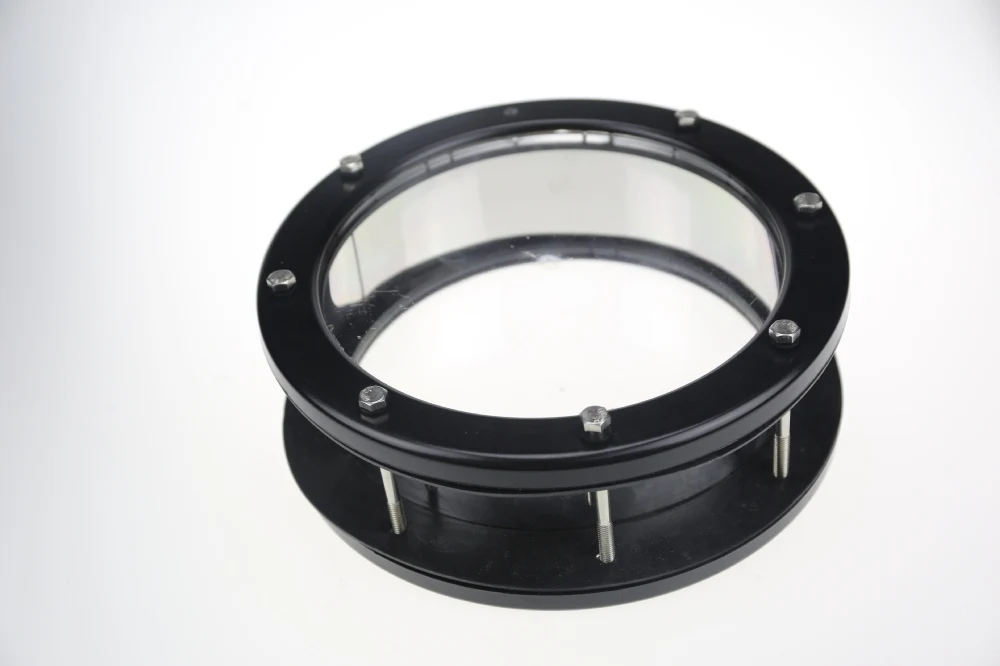

View window for AHU (AC-001)





handle

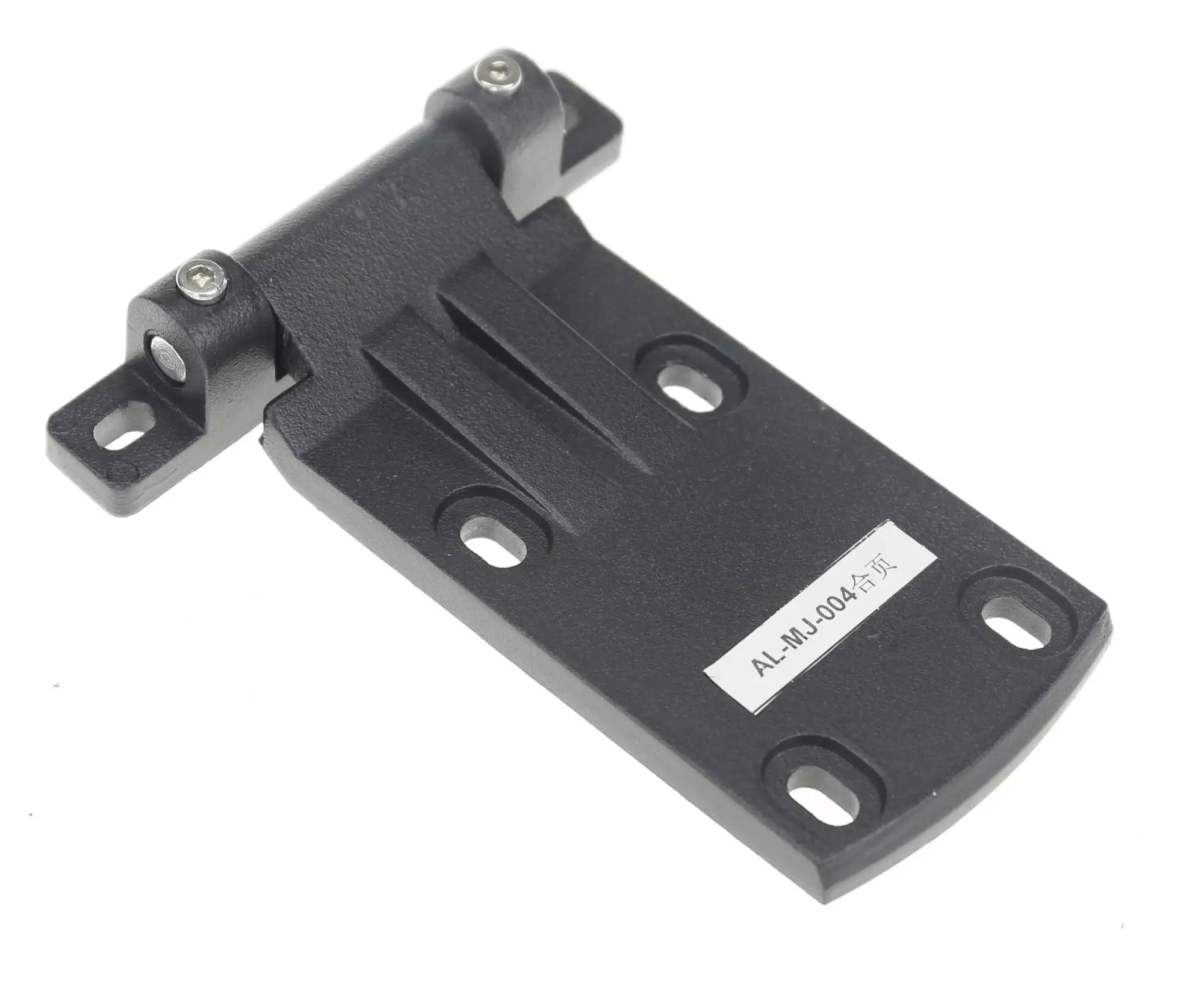

Hinge



Panel block

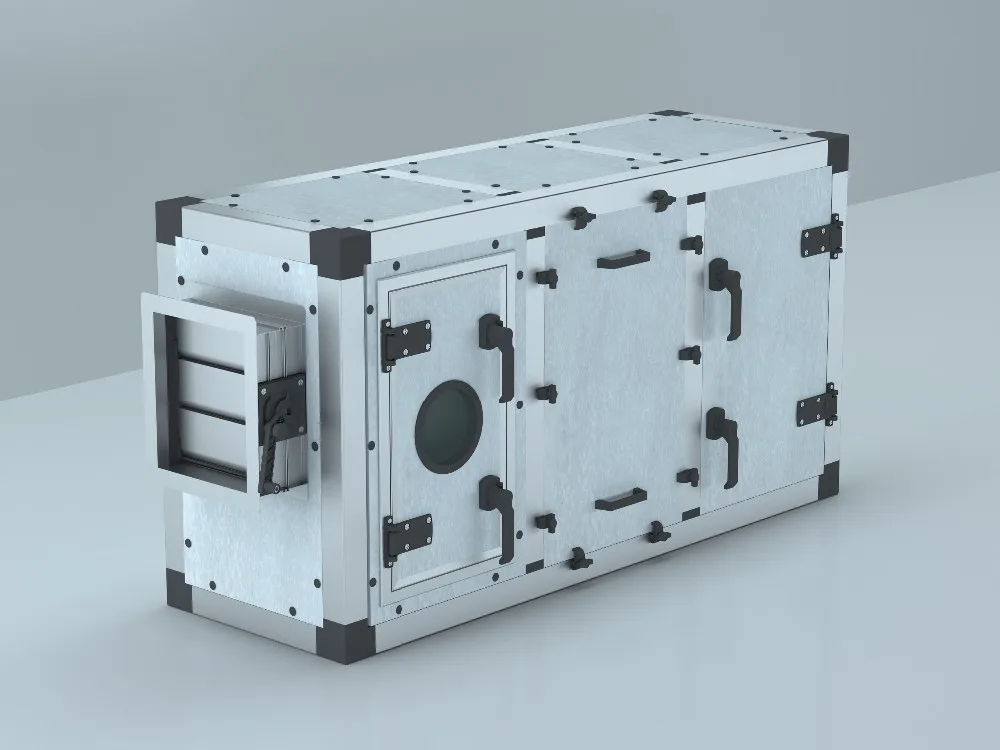

Air handling unit case part.









Material: A6063 , Temper: T5,T6

Alloy chemical element profile:

Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti	Other
6063	0.2-0.6	045-0.9	<0.35	<0.1	<0.1	<0.1	<0.1	<0.1	<0.05
