Специальная горячая распродажа! Jinling 200cc трехколесный самокат ATV 4 тактный ATV, способный преодолевать Броды для взрослых

Product Overview

Description

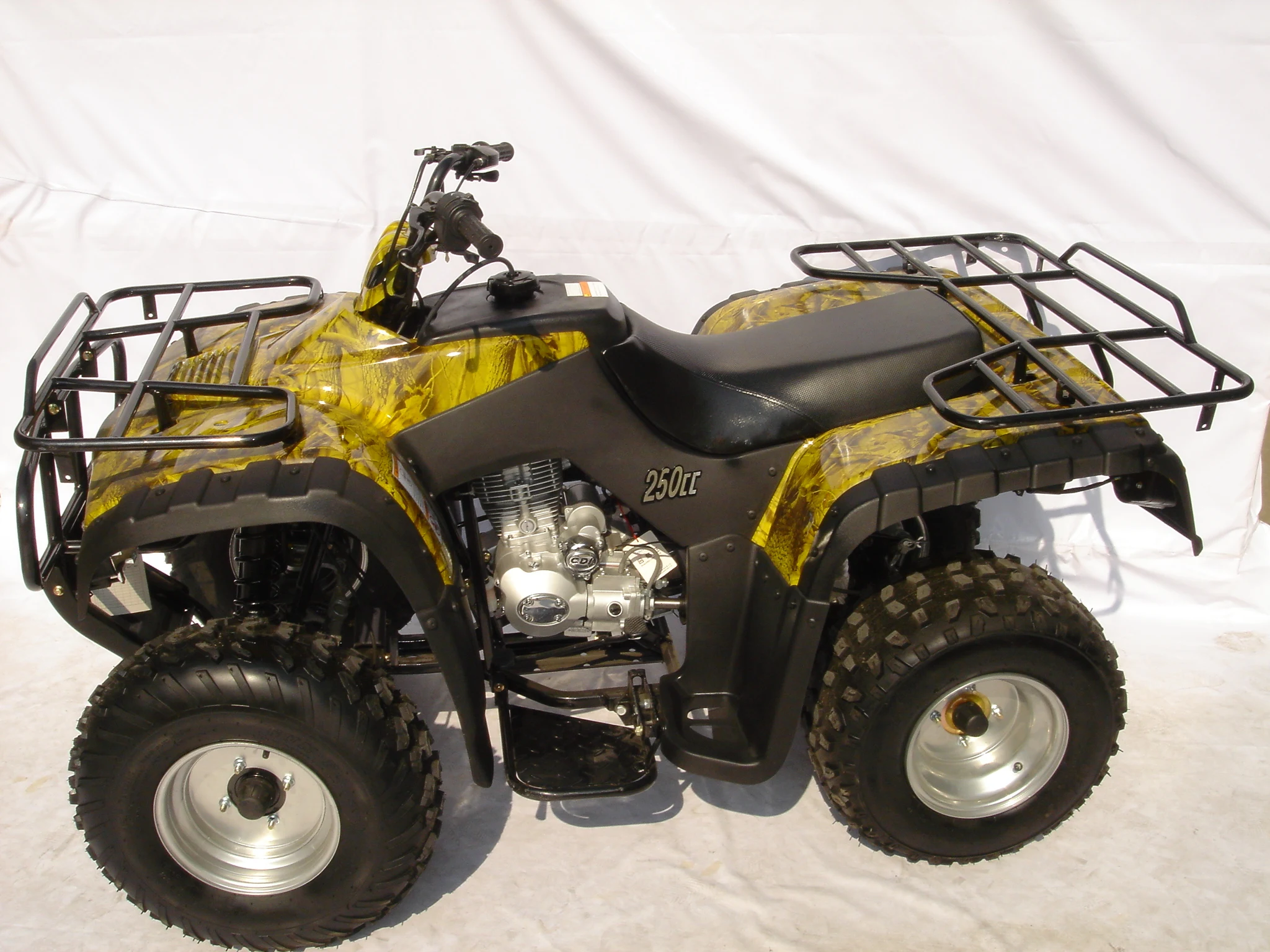

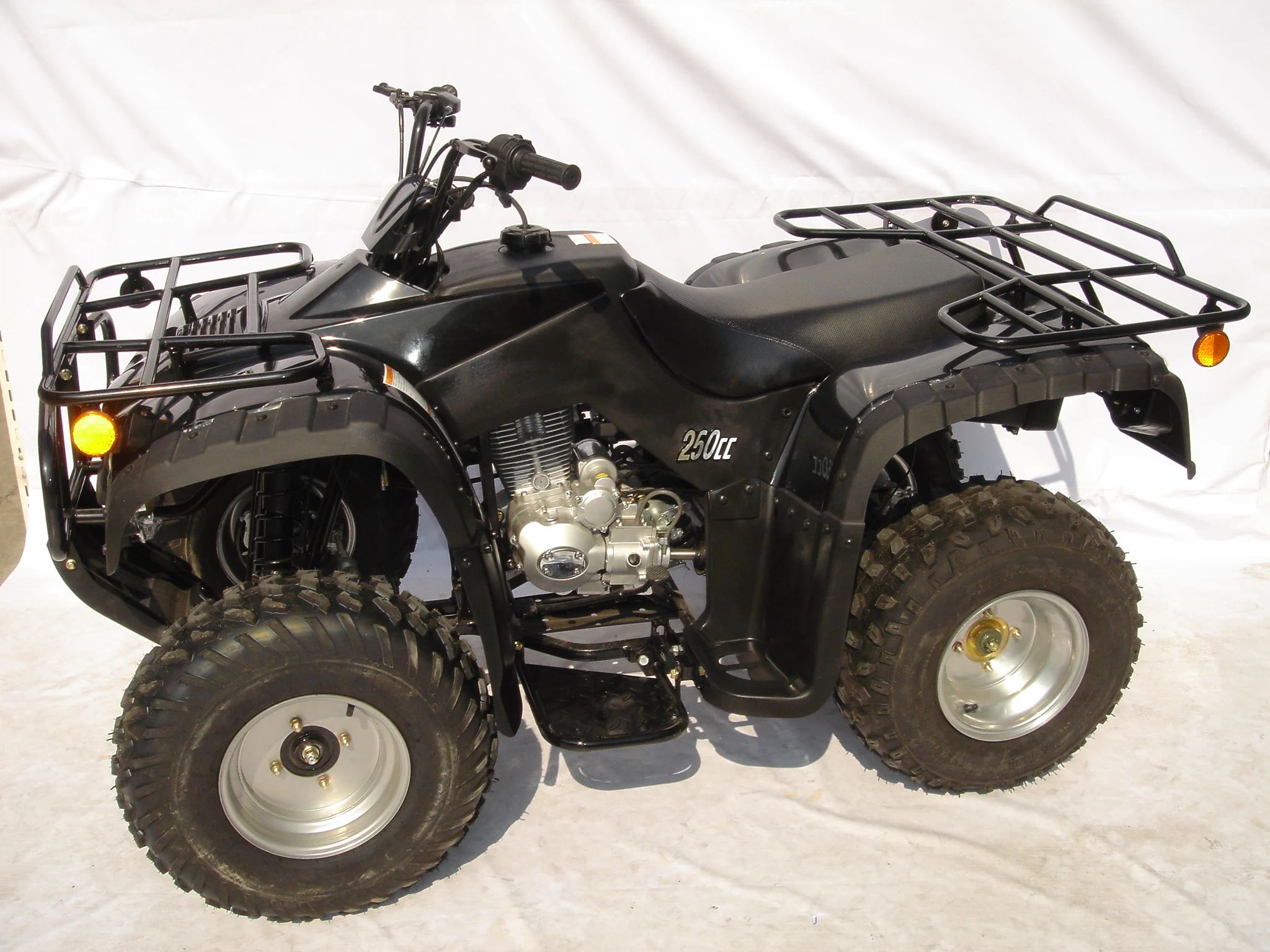

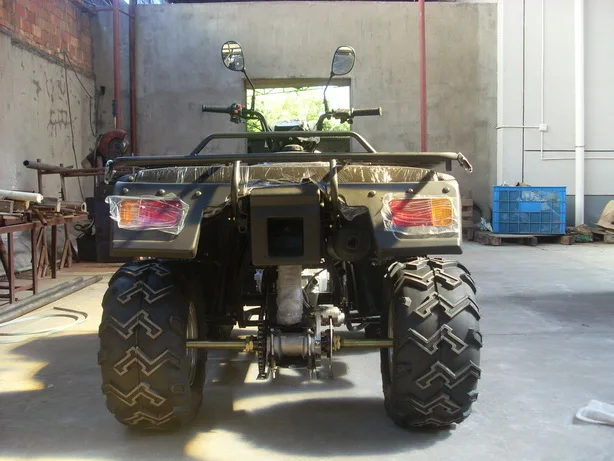

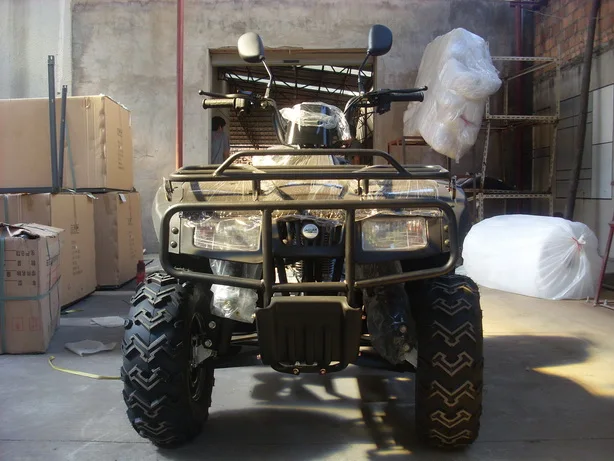

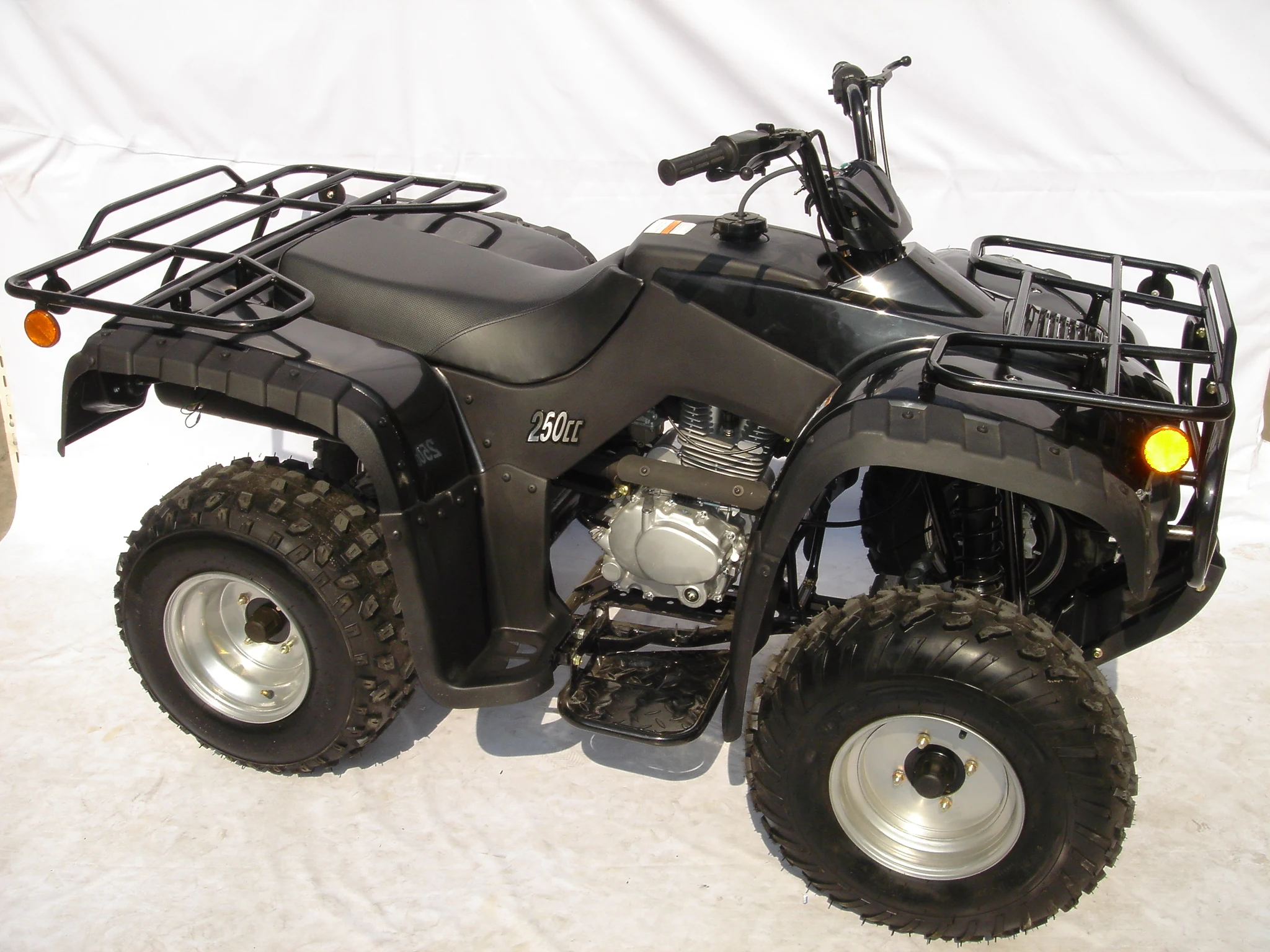

sand quad 250cc atv

TECHINCAL

1. Engine type:250cc, 4 strokes, water cooled
2. Bore and stroke:72x 69
3. Compression rating: 9.2:1
4. Max. torque:17.5N.m / 5000rpm
5. Max. power:15kW / 7500rpm
6. Ignition type: CDI
7. Starting system: electric start

8. Transmission: manual clutch, 4-speed, reverse gear, chain

FRAMEWORK
1. Brake (front / rear): drum / disc
2. Battery spec: 12V, 9AH
3. Front suspension details: double A x swing arm, air chamber shock absorbers
4. Rear suspension details: air chamber absorber
5. Front tire spec: 23 x 7 - 10
6. Rear tires spec: 22 x 10 - 10



SIZE
1. Vehicle dimensions: 208 x 124 x 113cm
2. Wheel base: 116cm
3. Seat height from ground: 90cm
4. Ground clearance: 120mm
5. Load capacity: 370kg
6. Fuel tank capacity: 5.4L
7. Gross weight in carton: 240kg
8. Net weight: 220kg

9. Packing size:194x 109 x 86cm

conveyance:Qty/20' GP:12units  Qty/40' GP:24units  Qty/40' GP:36units



JLA-24-2has a sophisticated quality testing, high reliability and cost performance. And the structure is simple, reasonable, safety. It’s also has a fashion and cool appearance .it can satisfied your

different interests. (If you want, we can give the different colors and accessories for your choices)
