YH5W 12 medium voltage MV line riser pole type surge arrester
- Category: >>>
- Supplier: Zhejiang Fuerte Electrical Apparatus Co. Ltd.
Share on (1319212504):
Product Overview
Description

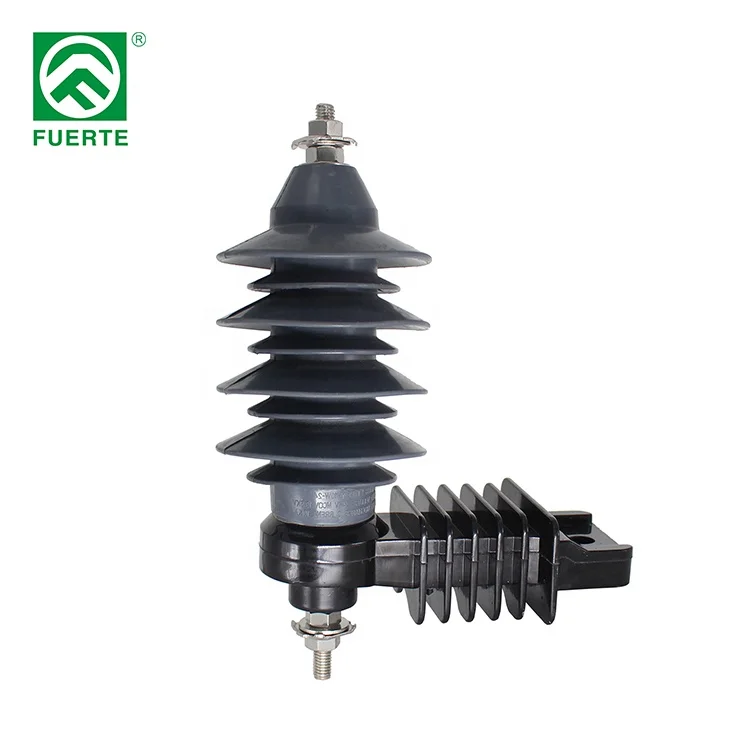

YH5W-12 medium voltage MV line riser-pole type surge arrester:
| Main Technical Specifications | ||
| Type | YH5W-12 | |
| Rated discharge current | kA | 5 |
| Line discharge class | Class | 1 |
| Rated voltage | kV | 12 |
| MCOV | kV | 10.2 |
| 1/4 us lightning current impulse | kV (crest) | 42.2 |
| 8/20 us lightning current impulse | kV (crest) | 36 |
| 30/60 us switching current impulse | kV (crest) | 27 |
| 2 ms rectangular current impulse withstand | A | 150 |
| 4/10 us high current impulse withstand | kA (crest) | 65 |
| Creepage distance | mm | 420 |
| Standard | IEC60099-4 | |
| Type test report | KEMA | |
Standard configuration:surge arrester body with disconnector,insulating bracket. If necessary,Other accessories can be chosen such as mounting bracket, bird-guard cap,conductor,terminal and line clamp. | ||
