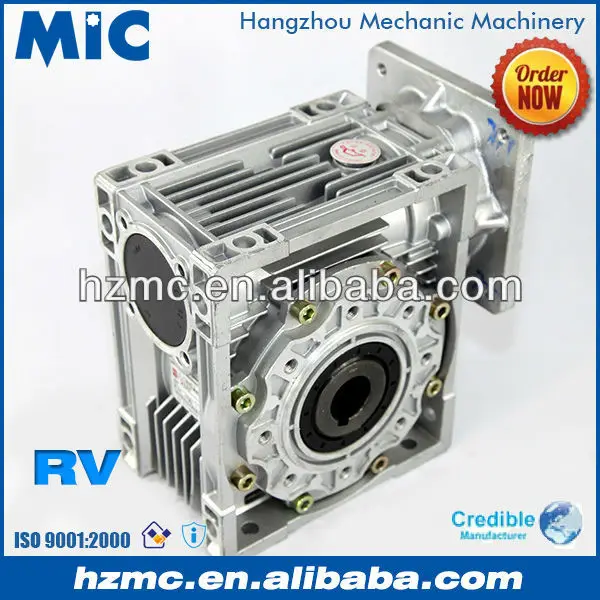

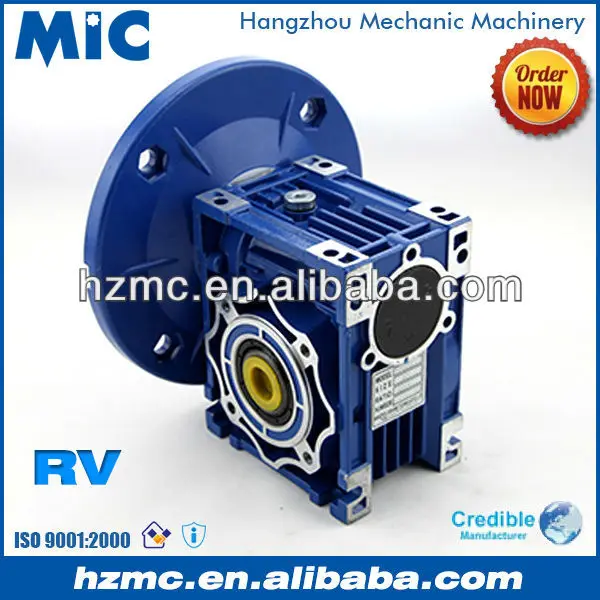

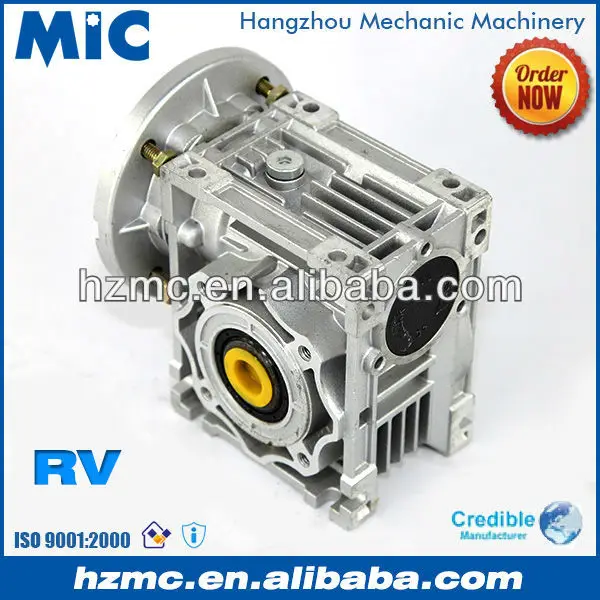

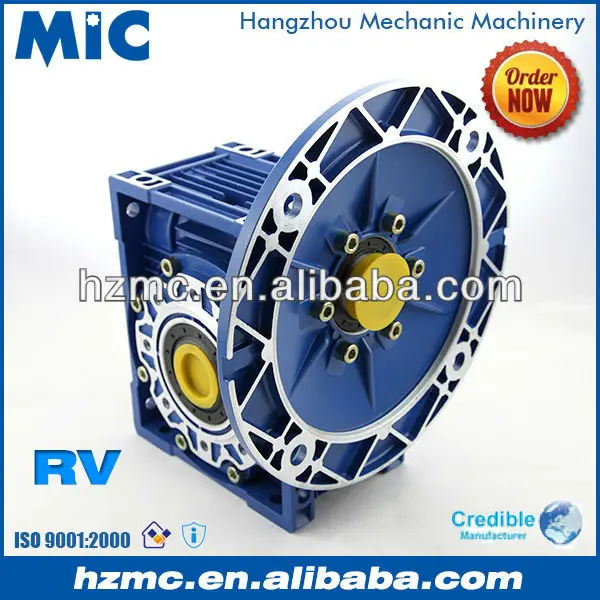

Bonfiglioli Like RV Series NMRV030 Electric Motor Worm Gear Speed Reducer

Product Overview

Description

Bonfiglioli Like RV Series NMRV030 Electric Motor Worm Gear Speed Reductor















Specification







Type:	RV Series Worm Speed Reduction
Model:	NMRV030
Ratio:	1:5,7.5,10,15,20,25,30,40,50,60,80
Color:	Blue/Silver or on customer request
Material:	Aluminum alloy
Packing:	Carton
Bearing:	C&U Bearing
Seal:	NAK , SKF
Warranty:	1 Year
Input power:	0.06kw,0.09kw,0.12kw,0.18kw
Usages:	Industrial  Machine: FoodStuff,Ceramics ,CHEMICAL, Packing ,Dyeing ,Wooding working ,Glass
IEC Flange:	63B5,63B14,56B5,56B14
Lubricant:	Synthetic

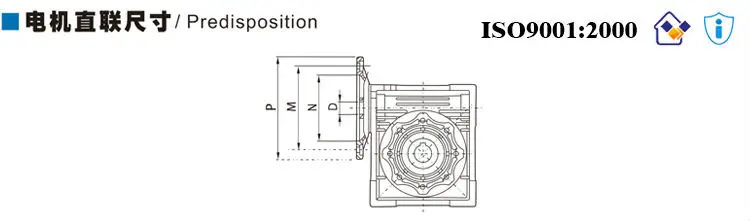

Predisposition

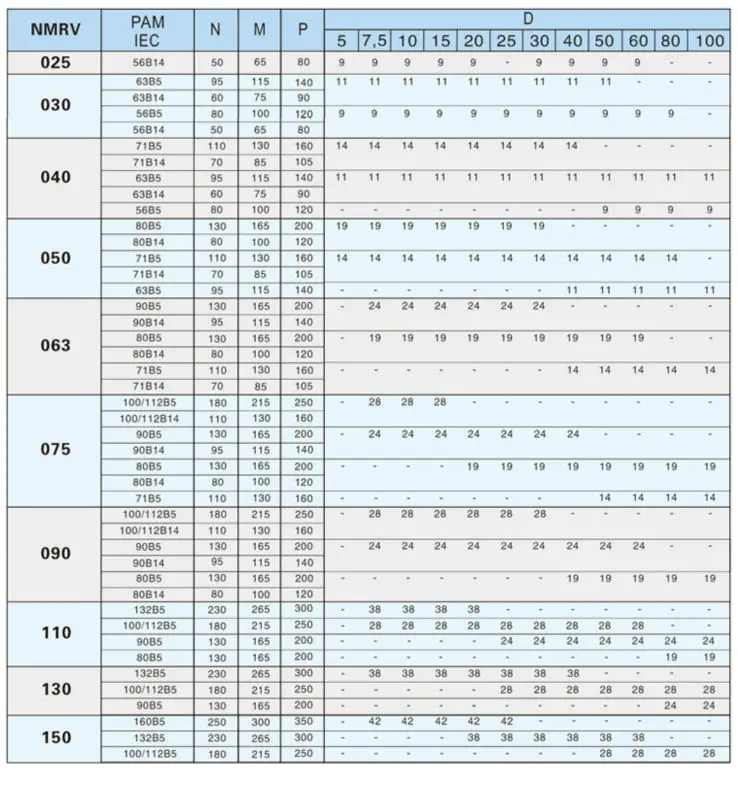

IEC Dimensions

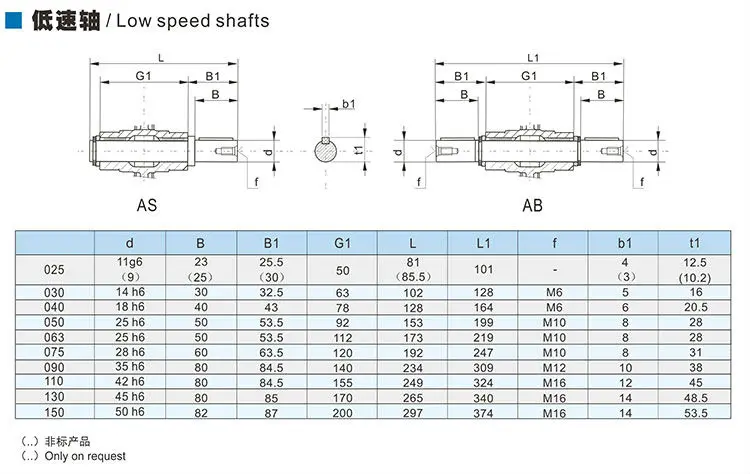

Low Speed Shaft's size















Installation Pattern













Our Other Related Products











Our packing













Our factory













Order Tips:



1.Please confirm which model NMRV you needed.

2.Standard packing is wooden case.

3.Delivery:By sea, by air or others.









Our Strength:



1. Delivery On Time.

2.Professional Service: Customer needs is our first priority

3. Good Quality:  ISO 2001:2008 Certificated

4. Fast and Low Cost Deliver:  Long-term cooperated shipping forwarders.







 Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.





                      Any question can contact us.
