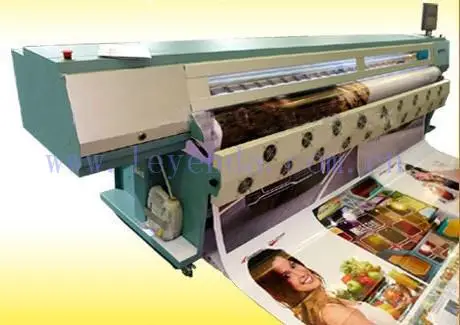

infiniti challenger FY 3208R use seiko head printer

Share on (1319757483):


Price:RUB 745,153.31

Quantity:


Product Overview

Description



Product Description

 3208r



Specification



Product Model

Challenger-3208R



Printhead

SPT 510-35PL printhead



Number of Printhead

8Heads



Printhead Sequency

1x8



Maximum Print Width

3200mm 125.9 inch



Maximum Media Width

3300mm 129.9 inch



printing mode

Print Speed



High mode

101m2/hr



Standard mode

76m2/hr



High quality mode

28m2/hr



Ink Type

Solvent Ink



Ink Color

Double 4 Colors( C\M\Y\K )



Ink Supply System

Low Ink Detector,Auto or Manual Ink Supply System



Auto Cleaning System

Positive Cleaning Anti-clogged Flash Function



RIP Software

Maintop, PhotoPrint, UltraPrint



Print Interface

USB2.0



Printhead Height

2 to 6mm Above Media Adjustable



Media Type

Vinyl,Flex,Polyester,Back-Iit Film,Window Film,etc Roll Media or SheetMedia



Auto Media Feeding System

Equipped(Max.Media Weight 80kg)



Pre-heating & Drying System

Equiped(Drying System Optional)Infra-red Heating System Optional



Clamp

Equipped



Input Power

AC220V 50HZ



Operation Environment

Temperature: 20°C--28°C, Humidity: 40%--60%



Machine Dimension

L4500 *W905*H1260mm, 348kg




Package Dimension

L4590 *W1050*H890mm, 591kg

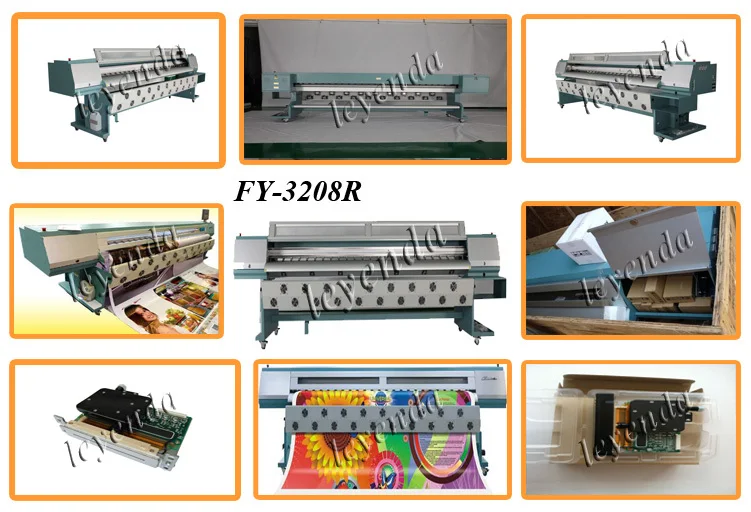

Printer details

FY-3208R

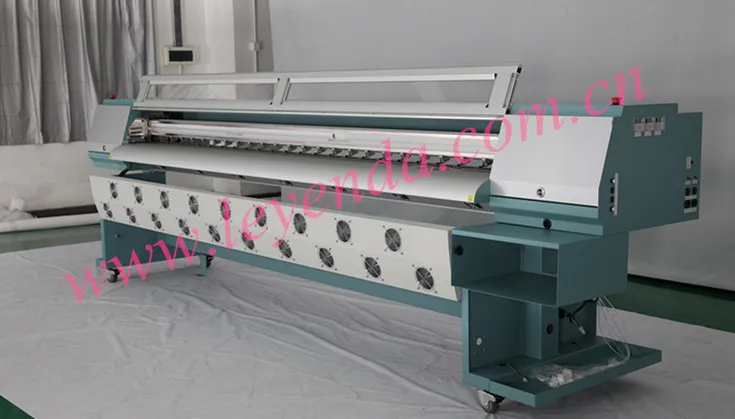

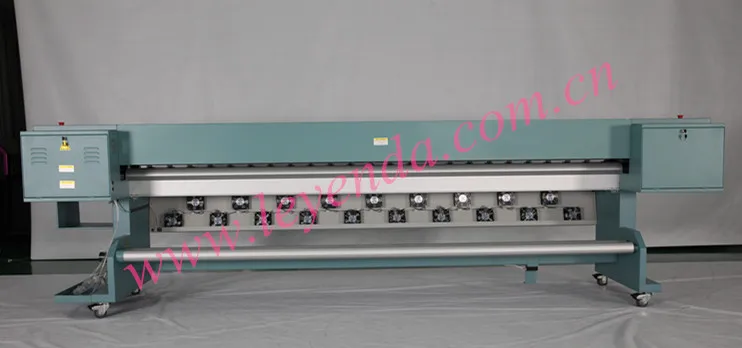

 Printer real Photo



















Printhead & Parts

Seiko 510 printhead,720dpi,high sped,high resolution.



50PL



50pl (4)_











Printing ink used for this printer:









Materails:

 3206-3208-3286R

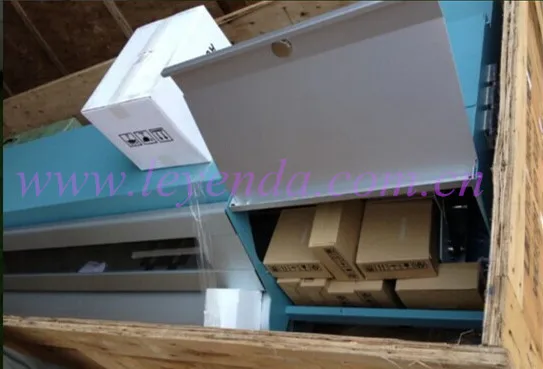

 Package :

 packing-ps9





Our Services

How to order?



Step 1.

Contact with me about the details and product you need.



Step 2.
Confirm the order to us, provide the following information, then we will send you Proforma Invoice (PI) for your reference
Order Details ( Items and Quantity), Company Name, Contact Person, Address, Telephone, Sea port of destination



Step 3.
Send payment T/T in advance and notify us (send Bank Slip to us)



Step 4.
We will deliver the goods within 5 working days after receipt of your payment, and keep you informed about the order status.
Balance payment should be paid upon copy of B/L. On receipt of balance payment, we will send you original shipping documents by DHL and let you know the tracking number.



 Step 5.

Confirm to us upon receipt of order.





Why order from us?



1.Our profession is infiniti/challenger/phaeton printers.Quality is good,product  from factory directly.



2.We save a lot in our stock,can deliver to you fast.



3.I am an  engineer  of these printers,will help you to install machine and software,solve all the



   problem of your new printer and old printer.



4.If you have freight forwarding in Guangzhou,we will deliver product to their warehouse free for you.



5.Equipments have one year warranty.



6.Our idea is treating client as friend,will cooperate with you by our heart.





 We are professional supplier to oversea, that have your inquiry,it is our pleasure to service for you!
