Application: Our Flexo Printing Machine is widly used for printing narrow material, and it 's an ideal machine for printing narrow size label etc.
Suitable Material: Self Adhesive paper , Self -Adhesive Film , Laminating Film ,Paper ,Opp ,Alumium,CPP ,PET .
Characteristics:

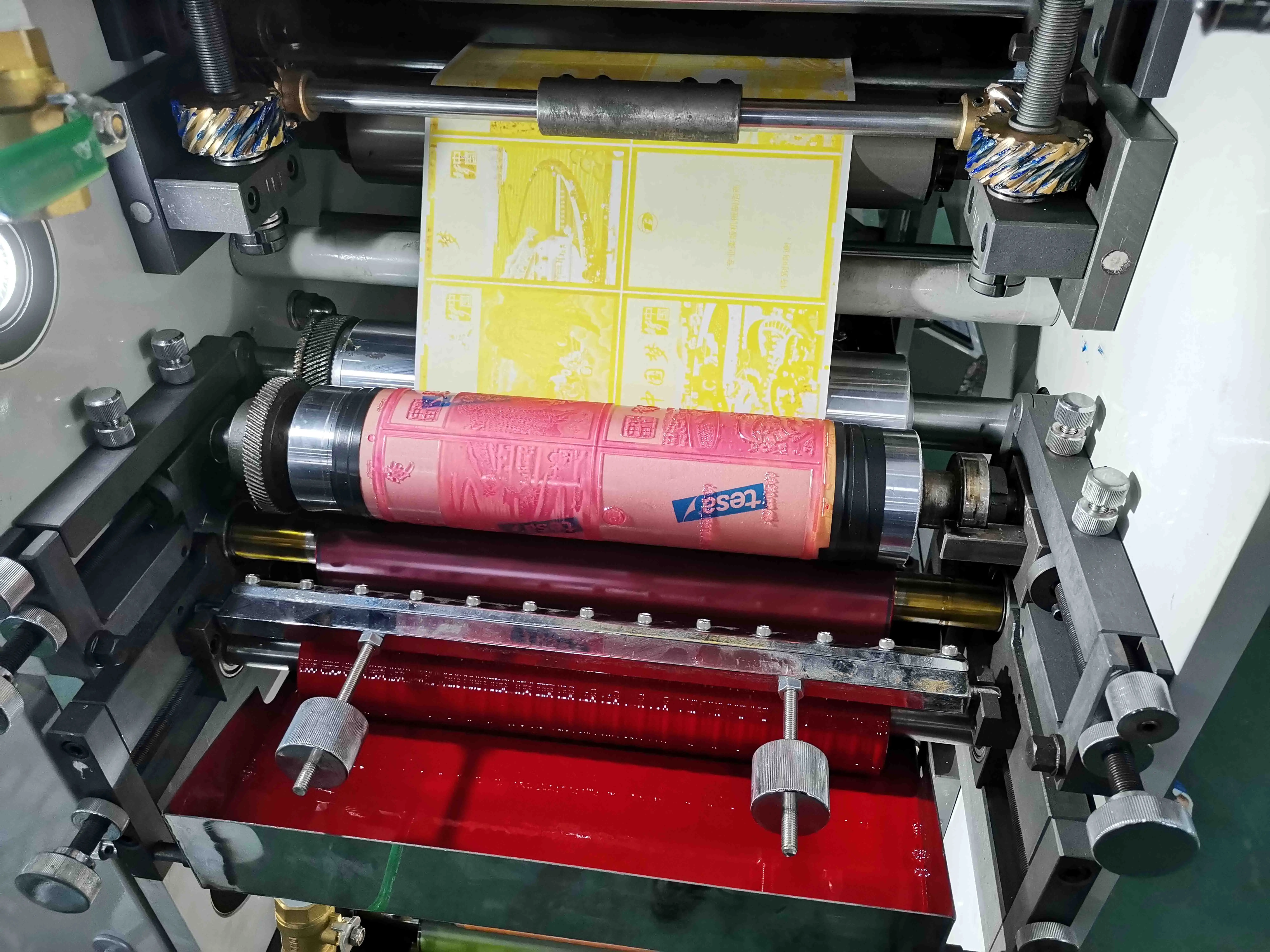

1, Ceramic anilox cylinder are adopted for ink transferring.
2, The unwinding and rewinding units are designed with magnetic powder brakes and clutchs for tension control, and flexo

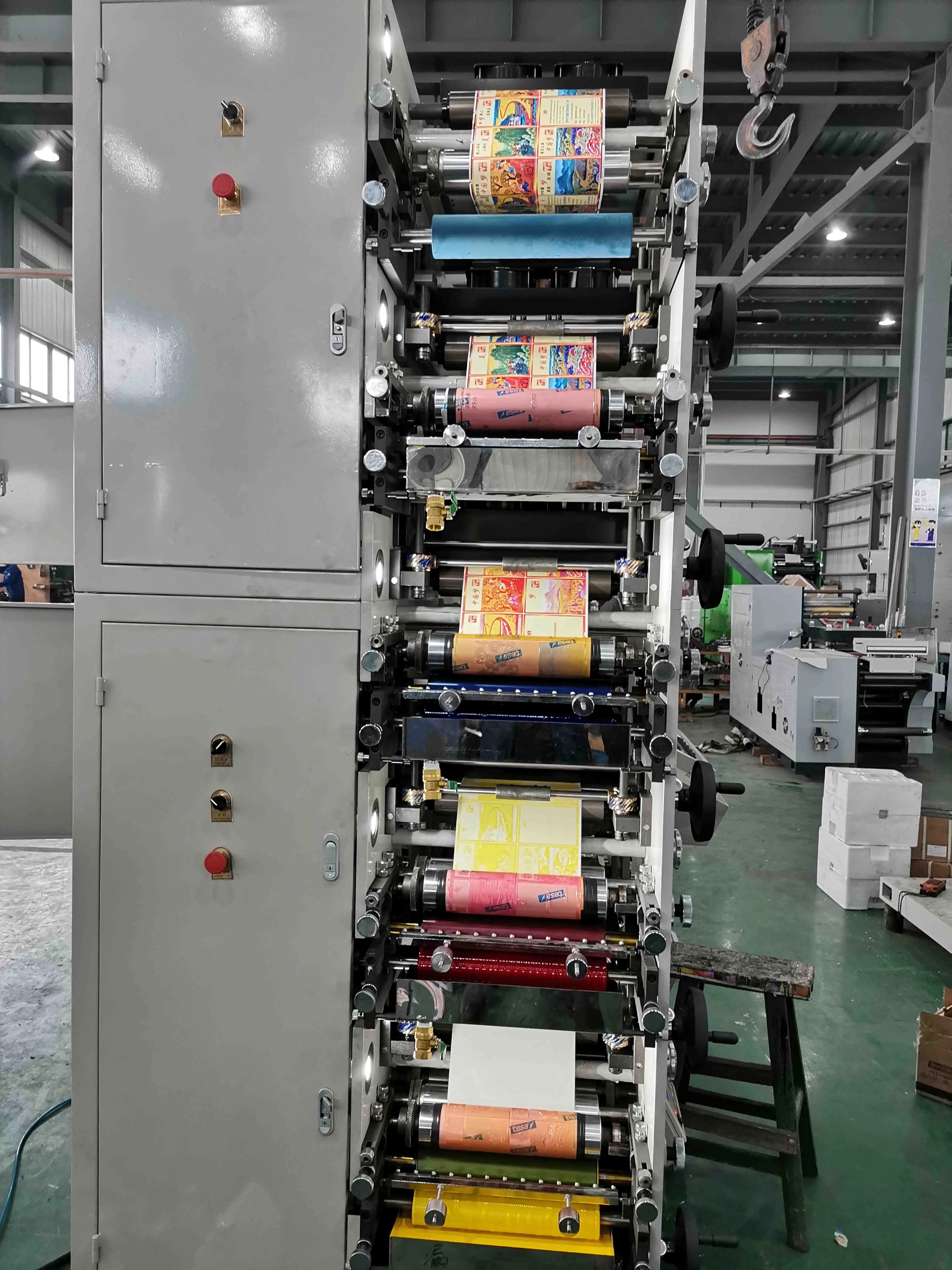

machine equipped with Mitsubishi auto tension controller. 3, Each printing unit is adopted 360°printing plate-adjustment. 4, All printing units are equipped with a group of hot air dryer.(UV dryer is for option) 5, The machine has one die-cutting station, and it can make printing and die cutting finished in one process. 6, The ink rollers will be automatically separated from the printing roller, and it will keep rotating at a low speed, thus
preventing ink from drying. 7, The main motor is equipped with an imported variable frequency stepless speed govermor. This guarantees the stable
performance of flexo press. 8, The machine can finish material-feeding, printing, vanishing, drying, laminating, die-cutting and rewinding at one stroke.
It is an ideal machine for printing trade invoice and top-grade adhesive label.
Standard Configuration for flexo printing machine: 1.One Paste plate machine 2.One anilox roller for each group (LPI is optional, made in shanghai) 3.Three sets printing rollers (3*5=15) Printing Teeth User Advise . 4.Printing both sides at the same time (with Turn bar) 5.With the lamination station 6.Die cutting station. 7.One unwinding tension controller 8.One rewinding tension controller 9.magnetic power brake
Product Model:
DBRY-320
DBRY-480
Printing Speed
70m/min
70m/min
Max. Web Width
330mm
480mm
Max. Printing Width
320mm
450mm
Max. Unwinding Diameter
600mm
600mm
Max. Rewinding Diameter
600mm
600mm
Printing Girth
175-580mm
175-580mm
Precision of Registering
±0.10mm
±0.10mm
Dimensions (L×W×H)
3500mm×2100mm×2400mm
3500mm×2300mm×2400mm
Machine Weight
About 3000kg
About 3500kg
Total Power
10.5kw
15kw
Samples
Application material
Company Profile
Certifications
Our Advantages
More Than Ten years experience
1) Best Price, Professional Suggestion
2) Longer Machine life, with CE certificate. More than Ten years Use.
Quality guarantee
1) 18 months for mechanical parts
2) One year for electric parts.
24-hour service
1) Whole life service.
2) Sample testing support.
3) Training how to install the machine, training how to use the machine.
Our Service:
1. Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new on the printing and packing area ,Some samples of your products could be shew to us will be appreicate ,we will give you specialized suggestion of whole work .
2. Shipping Service
DABA COMPANY have a spcialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T,L/C Items well. All Exported documents could be made perfectly . DABA COMPNAY cooperate with the most famous shipping company in China also.They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines. DABA Comapny will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to surpply the round trip tickets ,food ,hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factory to learn how to operate machines.DABA Company technician will teach and train the lerners hand by hand till he can operate machine by himself. Obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year. Many easy broken spare parts will be prepared in the tool box together with machines.Any parts broken ,Just a pictures or a videos.The new free parts will reach within 3-7 Express working days .
