DXDY 1000AII HUALIAN Automatic Plastic Bag Pouch Drinking Sachet Pure Water Liquid Filling Packing Machine
- Category: >>>
- Supplier: Hualian Machinery Group Co. Ltd.
Share on (1320121523):
Product Overview
Description

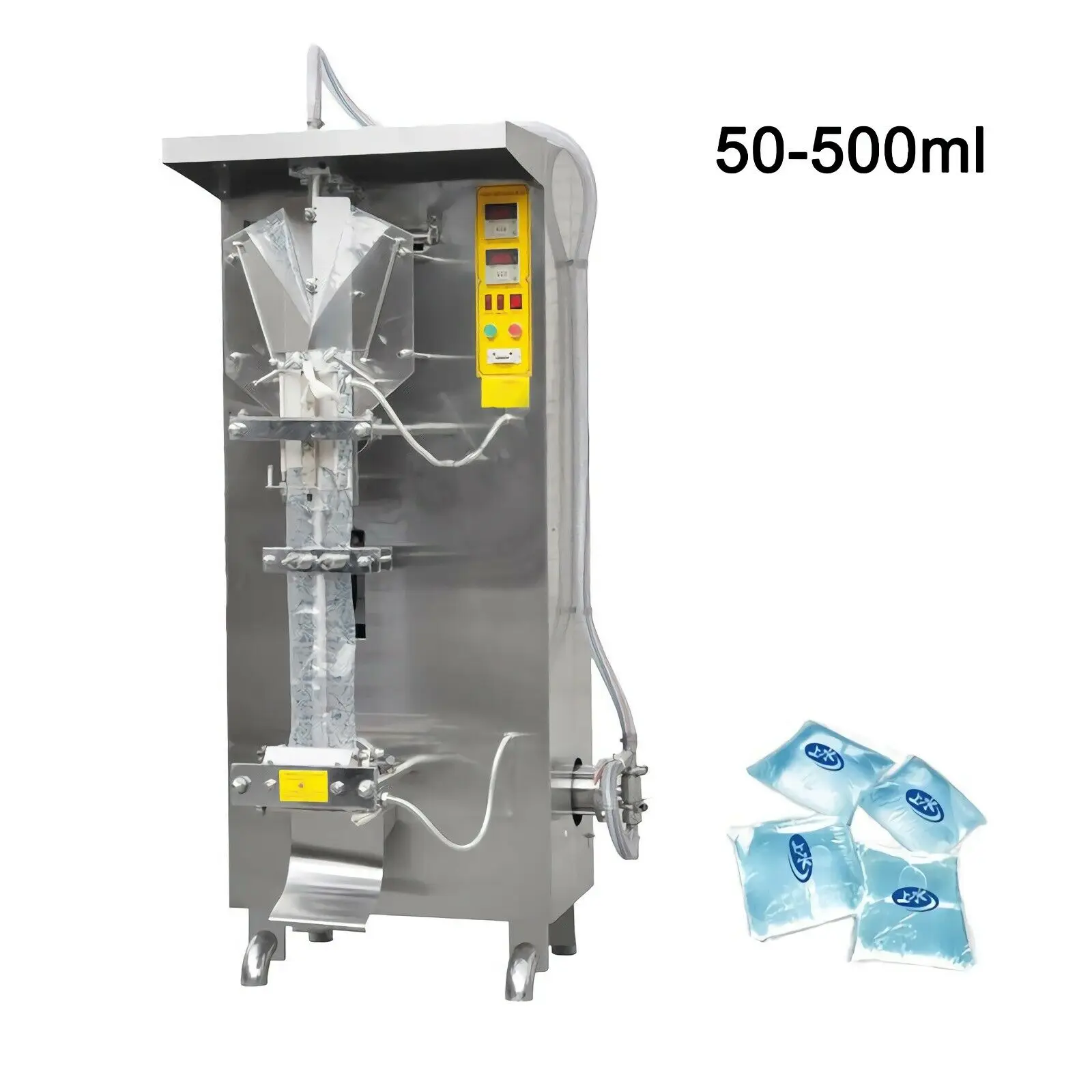

Hualian Automatic Water Liquid Bag Filling and Sealing Machine Bag 50-500ml (DXDY-1000A/II)
Description:
DXDY-1000A series automatic liquid packaging machine can complete the whole process of film sterilization with ultraviolet
radiation, date printing, rationed filling and sealing & cutting automatically as a continuous action. The finished package is
beautiful and secure.
Features:
1. Made from stainless steel to ensure international hygiene standards.
2. Automate the sealing temperature control, not be affected by voltage.
3. It's suitable for single layer PE film.
Application:
DXDY-1000A series automatic liquid packaging machine is widely used to pack liquids in low and high viscosity such as milk, soy
milk, beverages, soy sauce, vinegar and wine.
Description:
DXDY-1000A series automatic liquid packaging machine can complete the whole process of film sterilization with ultraviolet
radiation, date printing, rationed filling and sealing & cutting automatically as a continuous action. The finished package is
beautiful and secure.
Features:
1. Made from stainless steel to ensure international hygiene standards.
2. Automate the sealing temperature control, not be affected by voltage.
3. It's suitable for single layer PE film.
Application:
DXDY-1000A series automatic liquid packaging machine is widely used to pack liquids in low and high viscosity such as milk, soy
milk, beverages, soy sauce, vinegar and wine.
Product Description
Product Specifications:
The sachet machine can be used to fill pouches with a wide variety of liquids such as water, juices, wine, alcoholic beverages,soy milk, and various other liquids.This sachet machine has been proven to be very reliable and is very commonly used in anywhere
worldwide.
The sachet machine fills the sachet with water then uses a heat-sealing system to ensure that the filled sachet or pouch does not leak water. Heat-sealing also ensures that there are no adhesives, glues, or resins used to seal the bag, preventing any possible contamination from sealing.The heat-sealing system uses thermal transverse vertical sealing to seal the bag, meaning that the bag feeds vertically and is thermally (heat) sealed. It is designed to use wither PE film or composite film bags making it versatile to various applications. It can be used with films with preprinted logos or films without logos. The machine then cuts the sachet and drops it into the finished product area.
The water sachet packing machine features date lamination, which laminates the date of production on the bag allowing you to track which pouches were produced on a given date. It also features automatic counting to track the number of bags produced by the machine rather than other machines which do not include this feature. The sachet machine uses UV sterilization when filling the sachets to prevent any possible contamination. Therefore you can be sure that the water inside the bag has not been contaminated after it has been purified by your water purification system.
worldwide.
The sachet machine fills the sachet with water then uses a heat-sealing system to ensure that the filled sachet or pouch does not leak water. Heat-sealing also ensures that there are no adhesives, glues, or resins used to seal the bag, preventing any possible contamination from sealing.The heat-sealing system uses thermal transverse vertical sealing to seal the bag, meaning that the bag feeds vertically and is thermally (heat) sealed. It is designed to use wither PE film or composite film bags making it versatile to various applications. It can be used with films with preprinted logos or films without logos. The machine then cuts the sachet and drops it into the finished product area.
The water sachet packing machine features date lamination, which laminates the date of production on the bag allowing you to track which pouches were produced on a given date. It also features automatic counting to track the number of bags produced by the machine rather than other machines which do not include this feature. The sachet machine uses UV sterilization when filling the sachets to prevent any possible contamination. Therefore you can be sure that the water inside the bag has not been contaminated after it has been purified by your water purification system.
1. Back sealing,valve piston pump filling meter.
2. Film disinfection, liquid disinfection.
3. The finished packed products are elegant and reliable, hygiene and security.
4. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
5. The body and the parts touching the material are made of stainless steel.
It is applicable for packing liquid like milk and soymilk water ,soda water
2. Film disinfection, liquid disinfection.
3. The finished packed products are elegant and reliable, hygiene and security.
4. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
5. The body and the parts touching the material are made of stainless steel.
It is applicable for packing liquid like milk and soymilk water ,soda water
Specification
DXDY-1000AⅡ | DXDY-1000AIII | ||
Voltage (V/Hz) | AC 220/50 110/60 | ||
Power (W) | 1750 | ||
Capacity (bags/h) | 1300/2100 | 1500/2400 | |
Packing Capacity (ml) | 150-500 | 400-1000 | |
Film Width (mm) | Max. 320 | Max. 360 | |
Size of Bag (mm) | (L)50-170 (W)50-150 | (L)50-210 (W)50-170 | |
External Dimensions (L×W×H) (mm) | 900×780×1780 | 1050×850×1920 | |
Net Weight (kg) | 400 | 450 | |
