Product Overview

Description

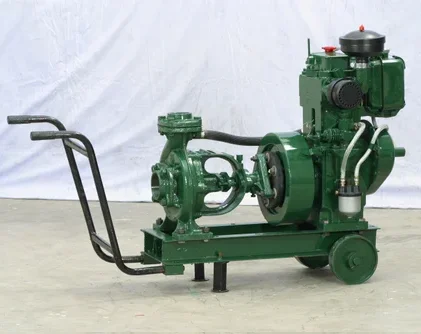

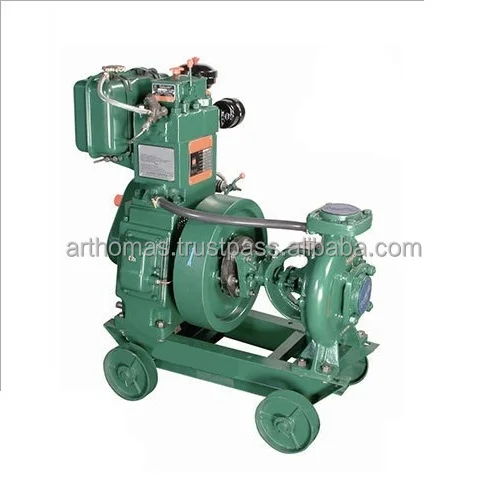

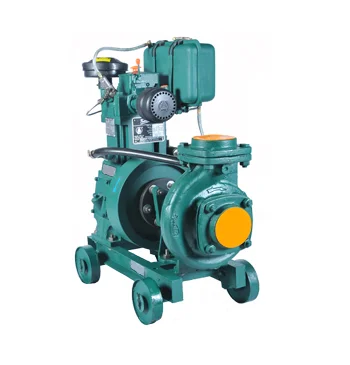

CENTRIFUGAL  DIRECT  COUPLED  / SELF- PRIMING DIESEL WATER PUMP SET:

These water pump set are used to lift water from deep well, lake, ponds, river etc for irrigation these type of pump set are used widely by thousands of Asian & African farmers as the pump and engine design are simple so they are long life and easy reparable and long lasting performance. Main feature is low RPM 1500 so that minimum wear & tear of spares. Engines (Hand Start or electric start optional) between 4 and 28 H.P Direct Coupled to Water Pumps, either Centrifugal or Self Priming Sets should be built on steel base. Stationery on the steel base, and Portable using Rubber Wheels (Coasters), and handle in order to move the set from one place to another. The Engines of those sets are cooled automatically from the pumps, as the pumps sends the cold water through a hose to the Cylinder head as an intake. The outlet side for warm water is the hopper cover. This way the engine is kept cool during the operation. The outlet water is not wasted, because it is used for irrigation also.



STANDARD PARTS:
Air Cleaner, Silencer, Wrench Set, Screw Driver, Starting Handle, One Bag, Oil Can , Instruction Manual.

APPLICATION:
These Pump Sets can be used in Agriculture ,Irrigation, Mining, Forestry Culture, Fishing and other purposes.

SIZE:

Also it is available in various sizes from 1.5”x2.00” to 6”x6” pump.





'REEJA" BRAND WATER PUMPSET WITH PETTER/LISTER TYPE DIESEL ENGINE)

PRIVATE ENGINE H.P.	Engine Rpm	NO OF CYL.	PUMP SIZE MM	HEAD RANGE IN METER	DISCHARGE LIT./SEC.
4.5	1500	1	65x50	10 to 13	16 to 10
5.0	1500	1	80x65	11 to 16	22 to 14
6.5	1500	1	80x65	9 to 20	26 to 15
7.5	1500	1	100x80	9 to 15	31 to 14
8.0	1500	1	100x100	9 to 16	32 to 14
10.0	1500	1	125x125	7 to 17	52 to 29
6.5	1500	1	125x125	9 to 9	36 to 20
8.0	1500	1	150x150	6 to 19	37 to 22
20.0	1500	2	100x125	14 to 20	100 to 180m3/hr
28	1500	2	150x150	6-10	100L/S
30	1500	2	200x200	5-6	150L/S
28.0	1500	2	100x125	22 t0 20	140 to 210m3/hr
28	1500	2	80x80	40	50m3/h
10	1500	1	80x80	26 to 35	23 to 6 L/S
