1.6 specific gravity sbr rubber sheets

Product Overview

Description

Colorful CR/SBR/NBR Rubber Sheet



NBR/PVC rubber sheet for heat proof
Characteristics of our rubber sheet:
1. Closed-cell Structure.
2. Low and Stable Thermal Conductivity.
3. Low Water Absorption Rate.
4. Good Fireproof and Soundproof Performance.
5. Good Aging Resistance Performance.
6. Simple and Easy Installation.
7. Environmental friendly & Improved IAQ.
Rubber sheet application:
Rubber sheet are widely used as different kinds of vapor pipeline heat preservation, heat insulation in central air conditioning engine room, wind pipeline heat preservation and heat insulation and etc. It has good resisting dew-together capability, sound and shock absorption, low density, thermal conductivity and low water vapor transmissibility.
It is ideal for applications in:
Ductwork
Dual temperature and low pressure steam lines
Process piping
Air-conditioner, including hot gas piping
Technical specifications:
Property	Unit	Value
Density range	kg/m³	50~100
Flammability	-	B1
Oxygen index	%	≥33
Thermal conductivity	-	-
Average tempreture -20°C 0°C 40°C	w(m.k)	≤0.032 ≤0.035 ≤0.037
Moisture resistance factor	-	≥5x10³
Water absorption ratio in vacuum	%	≤10
Dimension stability 105°C ±3°C, 7d	-	≤10
Ozone resistance 200h	%	Good, not cracking
Compress resilience ratio Compression ratio 50% Compression time 72h	%	≥70
Aging resistance	-	150 hours, slight wrinkles, no cracks, holes or distortion
Dimensions	-	Pipes/tubes are in 1.83 mtr or 1.85 mtr length Sheet in rolls 1 mtr or 2 mtr width

Characteristics of various rubber sheet :

Natural Rubber Sheet: High flexibility, good comprehensive physical mechanic performance.
SBR Rubber Sheet: Better wear-resistant and anti-aging function than NR, low prices.
Neoprene Rubber Sheet: Good climate resistant, ozone proof, hot resistance and chemical resistant.
NBR Rubber Sheet: Good oil-resistant, wear-resistant and anti-aging.
EPDM Rubber Sheet: Good antiaging, ozone proof, polar liquid resistant, good electric performance, lightest rubber.
Butyl Rubber Sheet: Low permeability, good anti-aging.
Sillicon Rubber Sheet: Excellent oil and fats resistance and for high temperatureup to 260. High resistant one can reach to 250-270 C.
Viton Rubber Sheet: For high temperature up to 300 C.

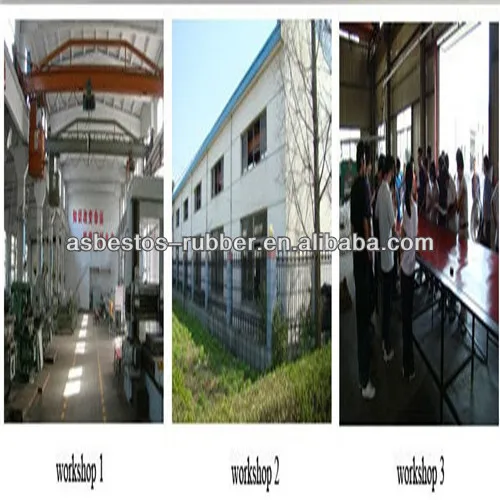

YD Rubber co.,ltd. is one of the professional and biggest manufacturers in China. Our factory is

Hebeiprovince of China. Our main products are Industrial Rubber Sheet

and other  Sealed Gasket material, which have the Certificate of ISO9001:2000.

We have been in this line for more than 10 years and have the experience of exporting for 6 years.



FAQ

1.Q: Are you a factory or trading company?
A:We have factory in Hebei and company is in Tianjin with export license.We have the most convenient transportation conditions

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Cangzhou City, Hebei Province, China, about 2.5 hours bus ride from Beijing .All our clients, from home or abroad, are warmly welcome to visit us!

3.Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.

4.Q:How can I get some samples?
A:1,We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2,Regarding the courier cost: you can arrange a RPI (remote pick-up) service upon Fedex, UPS, DHL, TNT, etc. to have the samples collected; or inform us your DHL collection account. Then you can pay the freight direct to your local carrier company.

5.Q:How does your factory do regarding quality control?
A:"Quality is priority? iHotel people always attach great importance to quality controlling from the very beginning to the very end:
1).All raw material we used are environmental-friendly;
2).Skilful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
