color 2.5 inch lcd 480x234 small display for video monitor
Product Description
GD24TWD-GTT24P123 VER:3.00 Color Digital TFT LCD Module is comprised by driver board GD24TWD VER:3.00 and TFT LCD Display GTT24P123. The LCD module supports CVBS signal input, NTSC and PAL formats which two formats applies to auto identification.
Button adjustment with OSD menu control. It is mainly used for video phones and other display electronic devices.
Button adjustment with OSD menu control. It is mainly used for video phones and other display electronic devices.

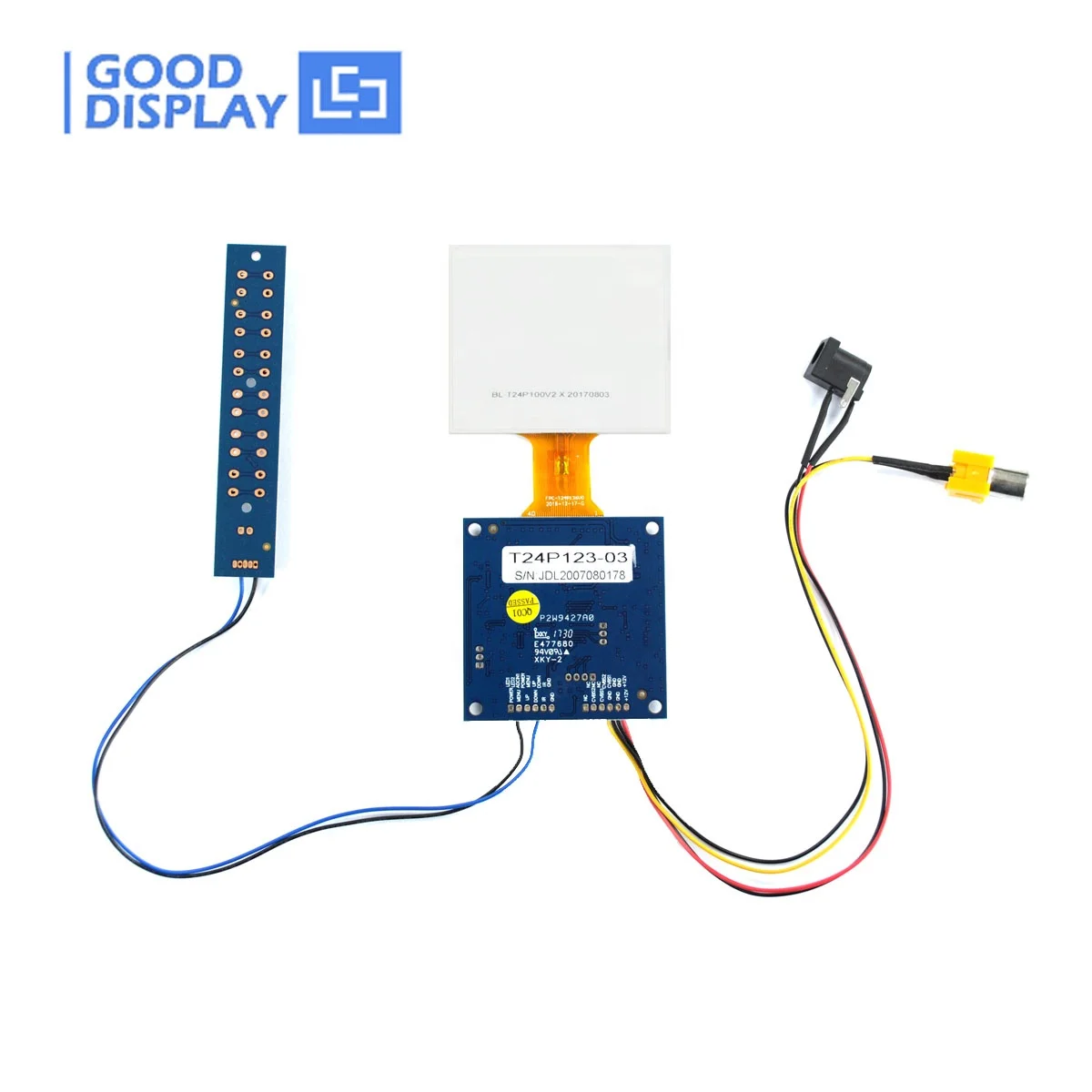

What's included in the package
Standard Accessory Name | Qty | |

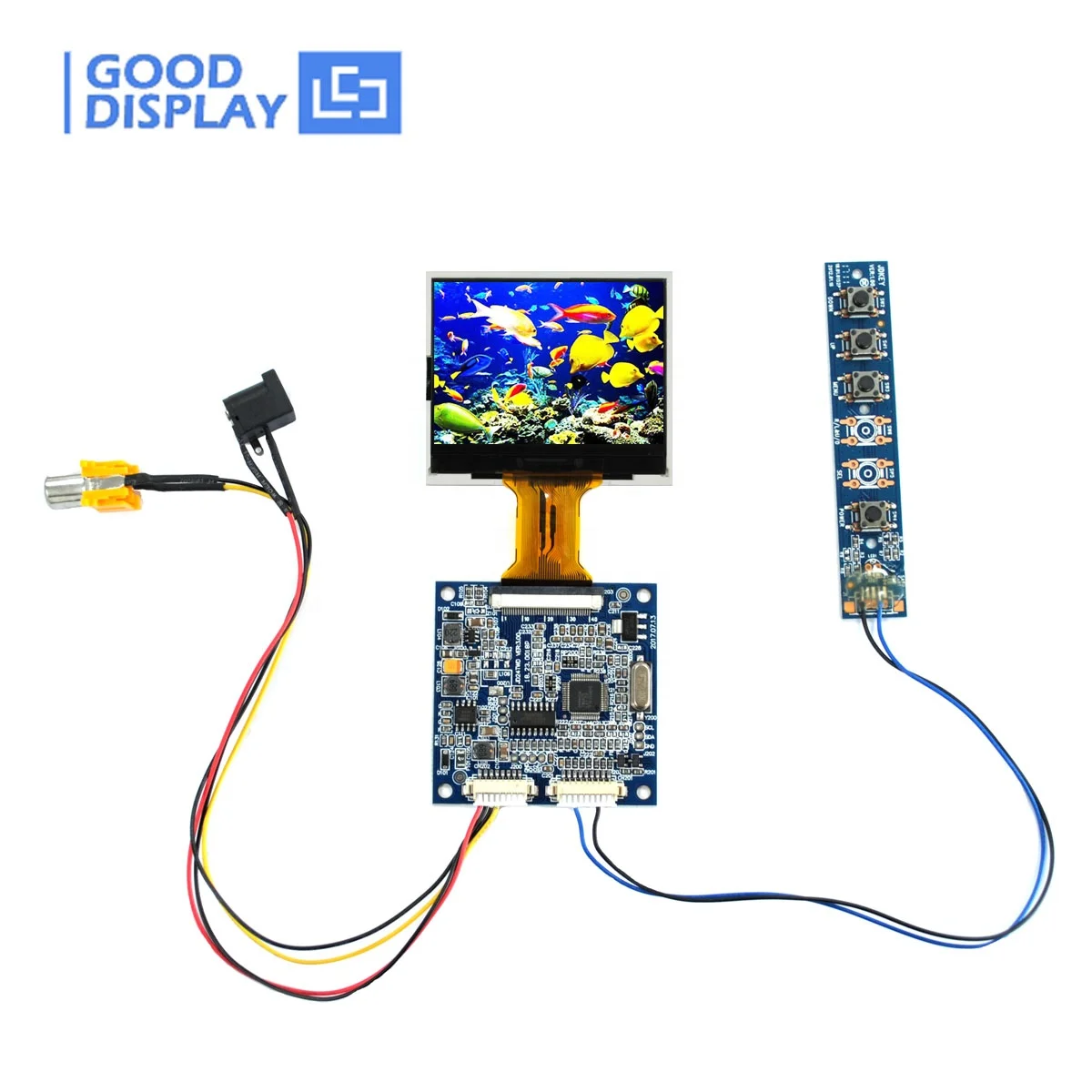

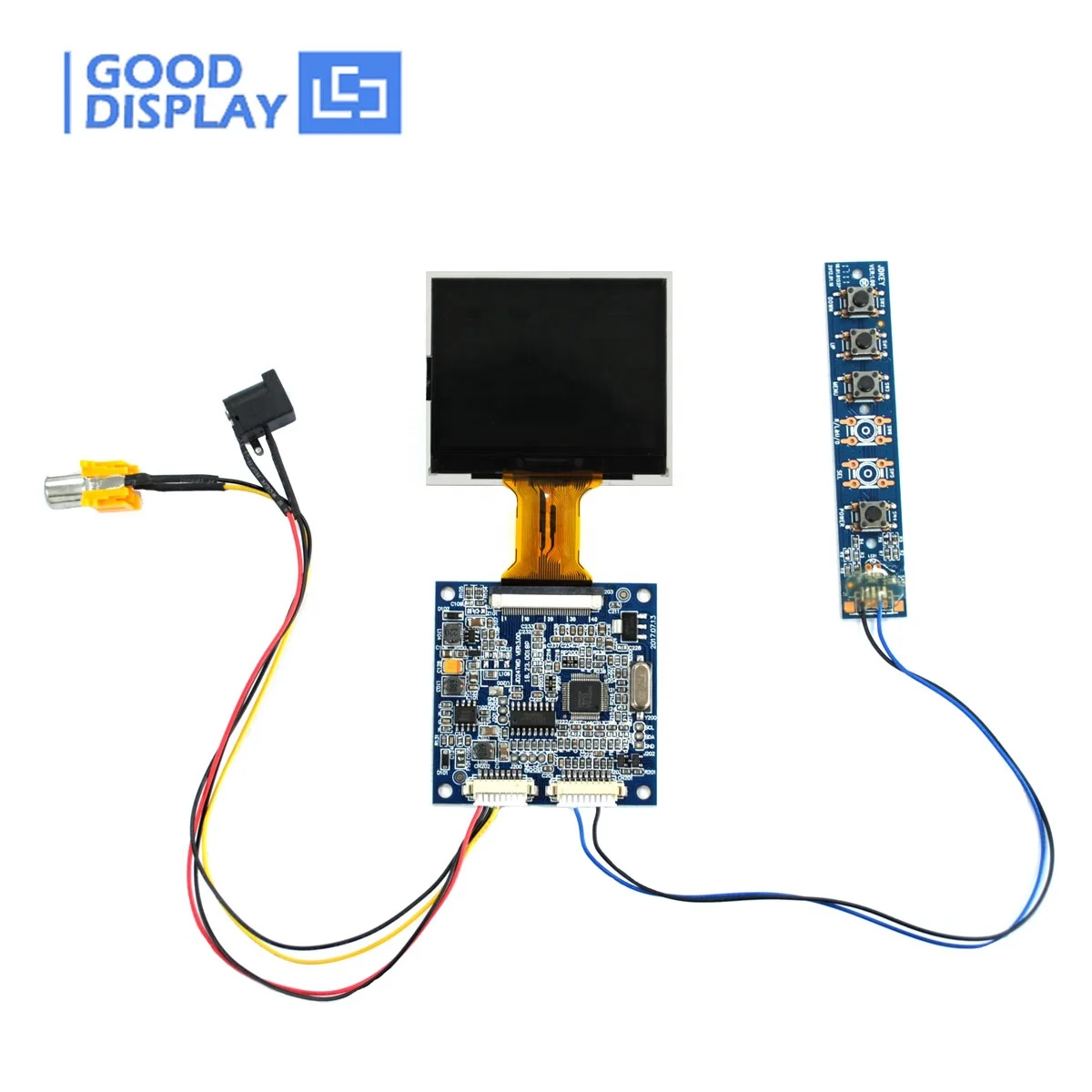

1 | 2.4'' 480*234 TFT LCD Panle | 1 |
2 | Cable with DC12V power input&video input terminal | 1 |
3 | Cable with keyboard terminal | 1 |

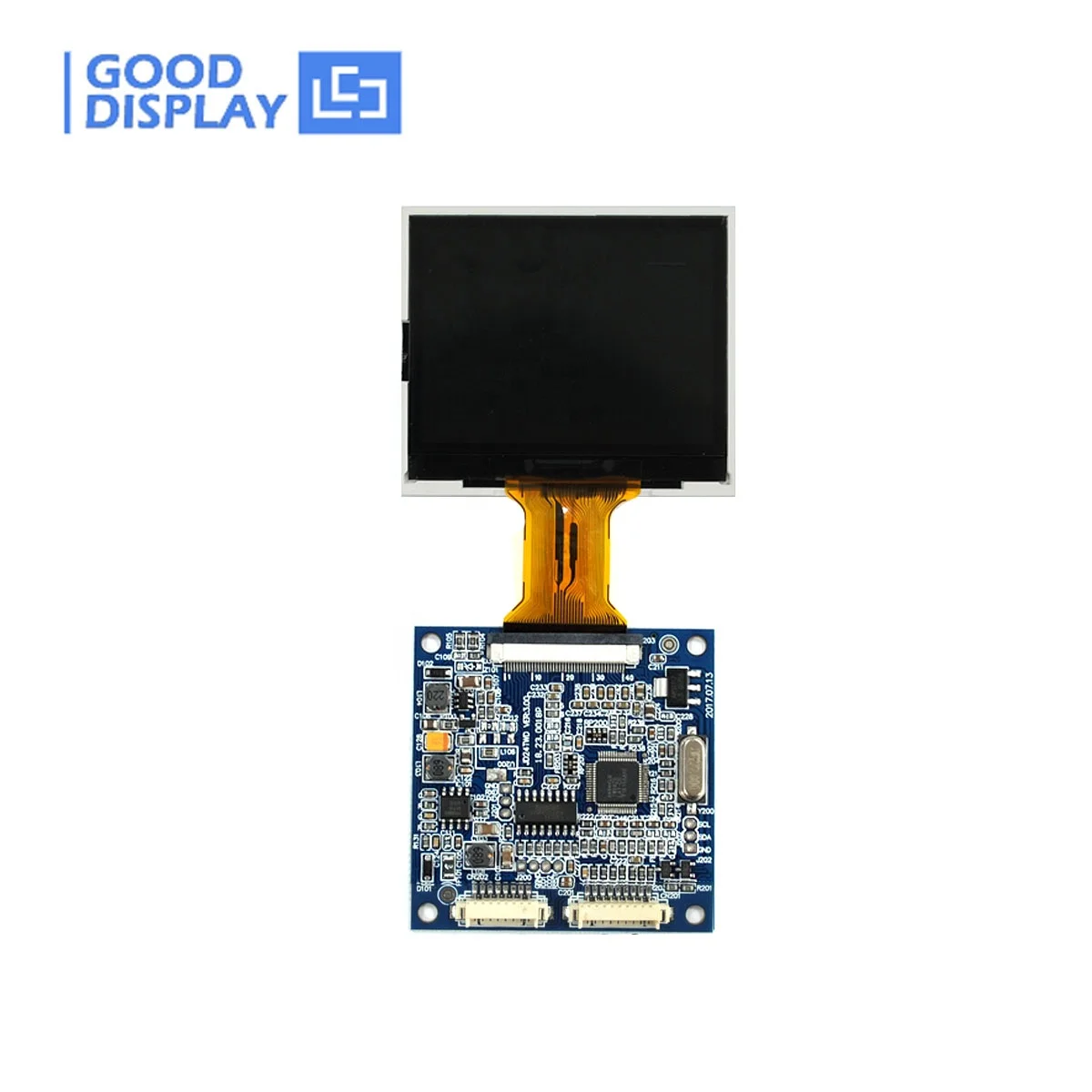

4 | Driver Board | 1 |
5 | Relevant Datasheet | 1 |
Main Parameters
Part Number | GD24TWD-GTT24P123 |
Size | 2.4'' |
Display mode | 16.7M |
Dirve IC | OTA5182A |
LCD Display Ratio | 4:3 |
Backlight | LED |
Brightness | 300 cd/m2 |
Resolution | 480(RGB)×234 |
Viewing Angle(U/D/L/R) | 50/65/65/65(U/D/L/R) |
Outside dimension of lcd panel(mm) | 55.2(W)x47.5(H)x2.8(D) |
Active Area of lcd panel(mm) | 48.0(H)x35.69(V) |
Structural dimension of PCBA(mm) | 50.0(W)x50.0(H)x5.2(D) |
Working Voltage (Wave＜0.3VP-P) | Min:DC9V; Standard: DC12V; Max: DC15V; |
Working Current (DC 12V supply) | DC50mA±10Ma |
Power Consumption | 0.6W（TYP） |
Start Time | ≤1.0 S |
Operating temperature | -10℃~60℃ |
Storage temperature | -20℃~70℃ |
ENV. Humidity | 5~95％RH |

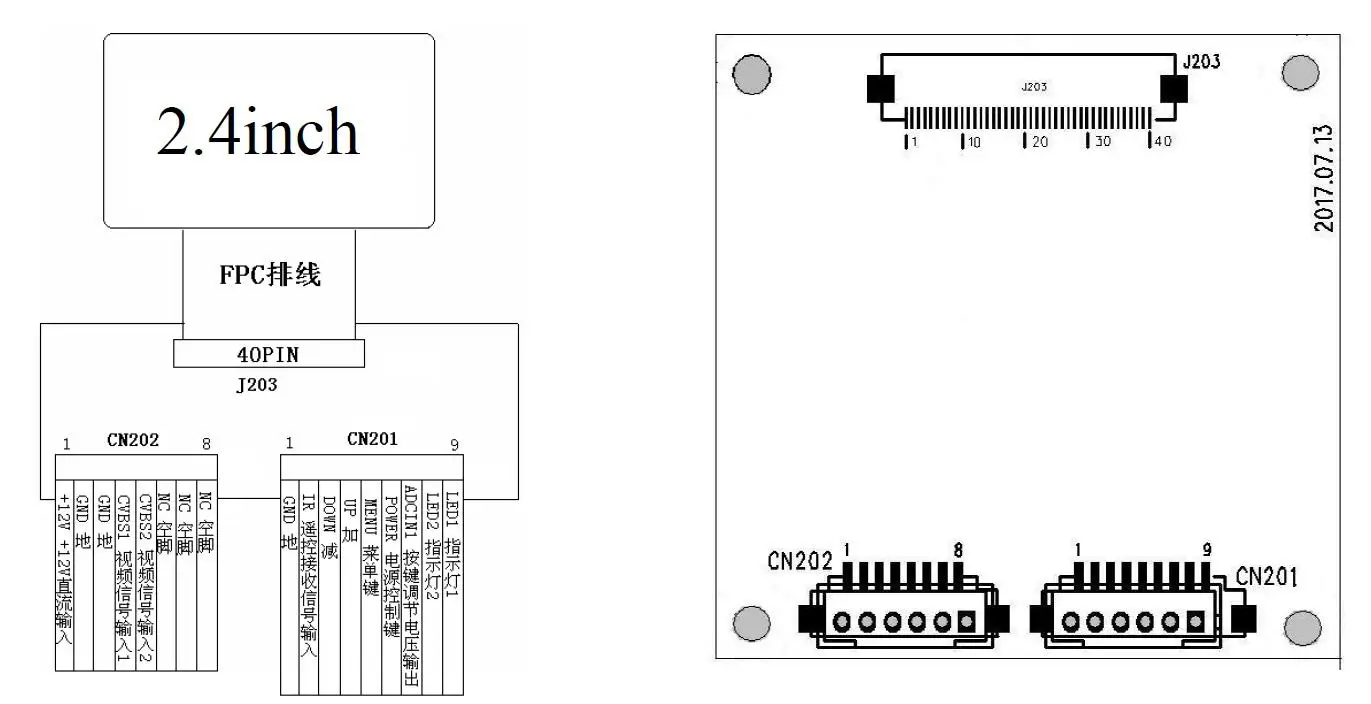

Wiring Diagram

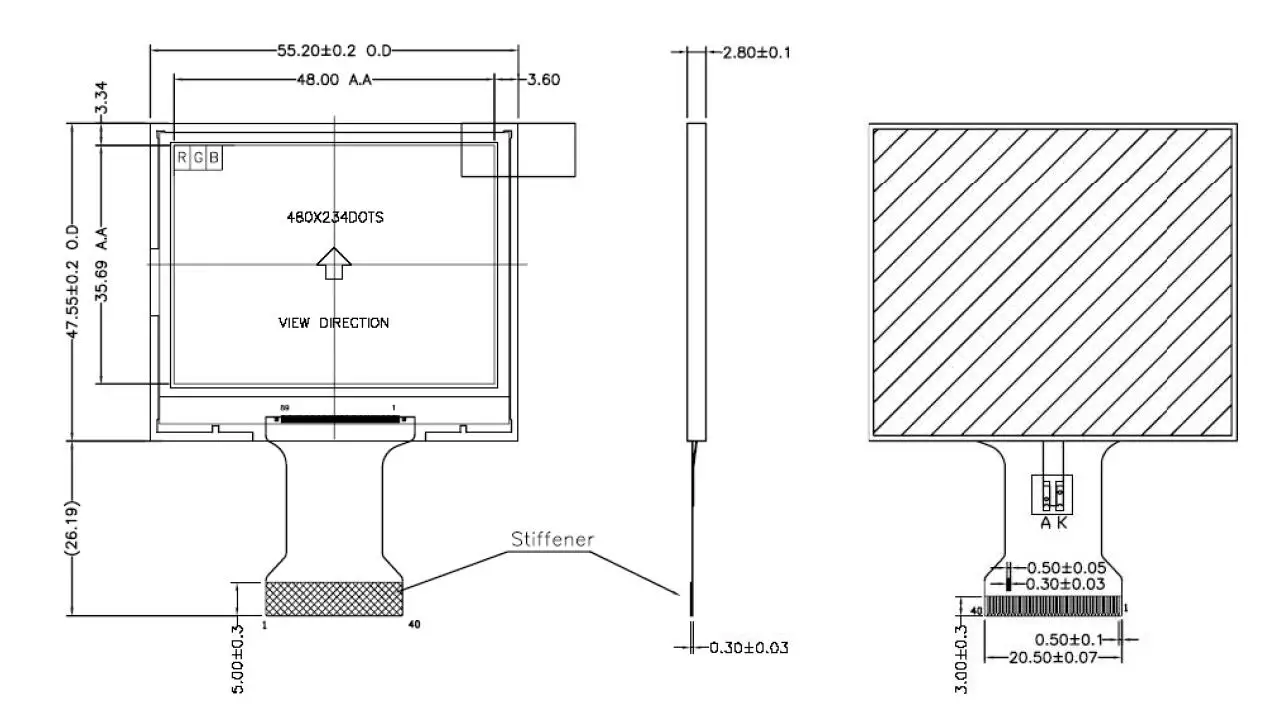

Simple Drawing

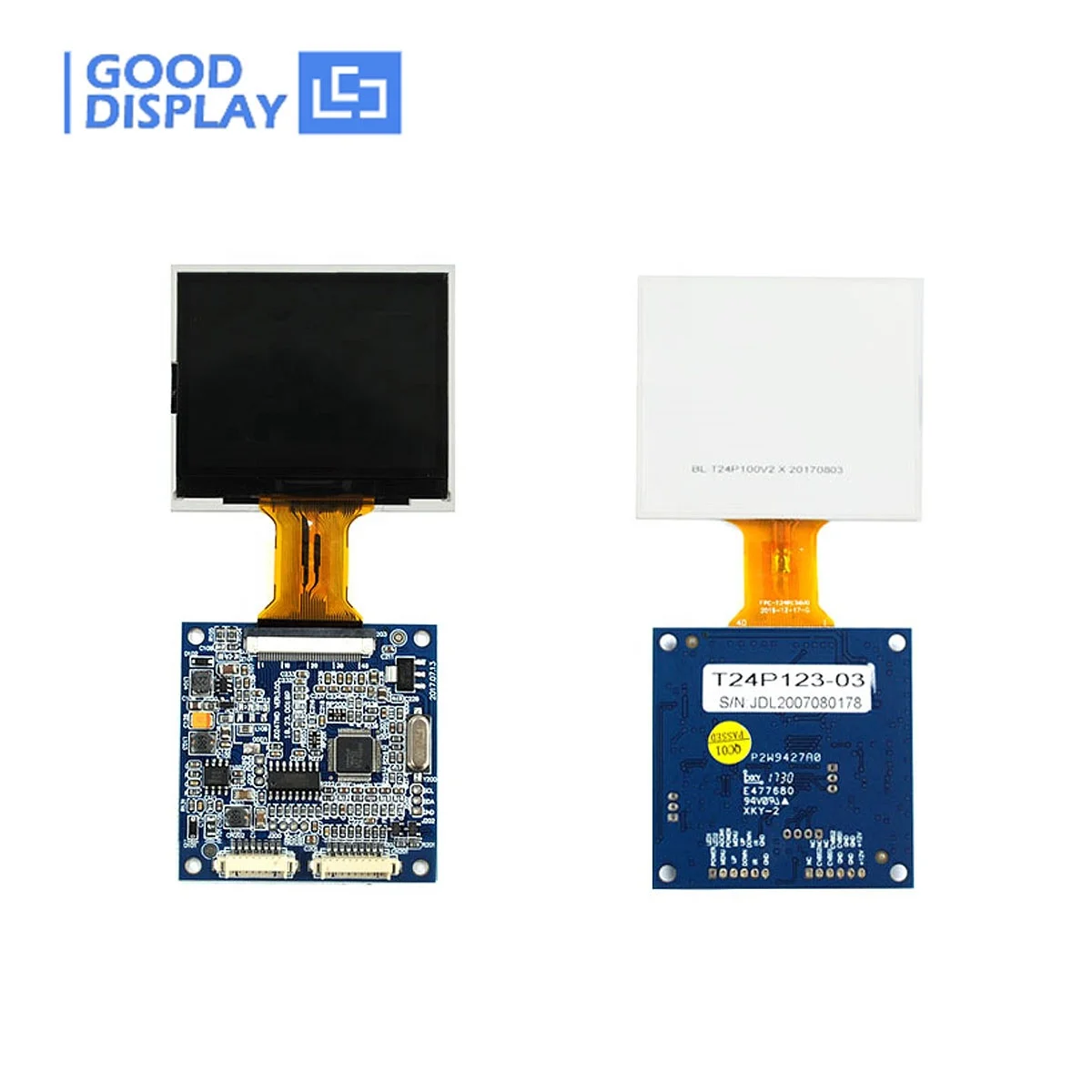

Detailed Images
\t\t\t\t\t\t\t\t\tOther Product \t\t\t\t\t\t\t
Applications
1. TFT have used by special instrument to adjust precision and aging, test before leave factory, no need adjust again.
2. Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.
3. Due to this product is electronic product, please notice prevent static.
4. 2.4” TFT-LCD Panel is a glass work, place carefully ,broken for fear.
5. Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.
2. Please correctly connect power, video signal before you adjust, should be on/off power and video signal to check the image’s effect.
3. Due to this product is electronic product, please notice prevent static.
4. 2.4” TFT-LCD Panel is a glass work, place carefully ,broken for fear.
5. Don’t touch pushbutton’s pin feet when you adjust potentiometers, due to person have resistance, you will effect pushbutton’s function when touch it.
