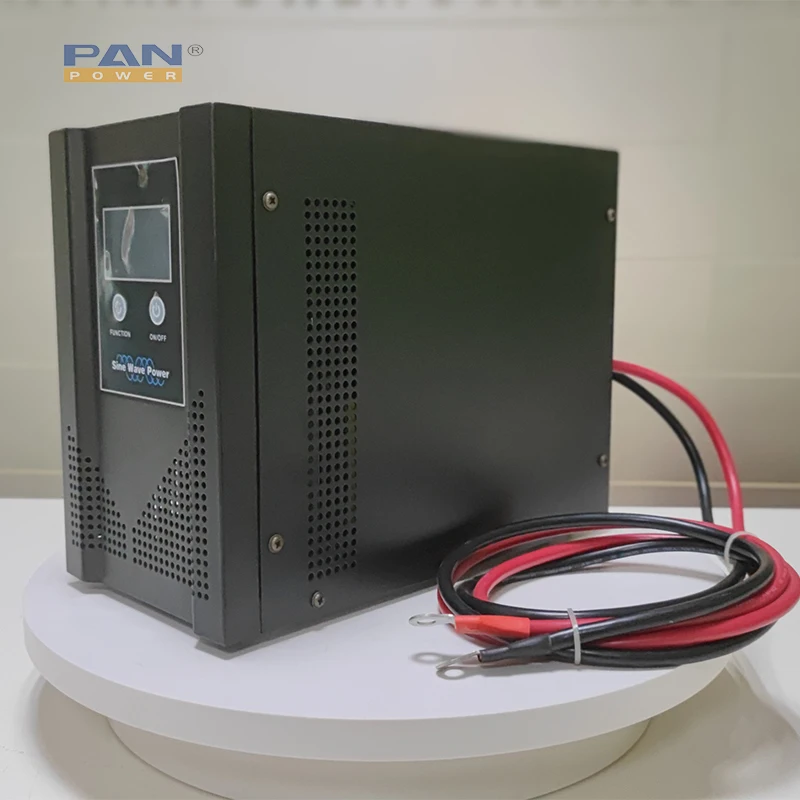

500W to 10KW 220V Solar Wind Hybrid Inverter With CE

Product Overview

Description

500W to 10KW 220V Solar Wind Hybrid Inverter With CE

SSI1 / 1 series single-phase inverter combine the most advanced online technology and the latest network communication technology, providing a complete power solution for strict demand applications. It is with small size, light weight and high efficiency. There is almost no noise in AC mains state. With PWM technology, inverter power outputs pure sine wave, applying to capacitive, inductive and nonlinear mixed-load,with superior load capacity;Perfect protection fuction:overload, short circuit, low battery voltage, improper operation etc,which won’t cause mechanical failures. The inverter and PC is connected through the RS232 communication interface, to understand the inverter work history, Automatic Turning, parameter monitoring, unattended and extend the functionality for remote network monitoring (via SNMP ADAPTER).This inverter is used in solar power systems, wind power generation systems, wind and solar hybrid generation systems.

Design Features

♦DC 24/48/96 to AC 100110/120/220/230/240

♦Pure sine wave ouput , Suitable for all kinds of loads,Such as resistive loads ,inductive loads.

♦Intelligent CPU controlling technology

♦High efficiency inverter technology design

♦Wide input voltage , accurate output , AVR function .

♦Compltely auto stable voltage output

♦RS232 or USD communication monitoring interface

♦High/low voltage and input/output protection

♦Output overload/over temperature warning and protection

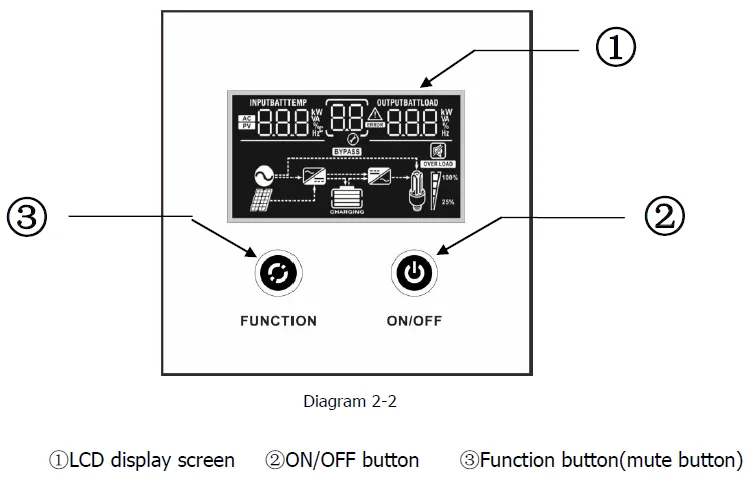

♦LED lights/LCD display and buzzer tips

♦Srong load-taking capacity

♦Easy to install & use

♦Elegant design,attractive and durable

  AC Grid And Solar/Wind Energy Interactive Inverters (AC Grid Input is optional)

 Our this kind of inverter combine AC grid and solar/wind energy,At first , the dc electrical energy from solar panel and wind turbine will charge the battery by the wind and solar hybrid controller, then inverter will convert battery power(DC) to AC which the people can use and drive the loads  . But when it is have no solar energy in night /rainy day and the battery power is not enough , The inverter will automatically switch to AC grid and continue to drive the load Technical Parameter

Model	SSI500VA	SSI650VA	SSI1000VA	SSI1500VA	SSI2KVA	SSI3KVA	SSI4KVA	SSI5KVA	SSI6KVA
Capacity(W)	400	520	800	1200	1500	2400	3200	4000	4800
DC voltage	12/24VDC	24VDC	24VDC	24VDC	48VDC	48VDC	48VDC	48VDC	48VDC
Power factor	0.8
Max efficiency	≥90%
Output mode	Inverter priority
Output voltage	100/110/120/220/230/240VAC±1%
frequency	50/60HZ±1%
wave form	Pure Sine wave
THD	≤3%
Protection function	overload,short circuit,low battery voltage,high/low AC mains voltage
Overload capacity	120% overload issue emergency alarms for 30 seconds ,125% overload issue emergency alarms for 10 seconds, then turn off; 150% overload instant off. (automatic return to the normal state after decreasing loads )
Bypass	Ac mains go through directly(optional)when the battery electricity is not enough, The inverter will automatically switch to AC mains to power load
AC/Inverter conversion	Slow start (output voltage from small to large for 3 seconds)
Charger currtent	1--20A(optional)
Monitoring interface	RS232 Communicaiton interface
Man-machine interface	LCD/LED(Optional)
Ambibet termperature	0—40°C
Humidity	20—90% non condensing
Noise	≤40DBA(for 1 meter distance)
Weight(KG)	10.8	11	12.7	15	33.5	36.5	37.5	38.5	39.5
Machine dimension	320*145*235MM				440*235*300 MM				560*235*295 MM
Package dimension	390*210*280 MM				550*305*350 MM				690*340*390 MM

Solar Power Inverter  Principle

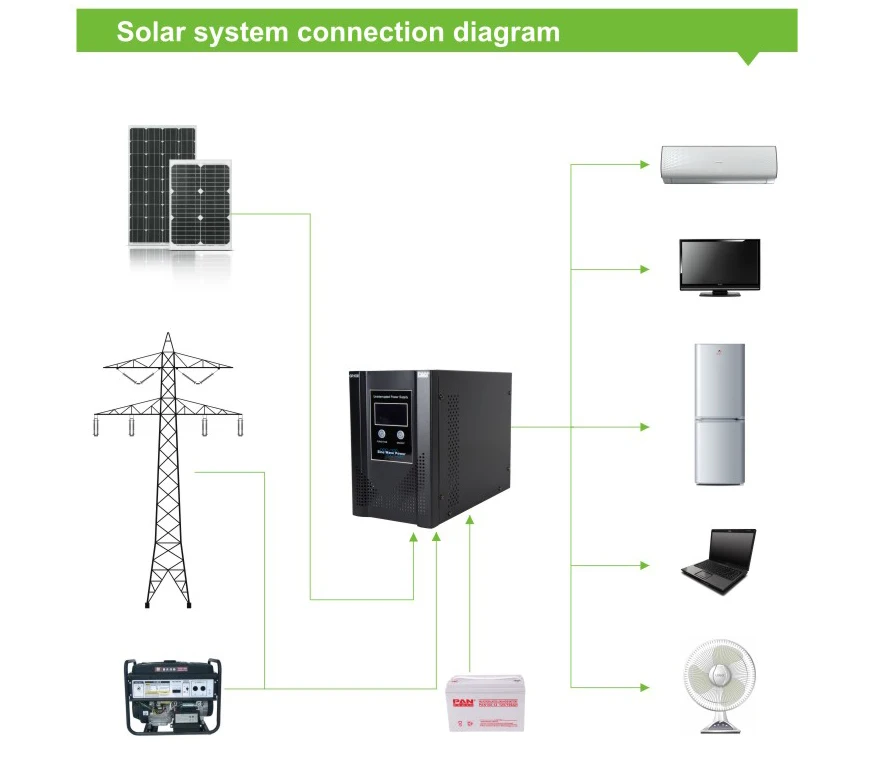

24/48/96VDC Solar Panel and Wind Turbine→24/48/96VDC Wind and Solar Hybrid Controller → 24/48/96VDC Battery Bank→24/48/96VDC Inverter →all kinds of AC loads

Process:At first The people use the wind turbine and solar panel to get the dc electrical , Than the wind and solar charge controller charge the battery to stock dc power and provide the dc power with inverter ,Finally , the inverter change the DC power into AC power which the user can use.

 Saving Energy and Storage Energy



Product Picture

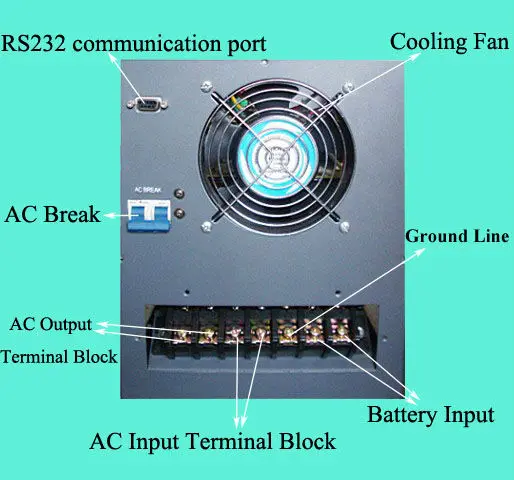

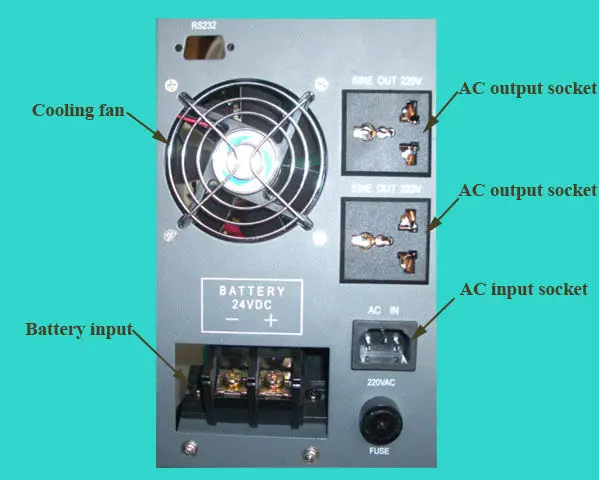

1)SSI-500VA to 1500VA back board chart:

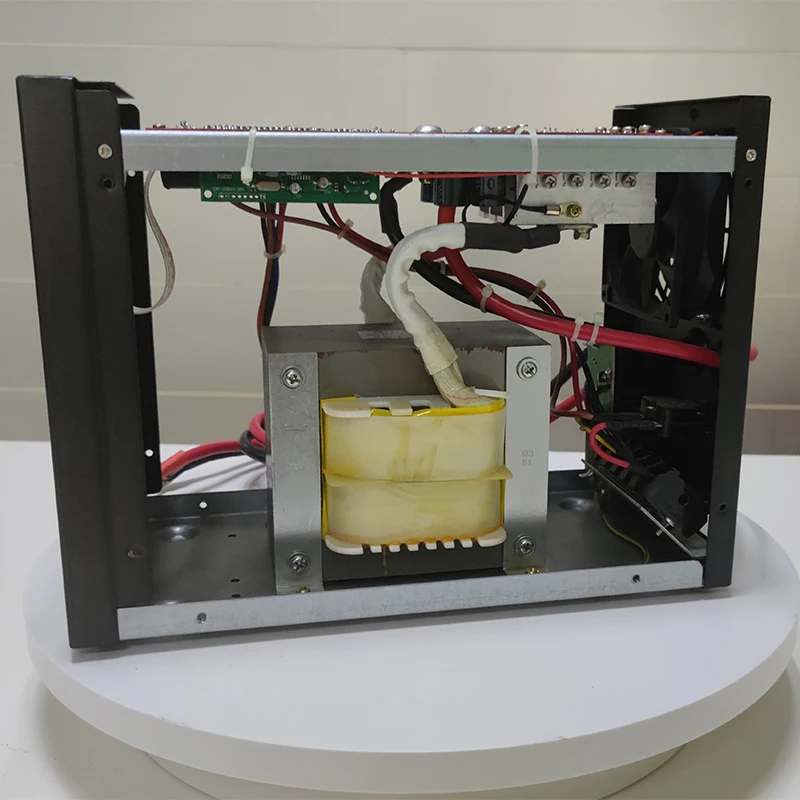

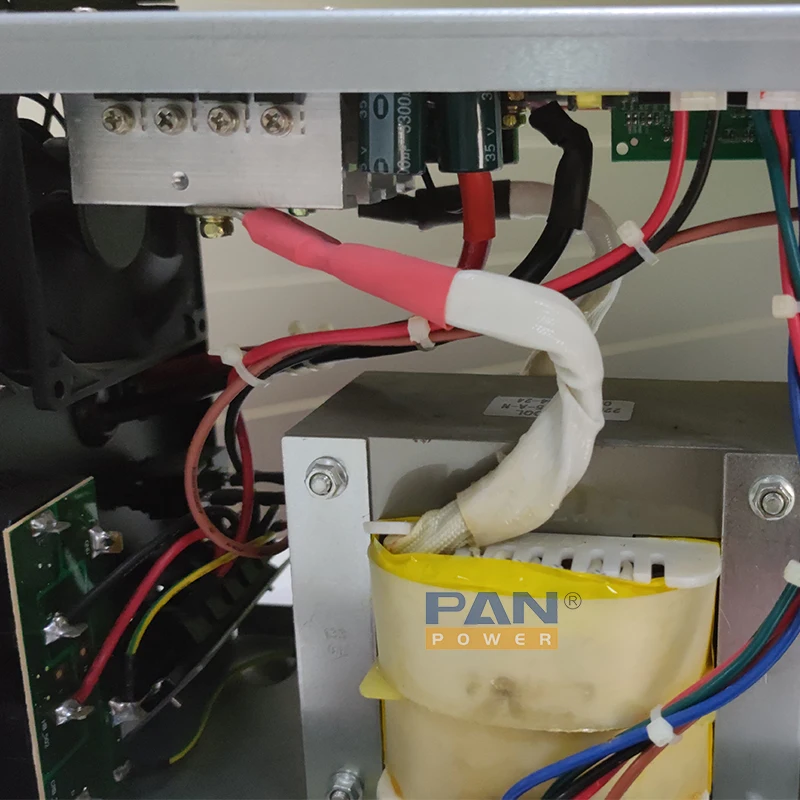

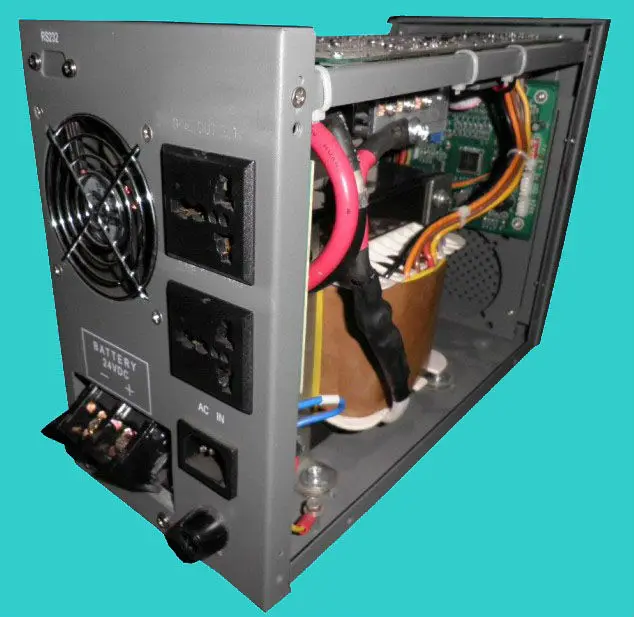

2)Inner structure

3)Product Picture for 2kva to 6kva

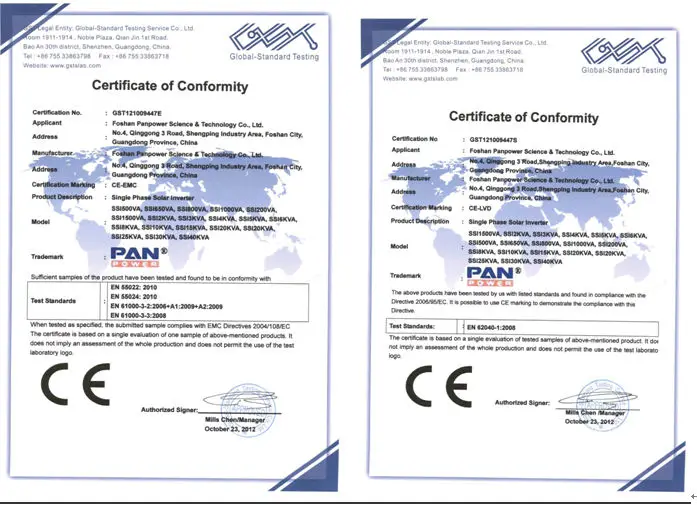

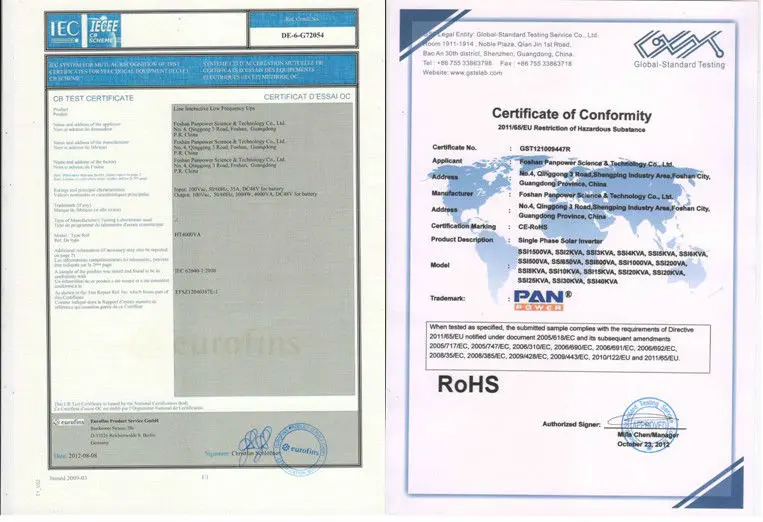

 Certificate



There are two kind of monophase inverter is as following , Which one is more suitable for you ? Pls don't hesitate to contact us , Welcome to you inquiry , Thanks !

1)When connect with both battery and utility power , the inverter with preferentially to drive the loads with DC power from batteries ,when the capacity of batteries is not enough ,the monophase  inverter will automatically switch to drive the loads with utility power .This is DC first solar enegy and utility power complementary power generation system

2)When connected with batteries under the condition without utility power ,the monophase inverter will directly drive the loads with DC power from batteries ,This is off grid solar energy generation system.



Pls note that Our all inverter is off grid type ,Pure Sine Wave ,and it is mainly used in Solar/Wind Power System for saving energy and stord energy,We als can manufacture 48vdc 3phase inverter from 3kw to 13kw and 96vdc 3phase 15kw to 25kw inverter. 300/400/415 output can be opitional Are you interested in 3phase inverter , Pls Pick up your mouse and send the demand to me , I am waiting for you .
