Product Overview
Description

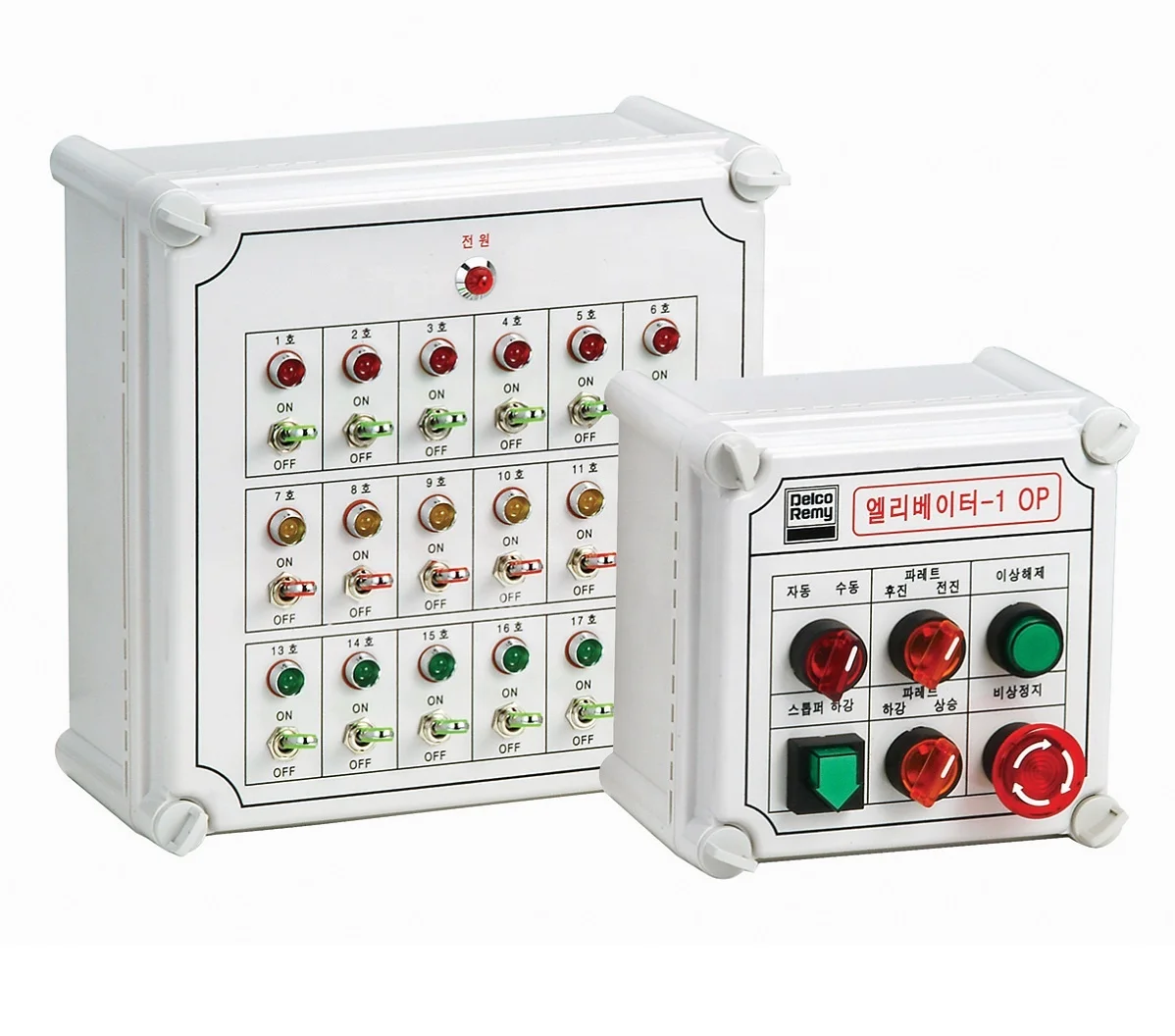

Waterproof Plastic enclosure-BC-ATP-203013
<P series>-Molded hinge type&latch type
1. Molded hinge&latch design is easy to separate the cover from the base for printing or processing holes&cutting.
2. It protects inner components from dirt, dust, oil, water by roof guard on top&cover gasket.
3. Type 4X&IP67 for indoor&outdoor application by neoprene gasket seal

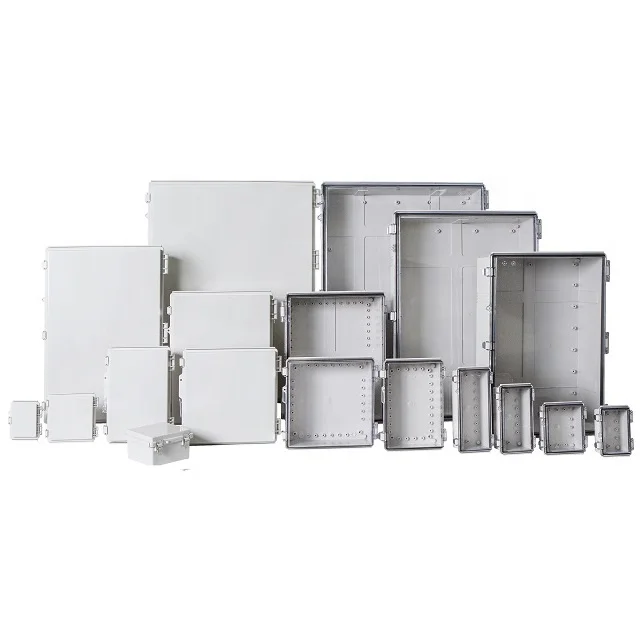

4. Available 50 kind sizes from 90x120x70 mm to 630x830x285 mm
5. Selectable gray or clear cover
6. Available stainless steel wall mounting bracket
Plastic enclosure, Electrical and electronics box, switch box, control box, terminal box, terminal block box, Aluminium enclosure, IP66/67 enclosure, distribution box, junction box, telecommunication box
| Size(included cover) | Model | Mounting Plate | Plate Dimension | File | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W1×L1×H1 (mm) | W1×L1×H1 (inch) | ABS Grey cover | ABS Transparent cover | PC Grey cover | PC Transparent cover | Steel SQ type | Plastic G type | Plastic C type | M1 | M2 | DWG | 3D | |
| 100×270×80 | 3.94x10.63x3.15 | BC-AGUH-102708 | BC-ATUH-102708 | BC-CGUH-102708 | BC-CTUH-102708 | ||||||||
| 110×310×80 | 4.33x12.21x3.15 | BC-AGUH-113108 | BC-ATUH-113108 | BC-CGUH-113108 | BC-CTUH-113108 | ||||||||
| 250×350×100 | 9.84x13.78x3.94 | BC-AGUH-253510 | BC-ATUH-253510 | BC-CGUH-253510 | BC-CTUH-253510 | 2535 SQ | 2535 G | 2535 C | 210 | 310 | Down | Down | |
| 350×250×100 | 13.78x9.84x3.94 | BC-AGUH-352510 | BC-ATUH-352510 | BC-CGUH-352510 | BC-CTUH-352510 | 2535 SQ | 2535 G | 2535 C | 210 | 310 |
