Product Overview

Description

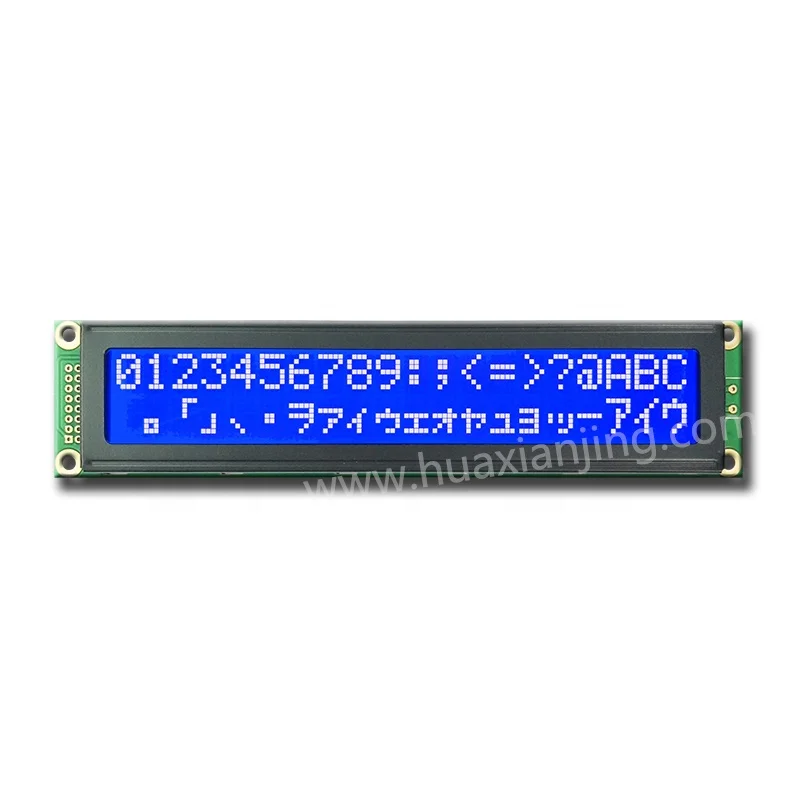

20x2 Character LCD Module 20x2



Product Description







Product information:














































































Module No.:



HSM2002B



Display Type:



20 Characters x 2 Lines



Encapsulation:



COB



Outline Size:



180 x 40 x13.8 mm



Viewing Area:



149 x 23 mm



Screen Color:



Yellow-Green/Blue/Gray



Backlight Color:



Yellow-Green/Green/White/Blue/Orange/Red



Backlight::



Side LED



Driver IC:



AIP31066



Connector:



Conductive Silicon Rubber



Pin Number:



16



Interface:



8-bit MPU interface



Driver Condition:



1/16 Duty,1/5 Bias



Viewing Direction:



6 O’Clock



Operating Voltage:



5V/3.3V



Operating Temperature:



-20~+70℃



Storage Temperature:



-30~+80℃







Character LCD 8x1 (5 x 8 dots)
 STN-YG / STN-Blue / STN-Gray /FSTN-Gray
 +3.3V / +5.0V power supply
 Viewing Direction: 6H / 12H
 Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
 Fonts: English-Japanese / English-European / English-Cyrillic (Russian)





Mechanical Diagram:


 2002B-1











2002B-2





Interface Pin Description:
























































No.



Symbol



Function



1



LED_K



 LED Power Supply - (0V)



2



LED_A



 LED Power Supply + (5.0V)



3



VSS



 Ground (0V)



4



VDD



 Supply Voltage for Logic (+5.0V )



5



VO



 Contrast Adjustment



6



RS



 Data/Instruction Select



7



R/W



 Read/Write Select



8



E



 Enable Signal



9--16



DB0—DB7



 Data Bus
