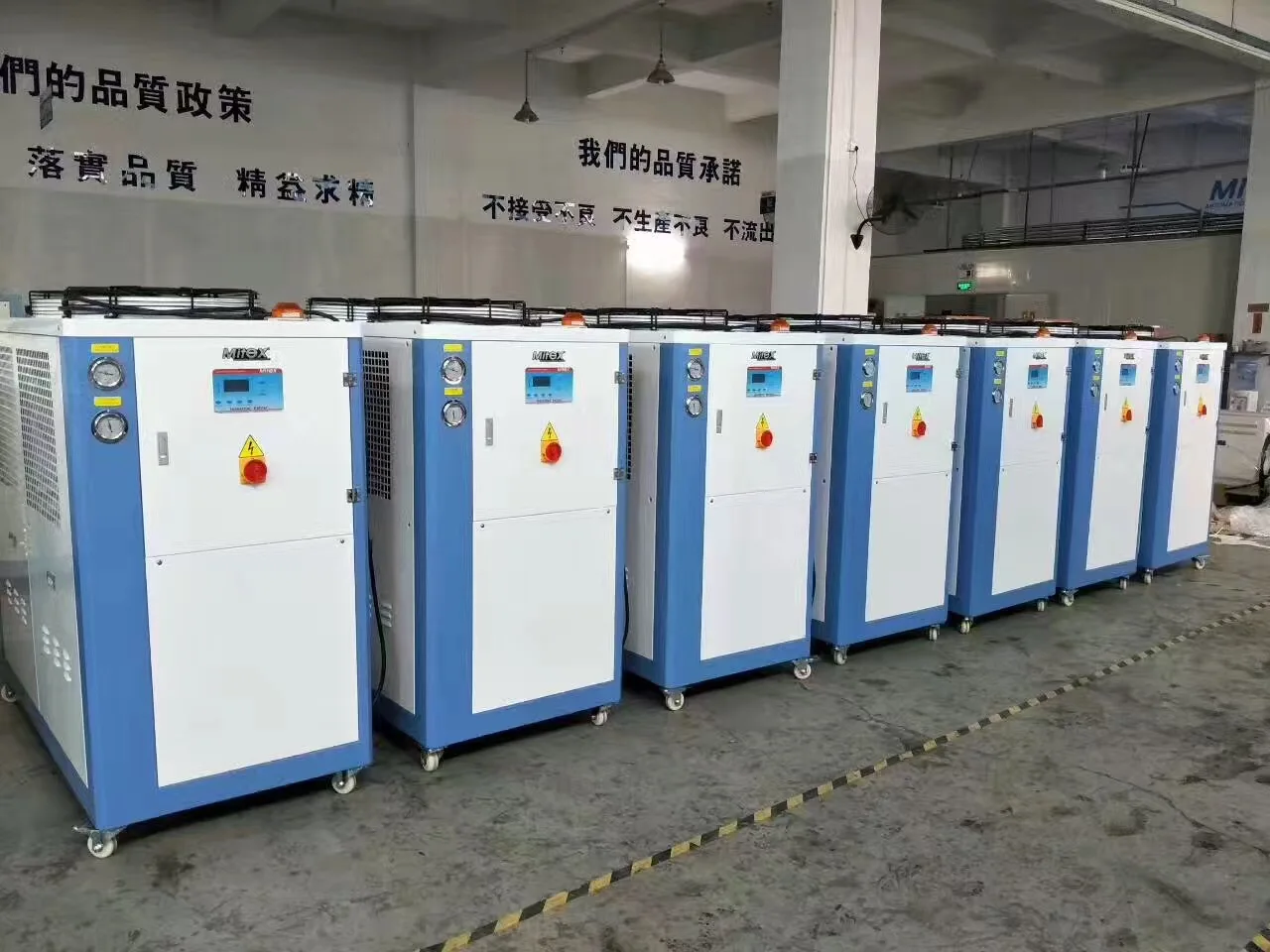

10~40 ton packaged Air cooled water type injection mold cooler chillers
10~40 ton packaged Air cooled water type injection mold cooler chillers
10~40 ton packaged Air cooled water type injection mold cooler chillers
10~40 ton packaged Air cooled water type injection mold cooler chillers
10~40 ton packaged Air cooled water type injection mold cooler chillers
10~40 ton packaged Air cooled water type injection mold cooler chillers
10~40 ton packaged Air cooled water type injection mold cooler chillers

10~40 ton packaged Air cooled water type injection mold cooler chillers

Share on (1327615775):


Price:USD 3,000.00

Quantity:


Product Overview

Description



Product Description

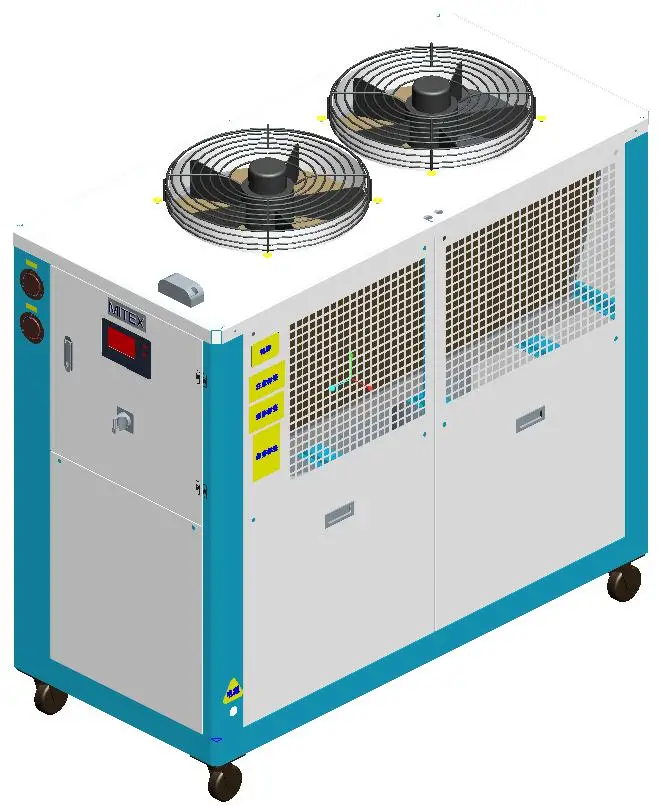

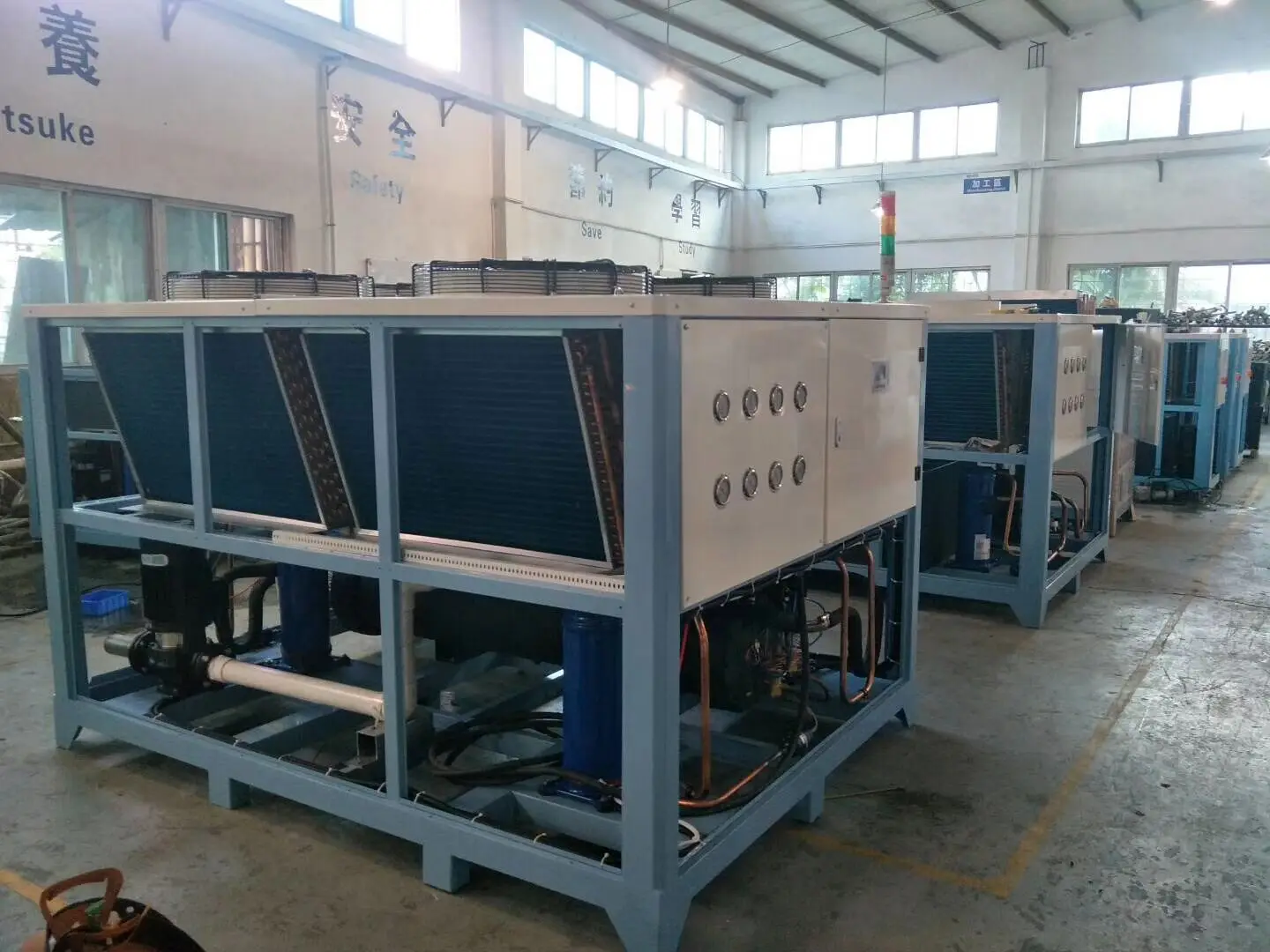

MIC-40A
MIC-5A~30A




Features
The chiller is deployed with P.I.D microcomputer controller, it can control the temperature between +5℃ and +35℃ exactly.
All electric parts are "Schneider" "Siemens" and " OMRON" brand etc.
Compressor is used "COPELAND" brand which made in USA "Danfoss" brand from Denmark or "Panasonic" brand which made in Japan also newly imported license together with the chiller.
High efficiency cooler and evaporator are passed ISO9002 certification, and also able to save more than 30%of electricity.
Complete with safety protection and error indication system, so it is convenience for operation and maintenance.
The copper tube is used the product of oxygen free welding method for reducing impurities in the interior portion of the tube and increasing the efficiency also the lifetime of compressor.

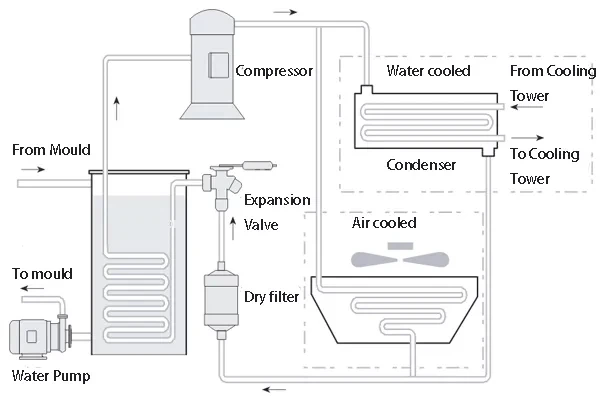

Working Principle of Air Cooled Chiller

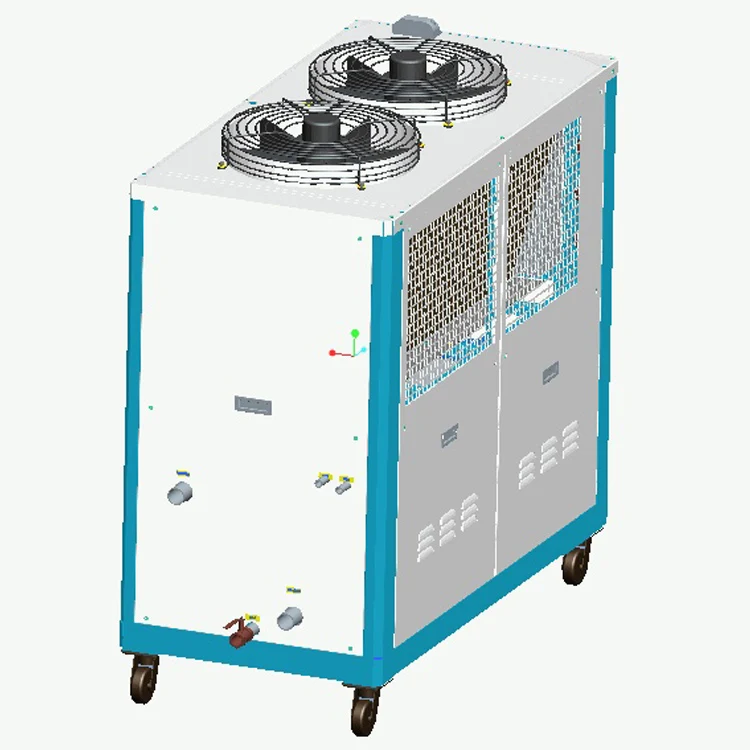

Side View
Back View


Panasonic brand compressor
Minamoto brand water pump
SIEMENS Electrics


Product Paramenters


Model
5A
10A
15A
20A
25A
30A
Freezing capacity
KW
15.6
31.2
46.8
7862.4
93.6
93.6
Kcal/hr
13416
26832
40248
53664
67080
80496
Btu/hr
532354
106469
159704
212938
266173
319408
Compressor
power (KW)
3.95
2 x 3.95
2 x 6.3
2 x 7.95
2 x 9.1
 3 x 7.95
Refrigerant
Weight KW
2.5
2 x 2.5
2 x 5.5
2 x 6.0
2 x 7.5
3 x 6.0
Control mode
Thermostatic expansion valve
type
R22/ R407C (Customized)
Evaporator
Type
Tube in shell
Condenser
Type
Fin style
Fan (KW)
0.38
2 x 0.38
2 x 0.78
2 x 0.78
2 x 0.78
3 x 0.78
Water Tank
L
62
79
150
175
175
220
Pump
Power (KW)
0.75
1.5
1.5
2.2
3
4
Flow rate (L/min)
75
120
208
330
330
550
Pressure (kg/cm2)
2
2
2
2
2
2
Pipe Coupling
Chillerd water outlet (inch)
1
1.5
2
2
2
2.5
Chilled water inlet (inch)
1
1.5
2
2
2
2.5
Water supply port (inch)
0.5
0.5
1
1
1
1
Over flow port of water tank (inch)
0.5
0.5
0.5
0.5
0.5
0.5
Drainage port of water tank (inch)
0.5
0.5
1
1
1
1
Protective device
Compressor
Overload relay
Pump
Overload relay
Refrigerant circuit
HIgh and low pressure switches
Cooling water circuit
Water level switch / water flow switch (for option)/ by-pass valve (for option)
Power specification
380v, 3 phase , 50hz (can be customized )
Measures exchange
1KW=860kcal/hr  1RT=3024 kcal/hr     10000 btu/hr= 2520 Kcal/hr
Dimension
LXWXH MM
1450x765x1500
1750x765x1500
2150x1005x1700
2150x1005x1700
2550x1005x1700
3150x1005x1800

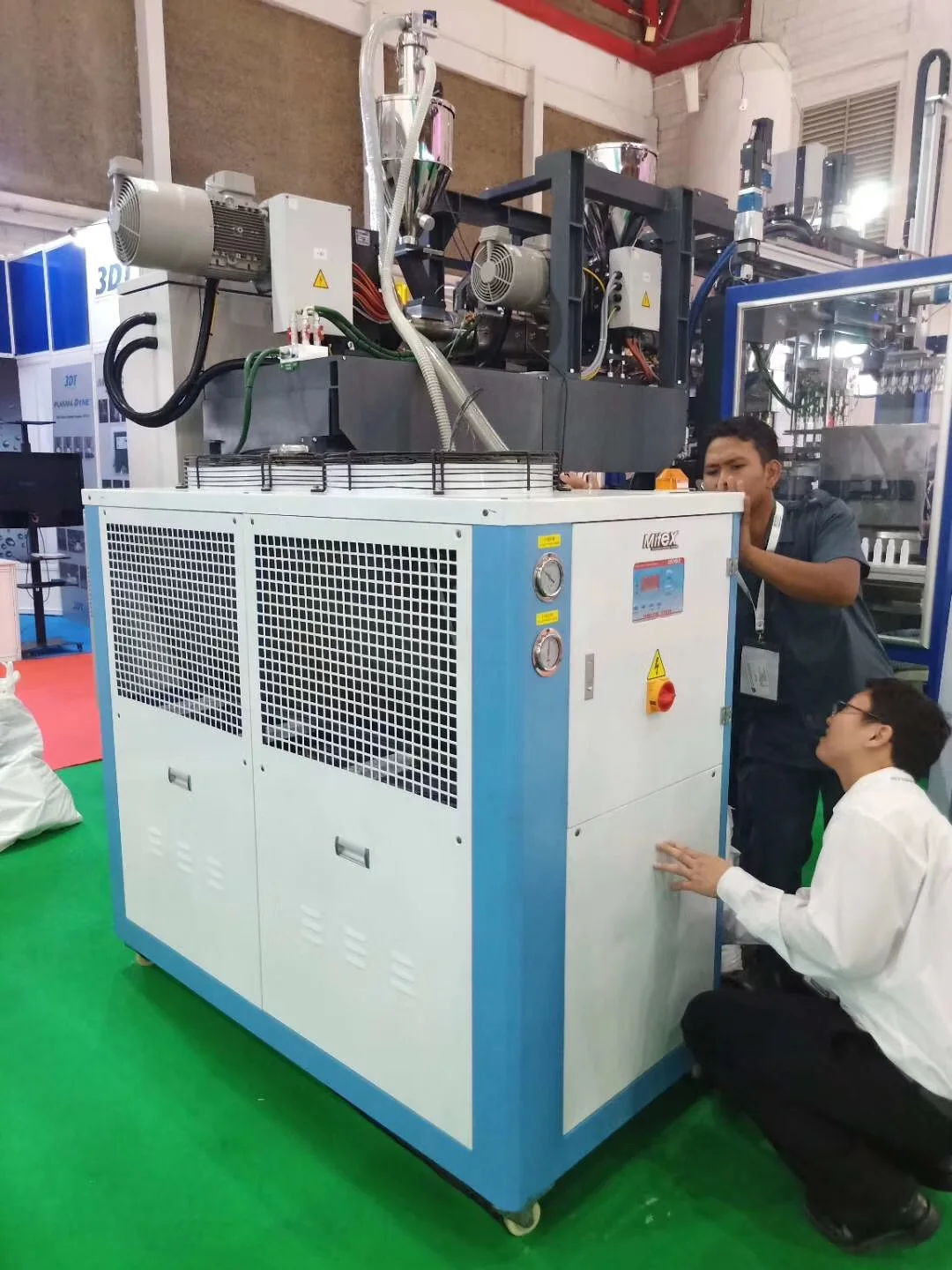

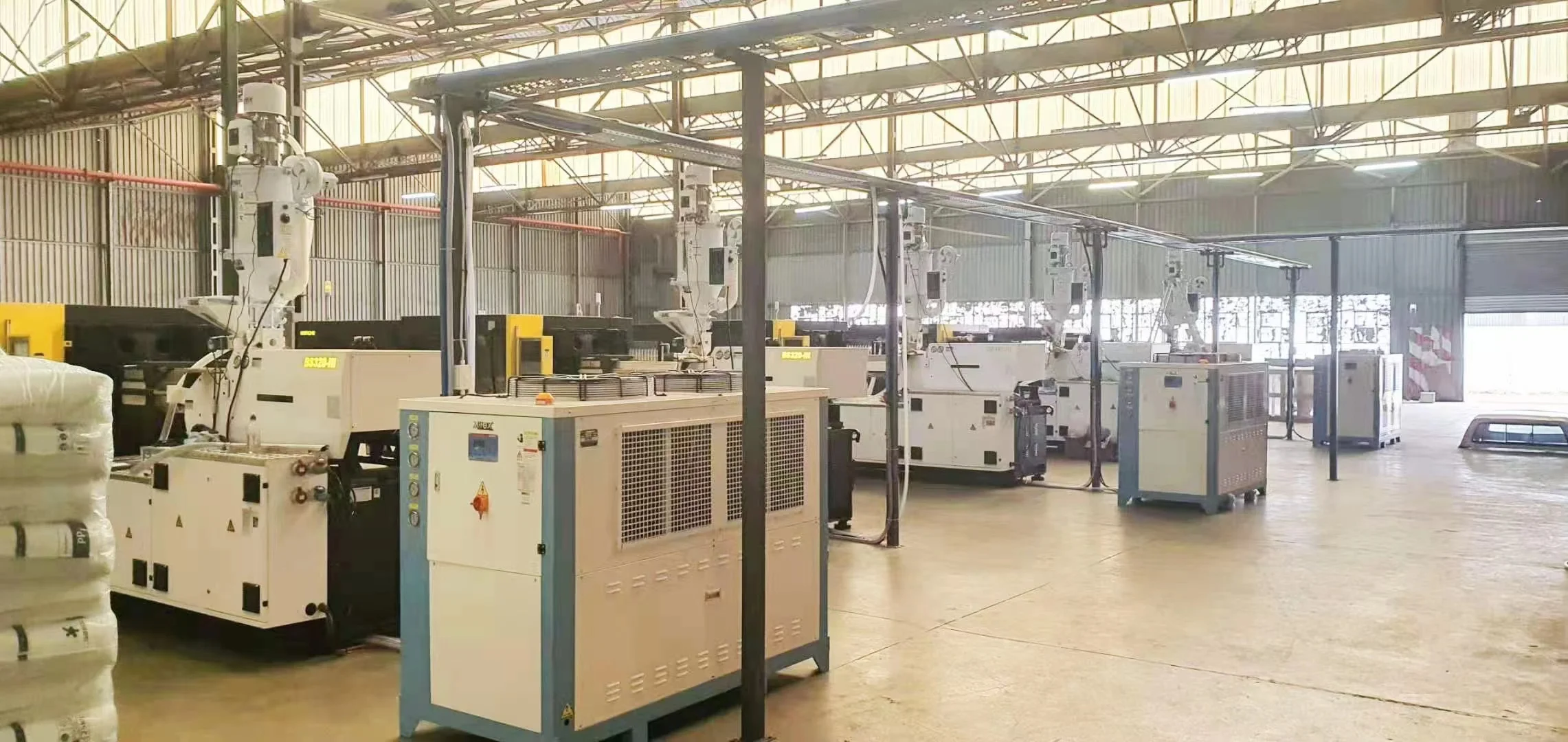

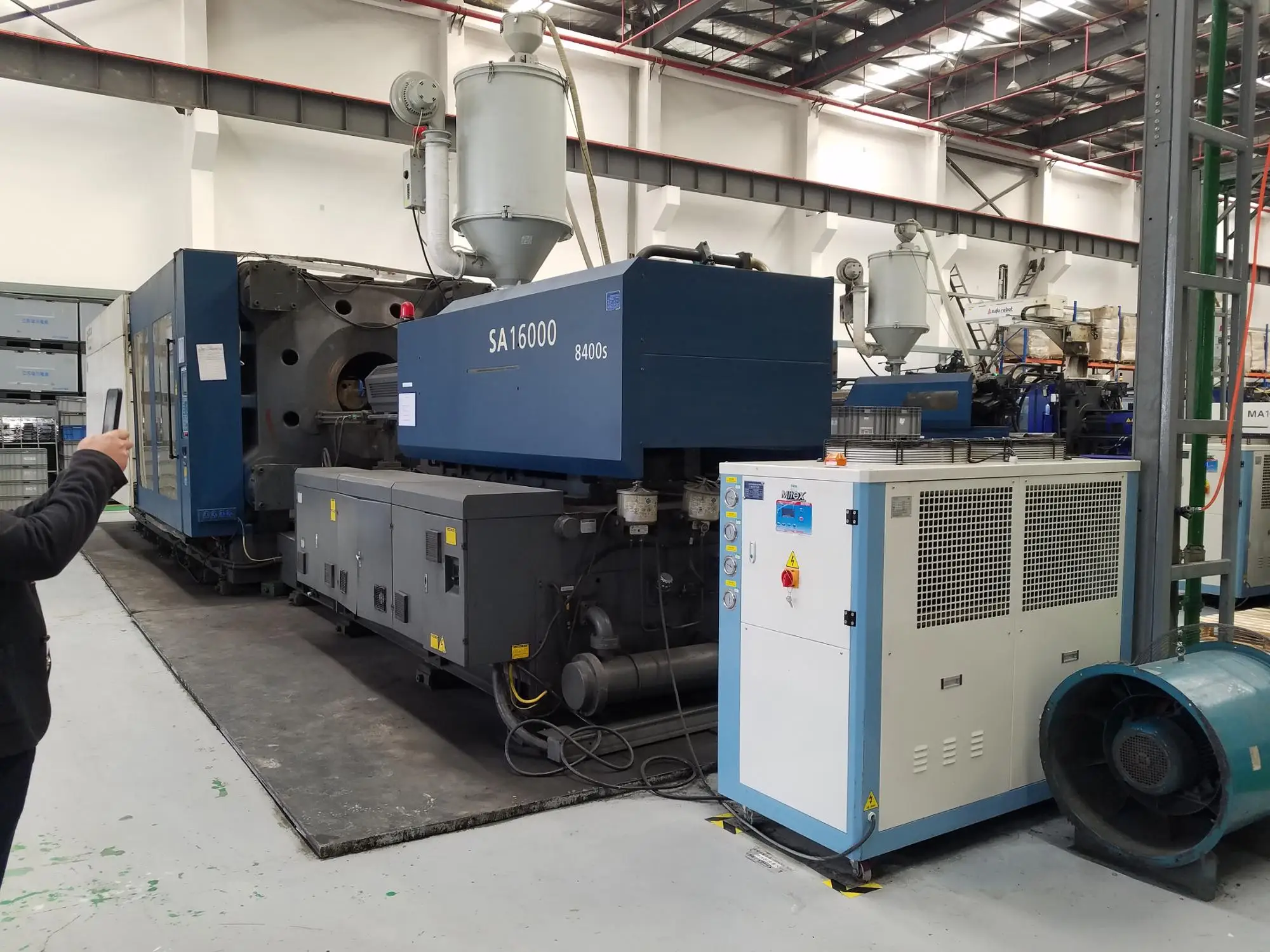

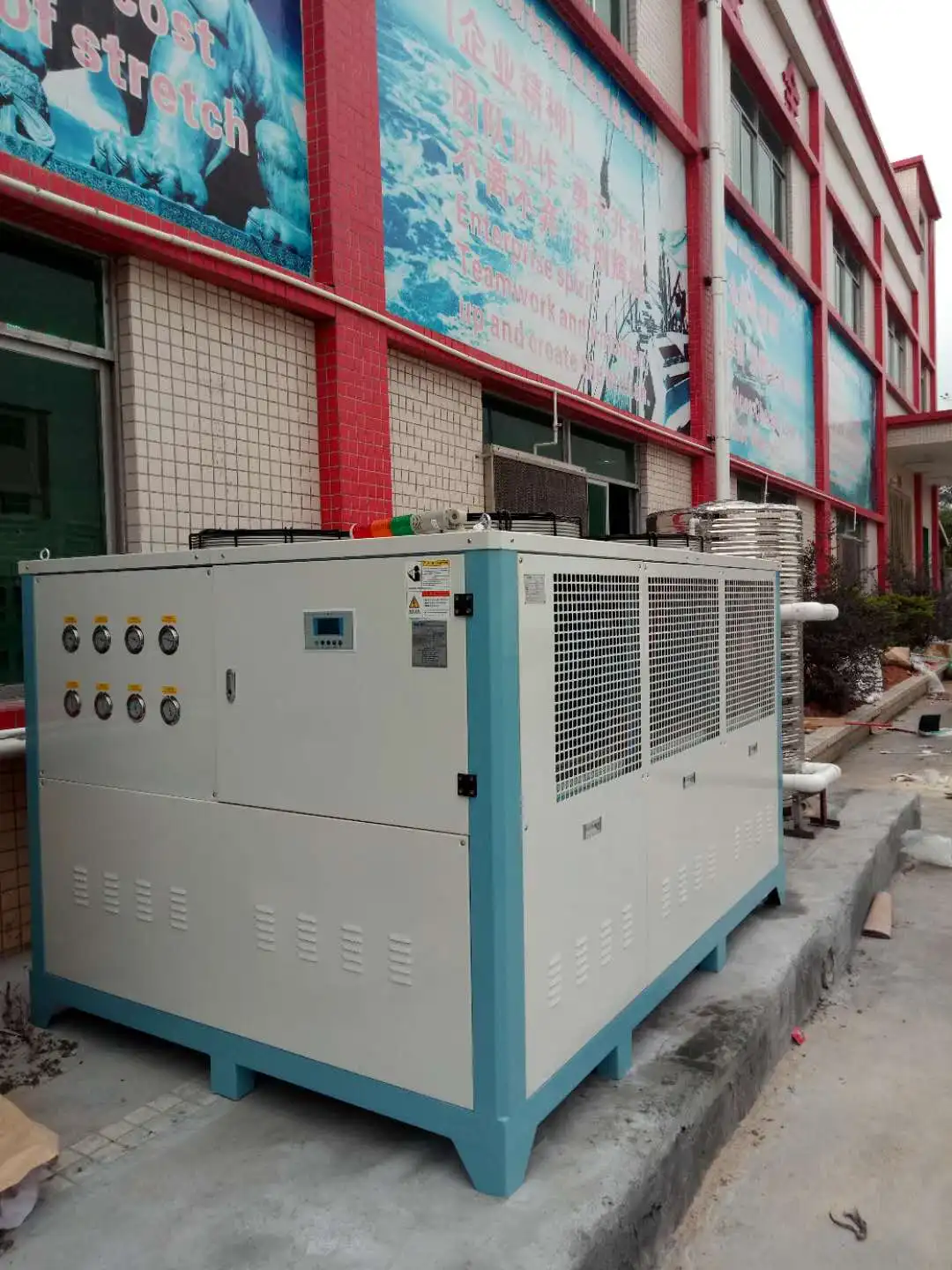

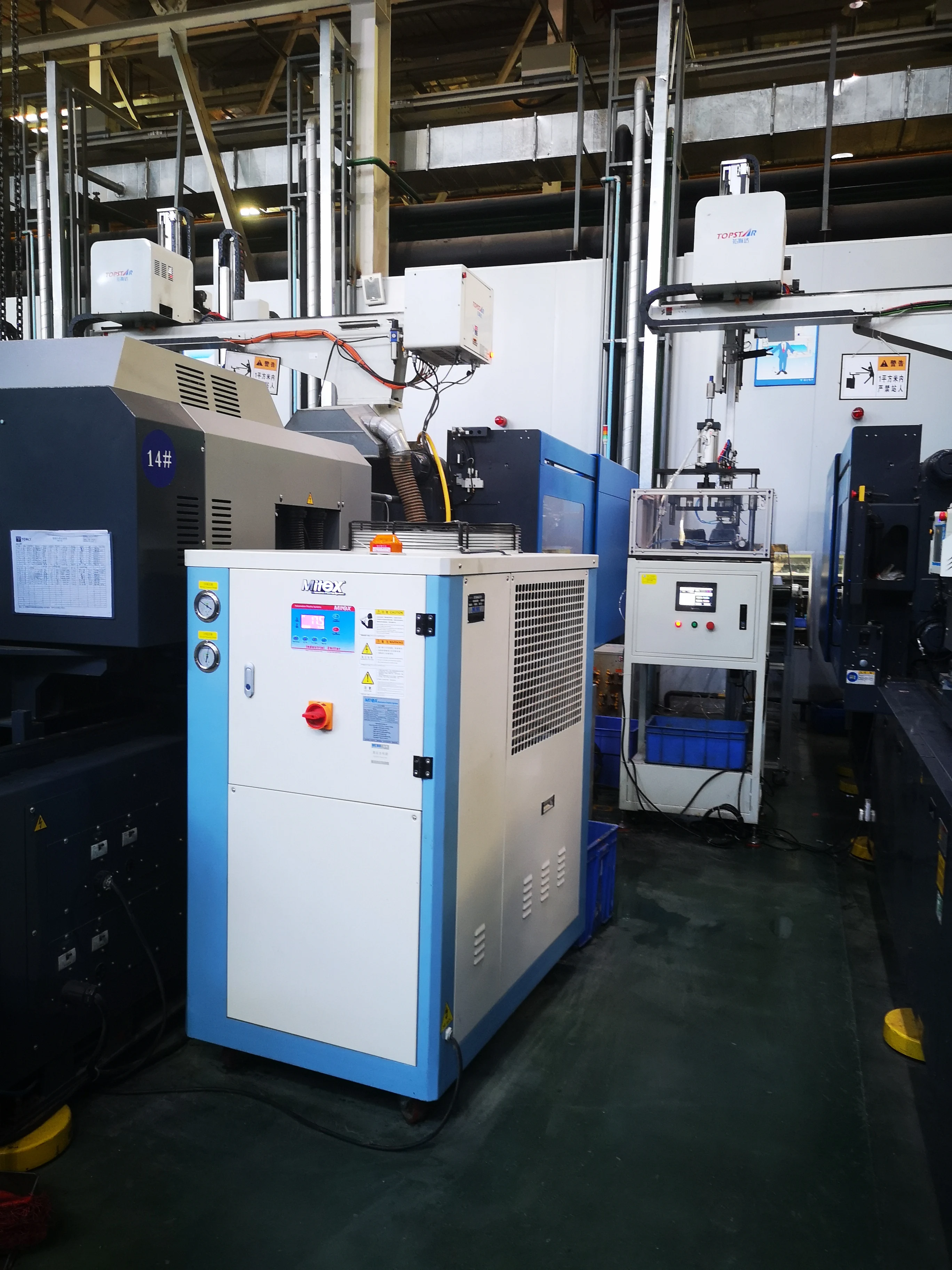

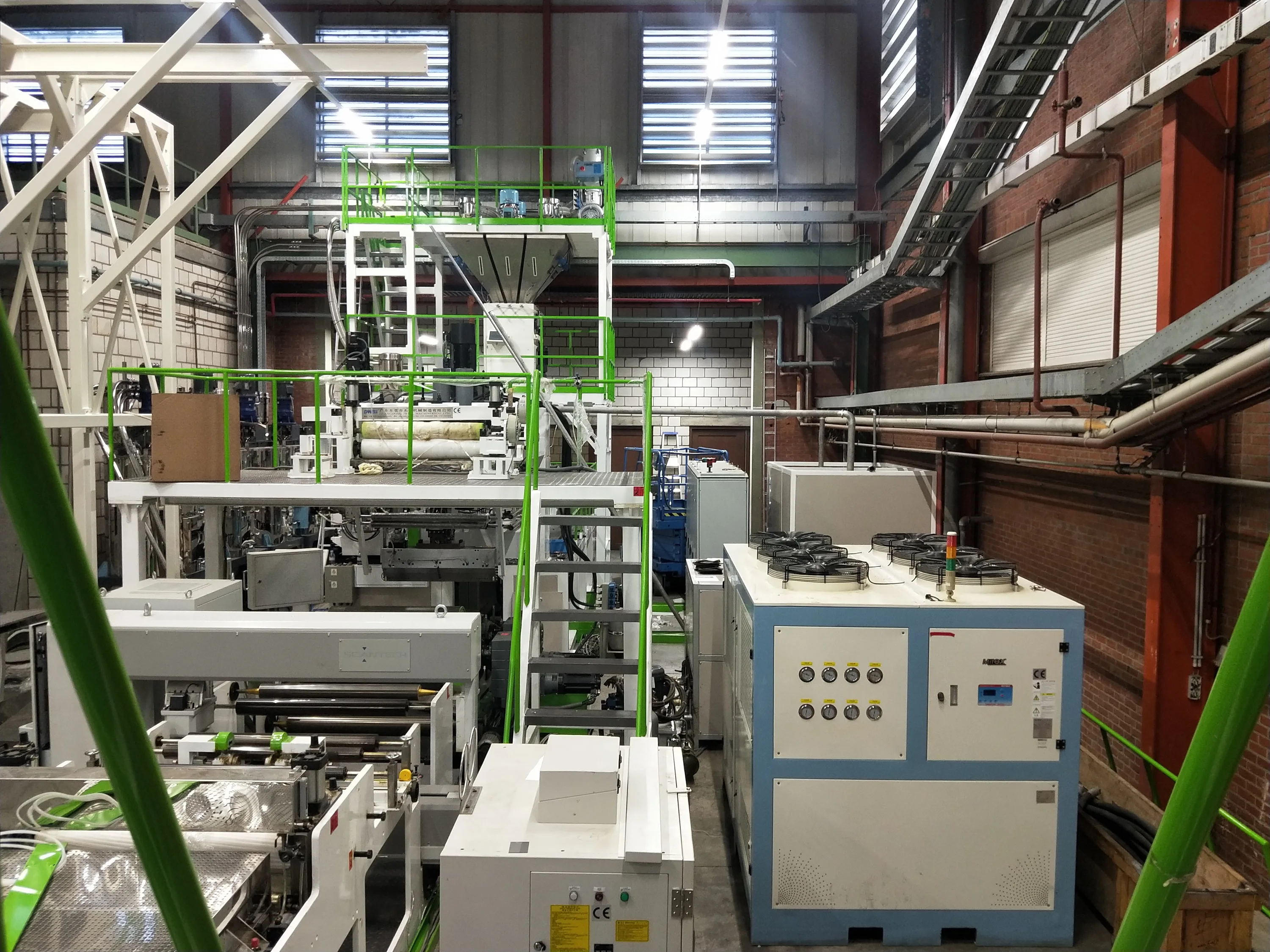

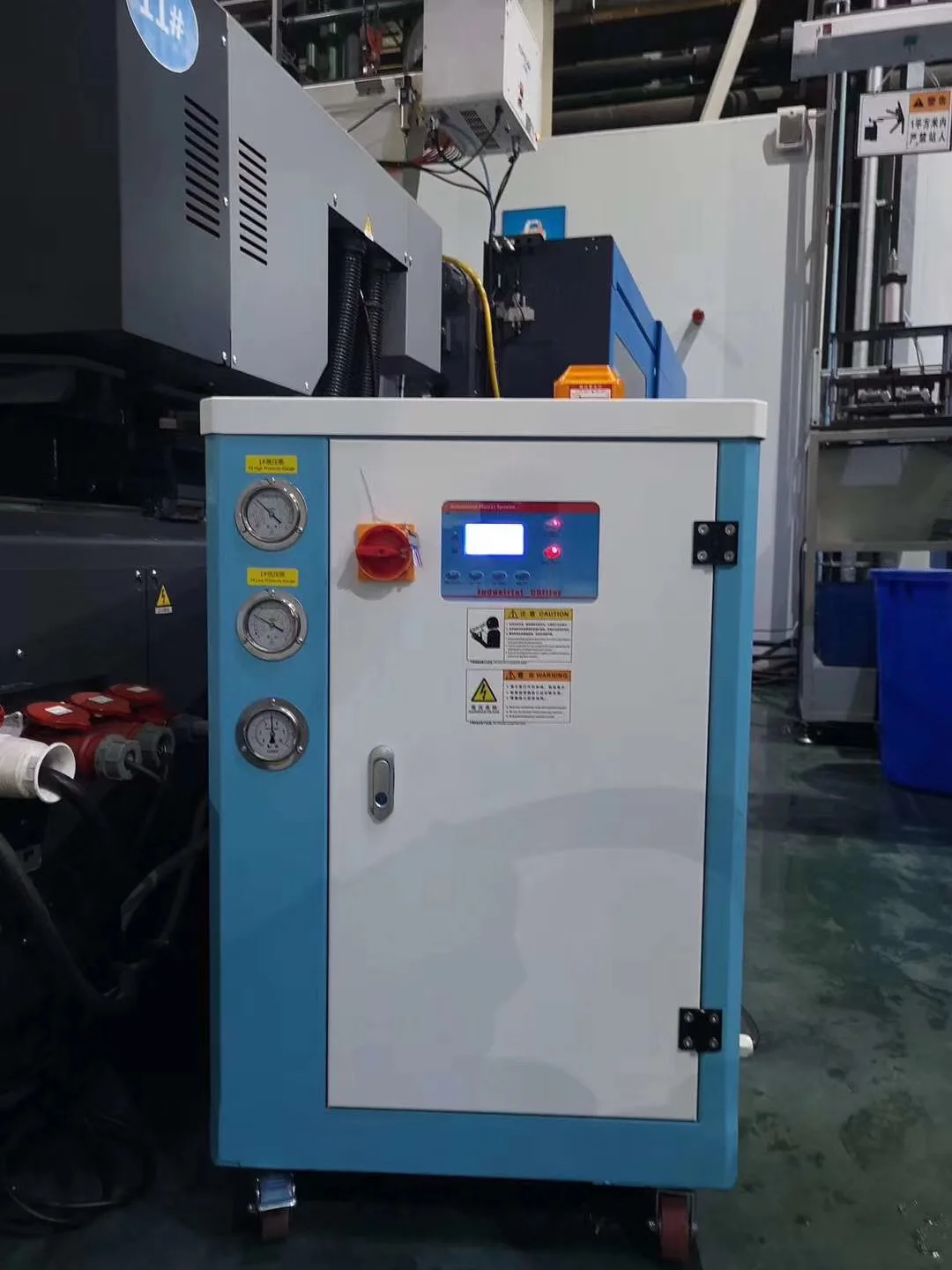

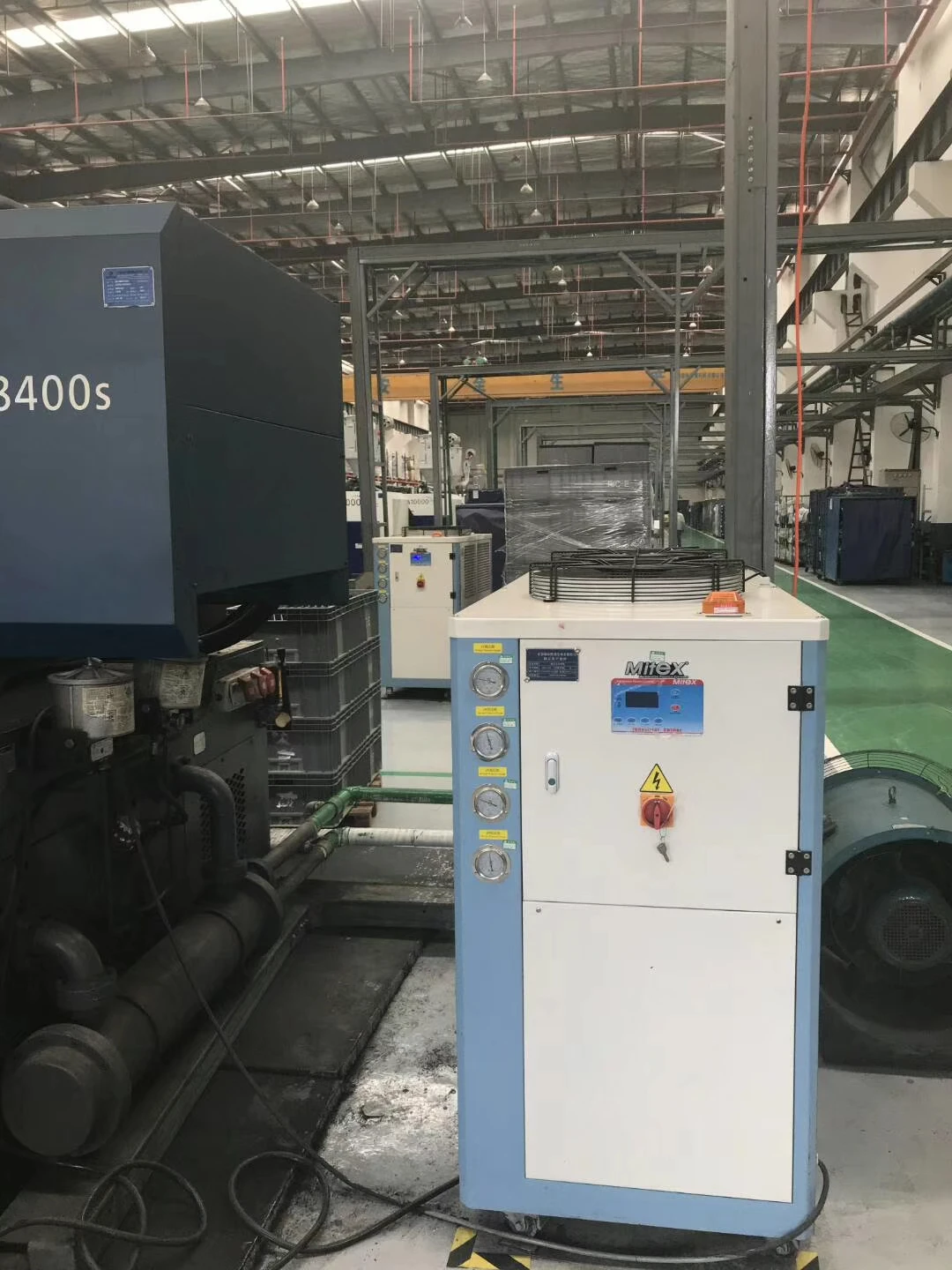

Customer cases








Related Products




Packing&Shipping


Plywood packing

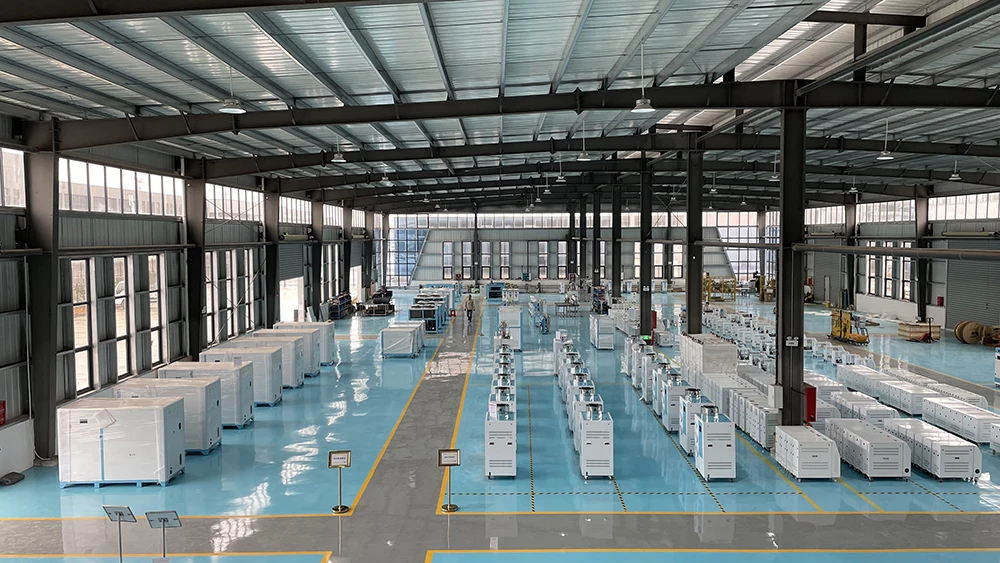

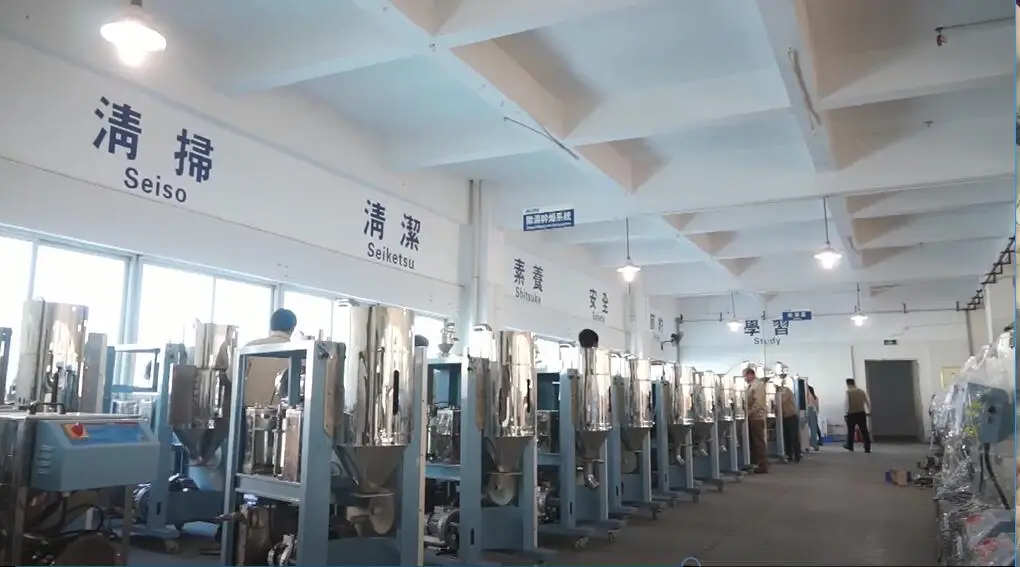

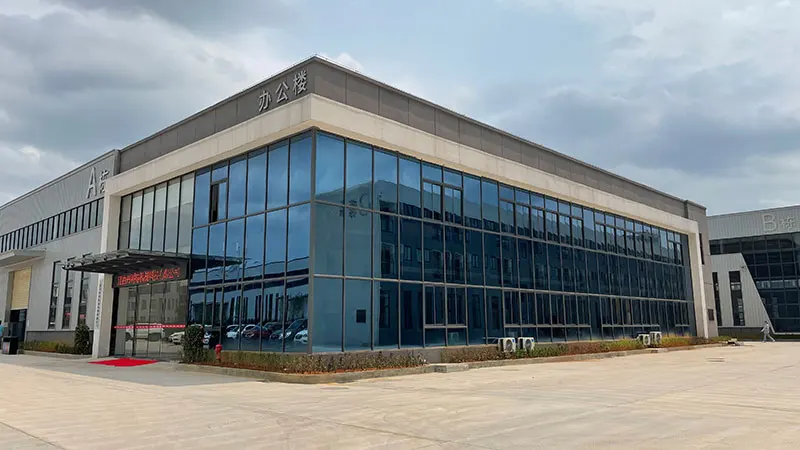

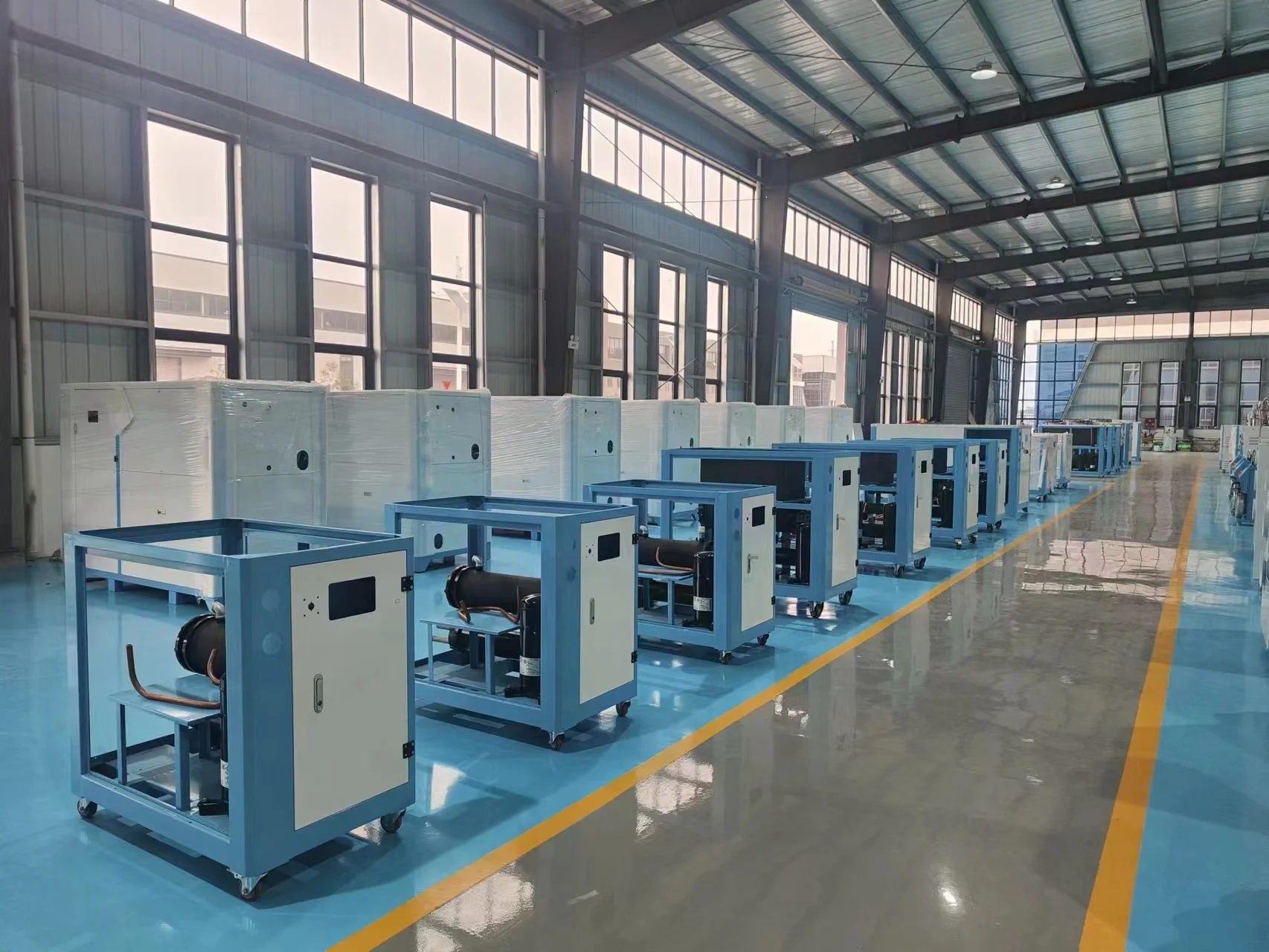

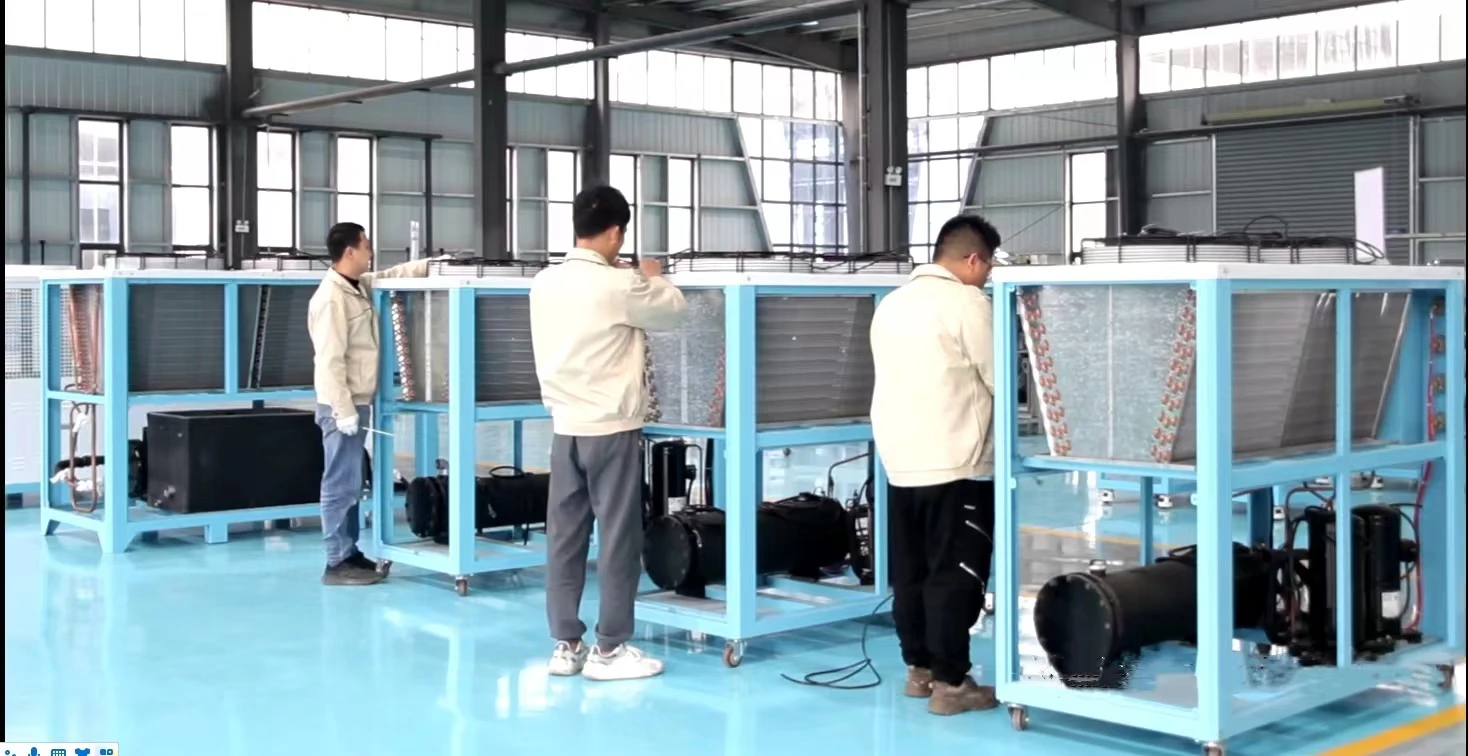

Company Introduction






Mitex Automation Machinery Co., Ltd is a national-level High-tech enterprise that established in July, 2007. also a plastic machinery manufacturer specializes in R&D, production and sales to the customer for plant project, design and modern industry 4.0 resolution.
The main products include: centralized feeding system, dehumidifying and drying system, automatic metering and mixing system, crushing and recovery system, mold temperature controlling system and automatic solution etc.
