2 Cavity Hand Loading Preform Automatic PET Blowing Machine For Jar

Product Overview

Description

2 Cavity Hand Loading Preform Automatic PET Blowing Machine For Jar



1.Stable performance with advanced PLC.

2.Conveying preforms by hands.

3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

4.High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area and eternal temperature in the preheater with an automatic thermostatic apparatus.



5.High safeties with security automatic-locking apparatus in each mechanical action,which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

6.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

7.Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

8.Strong clamping force with high pressure and double crank links to lock the mold.



9.Two ways of operating: automatic and manual.

10.Safe,reliable and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

11.Low cost,high efficiency,easy operation,easy maintenance,etc,with automatic technological process.

12.Contamination is avoided for the bottle body.

13.Ideal effect of the chilling with the chilling system.

14.Easy installation and starting.

15.Low rejection rate:less than 0.2 perce



Main Technology Parameter:

Item		H2
Bottle type specification	Cavity	2
	Theory output	2000
	Max.volume	2L
	Bottle mouth maximum overall diameter	100mm
	Bottle biggest diameter	105mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	16pcs
	Light tube power	1.5KW
	Maximum heating power	24KW
	All electric machine installation	27KW
	Actual consumption	40%-70%
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1000L/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	1500Ltr/min
Forzen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10℃
	Consumption	5000kcal/hr
	Forzen water flow	30L/min
Machine specification	Size of the machine	2.7x1.9x2.45
	Weight of the machine	2.5ton

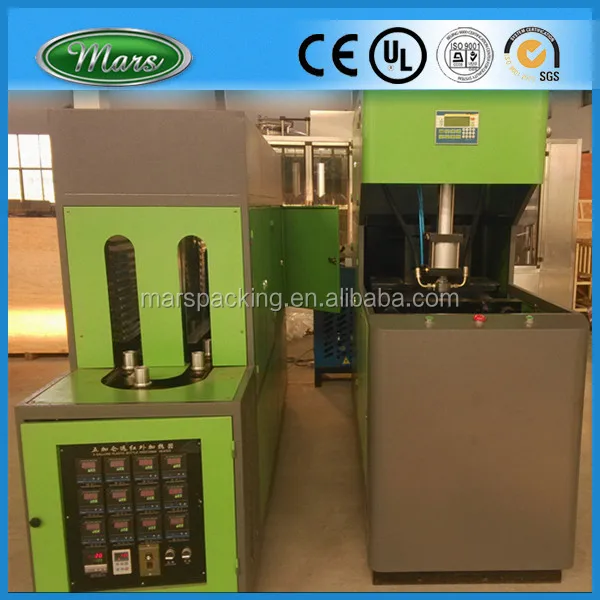

Product show
