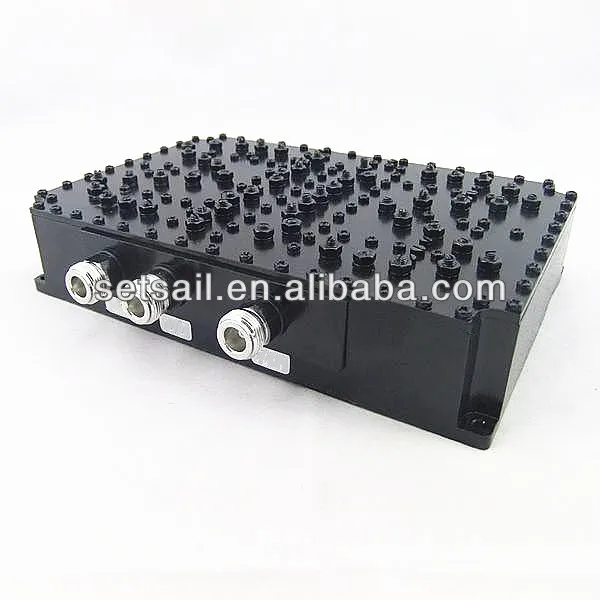

Passive GSM DCS 3G Triplexer Frequency RF Combiner
- Category: >>>
- Supplier: Hefei Setsail Telecom Co. Ltd.
Share on (1329177074):
Product Overview
Description
Product Description
Model | YF-RFCOM-3-05N | ||
CH1: GSM | CH2: DCS | CH3:3G | |
Frequency(MHz) | 885-960MHz | 1710-1880MHz | 1920-2170MHz |
Insertion Loss(dB) | ≤0.6dB | ≤0.6dB | ≤0.6dB |
Passband Ripple(dB) | ≤0.4dB | ≤0.4dB | ≤0.4dB |
Out band Rejection(dB) | ≥80@CH2&3 | ≥80@CH1&3 | ≥80@CH1&2 |
VSWR | ≤1.30:1 | ||
IM3 | ≤-120dBc or -140dBc@2×43dBm | ||
Impedance(ohm) | 50 Ohm | ||
Power(W) | 200W | ||
Operating Temperature(deg) | -30~+65°C | ||
Connector Type | N-Female | ||
Dimensions(mm) | 219*147*41 (Without Connectors) | ||
Weight(kg) | 1.850kg | ||
Note: All the specifications can be changed as customer's requirment. SET

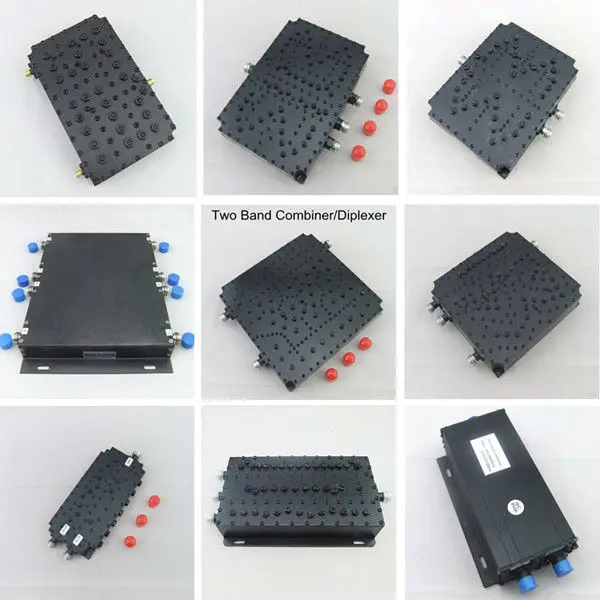

SAIL also have 2 way/3 way/4 way RF Combiner with includ N Feamle,
7/16(DIN) Female,SMA Female.
Related products
Introduction and Applications:
The combiner in communication system combine signal into one set of indoor distribution system.which
is widely used in the following fields:
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Packaging & Shipping
Our Services
1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
Company Information
Maniron Electronic & Technology co., LTD, established in 2002, is a leading manufacturer of RF Passive Components for In-building Distributed Antenna Systems by providing OEM Business mostly all over the world.
Maniron Electronic & Technology co., LTD has a huge fellowship that is composed of many high-level technologists. We also has established a Research Institution which is cooperting with some famous universities in China.
Product Information:
Product Range: RF Passive/Microwave Components in Telecommunication Field
Product Names: Power Splitter, Power Tapper, Directional Coupler, 3dB Hybrid Coupler, Triplexer,
Diplexer, Attenuator, Load, Connector, Cable, Antenna, Isolator and Circulator.
Application Range: IBS/BTS construction & installation, Military Telecommunication, frequency
range is 0-40GHz.
FAQ
1..Are you a trader or manufacturer?
We are professional manufacturer of RF passive products, which widely used in IBS and DAS, manufacture history more than 17 years. We as suppliers of the world leading RF company like Rosenberger, Comba, and so.
2.What is your MOQ?
We have no MOQ ,but we have best price if you buy more.
3.OEM/ODM Service is available?
Yes,the production base of CNCR has the strong ability to offer OEM/ODM service. But it will have requirement for the order quantity.
4. What's your company advantage?
We have our own R&D, production, sell and the rich experience technical support center.
We specialize in offering the whole network solution and all equipments needed in this solution.
5.Please let us know more details about Trade Terms, Payment Term and Leadtime.
Payment Terms: 100% TT in advance before shipment, Paypal and Western Union for the sample order
Trade Terms:FOB Shanghai/Ningbo/ShenZhen,CIF.
Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
Leadtime: Sample order,1-3 Business Days; Mass production, 7-15 Business Days after the deposit.
6.How about the Warranty?
a. All products accessories have been checked for 3 times before shipping out.
b. All products have one year warranty. If there is no man-made problems,
we will replace or repair for you.
