15T New Ice Factory Equipment Industrial Block Ice Making Machine

Product Overview

Description

    SHARE Industrial Block Ice Machine

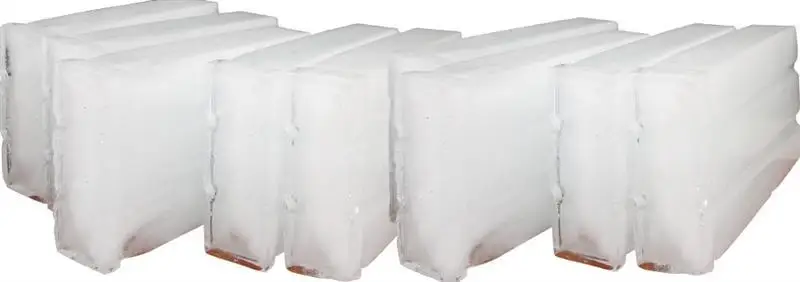

i) Introduction of Block Ice



Block ice is a kind of large ice block in rectangular shape, it's not easy to melt, has the most long storage life, suitable for long distance transportation, especially in tropical area which the climate is very hot. The block ice has low cost and good cooling effect, widely applied in fish, seafood preservation and processing, keeping fruits & vegetables fresh, commercial ice business, general cooling solution, refrigerated transportation, fishing…etc.



ii) Features of SHARE Industrial Block Ice Machine



l The daily output is from 10tons to 50tons

l Carbon steel brine pool, processed by anti-corrive, anti-rust paintings, good looking, durable.

l HANBELL refrigerant system, steady, enery-saving, with sufficient refrigerant capacity.

l DAFOSS, Schneider, SIEMENS world famous brands components, users can easily buy replacements in their location.

l The brine pool will be designed well for loading by container, convenient to move and install.



iii) Working Principle





iv)  Main Components List

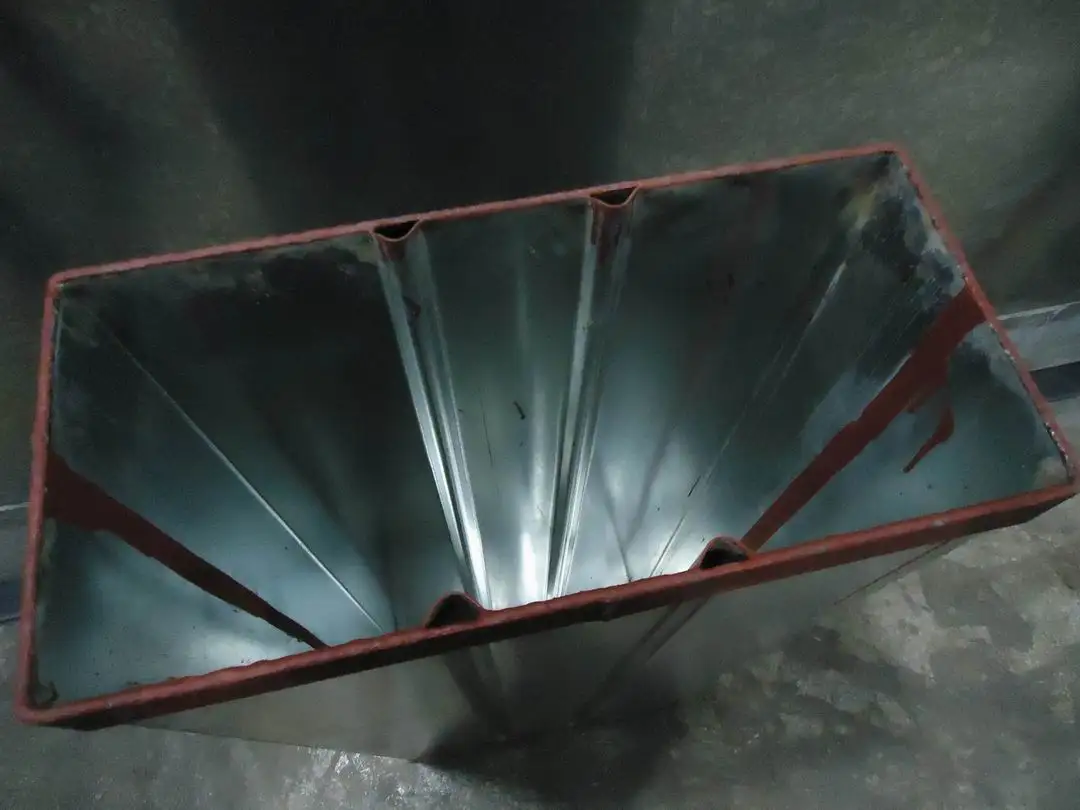

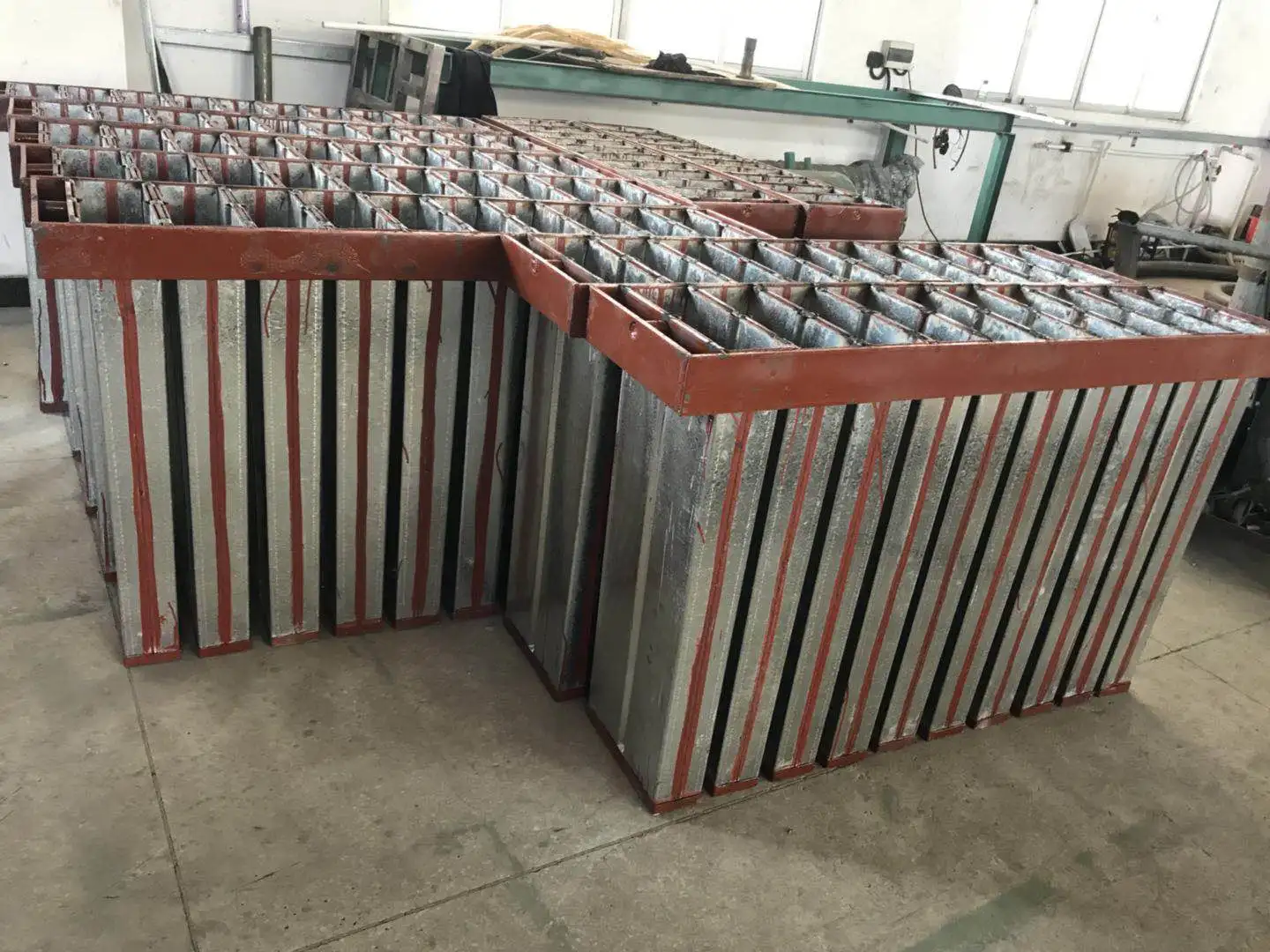

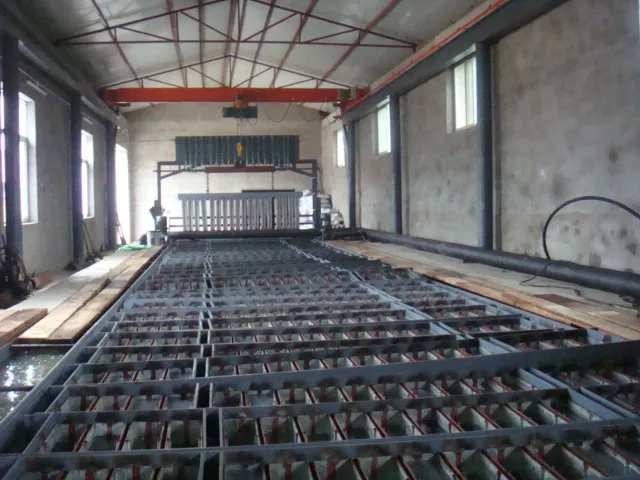

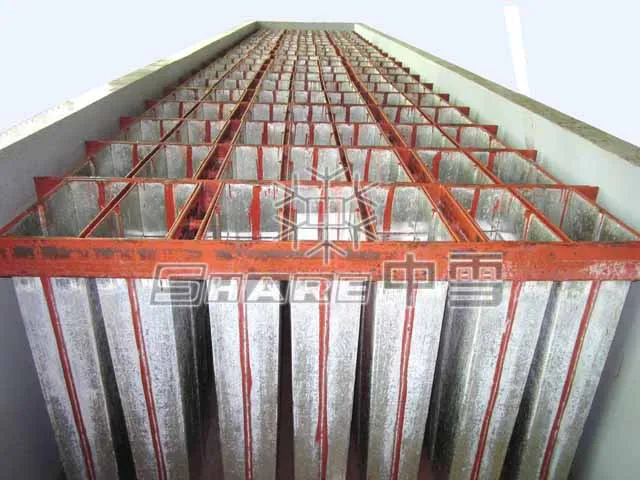

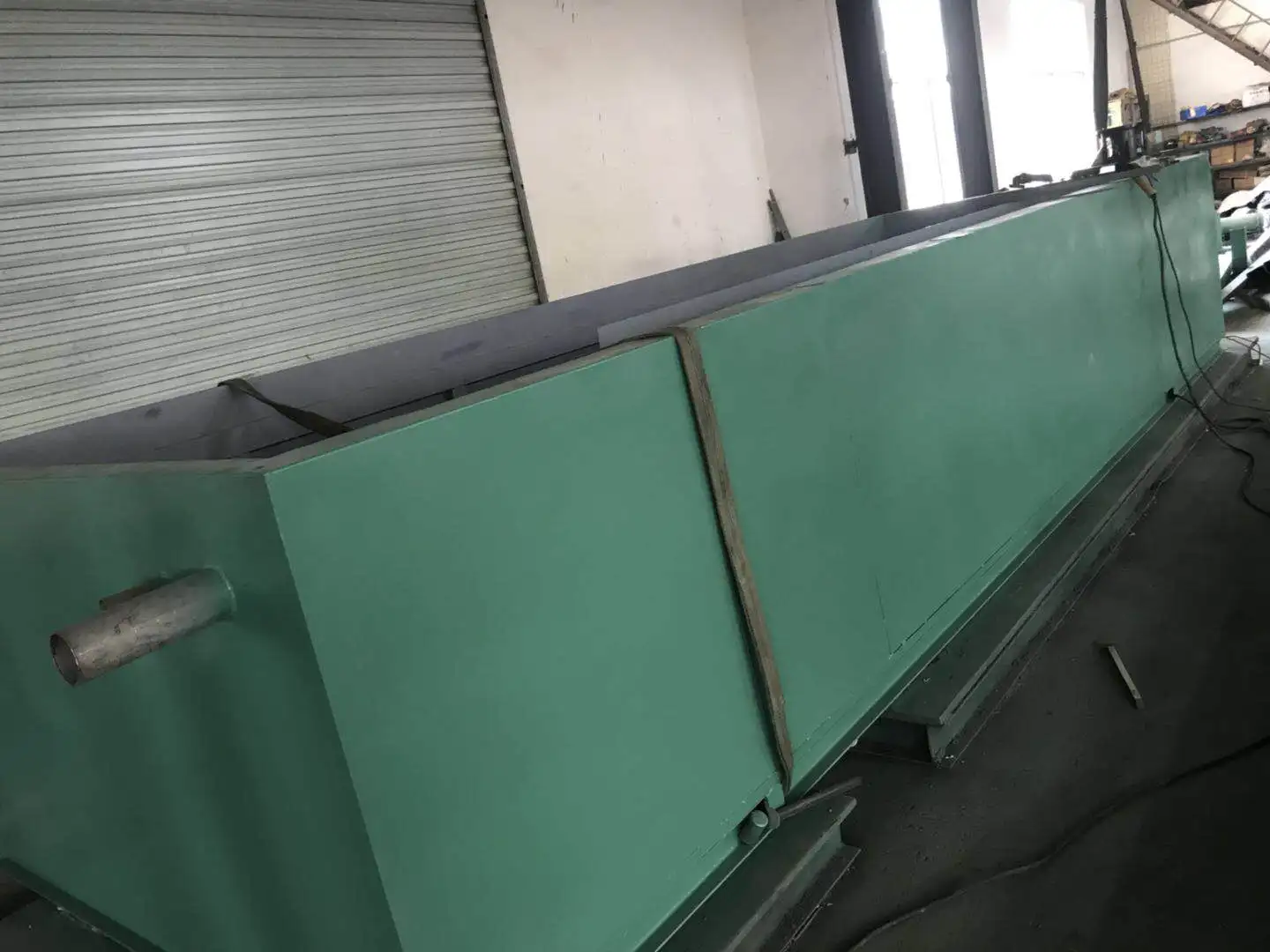

Carbon steel brine tank & GI or stainless steel ice can

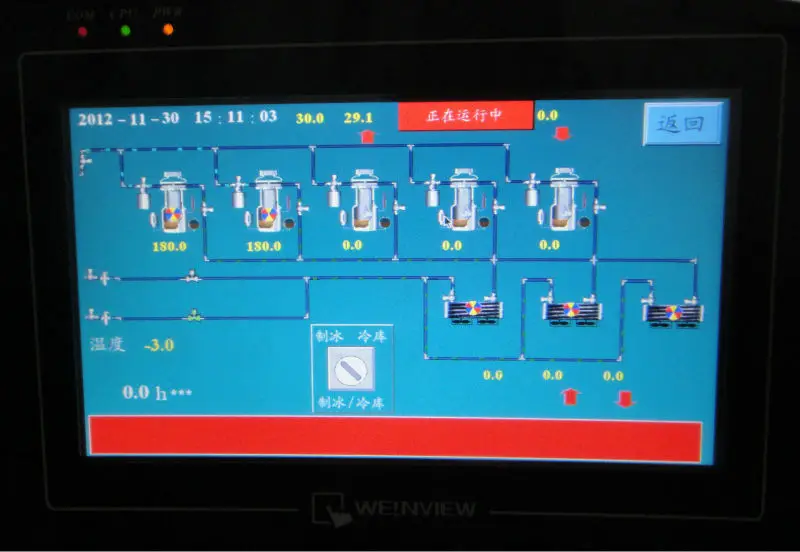

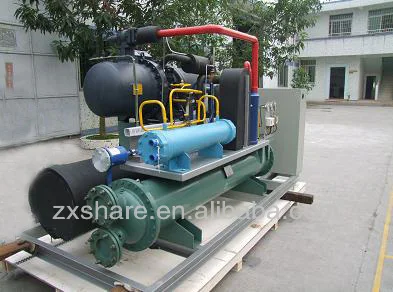

HANBELL refrigerant system & touch screen control system

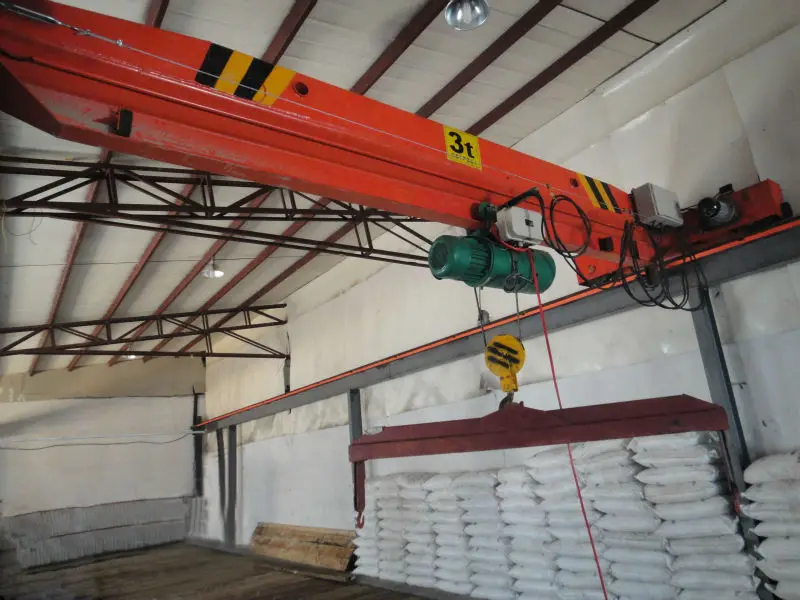

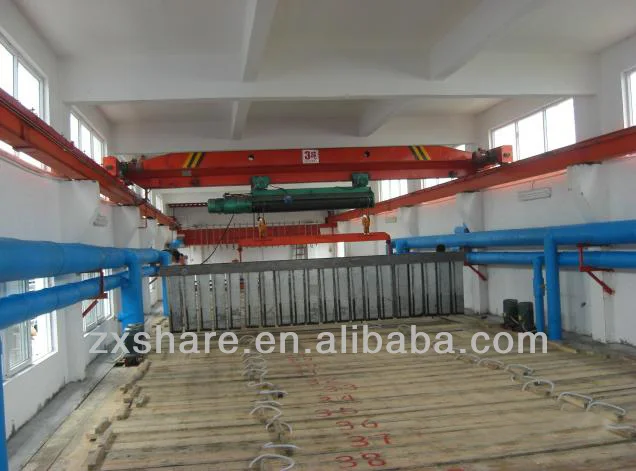

Lifting crane & railway

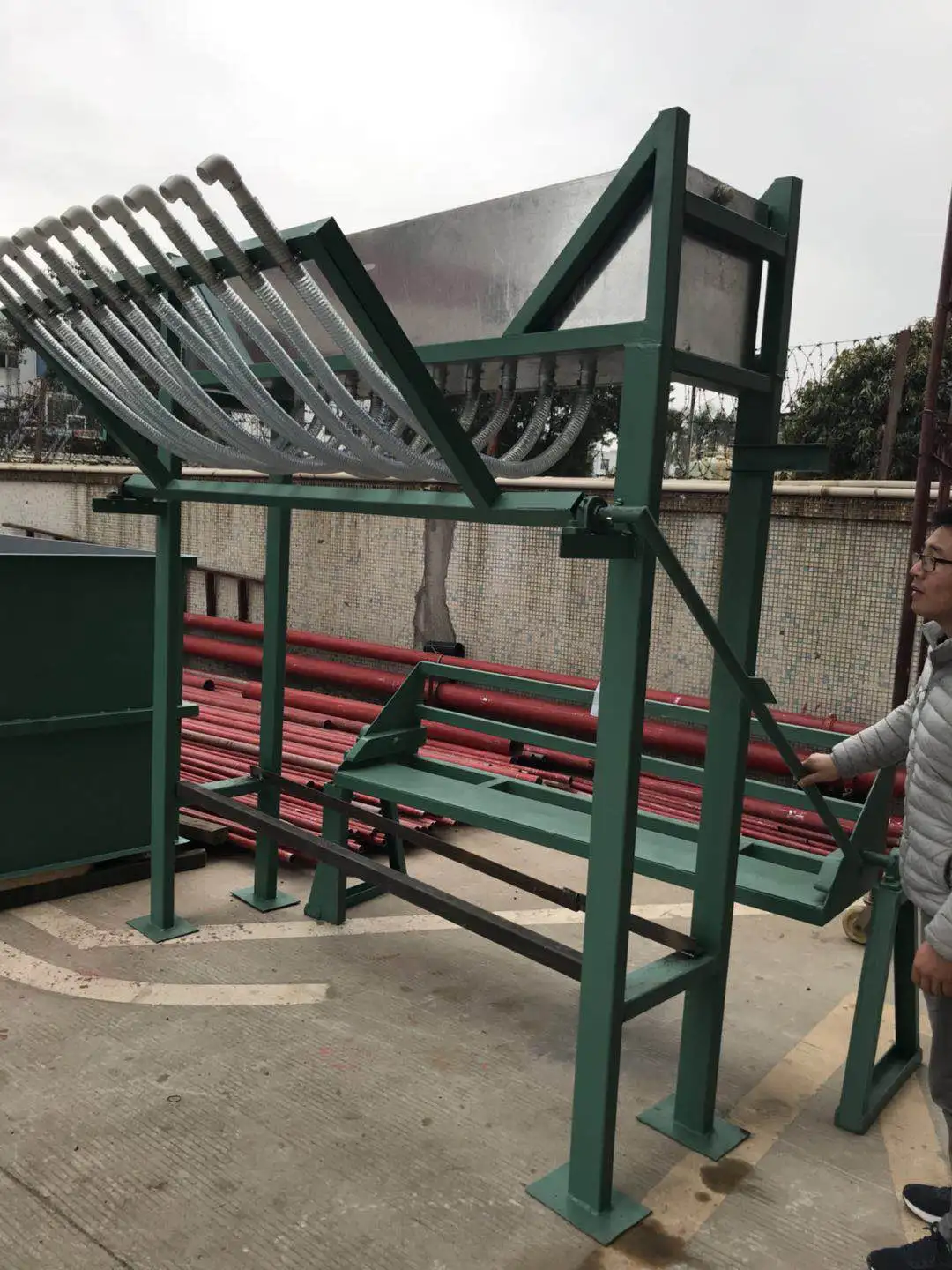

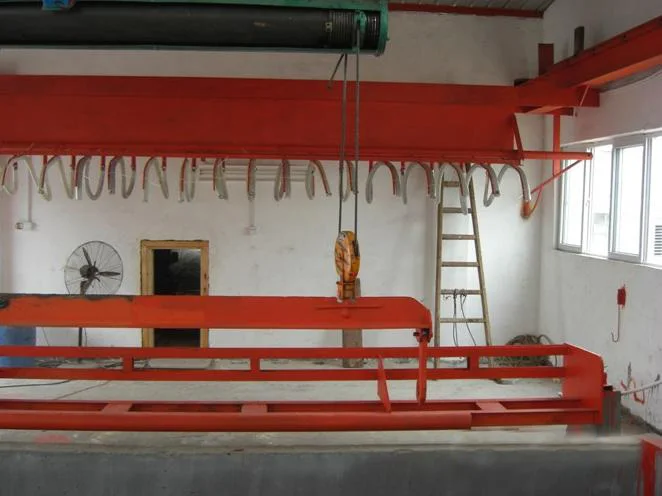

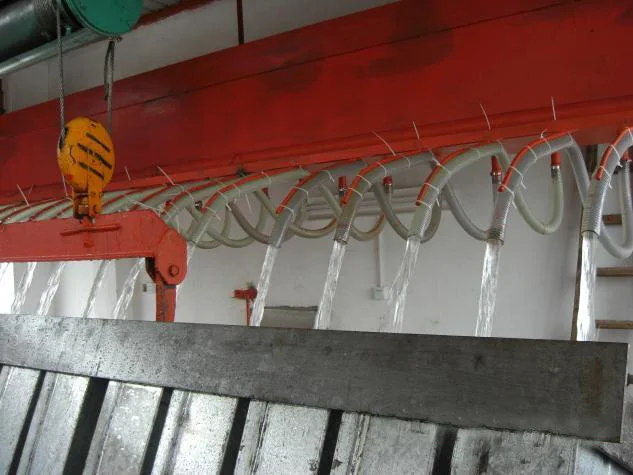

Water filler & tilting device



v) Parameter List

Design Working Condition
Name	Parameter	Remark
Ambient temp.	5~45°C
Relative humidity	85%
Water inlet temp.	18°C
Power Supply	380V/3P/50Hz	could be customized





SHARE Industrial Block Ice Machine
Model	Output	Ice Size	Total Power	Compressor	Cooling Type	Dimension	Weight
ZB10.0T-R2W	10.0T/24hr	25/50/100Kg	48.2kW	HANBELL	Water cooled	6280x2000x1600mm	4650Kg
ZB15.0T-R2W	15.0T/24hr	25/50/100Kg	53.3kW	HANBELL	Water cooled	9800x2000x1500mm	5000Kg
ZB20.0T-R2W	20.0T/24hr	25/50/100Kg	69kW	HANBELL	Water cooled	12600x1940x1500mm	5500Kg
ZB25.0T-R2W	25.0T/24hr	25/50/100Kg	97.8kW	HANBELL	Water cooled	13500x2800x1600mm	6000Kg
ZB30.0T-R2W	30.0T/24hr	25/50/100Kg	123kW	HANBELL	Water cooled	14600x3000x1600mm	6500Kg
ZB40.0T-R2W	40.0T/24hr	50/100Kg	166kW	HANBELL	Water cooled	19500x3800x1600mm	7500Kg
ZB50.0T-R2W	50.0T/24hr	50/100Kg	182kW	HANBELL	Water cooled	13300x6200x1560	8000Kg

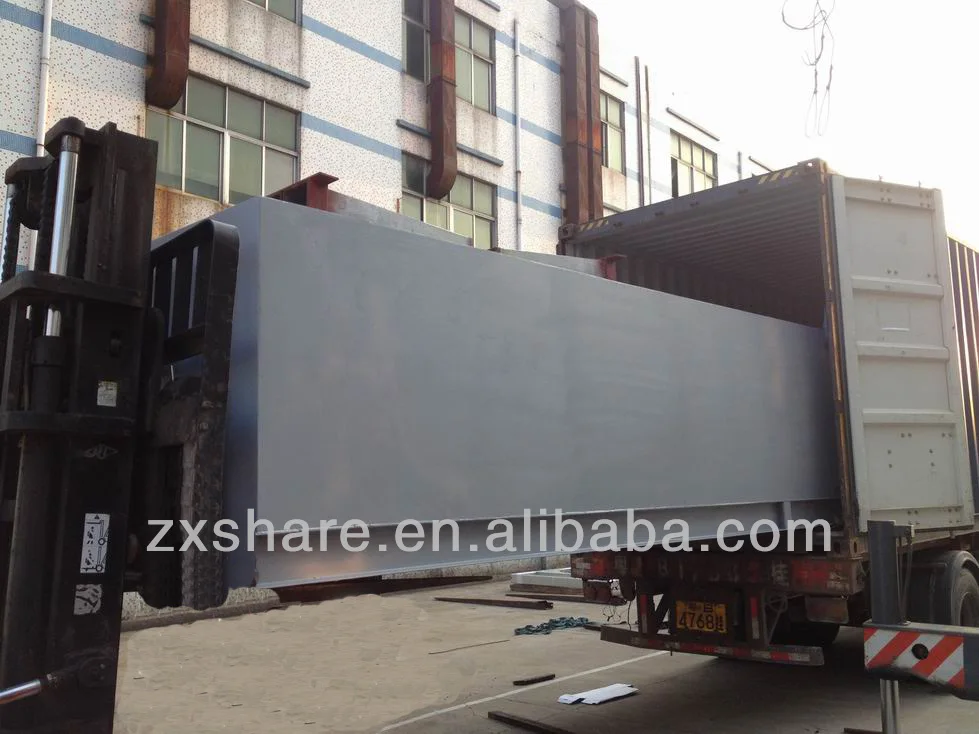

vi) Transportation & Shipment



vii) Warranty & Service

All the SHARE ice machines will be tested for 72 hours before shipment.

All the SHARE ice machines enjoy 12 months warranty in free of charge ever since B/L date.

All the SHARE ice machines enjoy lifelong free technical support.
