dn16 corrugated stainless steel tube flexible metal pipe

Product Overview

Description

dn16 corrugated stainless steel tube flexible metal pipe



Item Name	dn16 corrugated stainless steel tube flexible metal pipe
Part No.	GDSSCSST20025
Material	Stainless steel
Size	DN16(connection fittings size3/4")
MOQ	100meters
Brand	GD-FLEX
Original	China







Introduction:



Flexible stainless steel pipe is made by corrugating stainless steel thin wall pipe. have good flexibility ,high strength, heat resistance and pressure tightness. They can be used to convey most kinds of fluid those are gaseous, such as  gas, air, steam, etc. and liquid such as water, oils, chemicals,etc.,which have functions to absorb reciprocated motion, thermal expansion, vibration, and misalignment of piping.





Application:

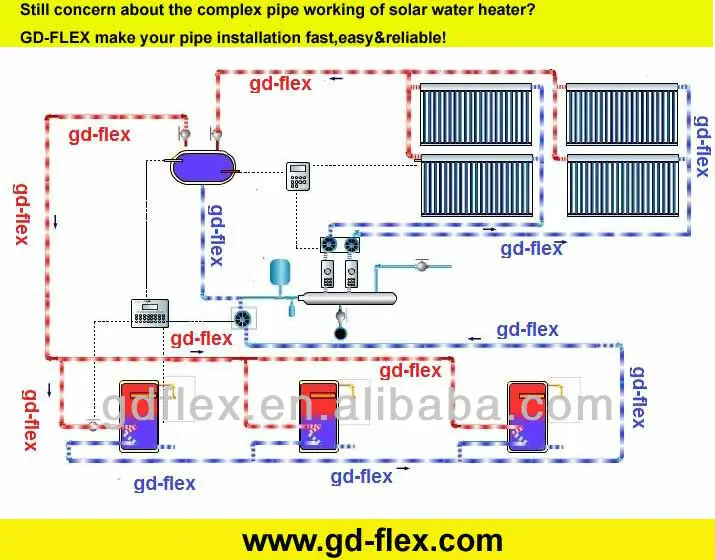

1. Solar water heater or other types of water heater
2.Piping of bathroom and Toilet
3.Plumbing fixtures of special container,low and high cistern
4. Hot and cold plumbing installation
5. Machinery field
6.Used on food-touch pipe connection

7. Alternative plumbing pipe instead of copper
8.Gas Pipe







Assembly  Item & Material

No.	Item	Material
1	Nut	Brass
2	Metal Hose	SUS304,SUS316L
3	Gasket	350°C High-temperature resistance seal
4	Cir-Clip	Stainless Steel







Specification

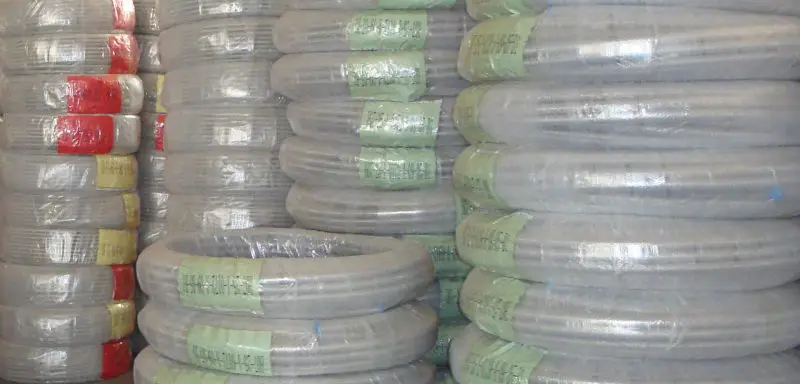

DN	φID mm	δOD mm	meters per Coil	Bending Radius mm	Maximum Applicable Pressure kgf/cm2	Burst Pressure kgf/cm2
DN12	12	16	60	30	17.5	200
DN16	16	20	60	50	15	200
DN20	20	25	60	60	12	200
DN25	27	32	30	90	10	120
DN32	33	41	15	120	8	50
DN40	40	48	15	140	6	50
DN50	50	62	15	180	6	35
