dn50 Flexible corrugated stainless steel tube and pipe

Product Overview

Description

  DN50 Flexible corrugated stainless steel tube and pipe



Item Name	DN50 Flexible corrugated stainless steel tube and pipe
Part No.	GDSSCSST60040
Size	DN50
Material	SUS304/SUS316L
ID*OD	50mm*62mm
wall thickness	0.4mm
MOQ	500meters
Brand	GD-FLEX
Original	China





Introduction:

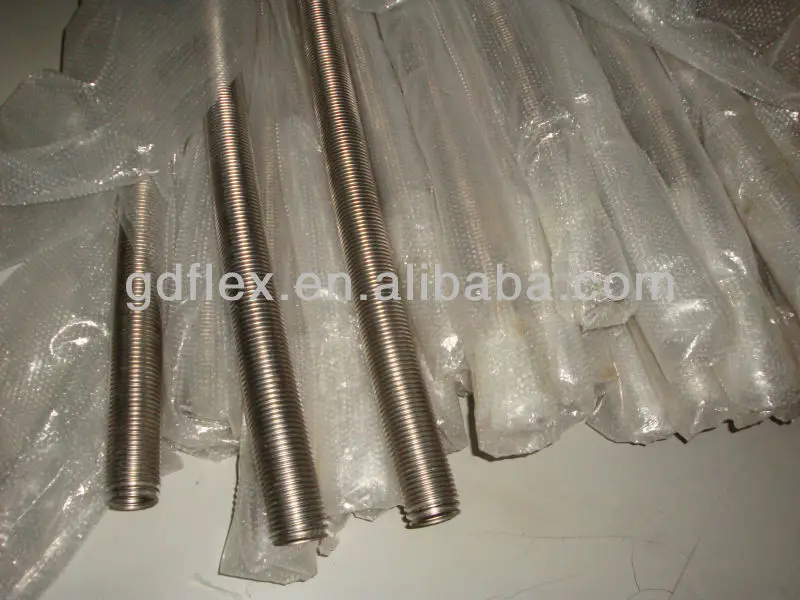

Flexible stainless steel pipe is made by corrugating stainless steel thin wall pipe. have good flexibility ,high strength, heat resistance and pressure tightness. They can be used to convey most kinds of fluid those are gaseous, such as  gas, air, steam, etc. and liquid such as water, oils, chemicals,etc.,which have functions to absorb reciprocated motion, thermal expansion, vibration, and misalignment of piping.



Application:

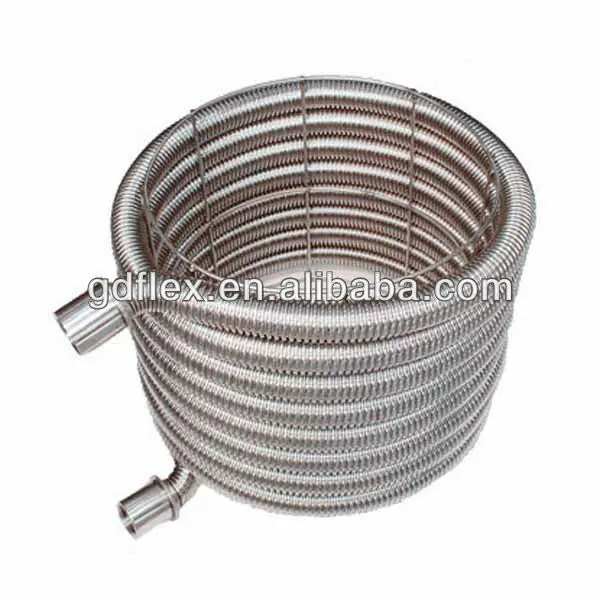

1. Heat exchanger

2.Piping of industry

3.Plumbing fixtures of special container,low and high cistern

4.Hot and cold plumbing installation

5.Machinery field

6.Used on food-touch pipe connection

7. Alternative plumbing pipe instead of copper

8.Gas Pipe











Specification

DN φID mm δOD mm meters per Coil Bending Radius mm Maximum Applicable Pressure kgf/cm2 Burst Pressure kgf/cm2 DN12 12 16 60 30 17.5 200 DN16 16 20 60 50 15 200 DN20 20 25 60 60 12 200 DN25 27 32 30 90 10 120 DN32 33 41 15 120 8 50 DN40 40 48 15 140 6 50 DN50 50 62 15 180 6 35
