Monocular Forensic Comparison Microscope Optical Biological Microscope Industrial Inspection RCM 505 Radical
- Category: >>>
- Supplier: RADICAL SCIENTIFIC EQUIPMENTS PRIVATE LIMITED
Share on (133155266):
Product Overview
Description
Product Description

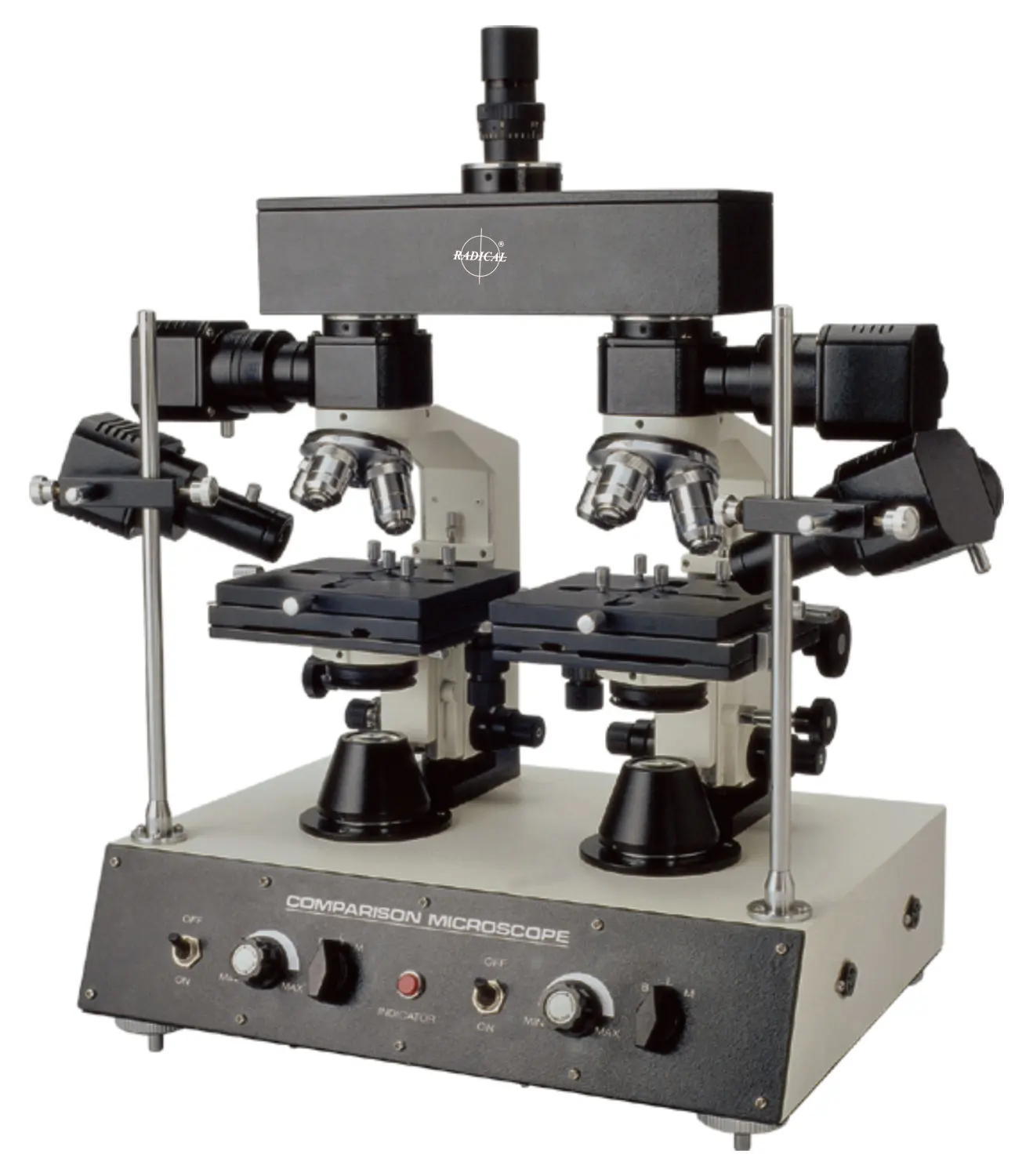

Forensic Comparison Microscope RCM-505
Radical Forensic Comparison Microscope were developed about four decades ago in consultation with the leading Scientists and Criminologists of world repute, thereafter the instruments are being continually updated. Comparison Microscope are the most advanced & versatile instruments invented for comparative Micro study in Forensic Science, geology, Metallurgy, Mineralogy, Crystallography and Chemical Microscopy. By means of this sophisticated instrument, two micro samples can be studied under one Eye. It combines the latest opto-mechanical developments in light microscopy.
This instrument consists of two microscopes & their split images can be viewed simultaneously, with the image from one being on the left side & the other image on the right side. This Microscope can Also compare fibre, hair, bullets, paint fragments under the same lighting conditions & magnification.
Both the Microscope, having their own illuminations, quadruple revolving nosepieces, coarse and Fine motion knobs, 120mm x 120mm stages, are mounted upon a heavy built-in light base. Leveling Screws are provided to ensure their exact alignment. Transmitted illumination for transparent objects, Incident light for opaque objects and spot lamps for papers are provided for different applications. The comparison bridge brings both the beam paths together and two images of object under Examination, separated by a thin line are observed side by side in the field of view through a Monocular tube.
Standard comparison Microscope are available with Magnification from 20x to 600x having following optical Combination:
This instrument consists of two microscopes & their split images can be viewed simultaneously, with the image from one being on the left side & the other image on the right side. This Microscope can Also compare fibre, hair, bullets, paint fragments under the same lighting conditions & magnification.
Both the Microscope, having their own illuminations, quadruple revolving nosepieces, coarse and Fine motion knobs, 120mm x 120mm stages, are mounted upon a heavy built-in light base. Leveling Screws are provided to ensure their exact alignment. Transmitted illumination for transparent objects, Incident light for opaque objects and spot lamps for papers are provided for different applications. The comparison bridge brings both the beam paths together and two images of object under Examination, separated by a thin line are observed side by side in the field of view through a Monocular tube.
Standard comparison Microscope are available with Magnification from 20x to 600x having following optical Combination:
Achromatic Objectives | 4x, 10x and 40x SL |
Huy. Eyepieces | Wf10x, H15x, H10x micro And H5x cross. |
All paired objectives are flat field, strain free and having Anti- reflection coating. The Microscope is supplied with a special vice type Mechanical stages to hold objects like bullets, coins, Industrial materials etc. and another plate to hold Materials like currency notes, cartons, stamps, finger Prints etc. | |
Total Weight | 45kg. |
Size of cases | 46x42x45cm. & 57x41x26 cm. |
Optional Accessories | Photo micrographic Attachment Projection Screen Attachment, Semi Plan Objectives 2.5x, 20x, 60x, & Oil Immersion 100x, Spare Eyepieces, USB Camera with Necessary software etc. |
Specification
item | value |
Warranty | 1 years |
Customized support | OEM |
Place of Origin | India |
Haryana | |
Brand Name | Radical |
Model Number | RCM-505 |
Theory | Other |
Drawtube | Monocular |
Product name | Monocular Forensic Comparison Microscope |
Magnification | 20x to 600x |
Application | Industrial Inspection |
Eyepiece | WF10X/15 |
Objective | 4X/10X/40X |
Type | Optical Biological Microscope |
Illumination | Transmitted illumination |
Packing & Delivery
In Export Worthy Carton
Company Profile
We are one of the leading Manufacturers & Exporters of Microscopes, Profile Projectors, Optical Instruments, Microtomes and Educational Laboratory Equipment for the last over 44 years.
Our ultramodern manufacturing facility is situated on National Highway, covering 5.5 acres green land, having more than hundred thousand square feet covered area.
We have merged our two manufacturing units, RADICAL INSTRUMENTS and MANKOTIA ENGINEERS within us, to serve you better with our complete range of products available at our place.
Since inception, RADICAL has built up the reputation by dint of hard work and skill of Scientists, Engineers and Technical staff. All of them have technical capabilities & expertise to assist the customers in defining their needs.
Our strong updated technical knowledge make us intensively aware of your needs, be it in product performance or prompt delivery. The considerable practical experience gained by us is easily accessible to our customers, because all sales enquiries and technical advices are handled by senior executives.
With a team of over 250 well qualified and experienced staff members, we take market's demands as a challenge with detailed expertise, daily commitment and a high degree of quality awareness. Best possible consultation, exemplary service and tailored product designs, all by in-house development and production capacities are used in order to fulfill customers' demands at the highest possible level.
We are having technical collaboration with the world renowned companies for their Optical Instruments, Digital Imaging and Analyzer on an exclusive basis in India and neighboring countries.
We are regularly exporting our products worldwide, including USA and Europe, a govt. recognized star export house.
We are having our own calibration NABL Accredited Laboratory and Research & Development Center.
Our success is the result of company's commitment towards excellence and innovative spirit of our dedicated staff members. Our proprietary processes, best in-class materials and precision work together flawlessly.
In conclusion, we would like to convey a word of sincere thanks to our most valued clientele all over the world, who have been patronizing our products and services with unflinching confidence.
Our ultramodern manufacturing facility is situated on National Highway, covering 5.5 acres green land, having more than hundred thousand square feet covered area.
We have merged our two manufacturing units, RADICAL INSTRUMENTS and MANKOTIA ENGINEERS within us, to serve you better with our complete range of products available at our place.
Since inception, RADICAL has built up the reputation by dint of hard work and skill of Scientists, Engineers and Technical staff. All of them have technical capabilities & expertise to assist the customers in defining their needs.
Our strong updated technical knowledge make us intensively aware of your needs, be it in product performance or prompt delivery. The considerable practical experience gained by us is easily accessible to our customers, because all sales enquiries and technical advices are handled by senior executives.
With a team of over 250 well qualified and experienced staff members, we take market's demands as a challenge with detailed expertise, daily commitment and a high degree of quality awareness. Best possible consultation, exemplary service and tailored product designs, all by in-house development and production capacities are used in order to fulfill customers' demands at the highest possible level.
We are having technical collaboration with the world renowned companies for their Optical Instruments, Digital Imaging and Analyzer on an exclusive basis in India and neighboring countries.
We are regularly exporting our products worldwide, including USA and Europe, a govt. recognized star export house.
We are having our own calibration NABL Accredited Laboratory and Research & Development Center.
Our success is the result of company's commitment towards excellence and innovative spirit of our dedicated staff members. Our proprietary processes, best in-class materials and precision work together flawlessly.
In conclusion, we would like to convey a word of sincere thanks to our most valued clientele all over the world, who have been patronizing our products and services with unflinching confidence.
