Large capacity slurry auger conveyor for sludge

Product Overview

Description

Slurry auger conveyor

Because of the slurry auger conveyor without central axis, So slurry auger conveyor is suitable for continuously conveying materials which is sticky, easy twine, easy caking, bad liquidity material.

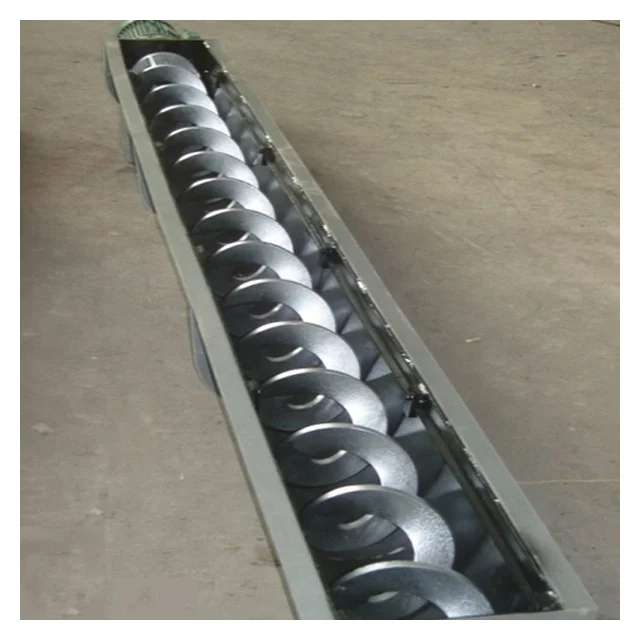

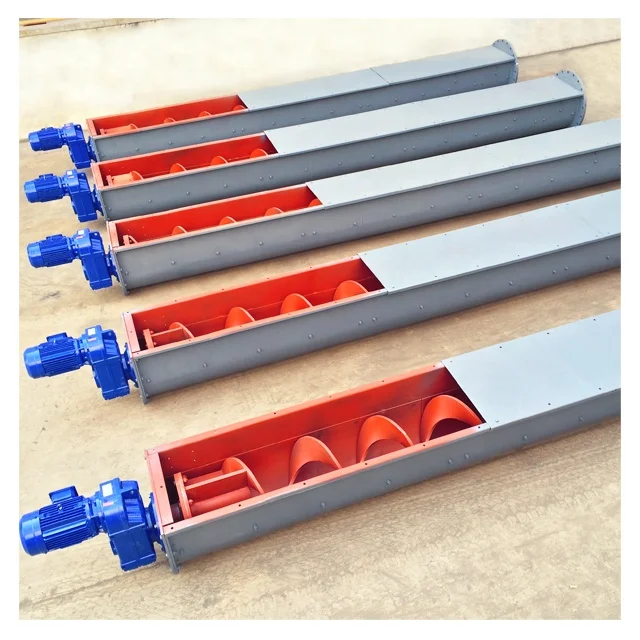

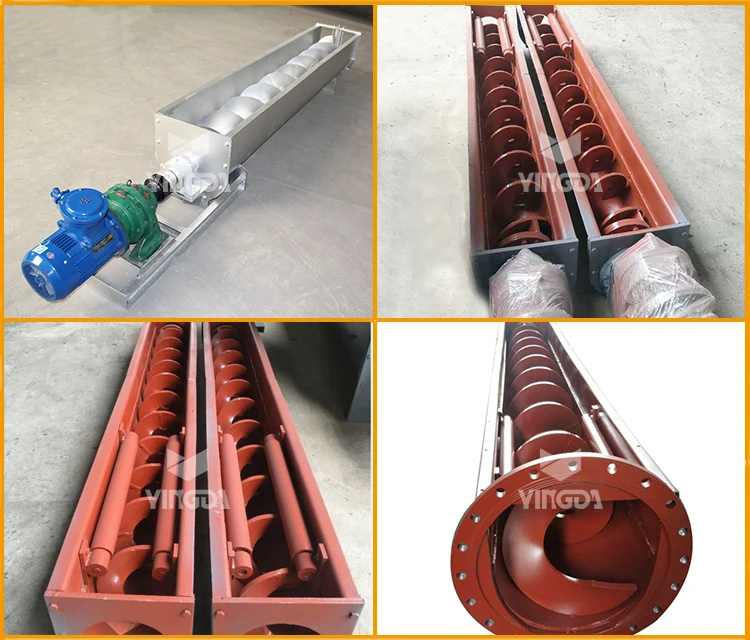

Product display





Slurry auger conveyor is mainly used for conveying material, such as large pieces material, sludge, gravel, wood chips etc. The shaftless screw conveyor can conveying max. size of material is 100mm.

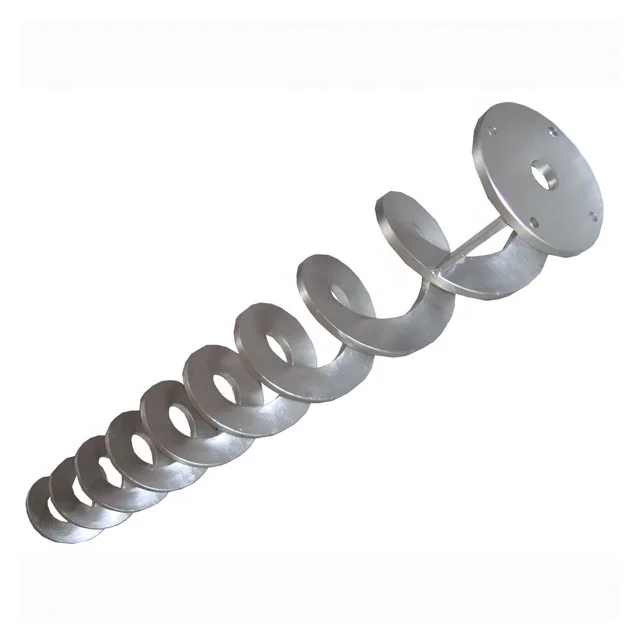

Thickness of spiral blade: 16/18/20/22mm.

Allowed to tilt conveying, max slant angle is 45 degree.

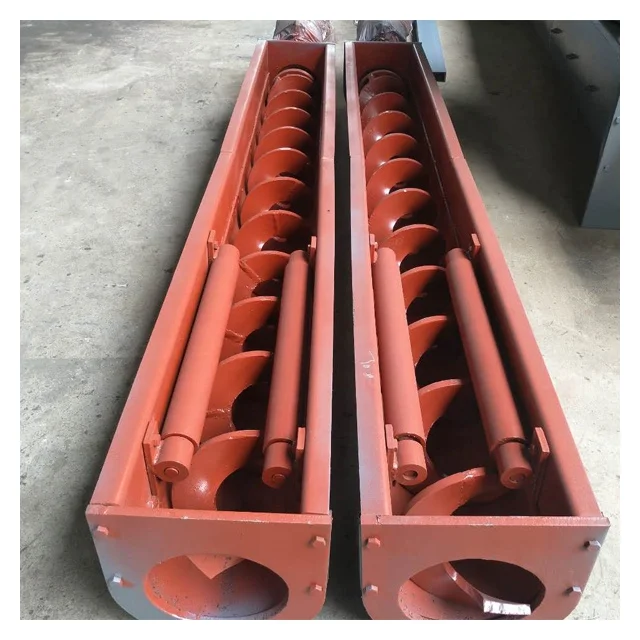

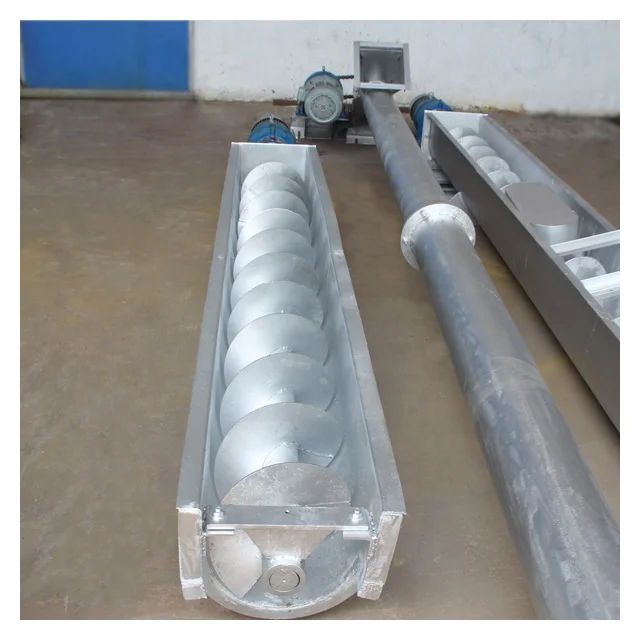

Details show





In addition, there is replaceable liner board in U-shape groove, avoid spiral blade direct contact with u-shaped groove, extend the service life of equipment.



Material of liner board: Nylon/HDPE/ UHMWPE (UPE) etc.

Thickness of liner board: 10/12/14/15mm etc.

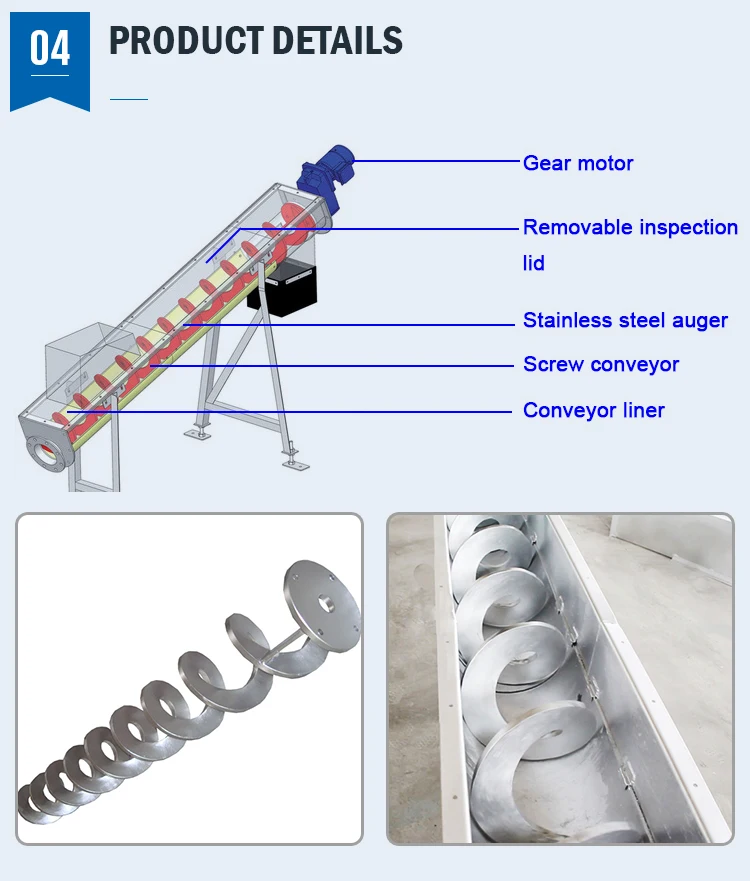

The slurry auger conveyor is mainly composed of driving device, spiral blade, U-shape groove, liner board, inlet and outlet, machine cover and base etc.

Technical parameters



Model			WLS150	WLS200	WLS250	WLS300	WLS400	WLS500
Screw diameter(mm)			150	184	237	284	365	470
Thickness of screw blade			18/20mm	18/20mm	18/20mm	18/20mm	18/20mm	18/20mm
Thickness of liner board			10mm	10mm	10mm	10mm	10mm	10mm
Casing pipe diameter			180	219	273	351	402	500
Operating angle(α)			≤30°	≤30°	≤30°	≤30°	≤30°	≤30°
Max delivery length(m)			12	13	16	18	22	25
Capacity(t/h)			2.4	7	9	13	18	28
Motor	Model	L≤7	Y90L-4	Y100L1-4	Y100L2-4	Y132S-4	Y160M-4	Y160M-4
	Power		1.5	2.2	3	5.5	11	11
	Model	L>7	Y100L1-4	Y100L2-4	Y112M-4	Y132M-4	Y160L-4	Y160L-4
	Power		2.2	3	4	7.5	15	15

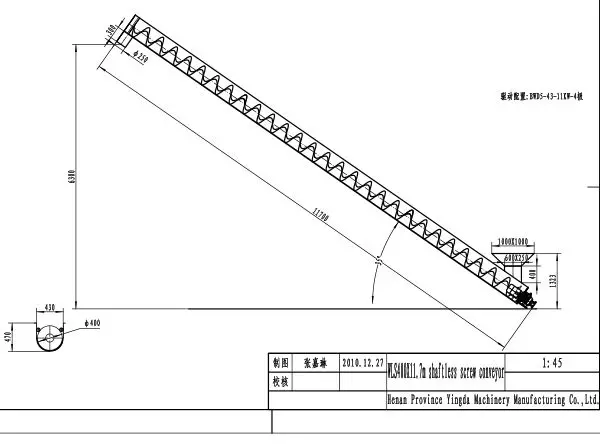

Outside drawing for your reference

 Foreign Guest

Certification





How to choose the screw conveyor suit for you?

1.     What’s materials you need conveying? Large pieces material, sludge, gravel, wood chips etc.

2.     How much about the capacity? 5 t/h, 10 t/h, 20 t/h etc.

3.     How long conveying distance(input to output)? 5 m, 10 m, 15m etc.

4.     How much about the angle? 10°, 15° 25° 35° etc.

Tell me those datas, our engineer will choose most suitable screw conveyor for you.
