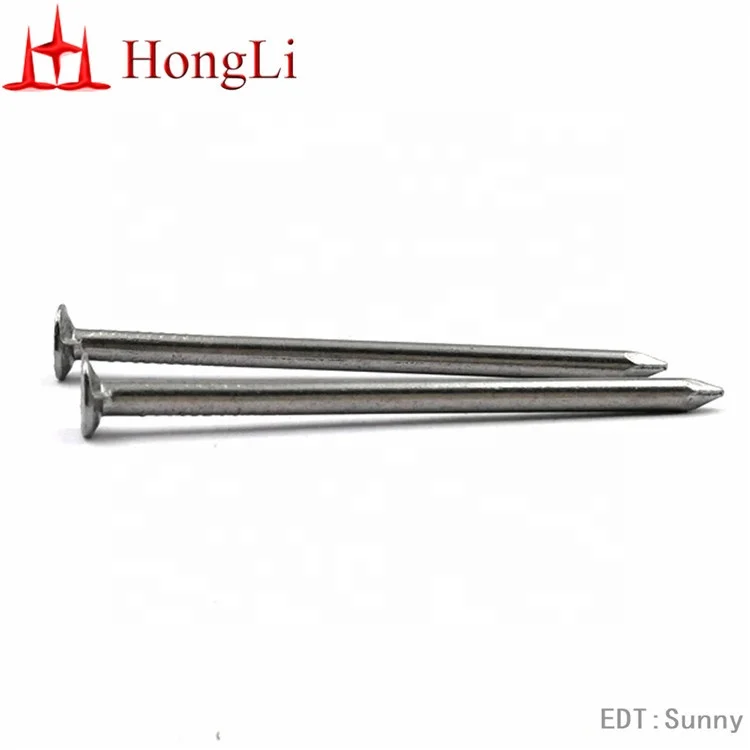

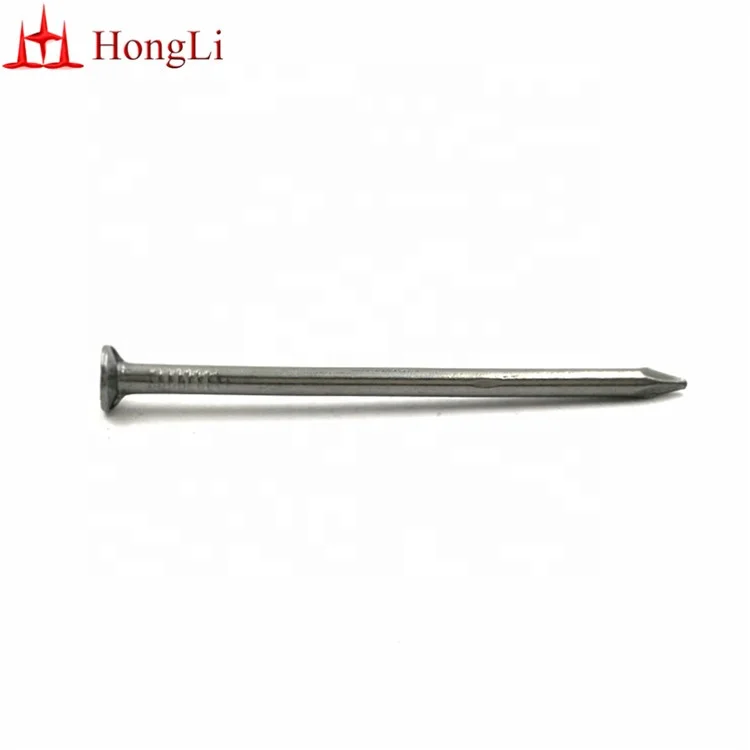

17x27 Polished Bright Common Wire Nails Clavos Nails

Product Overview

Description



Main Details:

• Material :Q195 Q235 raw materia,ASTM 1006 1018


• Main Size: Length  1/2"~14' (12mm ~ 350mm)'

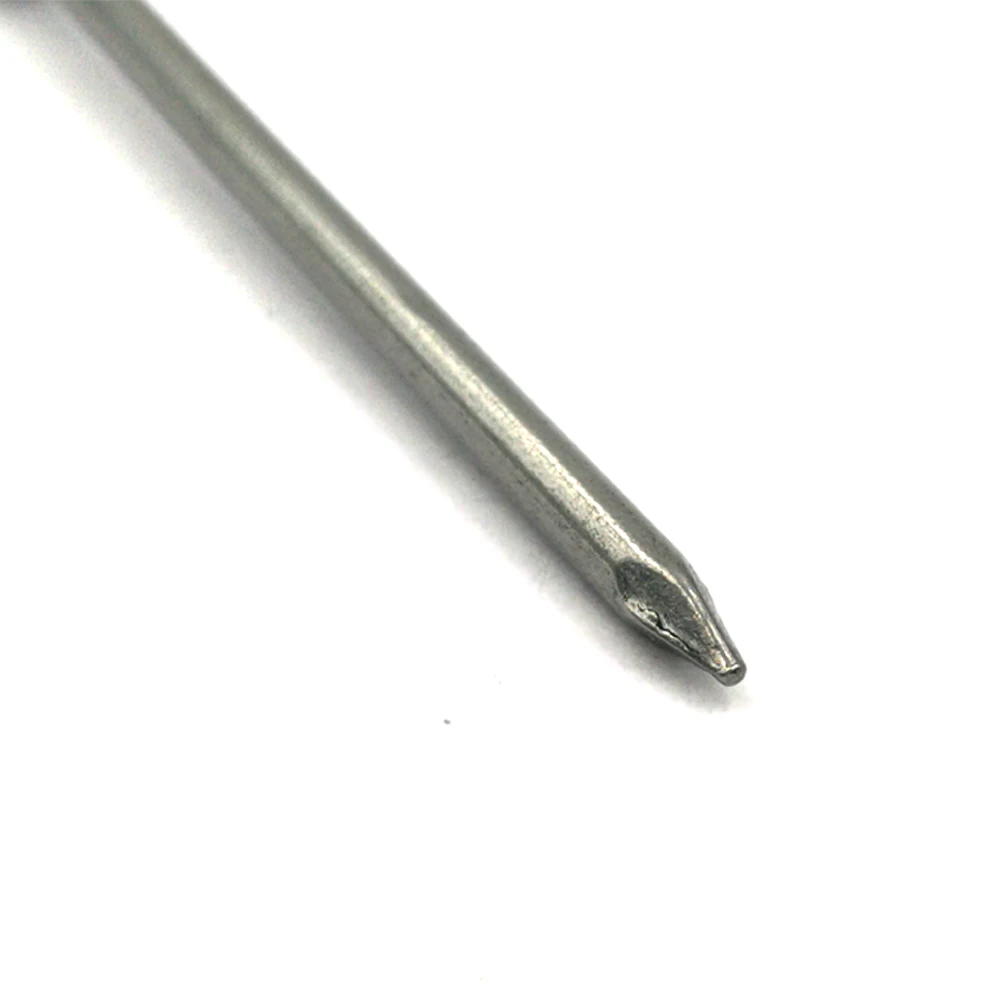

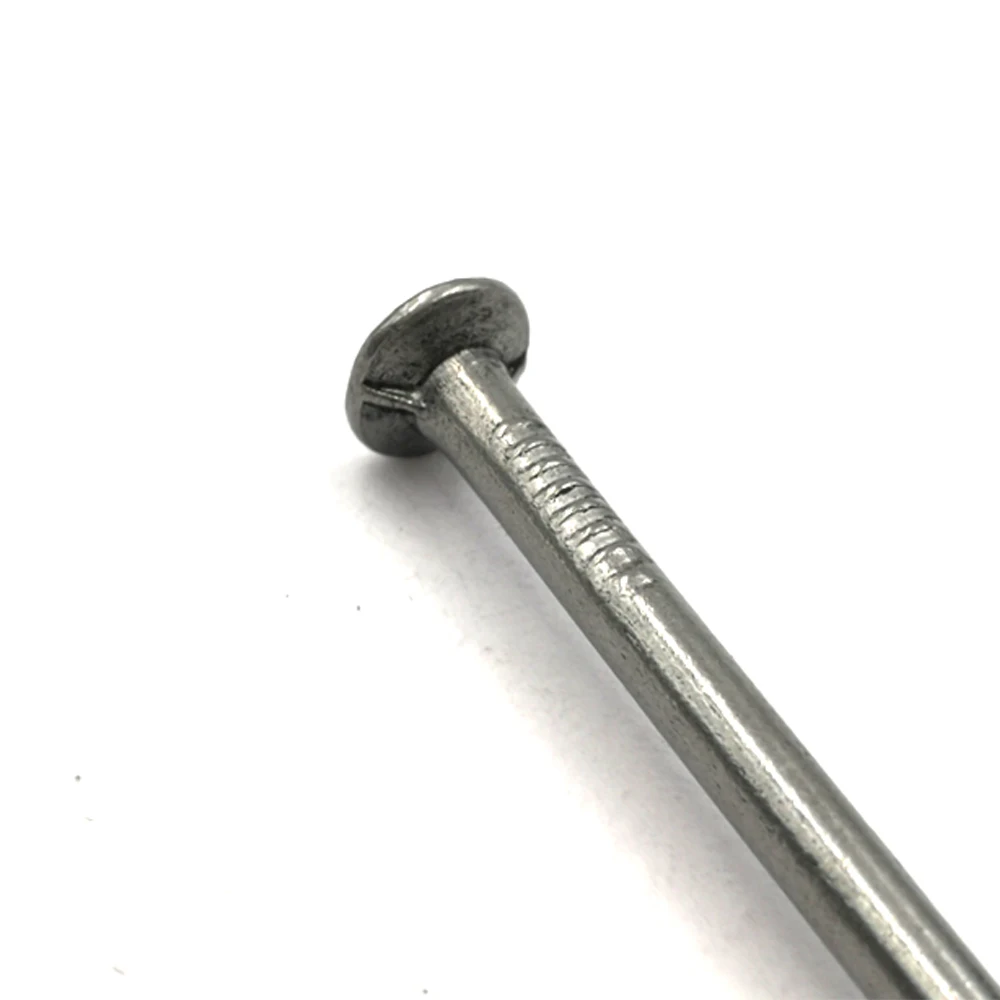

• Usual Smooth Shank,Diamond Point ,Checked/Sinker Head


• Finshing: Polished ,Bright, VC,Electro galvanized, HDG...



Application/Usage:

  Wooden construction, assessment,Building,Fenc,Home-repair, Fastner,Mochine...



 USA standard:from 2D to 60D

Size	Length inches	Gauge B.W.G	Diameter of Head inches	Approximate Number per Ib
2d	1	15	11/64	847
3d	11/4	14	13/64	543
4d	11/2	121/2	1/4	294
5d	13/4	121/2	1/4	254
6d	2	111/2	17/64	167
7d	21/4	111/2	17/64	150
8d	21/2	101/4	9/ 32	101
9d	23/4	101/4	9/ 32	92
10d	3	9	5/16	66
12d	31/4	9	5/16	61
16d	31/2	8	11/32	47
20d	4	6	13/32	29
30d	41/2	5	7/16	22
40d	5	4	15/32	17
50d	51/2	3	1/2	13
60d	6	2	17/32	10





South America Standard

Common Nails-South American Standard
6x6	1/2x19	13x11	1x15	16x24	2 1/4x12	19x30	2 3/4x9
6x7	5/8x19	13x15	1 1/4x15	16x27	2 1/2x12	19x33	3x9
7x9	3/4x18	13x18	1 1/2x15	17x21	2x11	19x36	3 1/4x9
8x7	5/8x18	13x21	2x15	17x24	2 1/4x11	19x39	3 1/2x9
8x8	Sunny	14x11	1x14	17x27	2 1/2x11	19x42	3 3/4x9
8x10	7/8x18	14x15	1 1/4x14	17x30	2 3/4x11	20x30	2 3/4x7
10x7	1x18	14x18	1 1/2x14	17x11	1x10	20x33	3x7
10x9	3/4x17	14x21	2x14	18x21	2x10	20x36	3 1/4x7
10x10	7/8x17	14x24	2 1/4x14	18x24	2 1/4x10	20x39	3 1/2x7
10x11	1x17	14x27	2 1/2x14	18x27	2 1/2x10	20x48	4 1/4x7
10x12	1 1/16x17	15x15	1 1/4x13	18x30	2 3/4x10	21x33	3x6
11x11	1x16	15x18	1 1/2x13	18x33	3x10	21x36	3 1/4x6
11x12	1 1/16x16	15x21	2x13	18x36	3 1/4x10	21x42	3 3/4x6
12x12	n/a	15x27	2 1/2x13	19x15	1 1/4x9	21x45	4x6
12x14	n/a	16x18	1 1/2x12	19x21	2x9	21x48	4 1/4x6
12x15	Sunny	16x21	2x12	19x27	2 1/2x9	21x54	5x6

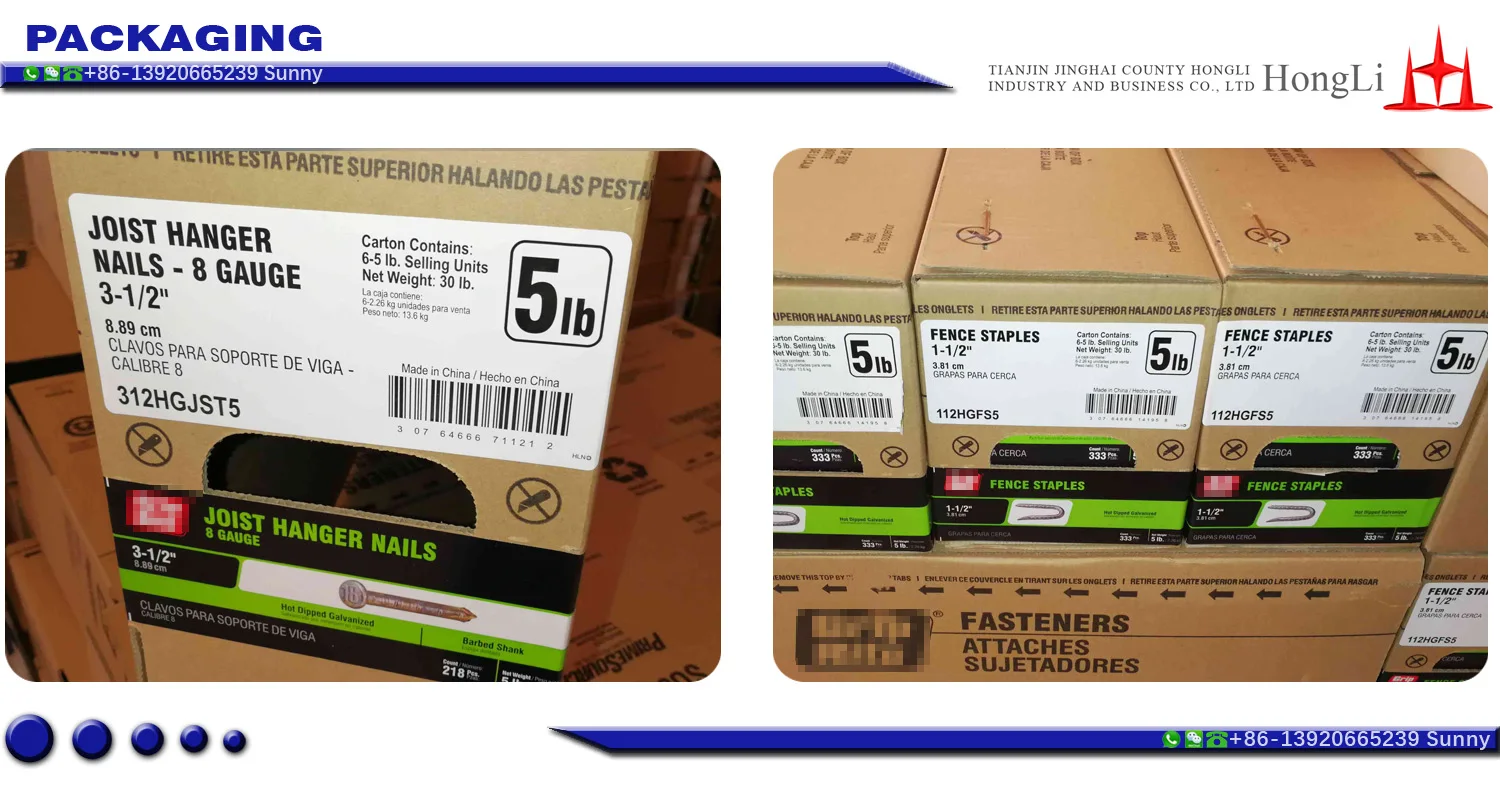

Box/Carton Package:







Buket Package:

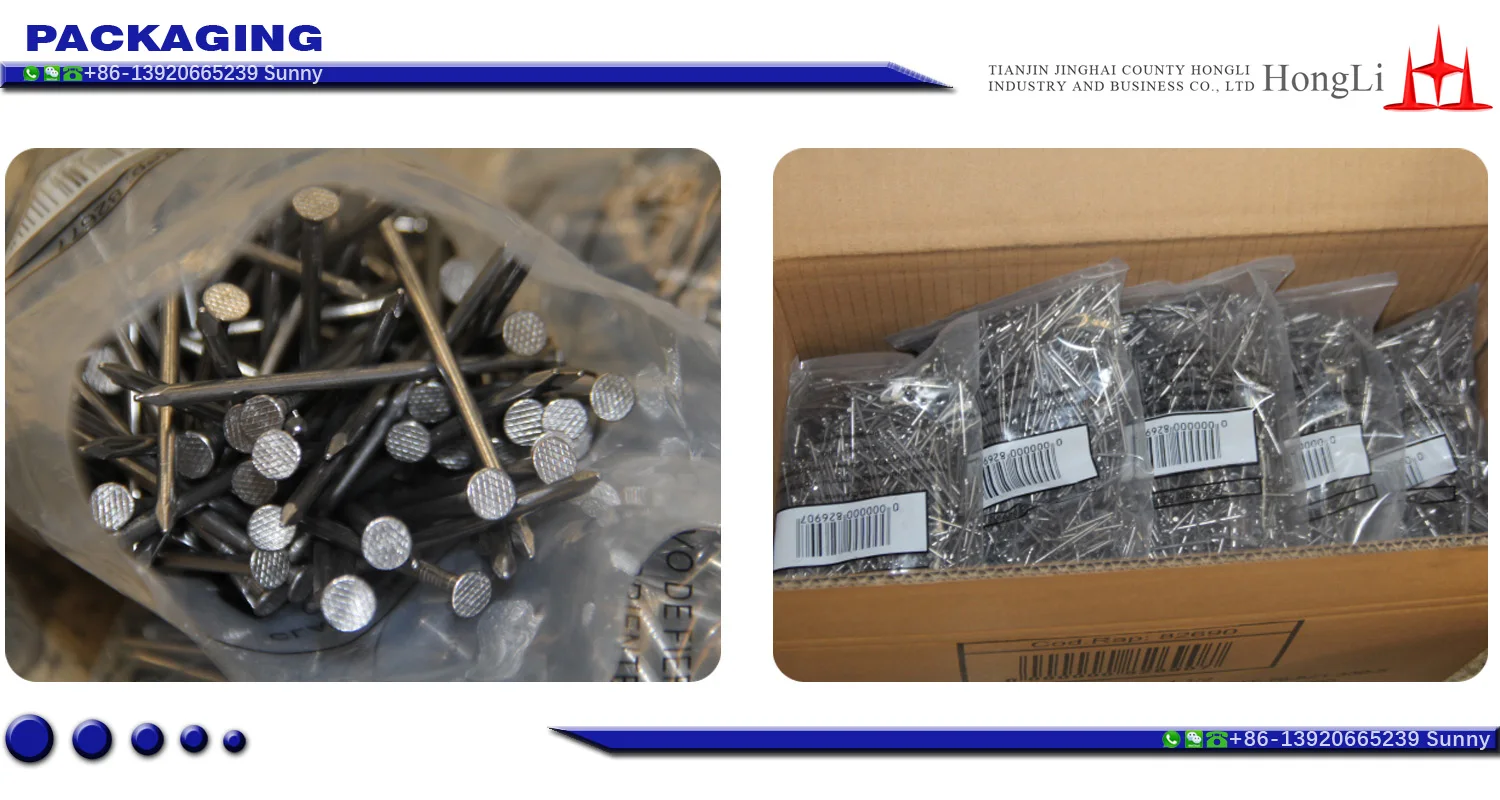

PV BAG







ISO9001:2015
