Industrial Flake Ice Evaporator/Drum

Product Overview

Description

    SHARE Flake Ice Evaporator



i) Introduction of Flake Ice



Flake ice is a kind of small, thin, chip ice, it’s dry, tasteless, sanitary. The thickness is around 1.5~2.2mm, the temperature is about -5°C, not easy to melt and block. It’s the first choice for cooling seafood, fruits, vegetables, foodstuffs…etc. The flake ice evaporator can work with  R22/R404A/R134A/R717, widely applied in ammonia refrigerant system, pre-cooling system, chemical plant, seafood processing plant, foods processing plant…etc.





ii) Features of SHARE Flake Ice Evaporator





l  The material of the ice evaporator could be carbon steel, SUS304, SUS316, it could be customized according to customers' requirements. The constructure is spiral refrigerant channel. The manufacturing process fully complys to CE standard.

l  The outer cover, ice scraper, water distributor, water tank were built with SUS304, clean, sanitary, fully meet with foods grade.

l  Adopts top material, unique design, precision processing, could save 20% energy than others evaporators.

l  The evaporator was processed by 25 production procedures, durable, reliable, the usage life could reach 8 years.



iii) Working Principle

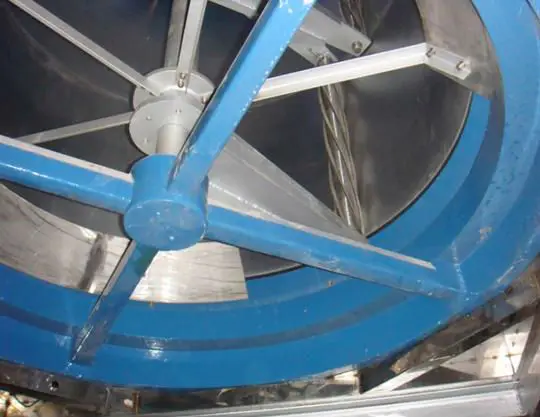

iv)  Deatails of the Flake Ice Evaporator

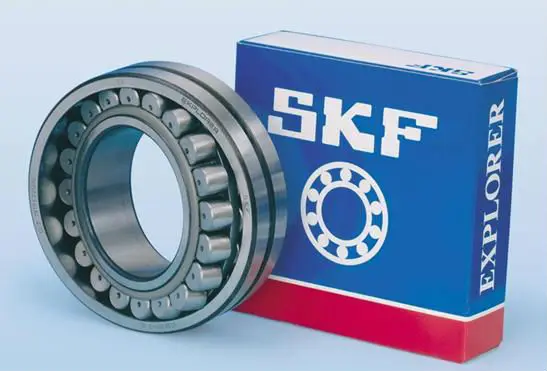

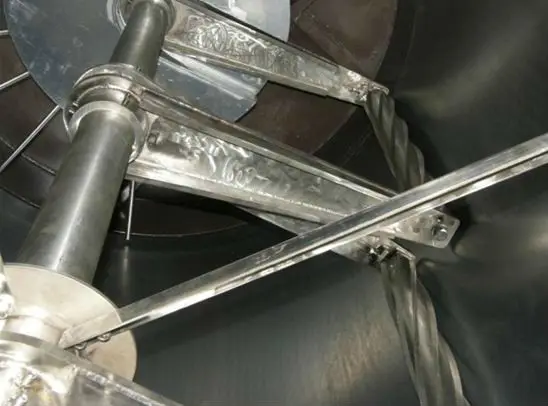

One-time molding SUS304 ice scraper & SKF bearing

SUS304 shaft & freezing surface

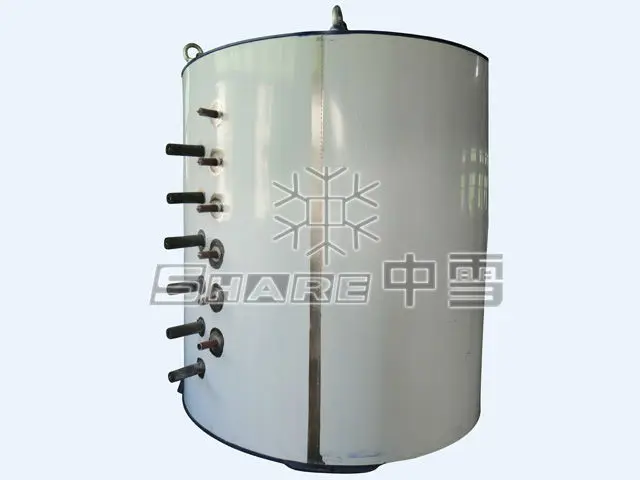

10mm thickness polyurethane material & SUS304 outer cover





v) Parameter List



SHARE Flake Ice Evaporator
Name	Parameter	Remark
Ambient temp.	2~45 °C
Water temp.	2~35  °C
Daily output	0.5T~60T/24hr
Material	16Mn carbon steel/SUS304/SUS316
Refrigerant	R22/R404A/R134A/R717
Evaporating temp.	-20~-25°C
Evaporating area	0.32 m2/ton
Refrigerant capacity	6kW/ton

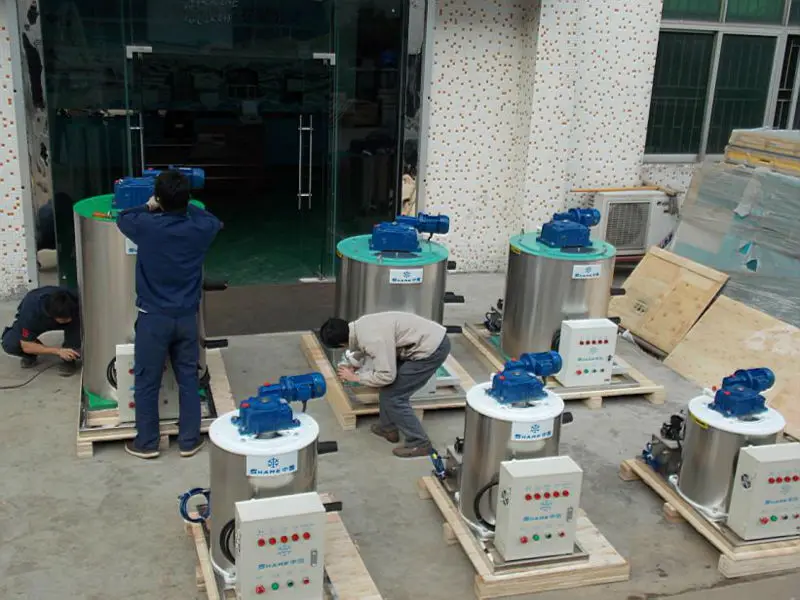

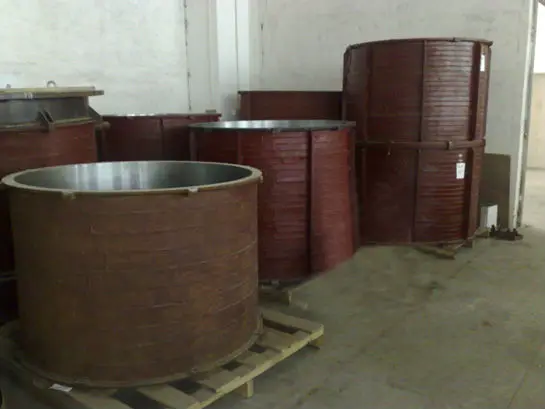

vi) Transportation & Shipment

The machine and accessories will be packaged in standard export wooden case for transportation and shipment. SHARE company will help customers to make commodity inspection, customs declaration, insurance, transportation, shipment, and provide the necessary documents, like CO, C/I , B/L, packing list…etc.



vii) Installation & Training

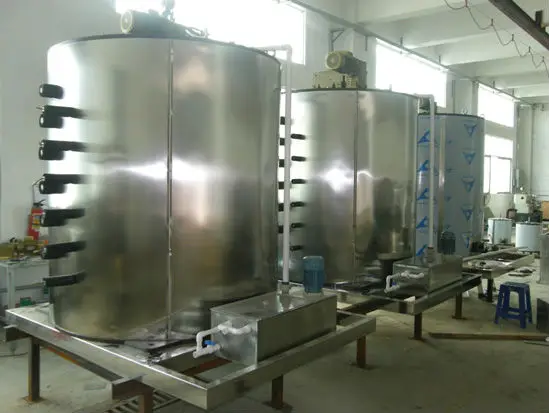

All the working units of the machine are installed and fixed in a SUS304 frame, easy for on-site installation, customers just need to connect the power and water supply.

SHARE company can provide on-site or online training on installation and daily maintenance according to customers’ requirements.



viii) Warranty & Service

All the SHARE ice machines will be tested for 72 hours before shipment.

All the SHARE ice machines enjoy 12 months warranty in free of charge ever since B/L date.

All the SHARE ice machines enjoy lifelong free technical support.



l  24*7 hours phone service

l  On-site & online training service

l  Engineers available service machinery overseas

l  SHARE service centre working time: 8:30-18:00, from Monday to Sunday.
