Product Overview
Description

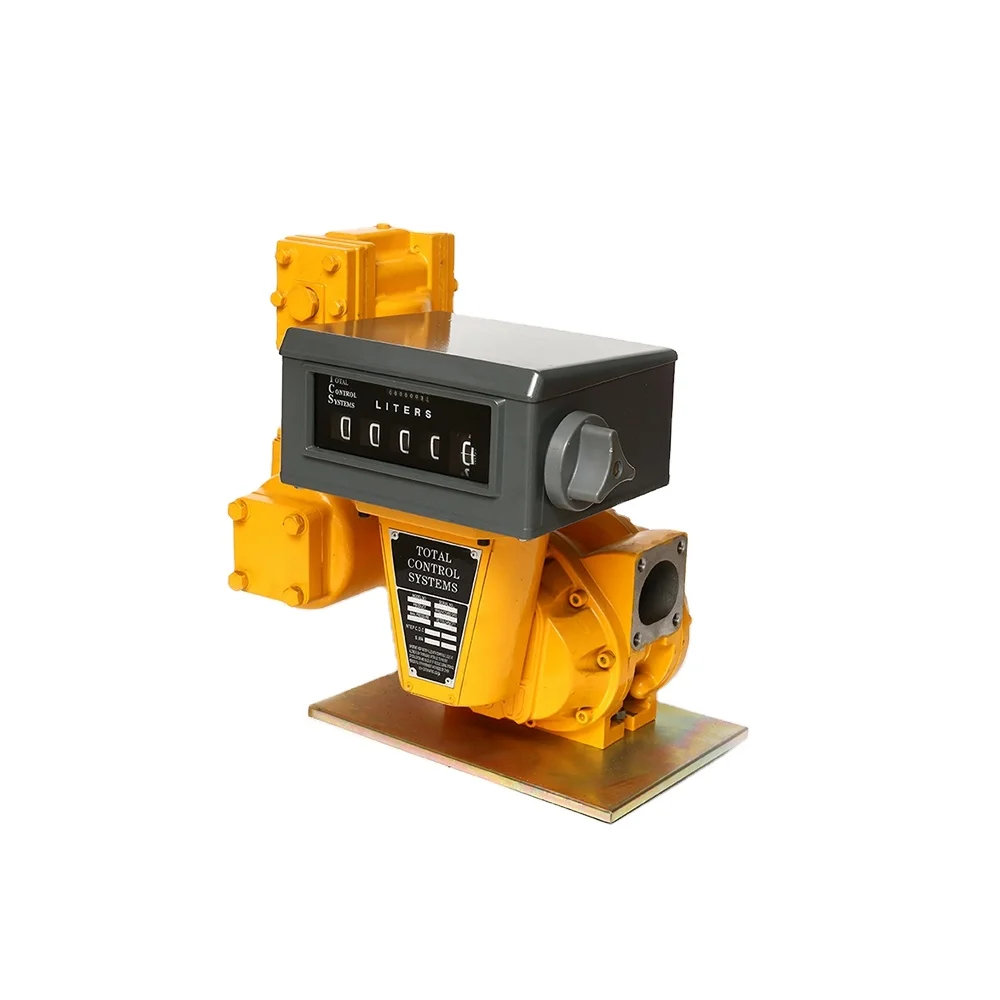

Product Details: CE mass volumetric flowmeter,tcs flow meter
Characteristic
Excellent stepless fine-tuning device allows plus-minus calibration of flowmeter;
High accuracy and repeatability within the large range of flow;superior accuracy of constant flow;
Low maintenance, low wear, long working life;
Low pressure loss, genuine gravity flowmeter;
Accuracy regardless of pressure fluctuations,temperature variation, viscosity;
Aluminum, cast iron and stainless steel materials of construction for choice.
Construction
Technical Specification
| Model | TCS-40-1 | TCS-50-1 | TCS-50H-1 | TCS-80-1 | TCS-80H-1 | TCS-100-1 | TCS-100H-1 | TCS-150-1 | TCS-150H-1 |
| Size | 40mm/1.5'' | 50mm/2'' | 80mm/3'' | 100mm/4'' | 150mm/6'' or 100mm/4'' | ||||
| Flow Range(L/min) | 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
| Volume Per Revolutior | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | ||||
| Max Pressure | 108Bar/150PSI | ||||||||
| Accuracy | ±0.2% | ||||||||
| Repeatability | ≤0.5% | ||||||||
| Unit | Liter/US Gallon/IMP Gallon | ||||||||
