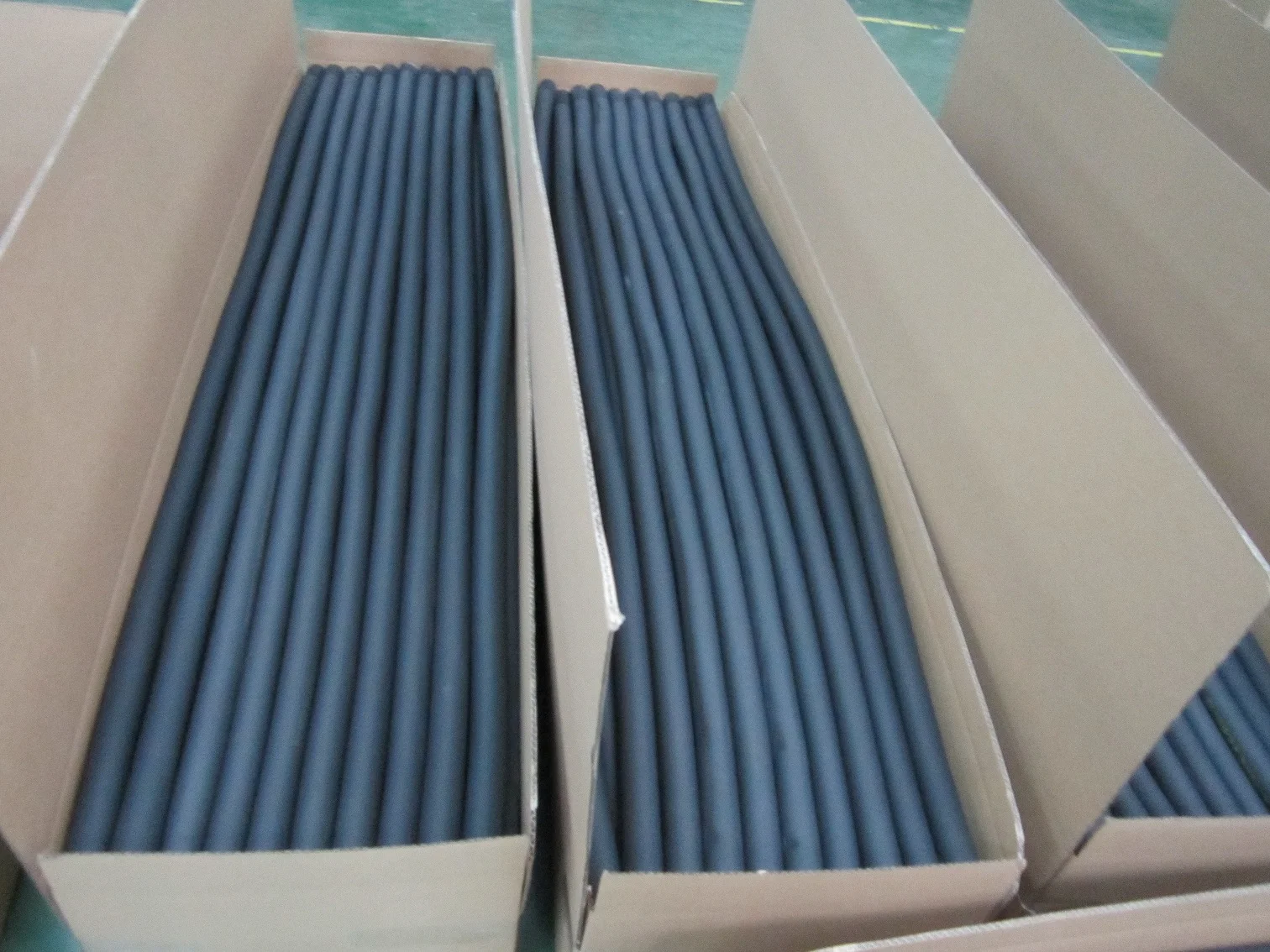

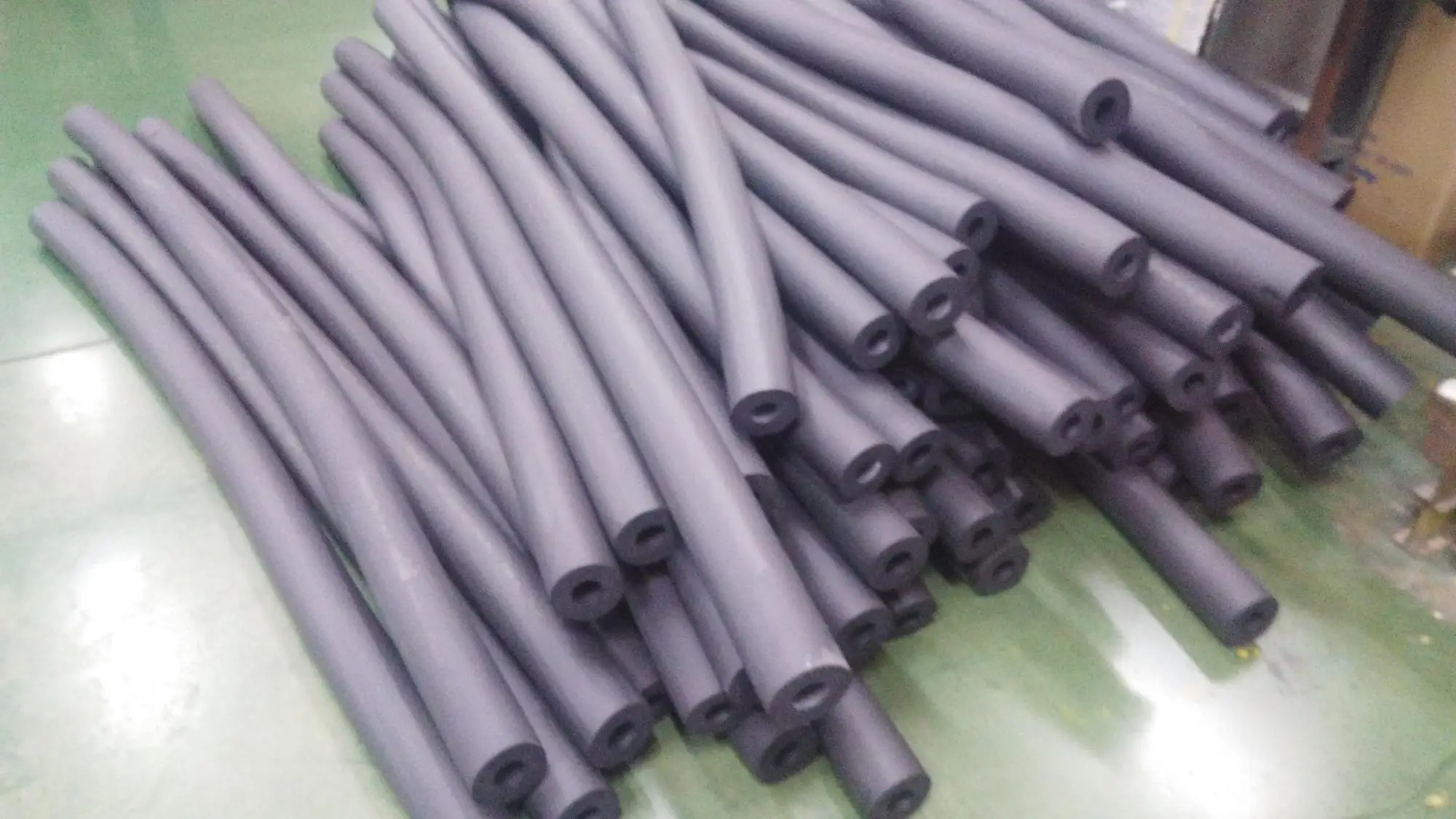

epdm foam EPDM thermal insulation pipe

Product Overview

Description

epdm foam EPDM thermal insulation pipe







Our EPDM closed cell tube and sheet insulation is composed of Ethylene-Propylene-non-conjugatedDieneRubber, It is a kind of nonpolar , Saturation and no cracks rubber. Our EPDM insulation provides many advantages over most rigid insulations for cooling and heating lines











1 outstanding ultraviolet and weather resistance



2 work temperature(-200Celsius --+175Celsius)



3 Stable moisture & vapor resistance gene



4 low&stable thermal conductivity



5 closed cell foam structure,water absorption rate is low(The wall thickness of closed cell foam is 4 micron. closed cell foaming capacity is above 95%,water absorption rate less than 5%)



6 Environmental,Non-CFC.



7 low Flammability B1 Grade, self-extinguishing, no fireball drops, limited fire spreading





EPDM insulation pipe Specification







Item	Unit	Specification
Foam texture		Close Cell Foal
Density	Kg/m3	48-80
Temperature Range		From -50°C to +150°C (up to 175 °C operating intermittent.)
Flammablility		B1
Oxygen index	%	≥32
Conductivity factor Average temperature -20°C 0°C 40°C	W/(M*K)	0.032 0.034 0.039
Water absorption ratio in vacuum	%	≤5
Dimension stability 93±°C7d	%	≤6
Crack resistance		good
Formaldehyde		Exclusive
Ammonium nitrite		Exclusive
Polyethylene		Exclusive















Application Instruction



type of medium for the insulated pipe	Environmental Temperature	Medium Temperature	relative humidity	Insulation Pipe Wall thicnkness
Frozen Water Pipe	28°C	7°C	75%	20mm-38mm
condensated water pipe	28°C	18°C	75%	13mm
Duct Piping	26°C	16°C	70%	13mm
Water supply and drainage pipe	28°C	32°C	75%	13mm
High temperature hot water pipe	22°C	95°C	65%	20mm seasonal or intermittent; 25mm perennial
Low temperature hot water pipe	22°C	60°C	65%	13mm seasonal or intermittent; 20mm perennial
