Garden Fountain Stainless Steel Dandelion Water Nozzles 1 1/2'

Share on (1334026983):


Price:

Quantity:


Product Overview

Description



Stainless Steel Dandelion Water Fountain Nozzle 1-1/2''





Specifications:





1.Impressive water display.


2.Highly wind stable.


3.Independent from the water level.





Lots of side tubes are radially installed in spherical water distribution house,


and the external end of each side tube is equipped with a nozzle which refract the water flow around,


the result of which a big sphere come into being. In the time of spraying, the water outlook is like the balllower of dandelion, which is quite splendid and spectacular.


Owing to the fairly fine nozzle orifice diameter, the requirement on the water quality is relatively demanding.


The water should be filtered, otherwise the nozzle is subject to blockage easily, which affects the spraying effects.


This kind of nozzle can be applied to various kinds of fountains.This kind of nozzle is widely used in the spray ponds both indoors and outdoors.





Specification of Dandelion Fountain Nozzles:

















































Model



Connection


size



Pressure


(kpa)



Discharge


(M³/h)



Height


(m)



Diameter


(m)



YSN9001



G1



60-100



8.0



0.4



0.6



YSN9002



G1½



80-100



10.0



0.5



0.8



YSN9003



G2



80-100



13.0



0.7



1.0



YSN9004



G3



80-100



30.0



1.0



1.8













































Dandelion Fountain Nozzles data:







































Model



Connection


size



Arms  (piece)



Arms Length  (cm)



YSN9001



G1



30



25



YSN9002



G1½



41



30



YSN9003



G2



65



40



YSN9004



G3



105



60













































Pictures of Dandelion Fountain Nozzles:





  DN40 en.jpg

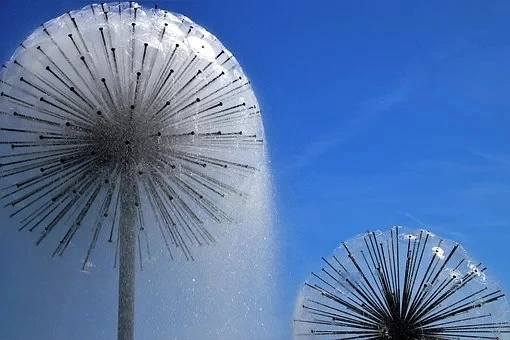

Effect of of Dandelion Fountain Nozzles:













.jpg










.jpg





If you want to know more information about the product,please click here.
