Лидер продаж, оптовая продажа, высокое качество, лидер продаж, Прямая поставка с завода, хорошая цена, корейский поставщик, 2022 MEMS, Инклинометр на месте

Product Overview

Description

Application

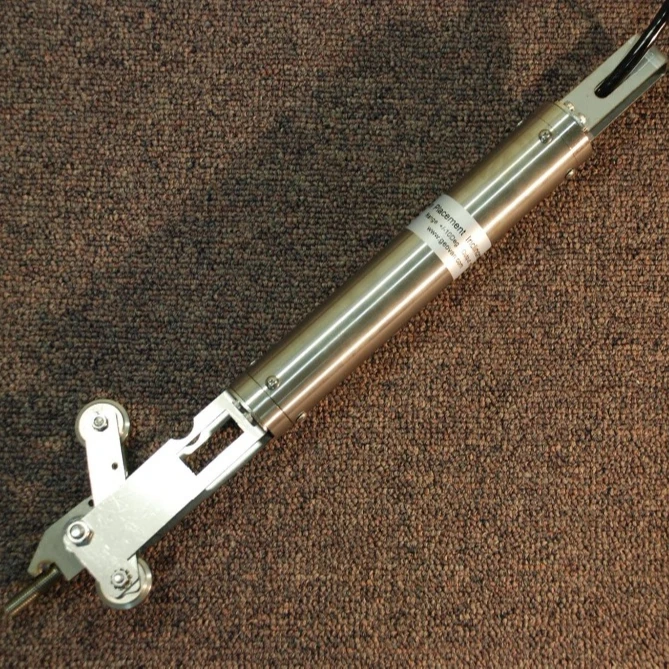

In-Place Inclinometers are used for real time monitoring of horizontal, vertical structure

deformations.



Monitoring of slope or embankment performance

Monitoring of deflection of piles, abutments or retaining walls

Monitoring of ground movements caused by tunneling

Monitoring of settlement below storage tanks and structures

Monitoring of land sliding profile area



Specification

Items	GV-2402
Range	± 10 Deg
Accuracy	Typical ± 0.05% Maximum ± 0.1%
Output	F.S. 0.5~4.5 Vdc
Power Supply	DC 9~12Vdc
Non-Linearity	<F.S. 0.1%
Sensor Type	MEMS (Micro-Electro-Mechanical Systems)
Response Time	<0.3 second
Housing	IP67 waterproof grade
Operating Temperature	-25°C ~ +85°C
