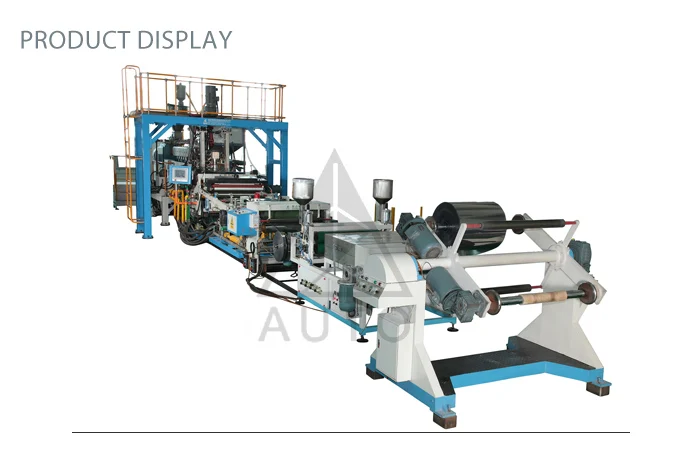

WJP(PET)75B-1000 Twin screw plastic PET Sheet extruder Maquina Extrusora de plastico
( twin screw plastic sheet extruder)
I. Main Technical Data
Item
Parameter
Remarks
Product Format
Single Layer
Suitable Materials
PET
Sheet Thickness
0.2-2.0mm
Sheet Width
≤880mm
Tolerance of Sheet Thickness
±0.015mm
Max. Output
≤400kg/h
Production Line Speed
≤30m/min
Total Power
≤200kw
Actual Power≤60%
Remarks:
1. Suitable voltage: 380V±5%,50Hz;
2. Water pressure: 0.2-0.4MPa;
3. Air pressure:0.5-0.8Mpa.

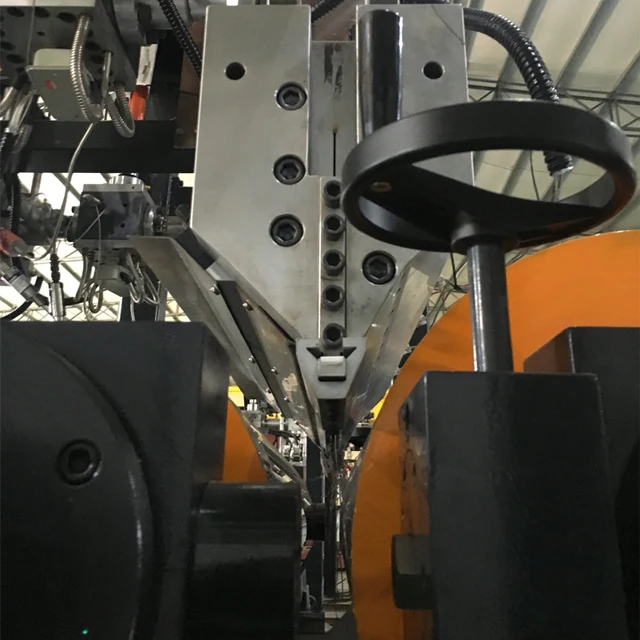

II. Main Line components 1. Automatic Feeding machine: Capacity400kg/h, motor power 4kw. 2. 1 sets Twin-screw Extruder - Screw: Φ75mm(44:1) - Siemens motor driven 132kw - Gear box and AB inverter 3. JGTIMES Duplex screen changer - 1 sets screen diam125mm - Power in Hydraulic station 1.5kw 4. JGTIMES Metering Pump - GEFRAN Dynisco Pressure sensor - 7.5kw Gear motor driven 5. JCTIMES Extrusion Ttype Die - Effective width 1000mm, for 0-2.0mm sheet production - 8 zones heating area 6. Diagonal Three-roller Calender - 2pcs Mirror RollerΦ490*1000mm; 1pc Mirror RollerΦ330*1000mm - 3 sets SEW 3kw parallel axis gear reducer Frequency conversion closed-loop controlled - 3 sets thermostat device control roller’s temperature 7. Cooling trimming machine - cooling rollerΦ80*1000mm - Manual trimming device - leftover material wind device 8. Tractor - SEW parallel axis gear reducer Frequency conversion driven 9. Duplex Center Turnover winding machine - Max. Winding diameter 700mm; winding width 9000mm - 2 Torque motors driven - 2pcs air shaft 3”*1000 - With calculator alarm 10. Electrical control cabinet - PLC control system, touch-screen, Temperature Module, all used AB series - AB Variable-frequency drive control the extruder, melt gear pump, Three-roller Calender, tractor.
III. Features of Machine Unit:
Host for a single twin-screw extruder, used in PET sheet production, pre-crystallization dryer energy consumption reduction and adaptation to production of secondary materials, with high output, low power consumption, excellent characteristics of plastics.
For meshing conjugated double thread screw component, modular structure, diversity combinaton computer-ptimized design and precision machining, has excellent self-cleaning and interchangeability.
Combination of screw elements arranged according to the user’s materials and processing technology, combined with years of accumulated experience in screw geometry design and technology to optimize the configuration of the software, as required to achieve transport plastic plastic, mixed mixing, Shear dispersing, homogenizing, exhaust devolatilization, built pressure extrusion capabilities. A wide range of applications, not only applies to the production of PET , but also suitable for starch based biodegradable materials.
Set double barrel vacum exhaust, ensure full discharge of moisture and other volatile gases.
Extruders equipped with a melt pump quantitative constant vltage utput and set the pressure and speed closed loop control.
The whole machine adopts PLC control, realization ofparameter settings, data and feedback to Automation control alarm function.

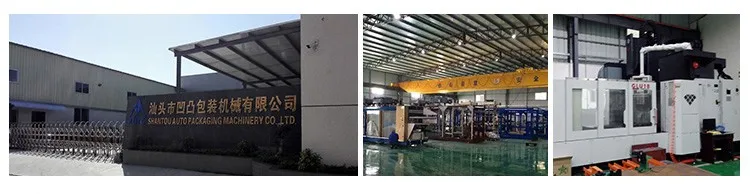

Company Information
We are leading packaging machine manufacturer in China, we are famous disposable productsmanufacturer in China (//lhpack.en.alibaba.com/) as authorized Coca Cola supplier.
We started manufacturing disposable product in 1992, more than 20years effort now we have both disposable product factory and machinery factory. We have our own R&D department with our experienced engineer team which guarantee the best quality of product, professional & efficient machinery maintenance and after sale service.
With 20 years experience in producing thermoforming quality products, we can give our customer more useful suggestion and technical support from the tooling making and final production.
Our top selling item are extrusion machine, high speed full automatic thermoforming machine, including mould design and produc tion, our professional sales team is very familiar with the disposable products material & production process, hence possibility for them to provide customer the most professional purchase solution of machine.
Our mission is to provide good quality machine to our customer and to be the leading packaging machinery manufacturer in the world.
Our Services
Packaging & Shipping
FAQ
If you have any question or require,just contact me
1. Q: Are you a factory or trading company? A: We are a factory.
2. Q: How does your factory do regarding quality control? A: We have a special QC department in charge of products’ quality.
3. Q: How long is the warranty period? A: All of our machiner have one year warranty.
4. Q: What’s the main market of your company? A: We have customers all over the world.
5. Q: How much production capacity of your company one year? A: This depends on your needs.

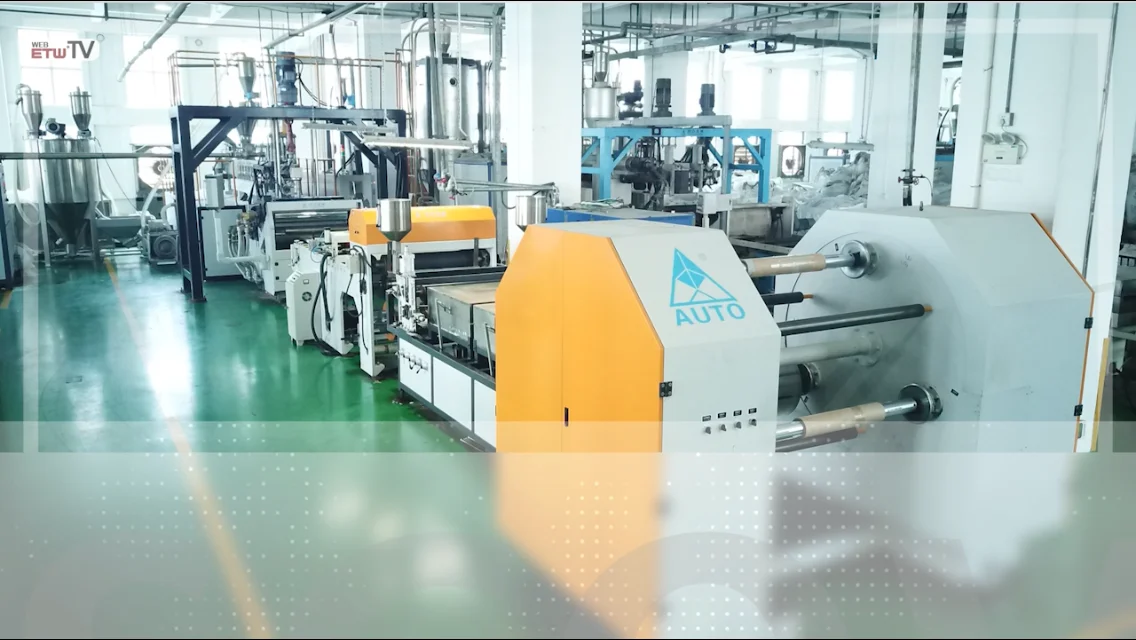

6. Q: Can we visit your machine operation in your factory? A: We have own plastic products company, you can see all the machine operation.
7. Q: Where is your factory located? How can we visit there? A: Our factory is located in Shantou City, Guangdong Province, China, about 50 minutes from Guangzhou by air. We offer transportation service.
