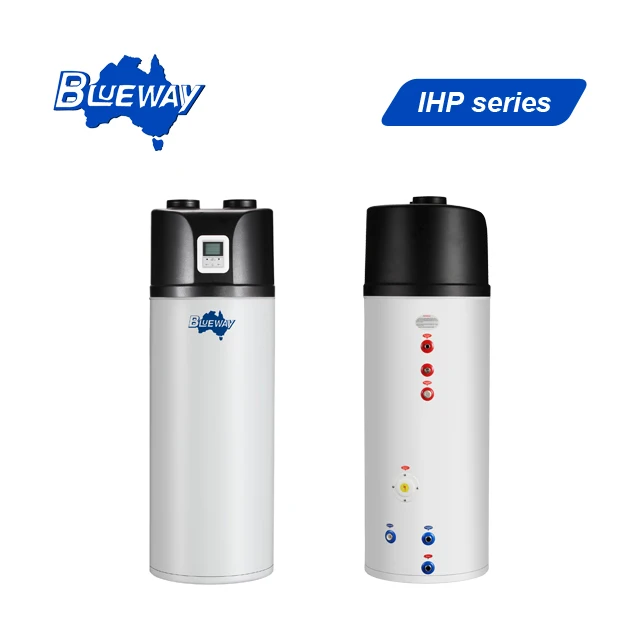

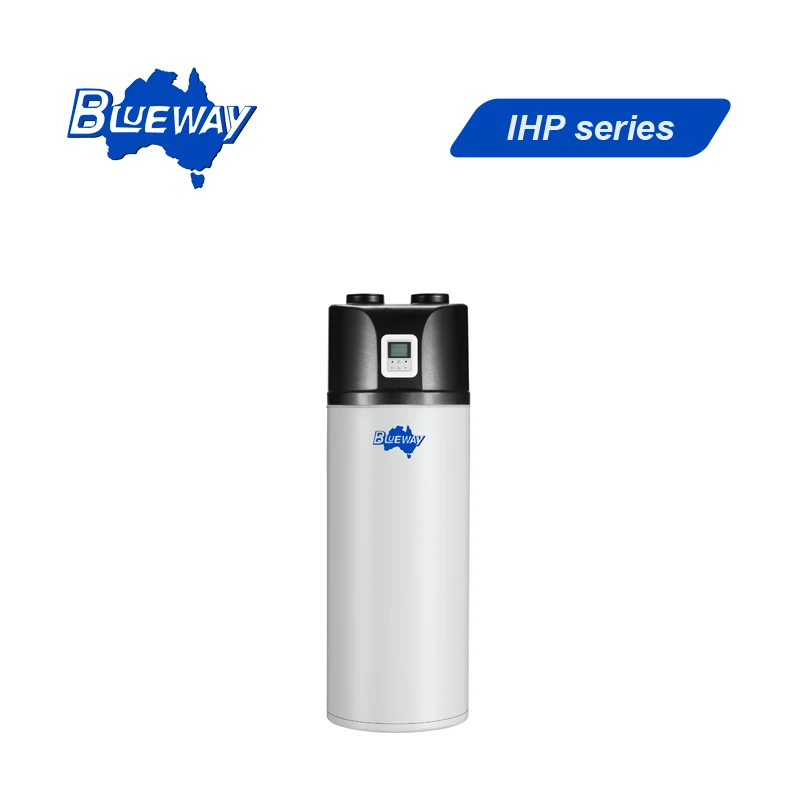

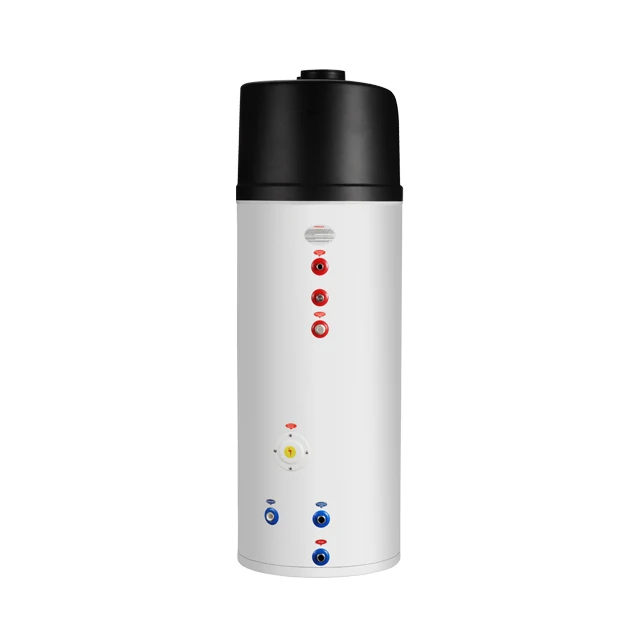

Domestic All In One Heat Pump Low Price Hot Water Heater
- Category: >>>
- Supplier: Foshan Blueway Electric Appliances Co. Ltd.
Share on (1337766164):
Product Overview
Description
Product Category
Product Description
Coasts 5.5kw 220v 50-60hz Swimming pool heater /pool Heat pump /electric water heater
Product details
| Brand name | Blueway |
| Color | Grey or White |
| COP | 4.0~4.5 |
| Fan discharging | Vertical or Horizontal |
| Material | Galvanized Steel Powder Coated/Plastic/Stainless steel |
| Max/Rated temperature | 28℃/40℃ |
| Place of origin | Guangdong China |
| Products type | Swim Pool heat pump |
| Refrigerant | R410A |
| Application | Home,Villa,SPA, School, Hotels, Hospital |
| Product Keywords | pool heater,electric water heater,Swimming pool heater |
Blueway R32 Inverter swimming pool heat pump is a smart and reliable solution to heat the pool and spa. With most of the energy absorbed from the air, pool heat pumps can heat the pool and spa all year round with much less cost. Running at low cost and without CO2 discharging, people can enjoy swimming or spa at pleasant water temperature all over the year.
| Model | SPCH-I-2.0S | SPCH-I-3.0S | SPCH-I-4.0S | SPCH-I-5.0S | SPCH-I-6.0S | SPCH-I-5S | SPCH-I-6S | SPCH-I-7S | SPCH-I-10S | SPCH-I-15S | SPCH-I-25T | |||
| HP | 2 | 3 | 4 | 5 | 6 | 5 | 6 | 7 | 10 | 15 | 25 | |||
| Power Supply | V/Hz/Ph | 220-240/50/1, 208-230/60/1 | 380-415/50/3, 208-230/60/3, 380-415/60/3 | |||||||||||
| Heating performance | Heating (1): A26/19°C W26/28°C | Heating capacity | kW/h | 2.5~9 | 3.0~12 | 4.0~17 | 5.0~20 | 6.0~24 | 5.0~20 | 6.0~24 | 7~28 | 9~38.5 | 12~59 | 24~116 |
| Power consumption | kW | 0.2~1.65 | 0.24~2.22 | 0.33~3.2 | 0.42~4.15 | 0.51~5 | 0.42~4.1 | 0.5~4.95 | 0.58~5.5 | 0.75~8 | 1~12 | 2~23 | ||
| COP | w/w | 12.5~5.45 | 12.5~5.4 | 12.1~5.31 | 11.9~4.82 | 11.76~4.8 | 12~4.9 | 11.9~4.86 | 12.1~5.1 | 12~4.81 | 12~4.92 | 12~5.04 | ||
| Heating (2): A15/12°C W26/28°C | Heating capacity | kW/h | 1.8~7.5 | 2.2~9.5 | 3~12.5 | 4~15.5 | 5~20 | 4~15.5 | 5~20 | 6~23.5 | 8~31 | 10~48 | 20~93.5 | |
| Power consumption | kW | 0.27~1.7 | 0.33~2.1 | 0.48~3 | 0.66~4 | 0.81~4.94 | 0.65~3.92 | 0.81~5 | 0.95~5.75 | 1.31~7.9 | 1.65~12.5 | 3.4~24 | ||
| COP | w/w | 6.7~4.4 | 6.67~4.52 | 6.25~4.17 | 6.06~3.88 | 6.17~4.05 | 6.15~3.95 | 6.2~4 | 6.32~4.1 | 6.11~3.92 | 6.06~3.84 | 5.88~3.9 | ||
| Cooling performance | Cooling: A35/24°C W30/28°C | Cooling capacity | kW/h | 2~5.5 | 3~7.5 | 5~10.5 | 7~12.5 | 7.5~14 | 7~12.5 | 7.5~14 | 8~17 | 15~25 | 18~38 | 36~72 |
| Power consumption | kW | 0.42~1.7 | 0.61~2.25 | 1~3.2 | 1.37~3.85 | 1.4~4.23 | 1.35~3.9 | 1.37~4.3 | 1.4~5 | 2.7~7.35 | 3.2~11.2 | 6.55~21.5 | ||
| EER | w/w | 4.76~3.24 | 4.92~3.33 | 5~3.28 | 5.1~3.25 | 5.36~3.31 | 5.19~3.2 | 5.47~3.25 | 5.7~3.4 | 5.56~3.5 | 5.63~3.39 | 5.5~3.35 | ||
| Ambient temp. range | °C | -7~46 | ||||||||||||
| Rated/Max.outlet water temp. | °C | 28/40 | ||||||||||||
| Rated water flow rate | m³/h | 3.8 | 5.2 | 7.3 | 8.6 | 10.3 | 8.6 | 10.3 | 12 | 16.6 | 25.4 | 50 | ||
| Rated pressure drop | kPa | 4 | 5 | 5 | 7 | 13 | 7 | 13 | 15 | 15 | 17 | 23 | ||
| Controller | - | Micro processor based digital wire controller with LCD display | ||||||||||||
| External cabinet | - | Galvanized steel with powder coating | ||||||||||||
| Compressor | Type | - | Rotaty | Scroll | ||||||||||
| Qty. | Nos. | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | ||
| Refrigerant | - | R32/R410a | ||||||||||||
| Water heat exchanger | - | Titanium tube in PVC shell | ||||||||||||
| Water connection | Inlet&Outlet | inch | DN40 | DN40 | DN40 | DN40 | DN50 | DN40 | DN50 | DN50 | DN65 | DN65 | DN80 | |
| Sound pressure at 1m | dB(A) | 40~51 | 42~52 | 44~53 | 45~56 | 46~58 | 45~56 | 46~58 | 45~59 | 48~62 | 49~63 | 62~72 | ||
| Air discharge | - | Side discharge | Top discharge | |||||||||||
| Net dimension | W*D*H | mm | 950*380*610 | 950*380*610 | 1110*430*700 | 1100*430*800 | 1100*430*960 | 1100*430*800 | 1100*430*960 | 1050*400*1260 | 1100*480*1480 | 1400*525*1630 | 2000*950*2100 | |
| Net weight | kg | 43 | 45 | 54 | 70 | 90 | 70 | 90 | 105 | 210 | 235 | 600 | ||
