SKB2 double serging machine

Product Overview

Description

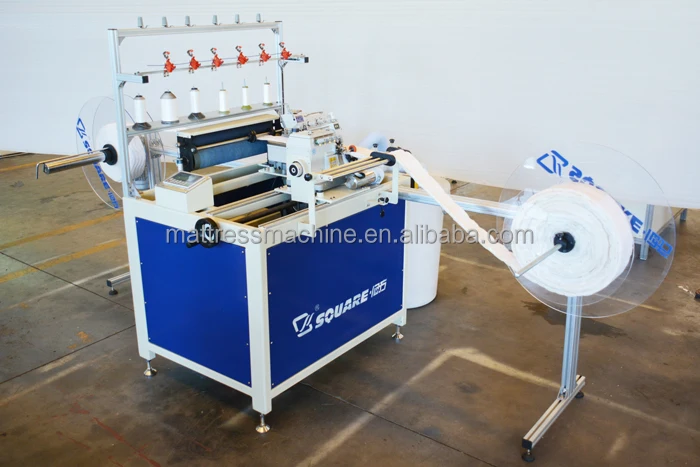

Model SKB mattress double serging machine



main application & performance:

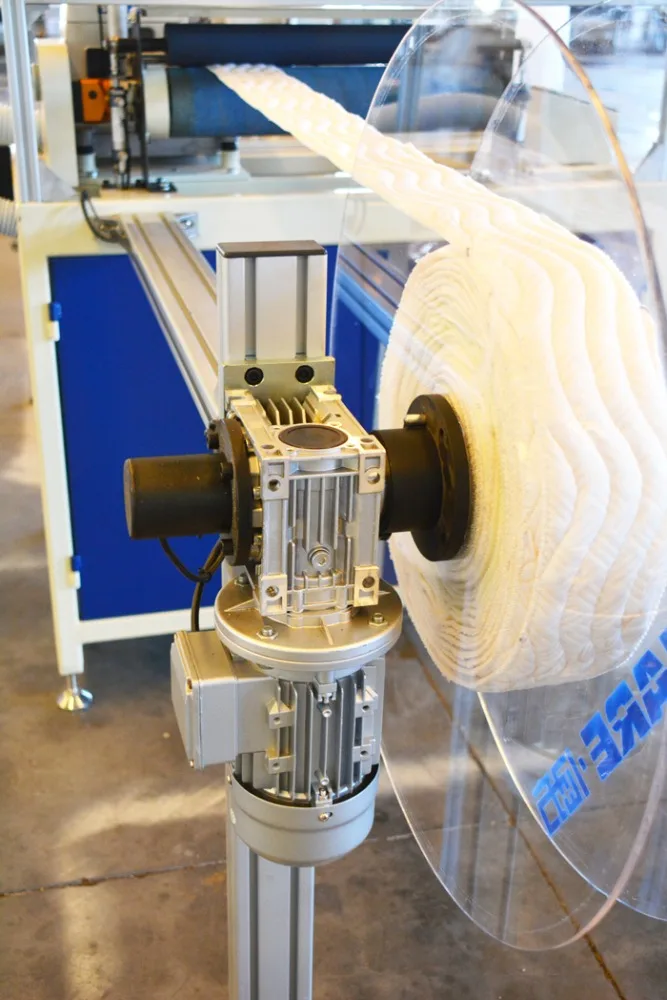

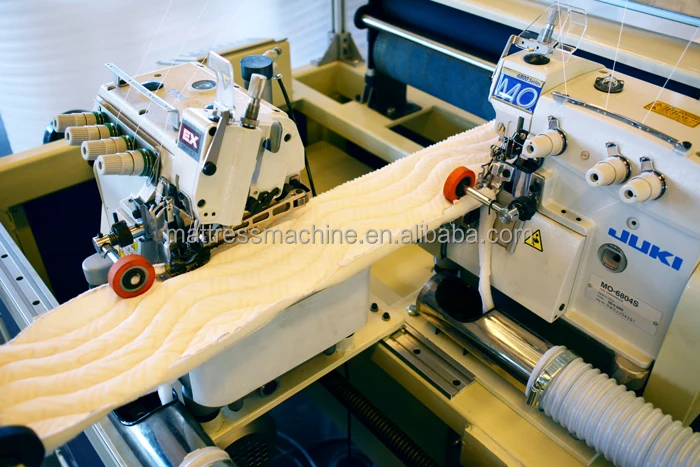

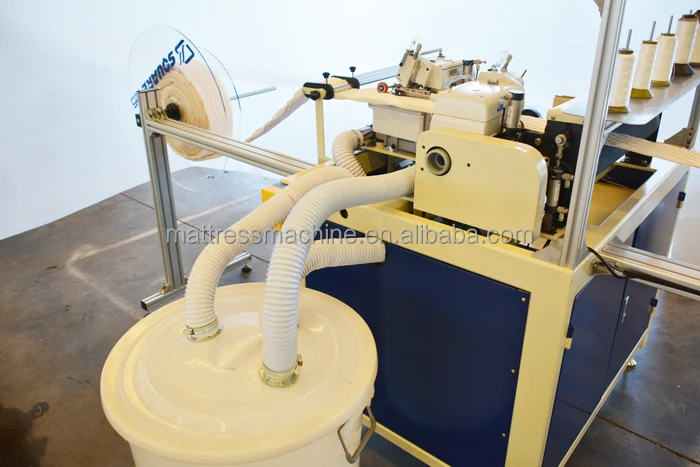

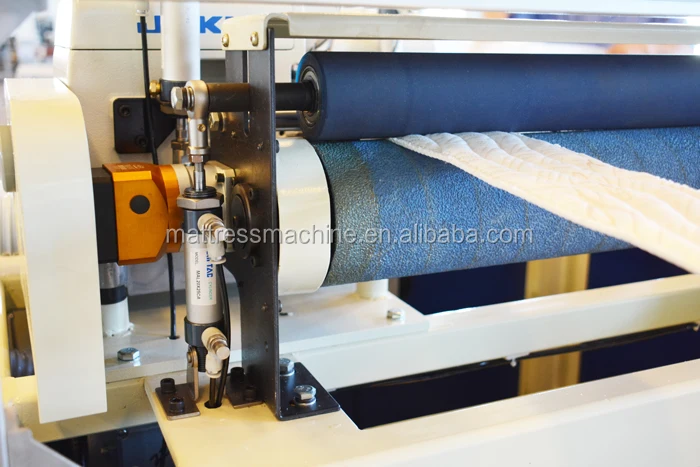

mattress side panel, the mattress double serging machine has two independent sergers, synchronization of them is controlled by two AC motors with frequency converter velocity modulation, the mattress double serging machine has two Servo drive variable speed puller with long lasting urethane rollers, material tensioning device, and rewinder. the double serging machine has excessive material auto-cutting device along with a vacuum scrap-collection device. Additionally, the mattress double serging machine is equipped with thread break detection device as well as material splice auto-stop device.



Main parameter:

Serging mode:	single border, dual border
Sewing head quantity:	2
Available fabric width:	0-450mm (adjustable)
Serging speed:	Max 22M/min (adjustable)
Max. Material thickness:	≤20mm  (middle density)
Needle Pitch:	6mm
Max. Presser lift:	8mm
Rated air pressure:	0.5-0.8Mpa
Power:	2.2KW
