angle load horse float, luxury camper float for 3 horses

MODEL:3HAL+1815

1.TRAILER MATERIALS

1.1 CHASSIS MATERIAL double hot dip galvanized RHS(3.5mm-4.0mm)

1.2 FRAME MATERIAL double hot dip galvanized RHS(2.5mm)

1.3 BODY PANEL galvanized (1.2mm)

1.4 ROOF special molded FRP 6000*1890*450mm

1.5 NUTS & BOLTS stainless steel

2.WHEELS & TYRES

2.1 WHEEL RIM 14' aluminium alloy rims

2.2 TYRES 185R14C

2.3 SPARE WHEEL one

3.AXLES & SUSPENSIONS

3.1 AXLES two special trailer axles

3.2 LEAF SPRINGS roll rocker tandem spring suspension 8 plates

3.3 BRAKE SYSTEM 4 wheel electric brakes with brake-away systems

4.WINDOWS & DOORS

4.1 FRONT WINDOW 1220*610

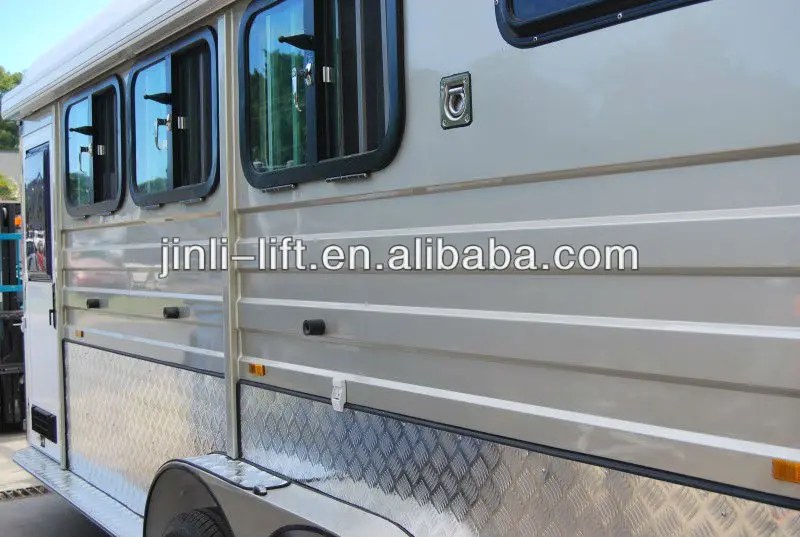

4.2 SIDE WINDOWS 3 pop-up rectangle windows,3 sliding rectangular windows

4.3 VENTS three sash casement vent

4.4 SIZE OF SIDE DOOR 1755*615 caravan door

4.5 REAR UPPER DOOR 2020*1065

4.6 RAMP DOOR 2020*1210

4.7 REAR UPPER & RAMP DOOR STRUT high-intensity anti-rust strut

4.8 HINGES FOR REAR UPPER DOOR special 6mm diameter copper hinges

5.DRAWBAR

5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium

5.2 DRAWBAR SAFETY CHAIN two

5.3 BRACING WHEEL one

6.LIGHTS & RETRO REFLECTORS

6.1 TRAILER PLUGS square 7 wick plug

6.2 SIDE LAMPS 6

6.3 REAR LAMPS LED group

6.4 REAR LAMPS STAND aluminium

6.5 RETRO REFLECTORS 6

7.MUDGUARD

7.1 MUDGUARD TYPE compact mudguard

7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard

7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminium decoration board

8.INTERIOR & EXTERIOR

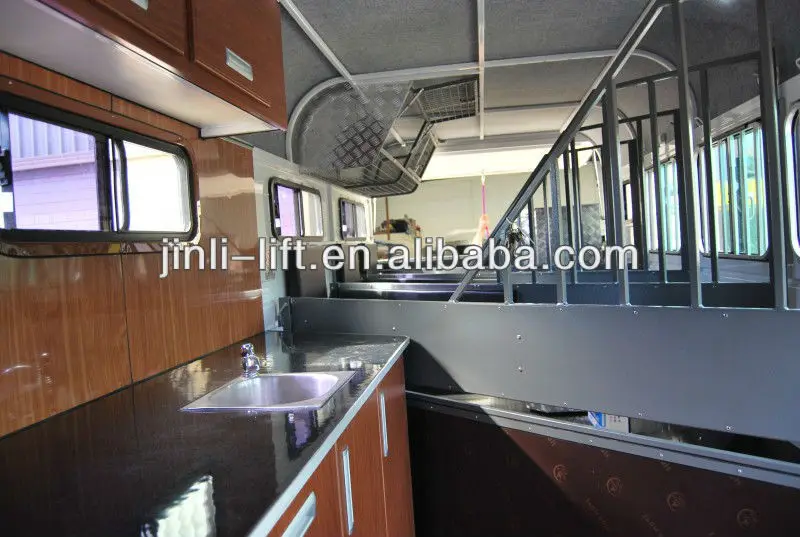

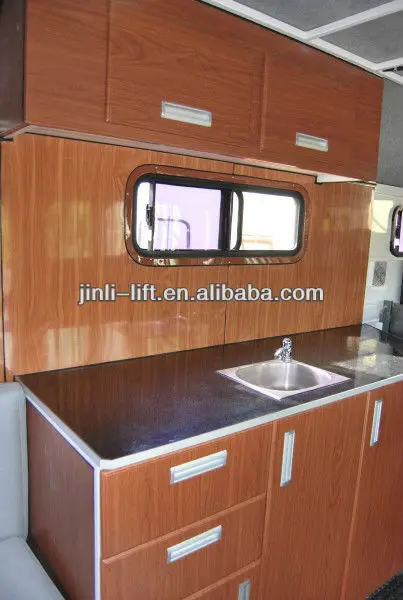

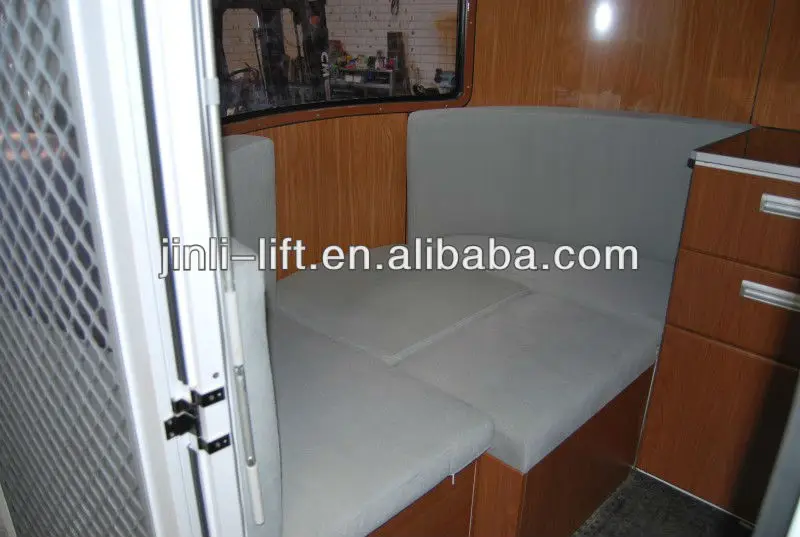

8.1 HUMAN ROOM a kitchen with a side cupboard with sink, water tank and pump, front beds , middle partition can be raised as a table

8.2 HORSE PROTECTION FRAME full padded

8.3 HORSE RING four

8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting

8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting

8.6 RUBBER MATTING FOR INNER SIDE PANEL 6mm rubber matting

8.7 WOOD BOARD FOR FLOOR & RAMP DOOR 18mm hardwood plywood

8.8 ROOF LINING yes

8.9 RUG RACK side

8.10 FRONT TACK BOX one

8.11 SADDLE RACK in saddle box

8.12 SADDLE BOX 1500mm height for 3 saddles

8.13 AWNING one

8.14 PAINTING single or customized

9.DIMENSIONS

9.1 OVERALL DIMENSIONS ( L x W x H: mm ) 6850*2280*2590

9.2 BODY DIMENSIONS ( L x W x H: mm ) 6000*1980 *2230

9.3 MAXIMUM INTERNAL DEMENSION: 5975*1930*2155
