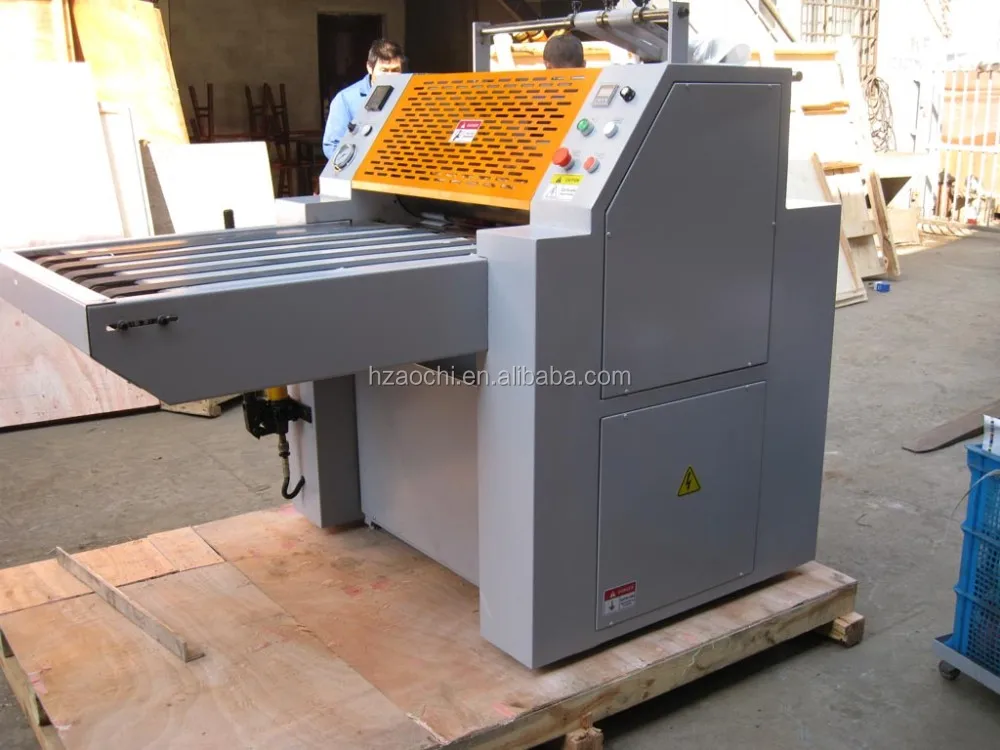

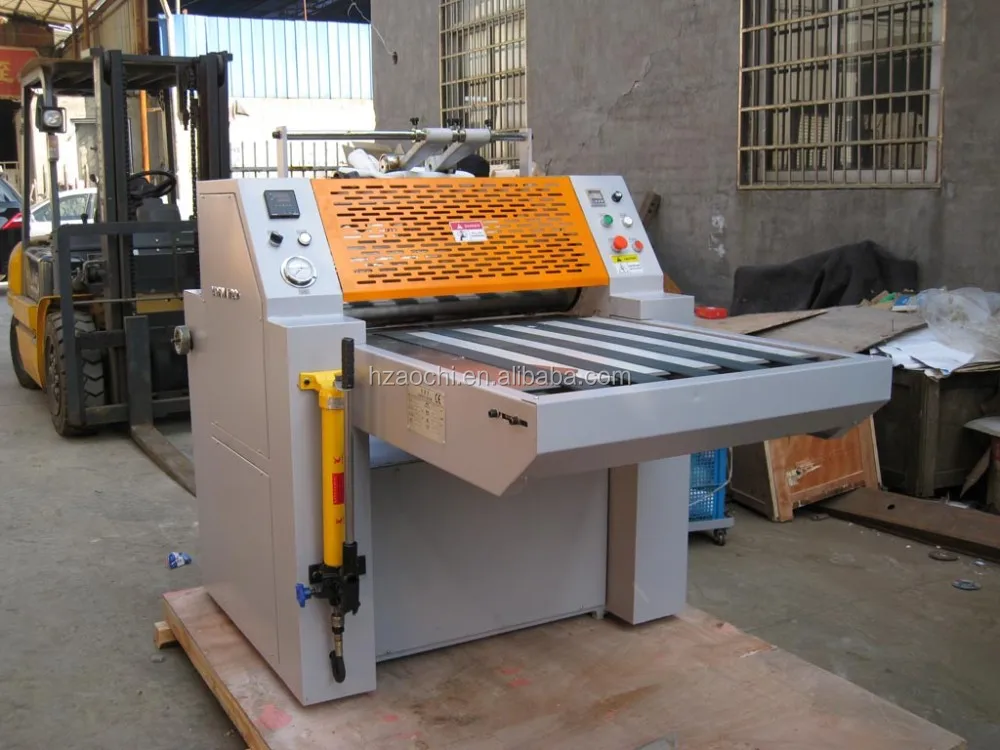

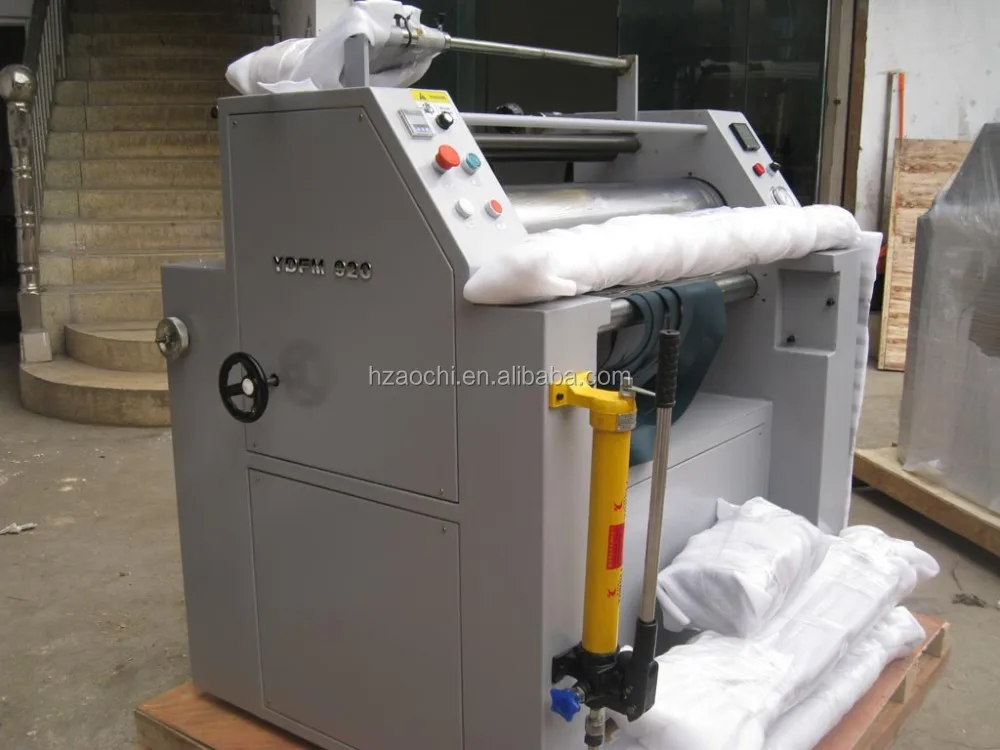

This machine uses manual hydraulic pressure system,so it has big and even pressure force,high laminating speed with automatic temperature control and speed regulation,conveyer belt for paper delivery,enlarged roller, even electric heating.The laminated large area of product has high degree of uniformity, strong adhesiveness, free of rolling.It also can take place of the embosser with a fiction of embossing roller.
This machine takes BOPP as material,it can widely apply to surface of laminating film for window type packing box,food box,books and periodicals, drawing sheet,advertisements,documents and etc. Products laminated can be waterproof, durable,having clear picture and strong third dimension.
Main Technical Variables:
Model
YDFM-720
YDFM-920
YDFM-1200
Laminating width
620mm
820mm
1080mm
Laminating speed
0-30m/min
0-30m/min
0-30m/min
Laminating Temperature
60-130
60-130
60-130
Motor power
1.1kw
1.5kw
2.2kw
Voltage
380V
380V
380V
Gross weight
470kg
520kg
600kg
Overall dimensions
1900×1300×1600mm
1900×1500×1600mm
1900× 1700× 1600mm

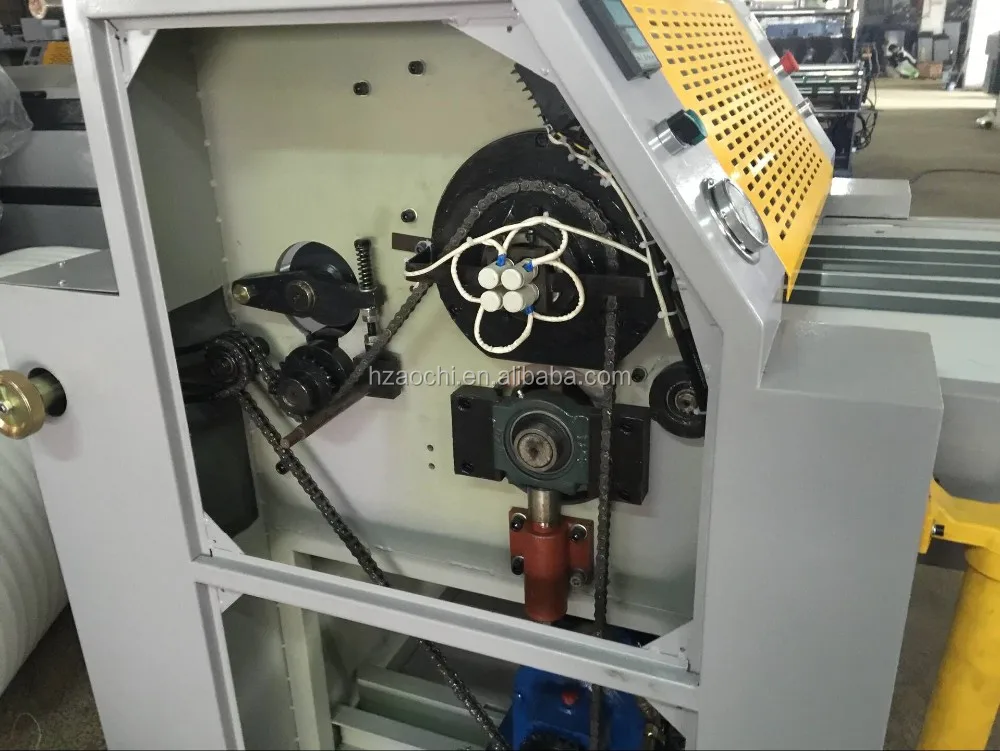

Detailed Images

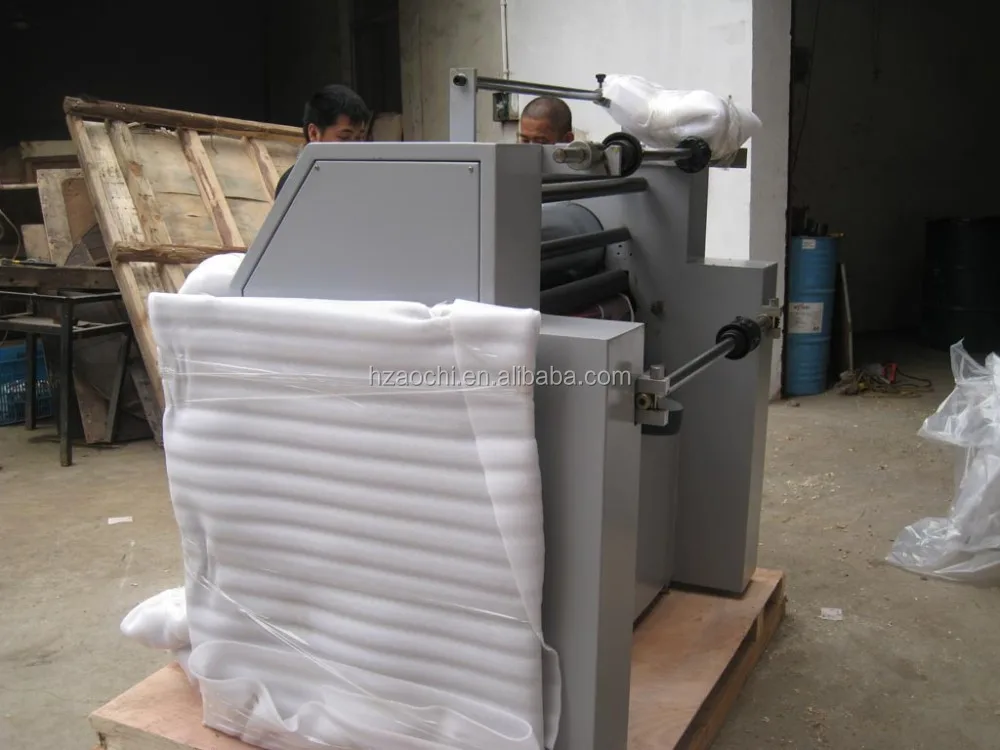

Packaging & Shipping
Our Exhibition
Certifications
Our Services
FAQ
1. Q: Are you a factory or trading company? A: We are manufacturer,and also on stop solution for paper printing and packaging machines.
2. Q: what’s the delivery time ? A: Normal production time 25-35 days, but base on different period.
3. Q: Do you have CE Certificate?
A: yes, All machine have CE.
4. Q: Do you have any working machine for us to visit? A: Yes,We have running machine to show.
5. Q: How is the warranty of the machine? A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
6. Q:Is it safe on the payment for me as we are the first cooperation? A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
7. Q: How about installation?
A: We can send engineer to help install the machine, but the charge should afford by you, and we also can take details installation video to you.
